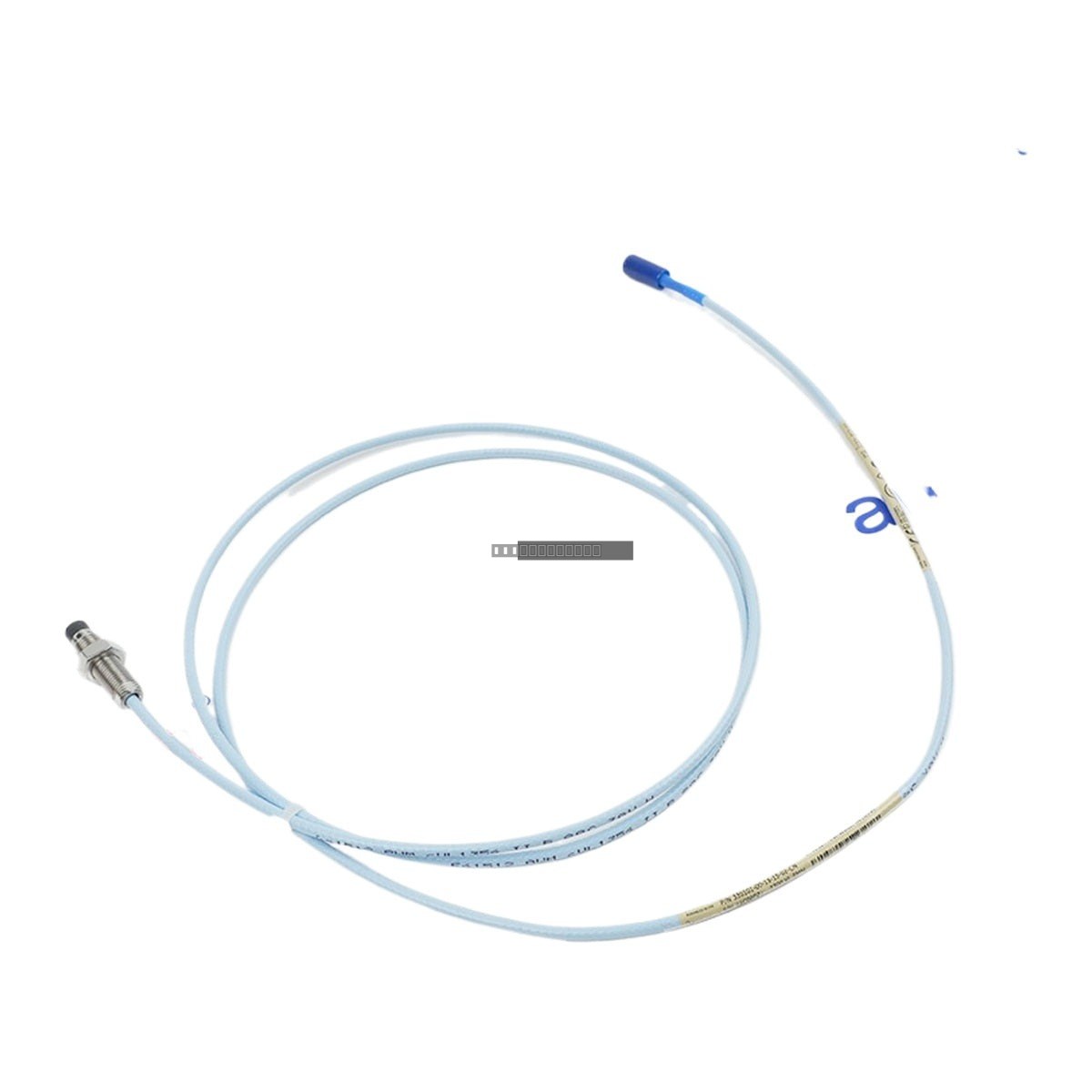

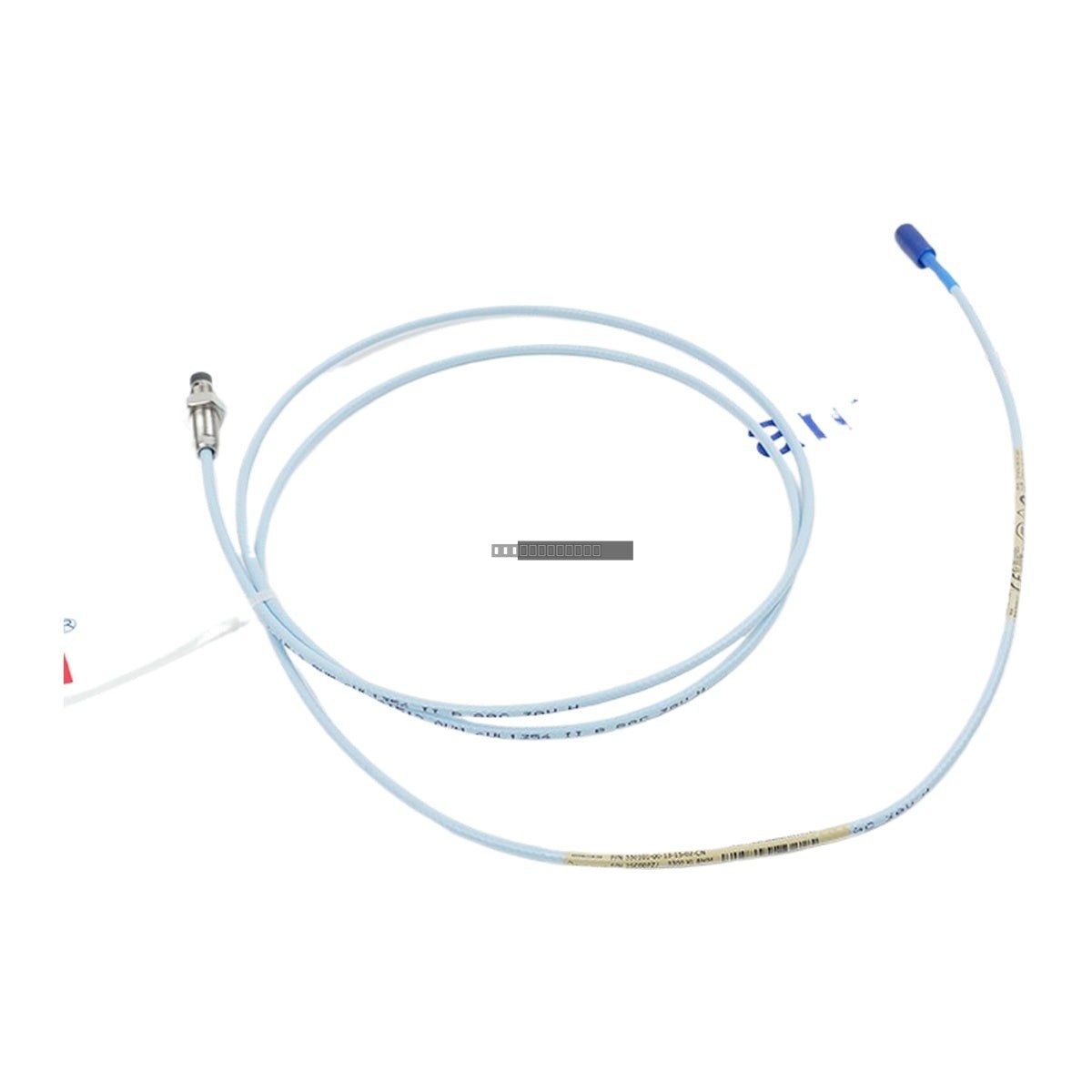

Bently Nevada 330101-00-13-15-02-CN 3300 XL 8 mm Proximity Probe

التوفر: 8 متوفر في المخزون

The Bently Nevada 330101-00-13-15-02-CN is an 8 mm proximity probe from the 3300 XL series. Designed for use within eddy...

رمز المنتج: 330101-00-13-15-02-CN

Manufacturer: Bently Nevada
Product No.: 330101-00-13-15-02-CN
Product Type: Proximity Probe
Product Origin: USA
Payment:T/T, Western Union
Weight: 50g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

The Bently Nevada 330101-00-13-15-02-CN is an 8 mm proximity probe from the 3300 XL series. Designed for use within eddy current proximity transducer systems, this probe provides precise measurement of shaft vibration and position in critical rotating machinery.

Features

Interchangeability: Supports complete interchangeability of probes, extension cables, and Proximitor sensors without the need for individual component matching or bench calibration.
API 670 Compliance: The 3300 XL 8 mm system meets American Petroleum Institute (API) 670 standards for linear range, accuracy, and temperature stability.
Robust Design: Features a 3/8-24 UNF thread and a miniature coaxial ClickLoc connector for secure, reliable signal transmission.
Hazardous Area Approvals: Includes CSA, ATEX, and IECEx certifications for safe operation in explosive atmospheres.

Applications

Turbines: Monitoring shaft vibration and axial thrust in gas and steam turbines.
Compressors: Used in centrifugal, axial, and reciprocating compressors across oil, gas, and power generation sectors.
Motors and Generators: Ensuring stability and monitoring bearing health for large industrial rotating equipment.
Pumps: Measuring dynamic vibration and shaft position for high-energy pumping systems.
Gearboxes: Tracking internal shaft movement and speed to detect early signs of mechanical wear.

Technical Specifications

Model	330101-00-13-15-02-CN
Probe Diameter	8 mm
Thread Size	3/8-24 UNF
Unthreaded Length	0.0 in
Case Length	1.3 in
Cable Length	1.5 meters (4.9 feet)
Connector Type	Miniature coaxial ClickLoc
Approvals	CSA, ATEX, IECEx

Installation Guidelines

Handling: Proximity probes are precision instruments. Handle with care to avoid damage to the probe tip or cable insulation.
Mounting: Ensure the probe is mounted in a rigid bracket to prevent mechanical resonance. Use the provided locknuts to secure the probe position.
Wiring: Use shielded coaxial cabling for all connections to the Proximitor sensor to minimize EMI/RFI interference.
Gap Setting: Ensure the initial gap is set according to the machine's technical documentation, typically targeting a mid-range voltage of -10 VDC.
Safety: Always power down the transducer system before disconnecting or replacing components in hazardous areas.

FAQ

What is this product?

It is a Bently Nevada 3300 XL 8mm Proximity Probe, used in Proximity Transducer Systems (PTS) for monitoring machine vibration and position.

What is the typical gap voltage for this sensor?

The gap voltage for a 3300 XL probe system is typically set at -10 VDC. The linear range generally operates between -2 VDC and -18 VDC.

Is this product brand new?

Yes, the 330101-00-13-15-02-CN is supplied as new, original, and unused equipment.

Do you provide a warranty?

We provide a 12-month warranty for this product from the date of delivery.
