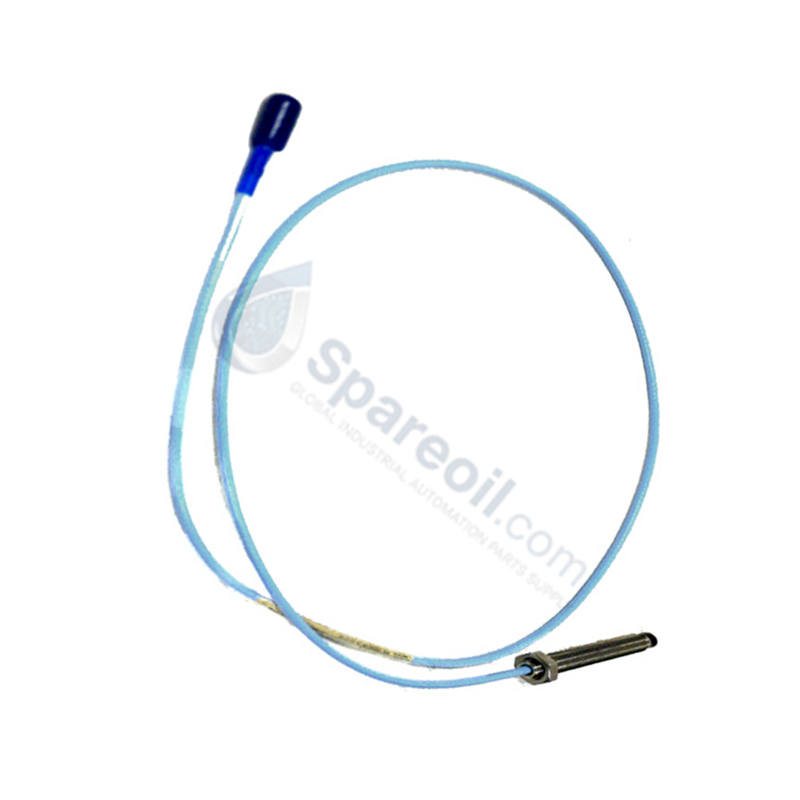

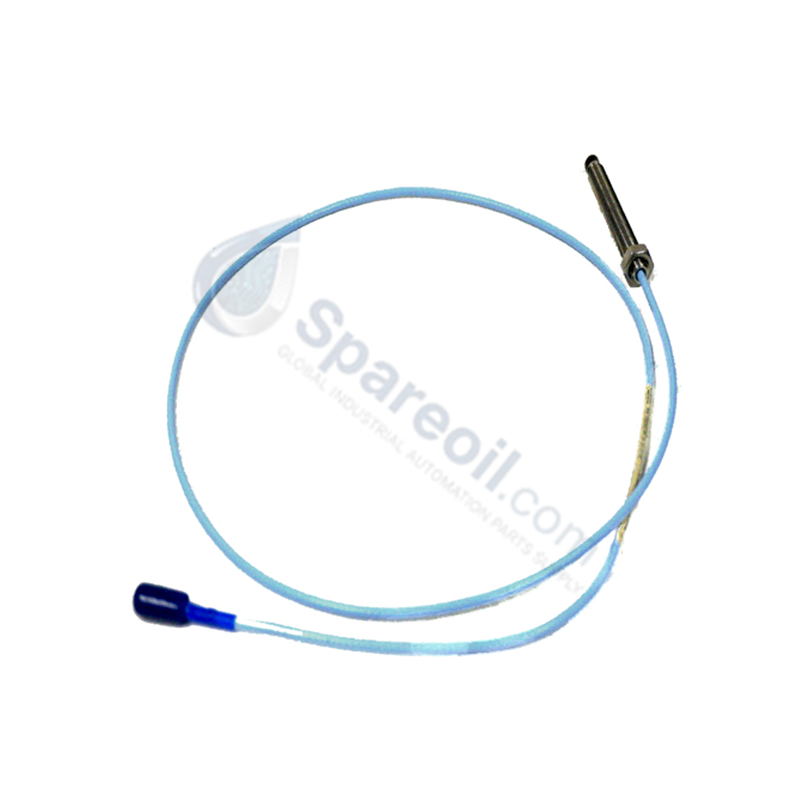

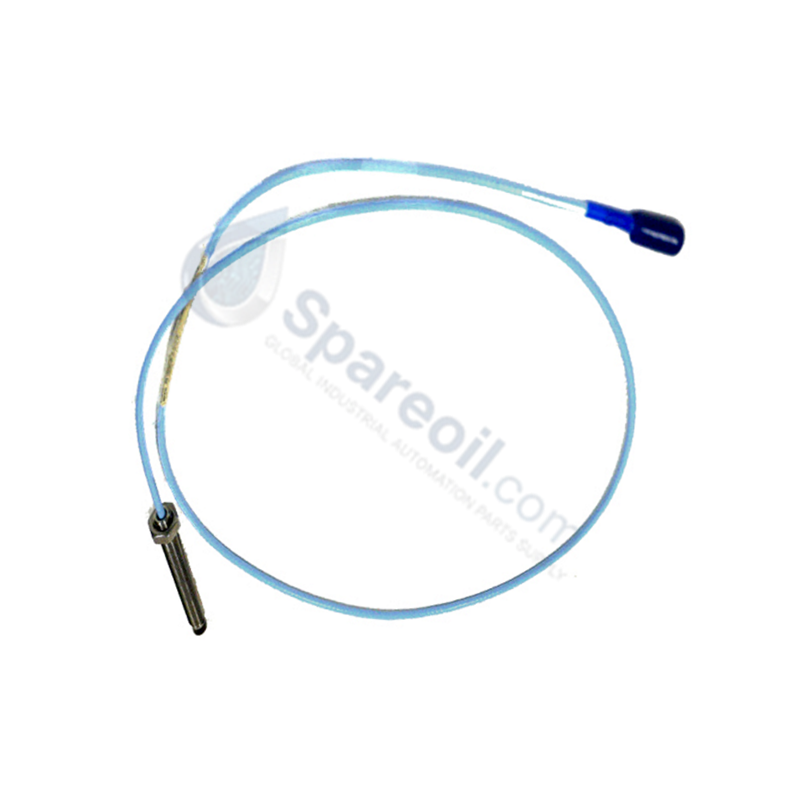

Bently Nevada 330101-00-40-05-02-00 3300 XL 8 mm Proximity Probe

Bently Nevada 330101-00-40-05-02-00 3300 XL 8 mm Proximity Probe

التوفر: 10 متوفر في المخزون

Configured for displacement measurement in rotating machinery, the Bently Nevada 330101-00-40-05-02-00 (330101 8 mm Proximity Probe) provides direct physical execution...

رمز المنتج: 330101-00-40-05-02-00

Manufacturer: Bently Nevada
Product No.: 330101-00-40-05-02-00
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 323g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Configured for displacement measurement in rotating machinery, the Bently Nevada 330101-00-40-05-02-00 (330101 8 mm Proximity Probe) provides direct physical execution of gap-to-voltage conversion for vibration and position monitoring.

Suffix Breakdown & Model Matrix

Option Component	Selection	Description
Model	330101	3300 XL 8 mm Proximity Probe
Unthreaded Length	00	0.0 in
Case Length	40	4.0 in
Total Length	05	0.5 m
Connector Type	02	Miniature coaxial ClickLoc
Agency Approval	00	Not required

Hardware Specifications

Parameter	Specification
Model	330101-00-40-05-02-00
Brand	Bently Nevada
Origin	USA
Weight	0.323 kg
Dimensions	3/8-24 UNF thread, 4.0 in case length
Operating Temp	-51 deg C to +177 deg C
Power Consumption	Driven by 3300 XL Proximitor Sensor

Bently Nevada Mechanical Monitoring and TSI Characteristics

The 330101 probe system utilizes eddy-current probe scaling to convert target distance into a linear voltage signal, standardized at 7.87 V/mm (200 mV/mil). Accurate vibration analysis requires gap voltage validation against -10 VDC targets during installation to ensure the probe operates within the linear portion of the Proximitor transfer curve. For applications involving multiple sensors, cross-talk suppression must be maintained by ensuring proper probe separation, preventing mutual signal interference. The coaxial signal path must remain electrically continuous; avoid sharp bends in the cable to prevent characteristic impedance fluctuations that distort rotor dynamics data.

Frequently Asked Questions

Q: Can the 0.5 m cable be field-terminated or extended?

A: No. The 3300 XL system is a factory-calibrated unit. Altering the cable length changes the system's electrical capacitance and inductance, which will invalidate the factory calibration and cause measurement errors.

Q: What is the requirement for the ClickLoc connector during installation?

A: The ClickLoc connector provides a secure, vibration-resistant connection. It must be fully seated until a tactile click is felt to ensure reliable continuity in the coaxial path and to maintain the integrity of the signal shielding.

Field Installation Guidelines

Ensure the mounting hole is drilled and tapped for 3/8-24 UNF threads, maintaining perpendicularity to the shaft surface.
Carefully install the probe into the mounting bracket. Avoid using excessive force that could damage the probe tip or the threaded housing.
Once the probe is positioned to the desired gap, secure the jam nuts using standard torque values to prevent movement during high-speed machine operation.
Route the coaxial cable through shielded conduit, ensuring the cable is not subjected to stress or sharp bends that exceed the minimum bend radius.
Validate the output voltage using a high-impedance digital multimeter at the Proximitor sensor terminals to ensure the gap is set correctly before machine startup.
