330102-00-24-10-02-00 Bently Nevada Proximity Probe Datasheet

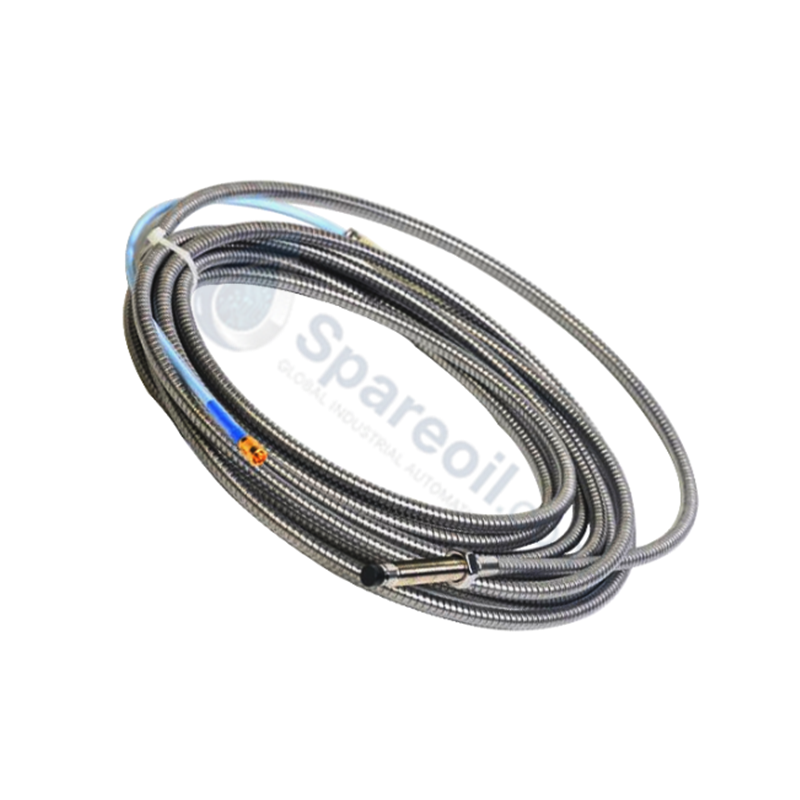

Bently Nevada 330102-00-24-10-02-00 3300 XL Series Proximity Probe

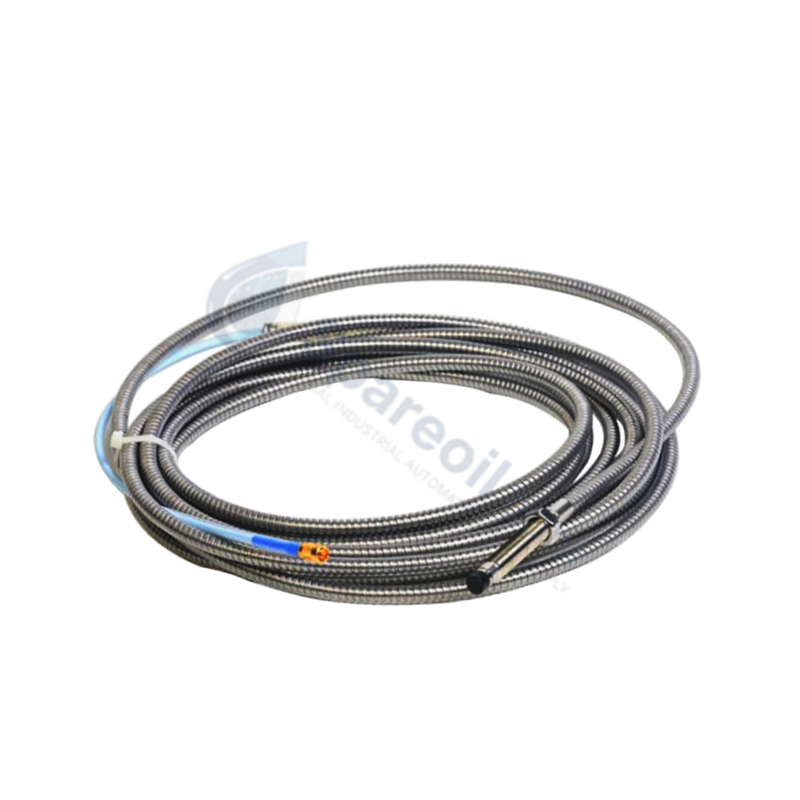

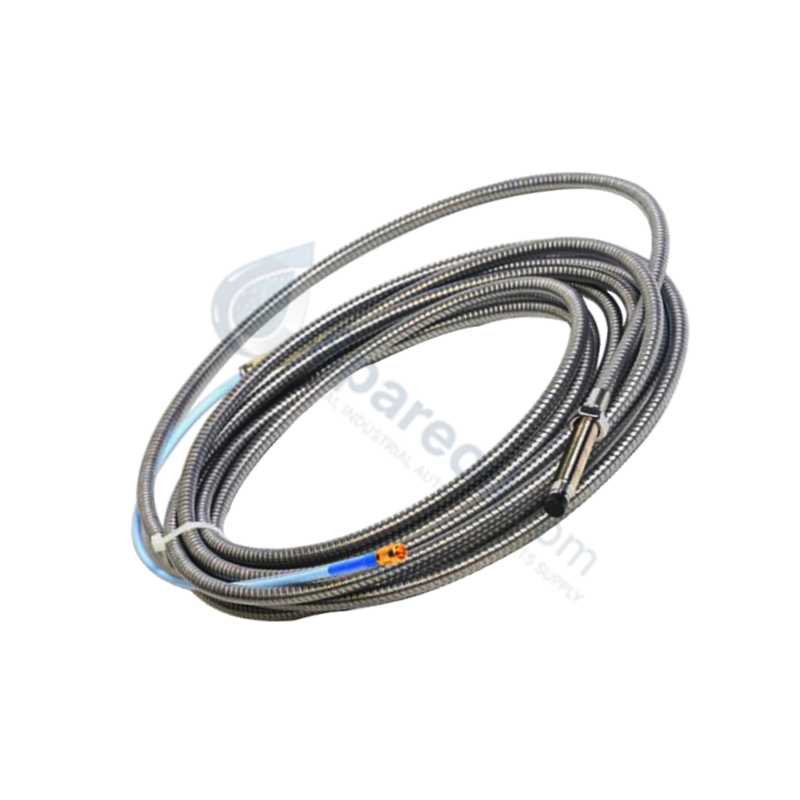

Bently Nevada 330102-00-24-10-02-00 3300 XL Series Proximity Probe

التوفر: 10 متوفر في المخزون

The Bently Nevada 330102-00-24-10-02-00 serves as the primary 330102 Proximity Probe utilized to execute vibration and displacement monitoring across 3300...

رمز المنتج: 330102-00-24-10-02-00

Manufacturer: Bently Nevada
Product No.: 330102-00-24-10-02-00
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 323g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

The Bently Nevada 330102-00-24-10-02-00 serves as the primary 330102 Proximity Probe utilized to execute vibration and displacement monitoring across 3300 XL Transducer System platforms. The system creates a high-frequency radio frequency field at the probe tip to register changes in the eddy-current field generated when a conductive metal shaft transitions across its path, outputting a continuous voltage change directly related to the physical clearance gap.

Suffix Breakdown & Model Matrix

330102: Base configuration representing the 3300 XL 8 mm proximity probe with 3/8-24 UNF threads and protective stainless steel armor.
-00: Unthreaded length option, indicating 0 mm of unthreaded body section.
-24: Overall case length option, indicating a 24 mm threaded housing envelope.
-10: Total length option, establishing a 1.0 metre (3.3 feet) integrated assembly.
-02: Connector and cable option designating a miniature coaxial ClickLoc connector on a standard electrical cable core.
-00: Agency approval option, identifying that hazardous area certification is not required for the specific deployment area.

Hardware Specifications

Parameter	Specification
Model	330102-00-24-10-02-00
Brand	Bently Nevada
Origin	USA
Weight	Approx. 0.35 kg
Dimensions	8 mm probe tip diameter, 24 mm overall case length, 3/8-24 UNF thread
Operating Temp	-51 deg C to +177 deg C
Power Consumption	Passive sensor energized exclusively by external Proximitor loop supply
Thread Type	3/8-24 UNF
Cable Assembly	Interlocking stainless steel armor over standard coaxial cable core
Connection Type	ClickLoc miniature coaxial interface

Mechanical Monitoring & TSI Technical Attributes

The module processes proximity variables based on a defined eddy-current probe scaling index optimized for standard ferromagnetic targets. Correct implementation mandates an on-site gap voltage validation protocol, adjusting the physical position of the probe body relative to the target until the quiescent DC voltage measures exactly -10 VDC at the center of the calibration envelope. This alignment ensures the measurement remain stable under fast rotor dynamics and transient thermal shifts. Moreover, the structural integrity of the armored cable envelope acts as a physical shield, providing cross-talk suppression between adjacent sensor leads sharing a terminal conduit or routing tray.

Frequently Asked Questions

Q: What is the primary precaution regarding the miniature coaxial ClickLoc connector during physical installation?

A: The ClickLoc interface must be aligned by hand and locked using finger pressure only. Mechanics must not use pliers or side-cutters, as high mechanical compression deforms the gold-plated pin socket, altering the internal RF loop impedance.

Q: Can this specific unarmored-tip probe withstand constant exposure to machine oils?

A: Yes, the probe tip uses polyphenylene sulfide (PPS) composite material which resists degradations from synthetic and mineral-based turbine lubricants across the full temperature spectrum of -51 deg C to +177 deg C.

Q: How is the physical line distance managed when the probe cable is only 1.0 metre long?

A: The probe must connect directly to a matching 3300 XL extension cable to achieve a total system length of either 5.0 or 9.0 metres, matching the specific calibration profile of the target Proximitor Sensor.

Field Installation Guidelines

Verify that the mounting boss exhibits correct 3/8-24 UNF thread alignment and is free of metal fragments, grease, or paint.
Advance the probe assembly into the threaded penetration by hand to prevent cross-threading until the tip reaches the target material.
Back off the probe housing while verifying the active output using a digital voltmeter across the Proximitor terminal points until the gap voltage validation registers -10 VDC.
Fasten the external locknut tightly against the machine case assembly to prevent thread movement from running machinery vibrations.
Cover the ClickLoc connector link with self-fusing insulation tape to isolate the loop from structural grounding points and prevent fluid ingress.
