330103-00-04-05-02-CN Bently Nevada Series Datasheet & Technical Manual

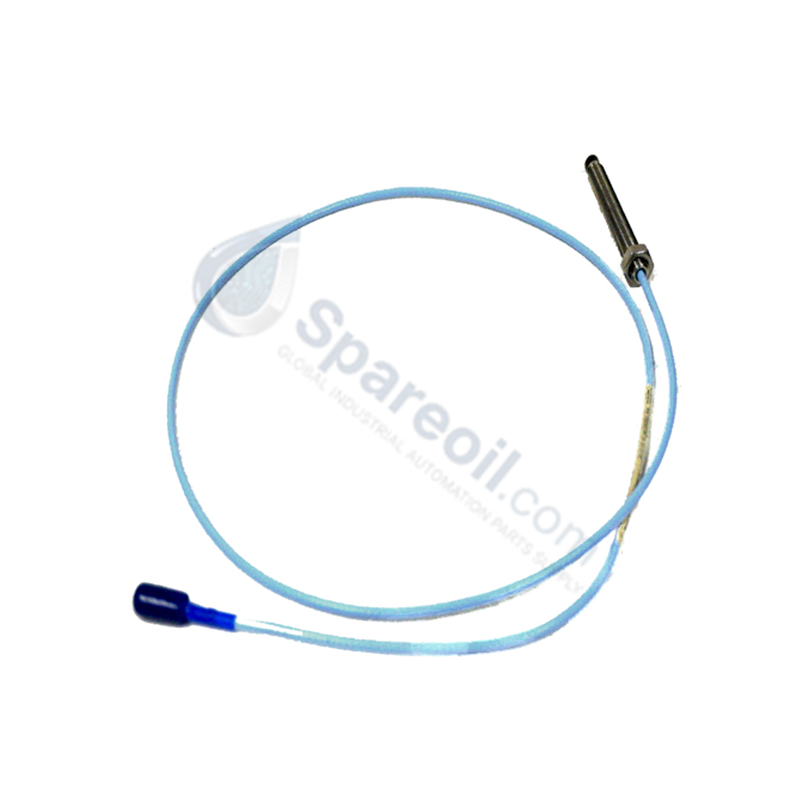

Bently Nevada 330103-00-04-05-02-CN 3300 XL Series Proximity Probe

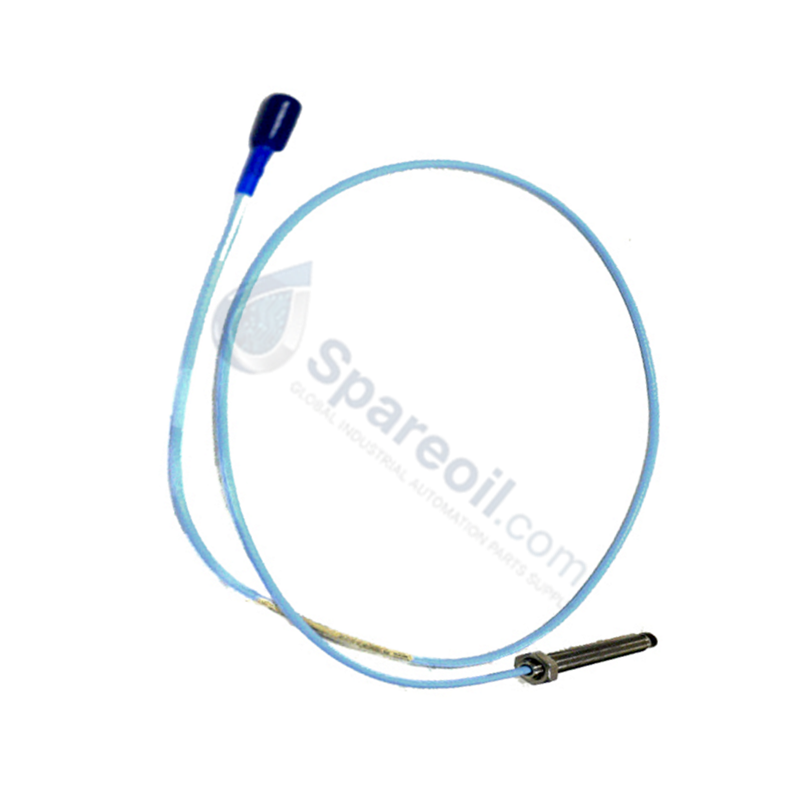

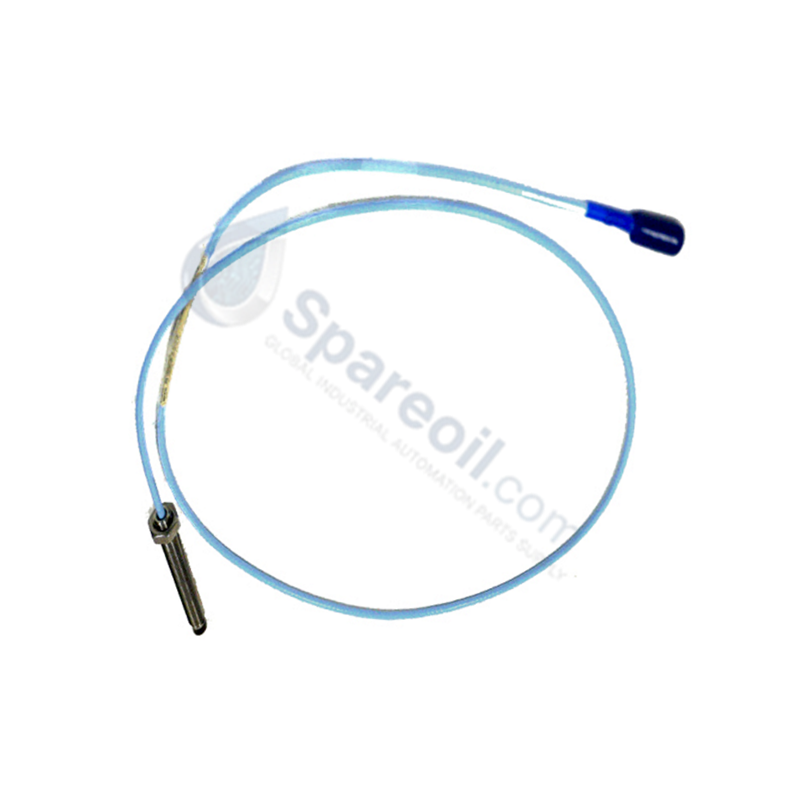

Bently Nevada 330103-00-04-05-02-CN 3300 XL Series Proximity Probe

التوفر: 10 متوفر في المخزون

Configured for vibration and displacement monitoring in 3300 XL Transducer System platforms, the Bently Nevada 330103-00-04-05-02-CN (330103 Proximity Probe) provides...

رمز المنتج: 330103-00-04-05-02-CN

Manufacturer: Bently Nevada
Product No.: 330103-00-04-05-02-CN
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Configured for vibration and displacement monitoring in 3300 XL Transducer System platforms, the Bently Nevada 330103-00-04-05-02-CN (330103 Proximity Probe) provides direct physical/electrical execution. This metric hardware component establishes a high-frequency radio frequency field at the sensor tip, translating physical proximity gaps between the unarmored 8 mm probe face and a rotating conductive metal shaft into proportional electrical modulation loops without physical contact.

Suffix Breakdown & Model Matrix

330103: Base module parameter for the 3300 XL 8 mm proximity probe utilizing an M10 x 1 thread layout without an interlocking armor sheath.
-00: Unthreaded length option, indicating 0.0 mm of smooth, unthreaded barrel depth.
-04: Overall case length option, indicating a 40 mm total threaded housing depth.
-05: Total length option, establishing a 0.5 metre (1.6 feet) integrated cable path length.
-02: Connector and cable type option, selecting a miniature coaxial ClickLoc connector matched with a standard electrical cable core.
-CN: Agency approval option, designating country-specific dangerous area markings including regional industrial safety certifications.

Hardware Specifications

Parameter	Specification
Model	330103-00-04-05-02-CN
Brand	Bently Nevada
Origin	USA
Weight	0.7 kg (2.0 kg shipping weight)
Dimensions	8 mm probe tip diameter, 40 mm case length, M10 x 1 metric thread
Operating Temp	-51 deg C to +177 deg C
Power Consumption	Passive hardware element driven by external Proximitor loop excitation
Housing Material	AISI 303 or 304 Stainless Steel (SST)
Tip Material	Polyphenylene Sulfide (PPS)
Connector Interface	ClickLoc miniature coaxial assembly

Mechanical Monitoring & TSI Technical Attributes

The eddy-current transducer installation requires strict matching to target metallurgy profiles to ensure stable eddy-current probe scaling coefficients across the measurement zone. During field verification, technicians must execute a precise gap voltage validation sequence, mechanically adjusting the probe depth inside the M10 x 1 entry point until the steady-state DC potential registers exactly -10 VDC at the linear center point. This baseline calibration guarantees proper tracking of rapid rotor dynamics and limits physical measurement drift caused by extreme thermal expansion. Cross-talk suppression is maintained by internal coaxial shield density to isolate raw signals from surrounding inductive noise.

Frequently Asked Questions

Q: What physical handling rule prevents calibration shifts at the ClickLoc connection point?

A: The miniature coaxial ClickLoc connector must be engaged and disengaged by hand pressure only. Using mechanical pliers or wire tools permanently warps the internal gold-plated barrel shell, modifying total loop impedance.

Q: Can this 0.5 metre unarmored cable link directly to a remote 3500 monitor rack terminal block?

A: No. The probe is an inductive element requiring a specific 3300 XL extension cable to build out a complete 5.0 or 9.0 metre balanced network matched to the excitation frequency of the host Proximitor Sensor.

Q: How does liquid or oil exposure on the probe tip affect raw output resolution?

A: The polyphenylene sulfide (PPS) tip material is completely non-conductive. Standard non-conductive machine oil coatings do not impact the eddy-current penetration depth or alter the targeted linear tracking.

Field Installation Guidelines

Clean out the M10 x 1 metric threaded penetration, ensuring the interface is free of residual drilling metal, old sealants, or carbon scale.
Thread the 40 mm stainless steel probe body into the mounting hole by hand to eliminate cross-threading hazards.
Hook an external digital multimeter up to the Proximitor loop test points to watch active voltage output during final depth adjustment.
Rotate the probe barrel slowly until the gap voltage validation matches the baseline index of -10 VDC.
Lock the external hex nut firmly against the machine structural wall to preserve the verified air gap under constant operating vibration, and seal the coaxial junction against moisture using self-fusing insulation tape.
