330103-00-05-10-02-00 Bently Nevada Series Datasheet & Technical Manual

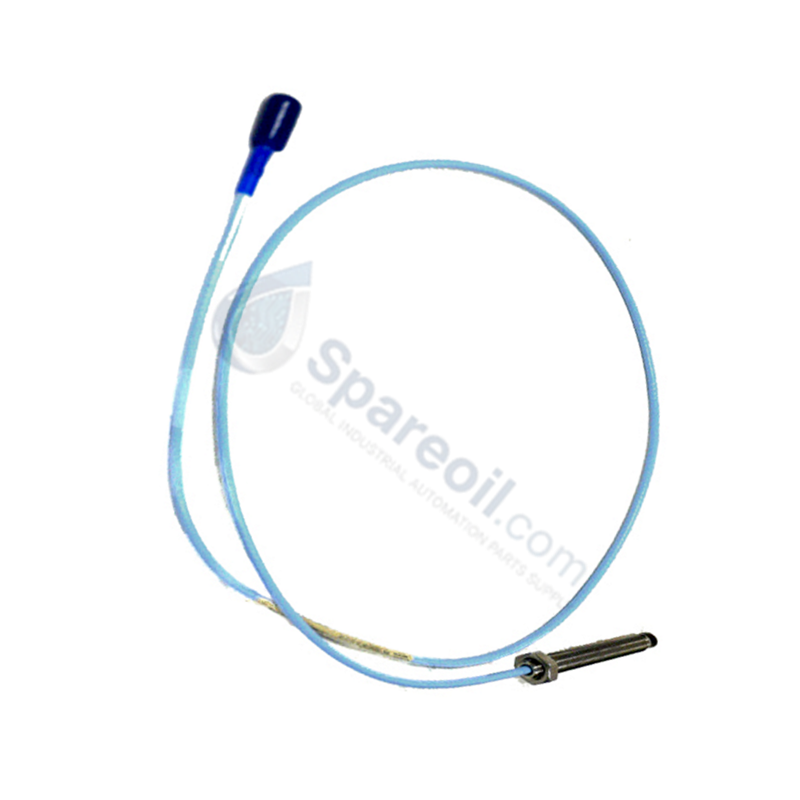

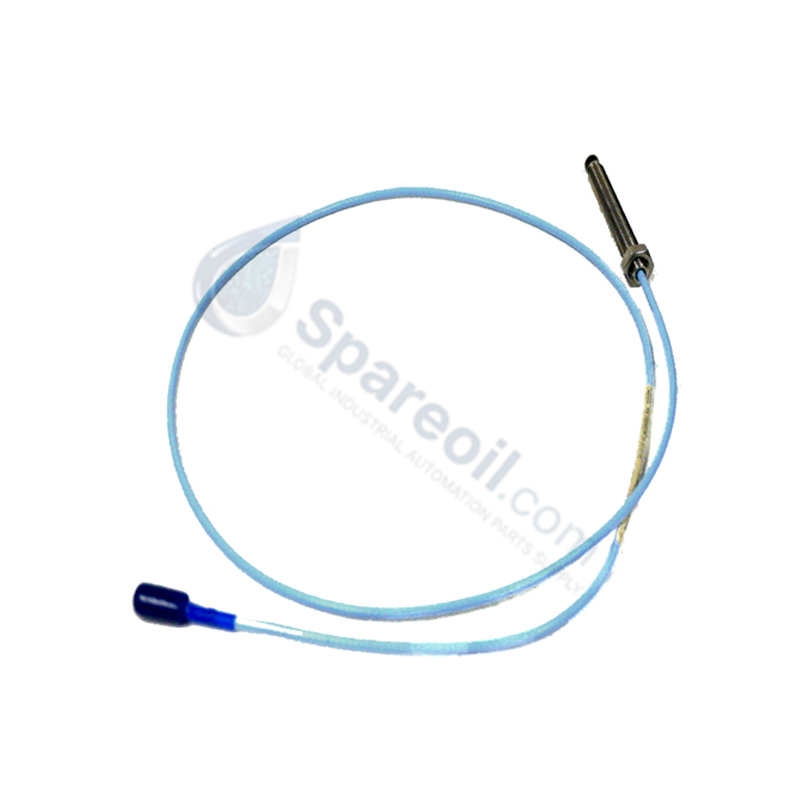

Bently Nevada 330103-00-05-10-02-00 3300 XL Series Proximity Probe

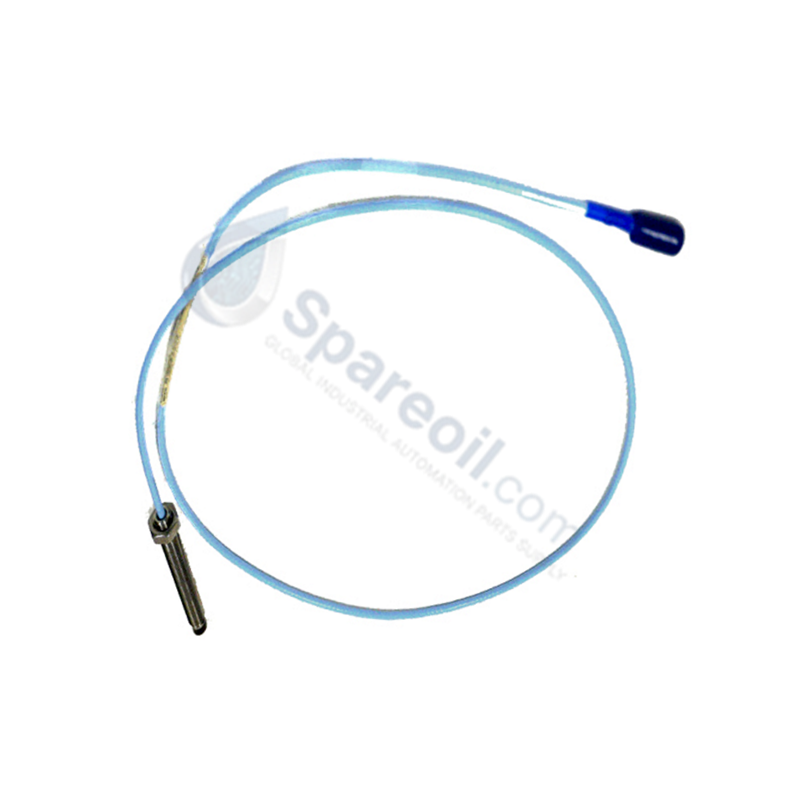

Bently Nevada 330103-00-05-10-02-00 3300 XL Series Proximity Probe

التوفر: 10 متوفر في المخزون

The Bently Nevada 330103-00-05-10-02-00 serves as the primary 330103 Proximity Probe utilized to execute vibration and displacement monitoring across 3300...

رمز المنتج: 330103-00-05-10-02-00

Manufacturer: Bently Nevada
Product No.: 330103-00-05-10-02-00
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 323g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

The Bently Nevada 330103-00-05-10-02-00 serves as the primary 330103 Proximity Probe utilized to execute vibration and displacement monitoring across 3300 XL Transducer System platforms. This passive inductive hardware component processes high-frequency radio frequency loops to track physical gap changes between the unarmored 8 mm probe tip and a moving conductive metal shaft target, transferring proportional voltage variations over a standard unarmored coaxial connection path without mechanical contact.

Suffix Breakdown & Model Matrix

330103: Base module designation for the 3300 XL 8 mm proximity probe utilizing an M10 x 1 metric thread structure without an integrated armor sleeve.
-00: Unthreaded length option, designating 0 mm of smooth barrel.
-05: Overall case length option, designating a 50 mm total threaded housing depth.
-10: Total length option, establishing a 1.0 metre (3.3 feet) integrated cable connection line.
-02: Connector and cable-type option selecting a miniature coaxial ClickLoc connector on standard electrical core wire.
-00: Agency approval option, indicating that hazardous area compliance markings are not required for the specific installation zone.

Hardware Specifications

Parameter	Specification
Model	330103-00-05-10-02-00
Brand	Bently Nevada
Origin	USA
Weight	0.323 kg (1.5 kg shipping weight specification)
Dimensions	8 mm probe tip diameter, 50 mm case length, M10 x 1 metric thread
Operating Temp	-51 deg C to +177 deg C
Power Consumption	Passive hardware element driven via external Proximitor loop supply
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 303 or 304 stainless steel (SST)
Pressure Sealing	Viton O-ring internal boundary
Connector Type	ClickLoc miniature coaxial interface

Mechanical Monitoring & TSI Technical Attributes

The eddy-current transducer assembly requires precise matching to target metallurgy properties to preserve accurate eddy-current probe scaling constants across the physical measurement spectrum. During field commissioning, instrument engineers execute a mandatory gap voltage validation sequence, manually adjusting the depth of the M10 x 1 stainless steel case until the static output potential registers exactly -10 VDC at the linear midpoint. This verification optimizes signal tracking relative to dynamic rotor dynamics while isolating real-time displacement values from thermal shifts. Signal path integrity and cross-talk suppression are sustained through continuous internal coaxial shielding layer termination.

Frequently Asked Questions

Q: What physical function does the integrated Viton O-ring serve in this proximity sensor?

A: The Viton O-ring provides a static fluid boundary designed to seal differential pressure between the polyphenylene sulfide (PPS) tip and the stainless steel case, preventing process fluid migration into the cable core.

Q: Can this 1.0 metre unarmored cable link directly to a remote monitoring monitor rack block?

A: No. The probe is an inductive hardware component requiring an exact matching 3300 XL extension cable to assemble a calibrated 5.0 or 9.0 metre total system loop tuned to the host Proximitor driver.

Q: How does a layer of synthetic machine oil over the probe face alter calibration feedback?

A: The polyphenylene sulfide (PPS) tip is non-conductive. Standard non-conductive lubricating oils do not intercept the high-frequency eddy-current distribution and will not modify the targeted linear tracking characteristics.

Field Installation Guidelines

Clean out the M10 x 1 metric threaded penetration, ensuring the interface is free of residual drilling metal, old sealants, or carbon scale.
Thread the 50 mm stainless steel probe body into the mounting hole by hand to eliminate cross-threading hazards.
Hook an external digital multimeter up to the Proximitor loop test points to watch active voltage output during final depth adjustment.
Rotate the probe barrel slowly until the gap voltage validation matches the baseline index of -10 VDC.
Lock the external hex nut firmly against the machine structural wall to preserve the verified air gap under constant operating vibration, and seal the coaxial junction against moisture using self-fusing insulation tape.
