330910-00-07-10-02-00 Bently Nevada Series Datasheet

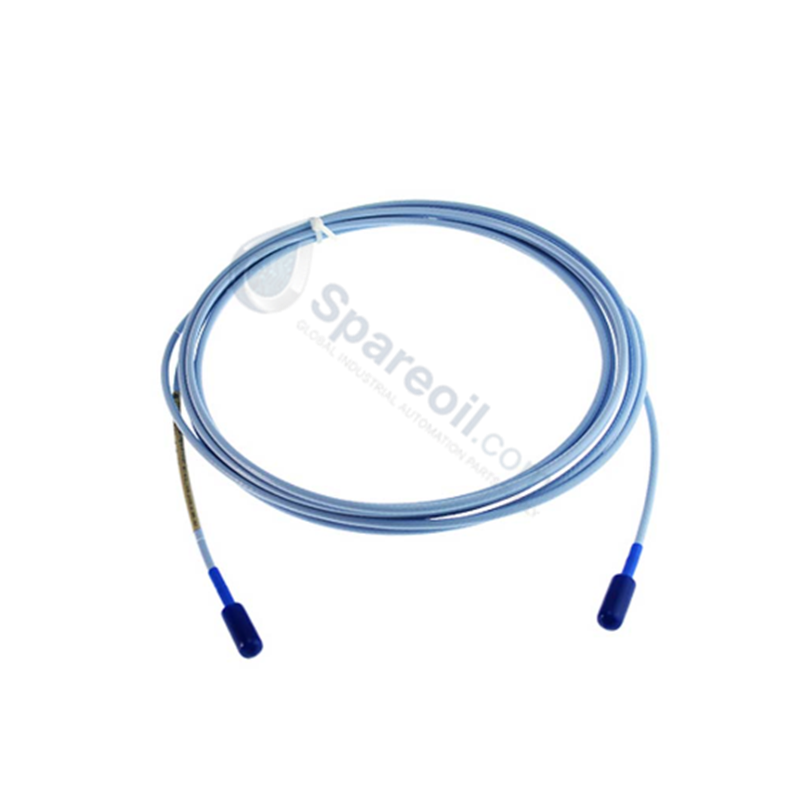

Bently Nevada 330910-00-07-10-02-00 3300 NSv Proximity Probe

Bently Nevada 330910-00-07-10-02-00 3300 NSv Proximity Probe

التوفر: 10 متوفر في المخزون

The Bently Nevada 330910-00-07-10-02-00, also cataloged as the 330910 Proximity Probe, operates as a dedicated hardware component for high-frequency dynamic...

رمز المنتج: 330910-00-07-10-02-00

Manufacturer: Bently Nevada
Product No.: 330910-00-07-10-02-00
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 80g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

The Bently Nevada 330910-00-07-10-02-00, also cataloged as the 330910 Proximity Probe, operates as a dedicated hardware component for high-frequency dynamic shaft vibration and axial position measurement within 3300 XL NSv Proximity Transducer System networks. It emits an eddy-current field designed for installation in restricted-clearance target areas where structural spatial constraints prevent the deployment of standard 5 mm or 8 mm probe housings.

Suffix Breakdown & Model Matrix

Option Code	Specification Parameter	Value / Description
330910	Base Model	3300 NSv Proximity Probe, M10 x 1 Thread
-00	Unthreaded Length Option	00 mm unthreaded length
-07	Overall Case Length Option	70 mm case length
-10	Total Length Option	1.0 metre (3.3 feet) integral cable
-02	Connector and Cable Option	Miniature coaxial ClickLoc connector, standard cable
-00	Agency Approval Option	Not required

Hardware Specifications

Parameter	Specification
Model	330910-00-07-10-02-00
Brand	Bently Nevada
Origin	USA
Weight	Approx 0.08 kg
Dimensions	M10 x 1 thread, 70 mm case length, 1.0 m cable
Operating Temp	-51 deg C to +177 deg C (-60 deg F to +351 deg F)
Power Consumption	Passive transducer (powered by external Proximitor driver circuit)
Target Limits	Shaft diameter less than 51 mm (2 in), axial target less than 15 mm (0.6 in)
Torque Limit	Max 33.9 N-m (25 ft-lb), recommended installation 5.1 N-m (3.8 ft-lb)
Connector Type	Miniature coaxial ClickLoc connector
Compliance	CE compliant

Mechanical Monitoring & Eddy-Current Transducer Performance

The 330910-00-07-10-02-00 probe requires precise eddy-current probe scaling to ensure linear RF voltage output when monitoring target shafts with small physical diameters or limited side clearances. Field verification requires gap voltage validation (-10 VDC targets) across the signal conditioning terminals of the paired 3300 XL NSv Proximitor sensor prior to locking the probe case. Maintaining exact radial alignment mitigates field distortion from surrounding metallic walls, providing effective cross-talk suppression and signal integrity during transient rotor dynamics.

Frequently Asked Questions

Q: How is the -10.0 VDC gap voltage confirmed during installation?

A: Thread the M10 probe case into its mounting fixture while monitoring the DC output voltage at the Proximitor test terminals until the reading stabilizes at -10.0 VDC, confirming the probe tip is set at linear range mid-point.

Q: What is the purpose of the Narrow Side View (NSv) probe design?

A: The NSv design focuses the eddy-current field into a tighter side-clearance profile, allowing linear displacement measurement on target surfaces smaller than 15 mm or shafts smaller than 51 mm without side-view interference.

Field Installation Guidelines

Thread the M10 x 1 casing into the tapped mounting hole, torquing to the recommended 5.1 N-m value and securing with a locknut. Do not exceed the maximum rating of 33.9 N-m.
Clean all miniature coaxial ClickLoc connector contact surfaces to remove particulate matter, moisture, or oil residue prior to mating.
Hand-tighten the ClickLoc coaxial connection until positive mechanical detent engagement is confirmed; do not use pliers or wrenches on connectors.
Route the 1.0 metre integral cable along a path maintaining a static minimum bend radius of 25.4 mm (1.0 in).
Enclose all cable runs inside grounded metallic conduit isolated from high-voltage AC power lines to shield signal loops from external electromagnetic noise.
