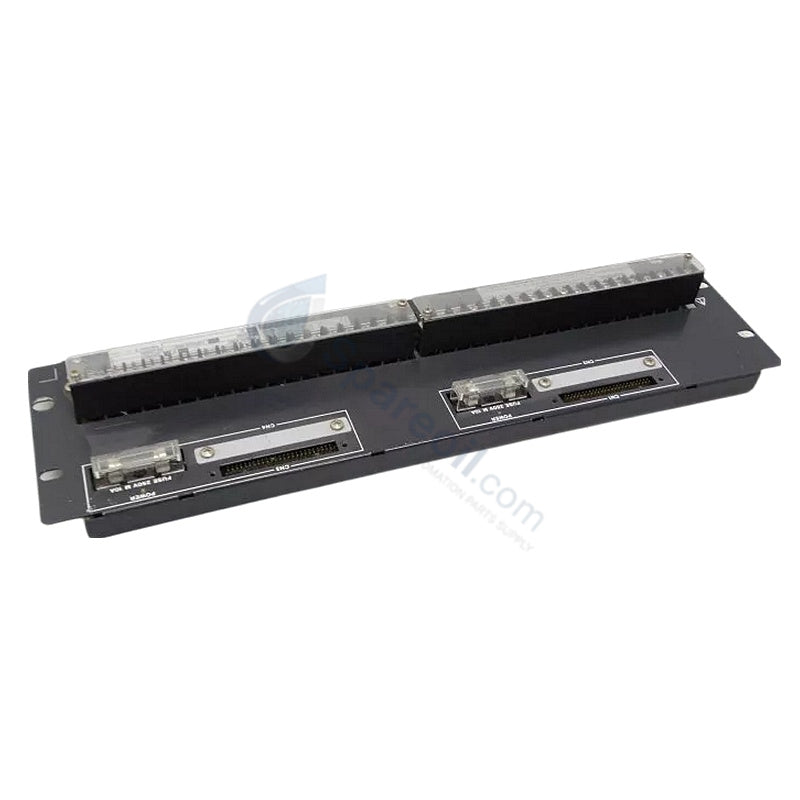

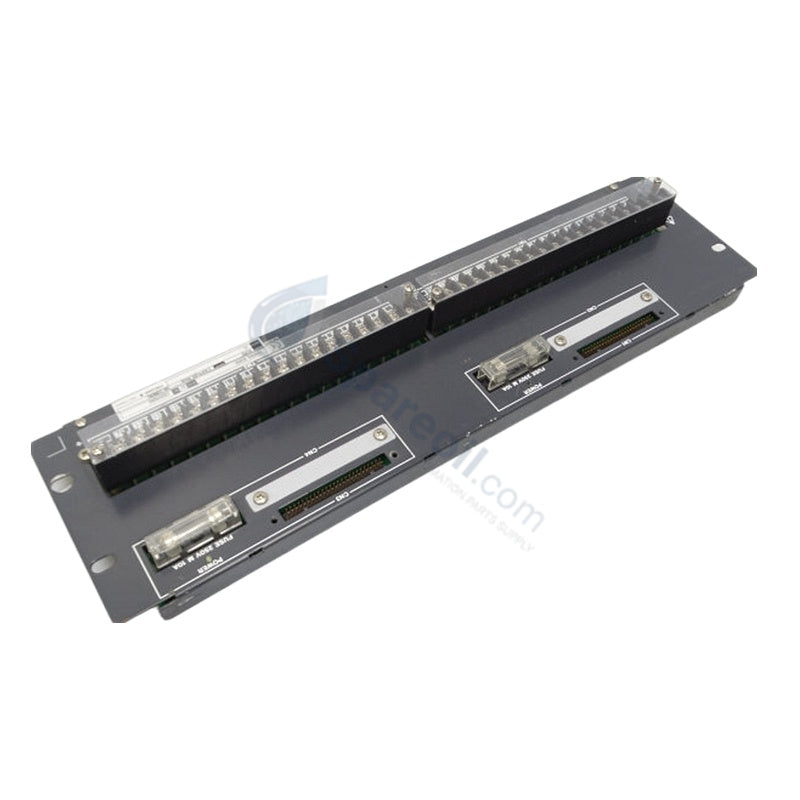

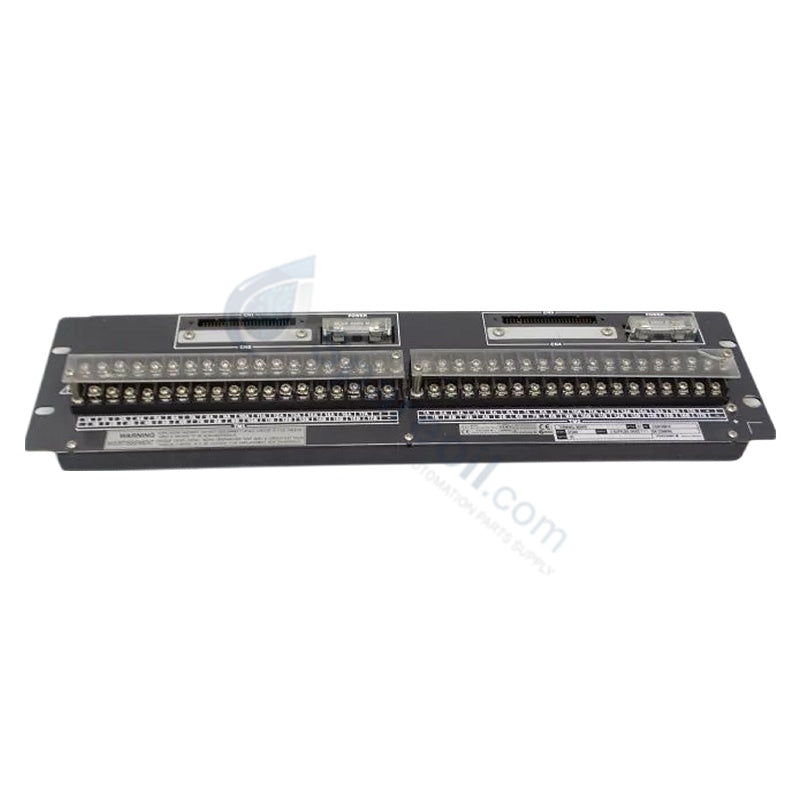

SED4D-01 Yokogawa Digital Terminal Board

Digital Terminal Board | Yokogawa SED4D-01 ProSafe-RS

Digital Terminal Board | Yokogawa SED4D-01 ProSafe-RS

التوفر: 10 متوفر في المخزون

Yokogawa SED4D-01 ProSafe-RS Digital Terminal Board The Yokogawa SED4D-01, also cataloged as the SED4D Digital Terminal Board, serves as the...

رمز المنتج: SED4D-01

Manufacturer: Yokogawa
Product No.: SED4D-01
Product Type: Digital Terminal Boards
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 1500g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Yokogawa SED4D-01 ProSafe-RS Digital Terminal Board

The Yokogawa SED4D-01, also cataloged as the SED4D Digital Terminal Board, serves as the primary SED4D Digital Terminal Board utilized to execute physical/electrical termination between SCU/SNU controllers and field-side digital input wiring across ProSafe-RS Safety Instrumented System platforms. The board interfaces field wiring directly with downstream input circuitry, providing distinct signal mapping points for dedicated loop monitoring devices. It acts as the mechanical marshalling boundary that secures discrete safe-state logic paths from field switches to processing nodes.

Hardware Specifications

Parameter	Specification
Model	SED4D-01
Brand	Yokogawa
Platform	ProSafe-RS Safety Instrumented System
Origin	Japan
Weight	1.5 kg (Shipping weight 2.5 kg)
Dimensions	150 x 120 x 45 mm
Operating Temp	-20 to +70 deg C
Power Consumption	Passive termination distribution; handles dual 24 V DC lines
Channel Configuration	16 channels x 2
Target Module Interface	SDV144 Digital Input Module
Dedicated Interface Cable	AKB331
Terminal Connection Type	M4 screw terminals
Redundant Power Input	Dual 24 V DC input system (20 A combined capacity)
Dielectric Strength	500 V AC for 1 minute (input terminals to case ground)
Insulation Resistance	10 MΩ or greater at 500 V DC

High Reliability Safety Control and SIL3 Execution

The terminal board is constructed to support SIL3 certification loops by providing independent electrical pathways that prevent common-cause hardware failures within the safety loop. The architecture integrates complete galvanic isolation barriers across the field terminal sectors, preventing external fault potentials from propagating into logic-side components. This layout establishes deterministic wiring control lines necessary for fail-safe state execution, maintaining loop diagnostic integrity when coupled to the redundant processing structures of the ProSafe-RS control system.

Frequently Asked Questions

Q: What is the direct manufacturer-recommended replacement for this discontinued terminal board?

A: The SED4D-01 is a discontinued component, and the official newer replacement designated by the manufacturer is the SED4D-06 Digital Terminal Board.

Q: How is input channel redundancy configured on this hardware assembly?

A: The board features a 16 channels x 2 configuration designed to split or duplicate discrete routing paths into the SDV144 safety-configured digital input module via the AKB331 interface cable system.

Q: What is the maximum current limit allowed through the redundant power rail inputs?

A: The terminal board is engineered to distribute power through a dual 24 V DC bus configuration that supports a combined aggregate capacity of up to 20 A.

Field Installation Guidelines

M4 Screw Terminal Torquing: Ensure all field wires terminated into the M4 screw terminals are secure and torqued to standard engineering specifications to prevent open circuits caused by continuous industrial cabinet vibration.
Redundant Power Separation: Route the dual 24 V DC supply cables through independent wire ducts to maintain physical separation between primary and backup power inputs up to the connection terminals.
Chassis Grounding Connection: Connect a low-resistance copper conductor from the ground grounding terminal of the terminal board frame directly to the main safety instrumentation earth bar of the enclosure.
Cable Strain Relief: Secure the heavy AKB331 interface cable bundle using mechanical ties to prevent continuous physical pulling forces from degrading the pin alignments on the board connectors.
