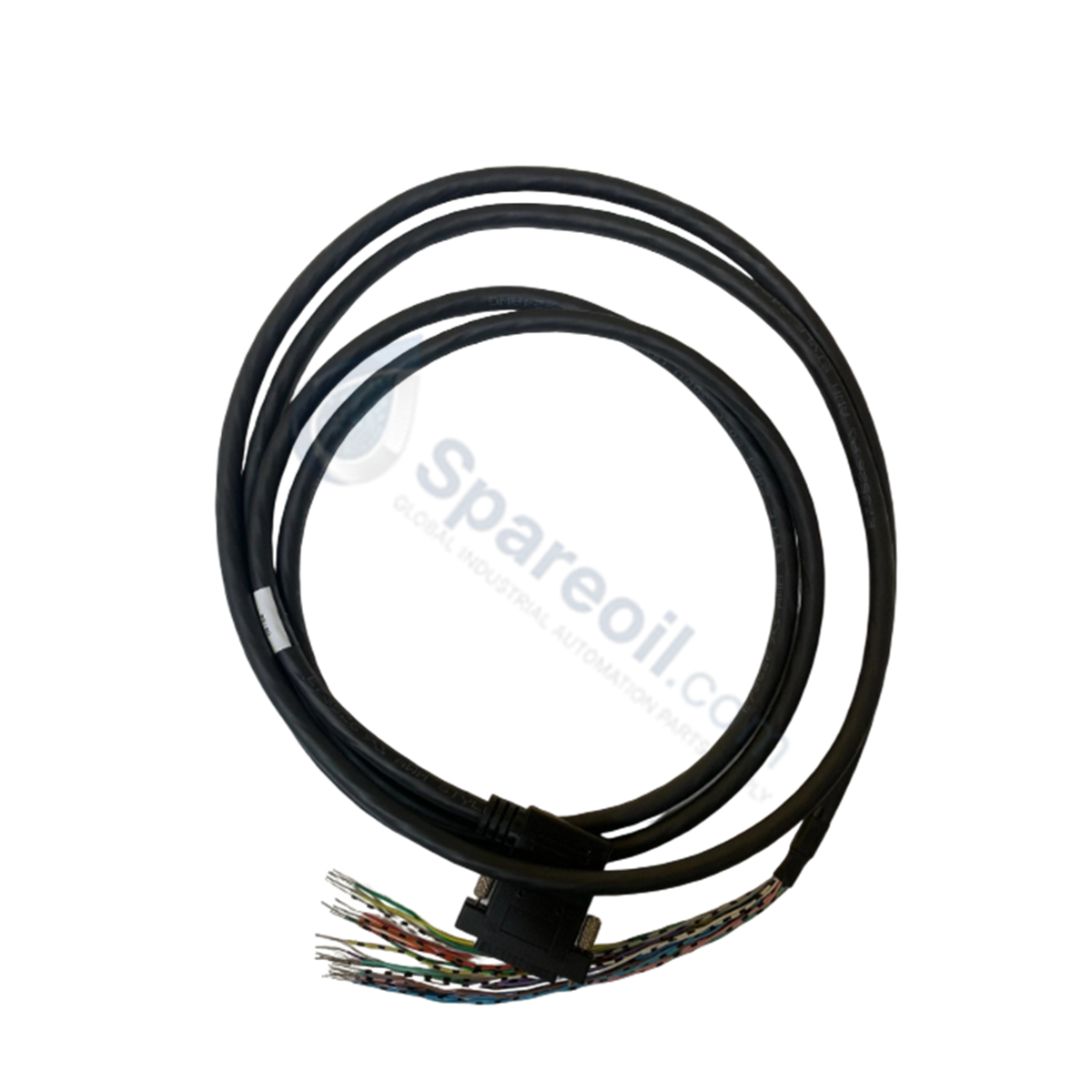

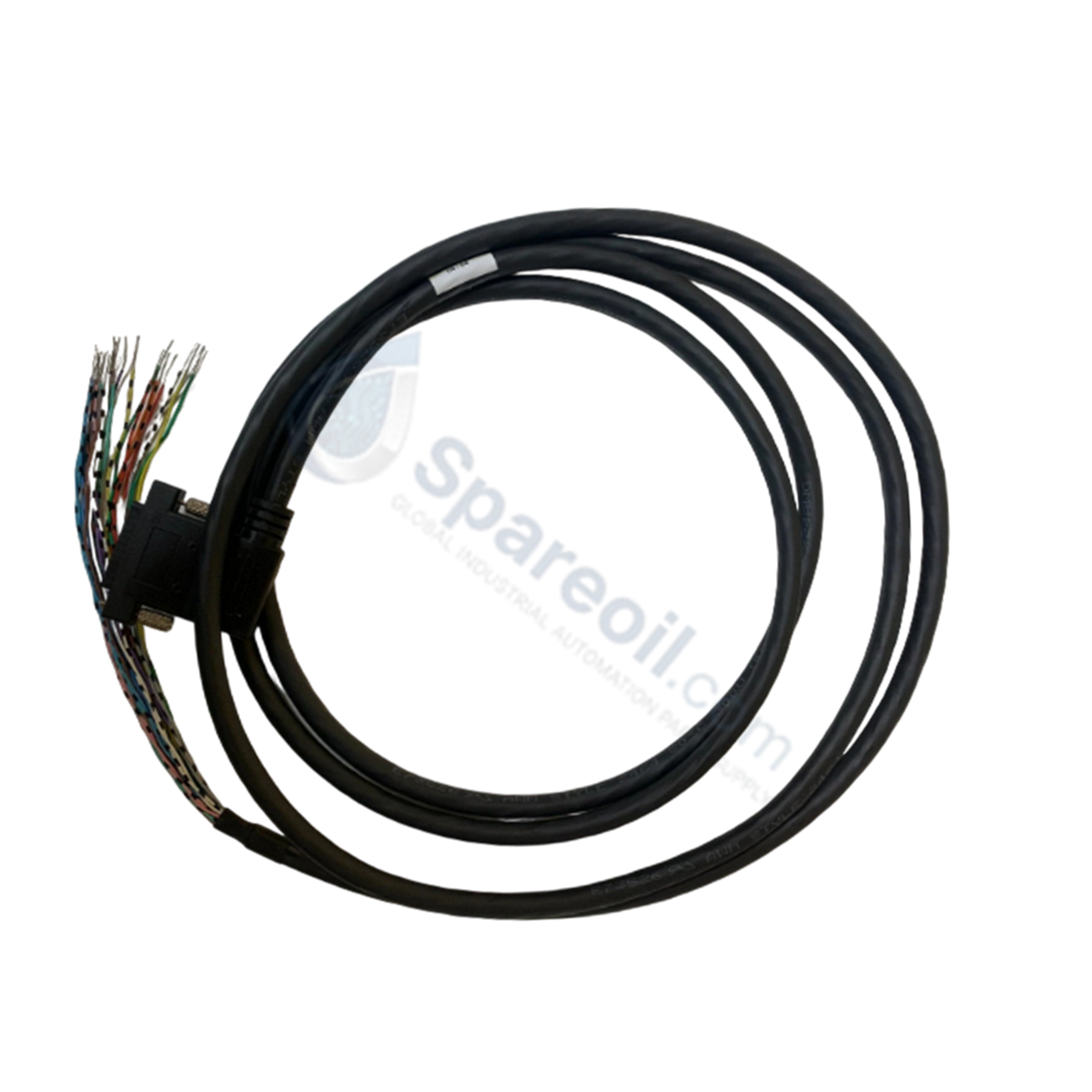

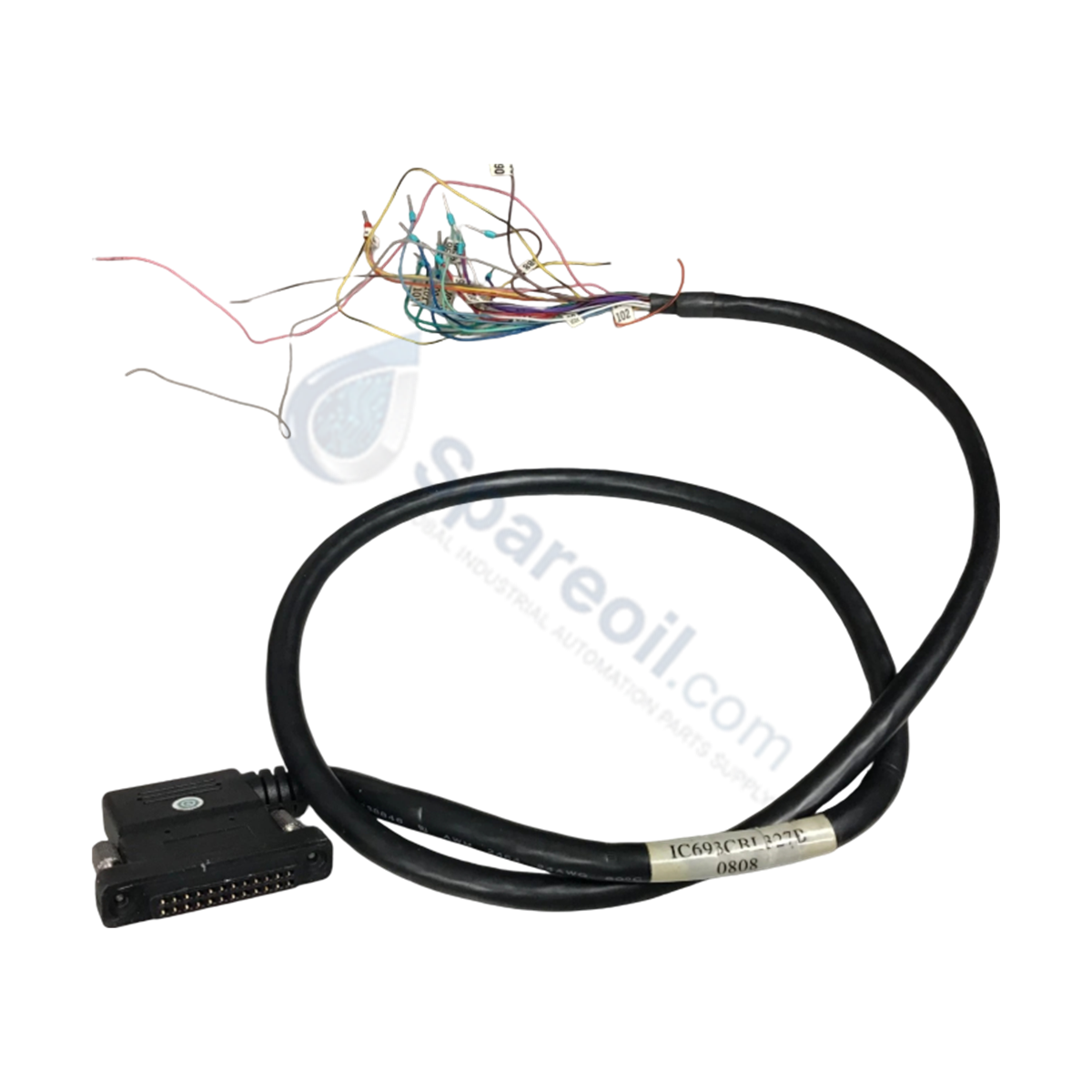

The GE Fanuc IC693CBL327, also cataloged as the IC693CBL327 High Density I/O Cable, operates as a dedicated hardware component for field signal wiring and point-to-point electrical interconnection within Series 90-30 platforms.

Hardware Specifications

Parameter Specification
Model IC693CBL327
Brand GE Fanuc / Emerson
Origin USA / As specified on label
Weight 0.94 lbs (0.43 kg)
Dimensions Cable length: 10 ft (3 m); Connector Depth Clearance: 2.0 in (51 mm)
Operating Temp Standard industrial operating range
Power Consumption Passive wiring interface (1.2 A current rating per conductor)
Cable Type High density I/O wiring cable (Unshielded)
Conductor Gauge 24 AWG (#24 AWG) individual wires
PLC Side Connector Right-angle 24-pin D connector (Fujitsu FCN-365S024-AU compatible)
Field Side Interface Flying leads for user-supplied terminal connection
Replacement Target Replaces IC693CBL315 cable
Compatible Modules IC694MDL752, IC694MDL753, and 16-pt / 32-pt I/O modules

Backplane Bus Communication Velocity and I/O Density Scaling

The IC693CBL327 cable provides direct physical signal routing between 16-point or 32-point high-density discrete I/O modules and external field termination panels. Featuring a right-angle 24-pin Fujitsu connector design, it minimizes cabinet depth requirements while supporting maximum I/O density scaling across rack slots. The 24 AWG unshielded copper conductors support a continuous current rating of 1.2 A per channel, transmitting field inputs and outputs to the module interface without introducing latency to local backplane scan cycles.

Frequently Asked Questions

Q: What is the connector orientation on the module interface side of the IC693CBL327 cable?

A: The PLC-side connection features a right-angle 24-pin connector designed to maintain a 2-inch clearance depth in tight enclosure configurations.

Q: How are field devices wired to the opposite end of the IC693CBL327 cable assembly?

A: The field end terminates in raw flying leads, enabling direct connection to user-supplied terminal blocks or custom field distribution panels.

Field Installation Guidelines

  • Insert the 24-pin right-angle connector squarely into the front-panel header of the target I/O module, ensuring the locking latches click firmly to establish contact.
  • Route the 10-foot unshielded cable harness through dedicated wire ducting, maintaining physical separation from high-voltage AC lines and motor drives to prevent noise coupling.
  • Strip and land the 24 AWG flying leads onto appropriate terminal strip points using correct wire termination torque tools.
  • Verify channel pinout mappings against module wiring diagrams before applying external power to field input or output circuits.
