IC693PCM300 GE Series 90-30 Datasheet & Technical Manual

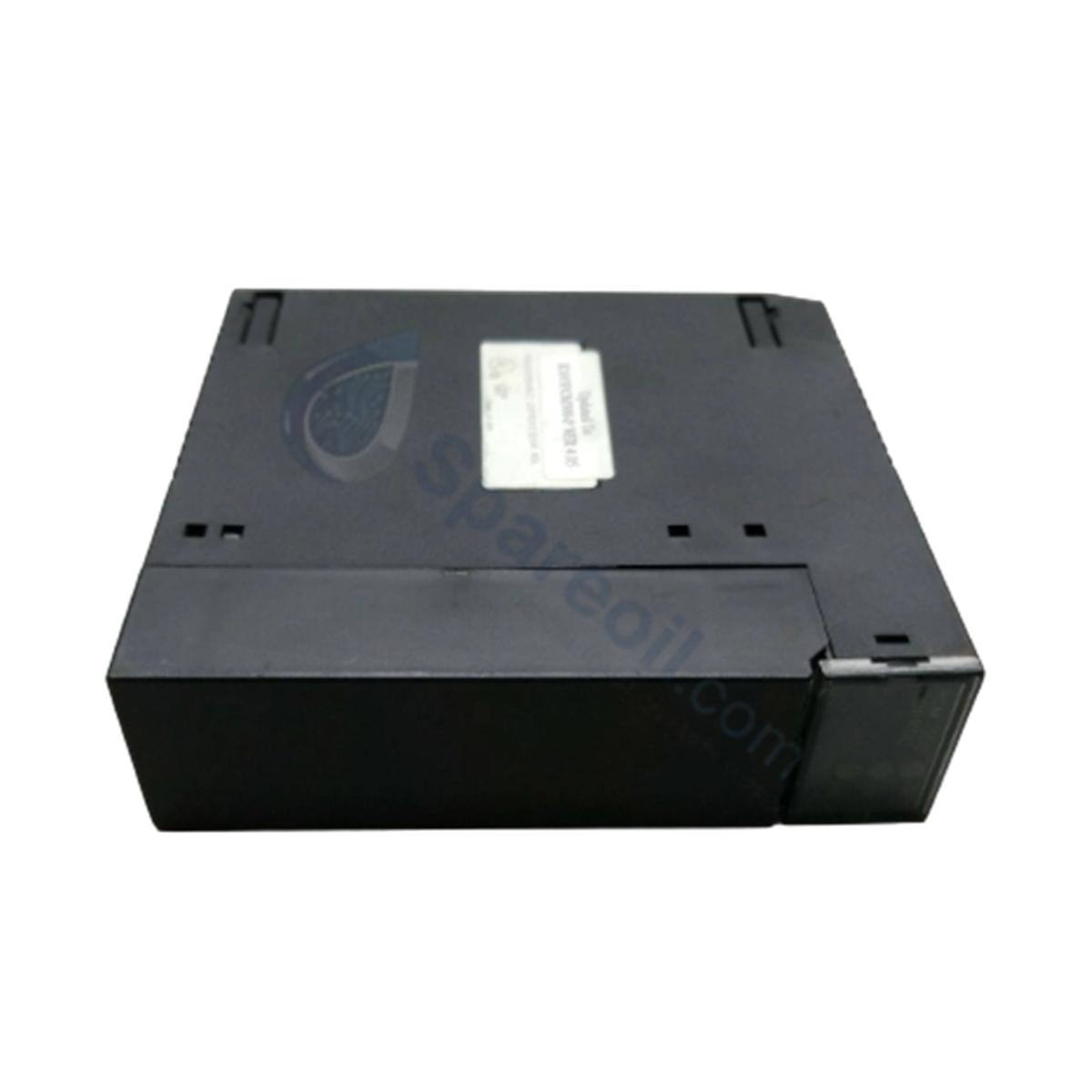

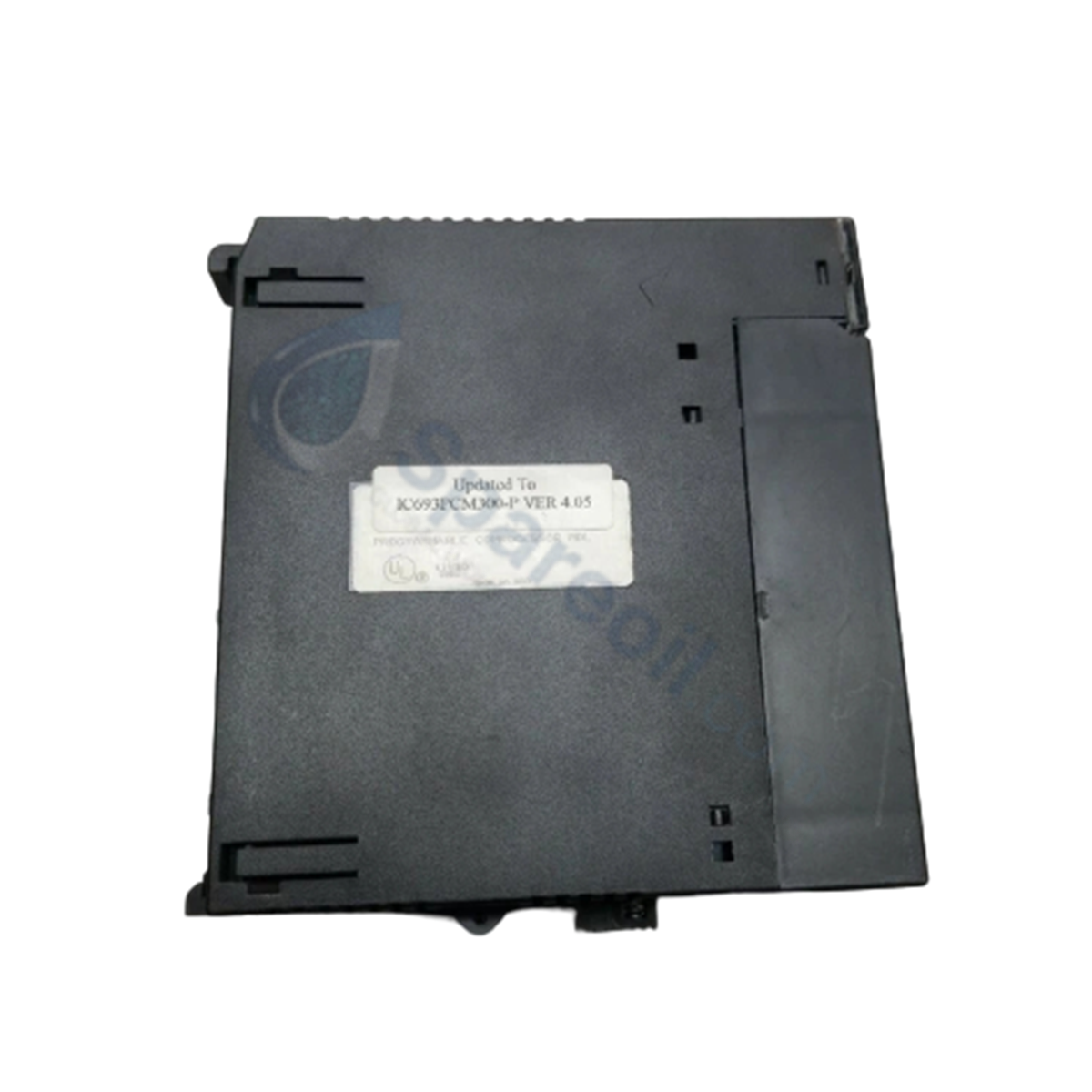

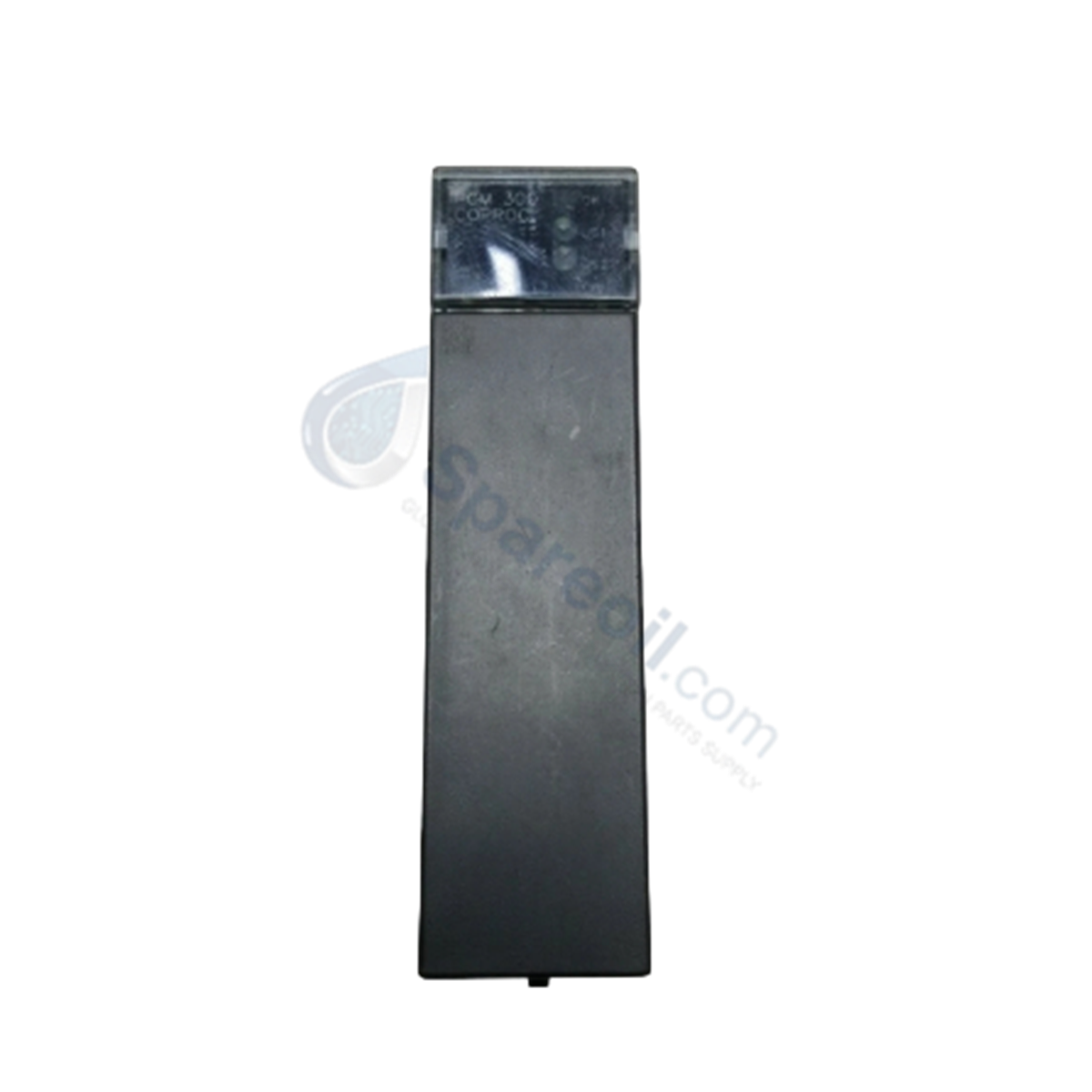

GE IC693PCM300 Series 90-30 Programmable Coprocessor Module

GE IC693PCM300 Series 90-30 Programmable Coprocessor Module

التوفر: 10 متوفر في المخزون

The GE IC693PCM300, also cataloged as the IC693PCM300 Programmable Coprocessor Module, operates as a dedicated hardware component for protocol execution...

رمز المنتج: IC693PCM300

Manufacturer: GE Fanuc
Product No.: IC693PCM300
Product Type: Coprocessor Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 340g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

The GE IC693PCM300, also cataloged as the IC693PCM300 Programmable Coprocessor Module, operates as a dedicated hardware component for protocol execution and co-processing tasks within Series 90-30 system platforms.

Hardware Specifications

Parameter	Specification
Model	IC693PCM300
Brand	GE Fanuc Emerson
Origin	USA / Global Manufacturing
Weight	0.34 kg (0.75 lbs)
Dimensions	Single-Slot Series 90-30 Module Form Factor
Operating Temp	0 to 60 deg C
Power Consumption	Power supplied via Series 90-30 CPU baseplate bus
Series	Series 90-30
Product Type	Coprocessor Modules
Total RAM	160 KB
User MegaBasic Memory	35 KB
Port 1 Interface	RS-232 connection
Port 2 Interface	RS-485 connection
Protocols Supported	Modbus RTU, GE Fanuc CCM
Memory Backup	Lithium battery for RAM memory retention
Programming Languages	MegaBasic, C language
Status Display	Integrated LED indicator lights
Mounting Location	CPU Baseplate

Backplane Bus Communication Velocity and Firmware Integration

The IC693PCM300 offloads complex serial communication tasks and custom algorithms from the main processor core, maintaining deterministic backplane bus communication velocity across the Series 90-30 baseplate. The onboard dual-port structure (RS-232 and RS-485) executes Modbus RTU and GE Fanuc CCM protocols directly to interface with operator CRTs and field devices.

Firmware flash compatibility allows execution of application programs compiled in C or MegaBasic utilizing up to 35 KB of dedicated MegaBasic user memory. The 160 KB total RAM capacity supports real-time data buffer storage and protocol conversion routines without degrading control cycle execution times.

Frequently Asked Questions

Q: What serial interface protocols are natively supported by the IC693PCM300?

A: The module natively supports Modbus RTU and GE Fanuc CCM communication protocols via its dual serial ports.

Q: How is application program data retained in the IC693PCM300 RAM memory during a power supply failure?

A: RAM memory retention is powered by an onboard lithium backup battery.

Q: Where must the IC693PCM300 be physically mounted within a Series 90-30 rack?

A: The module must be installed directly on a Series 90-30 CPU baseplate slot to interface with the main processor bus.

Field Installation Guidelines

Verify that the Series 90-30 baseplate power is entirely shut off before seating or removing the IC693PCM300 module from the rack chassis.
Install the lithium backup battery into its module compartment prior to commissioning to ensure RAM memory retention upon power interruption.
Ensure RS-232 and RS-485 communication cables are constructed using shielded twisted-pair conductors, with shields grounded at a single point to prevent ground loop noise.
Maintain proper clearance around the baseplate assembly to enable passive convection cooling in non-corrosive industrial operating environments.
