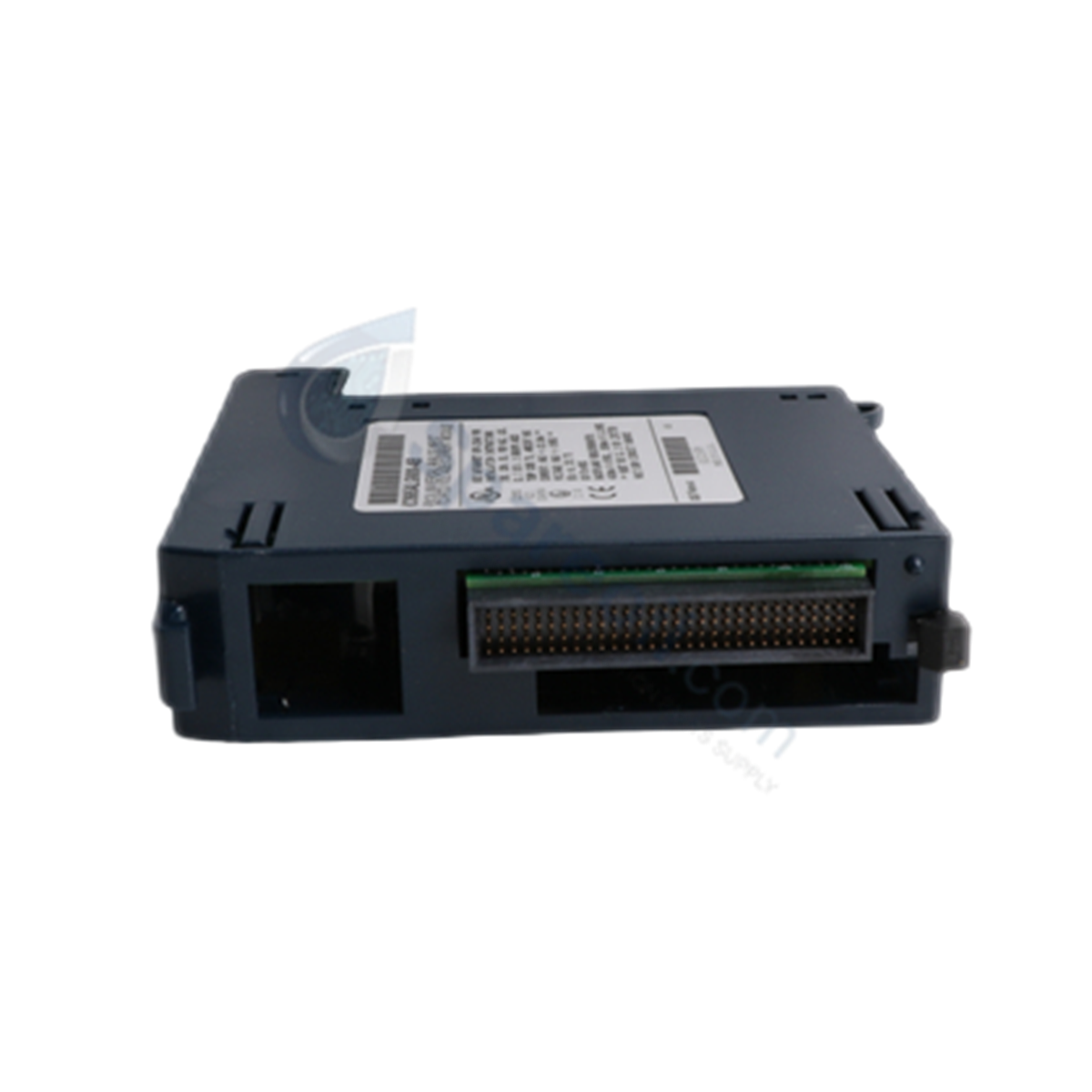

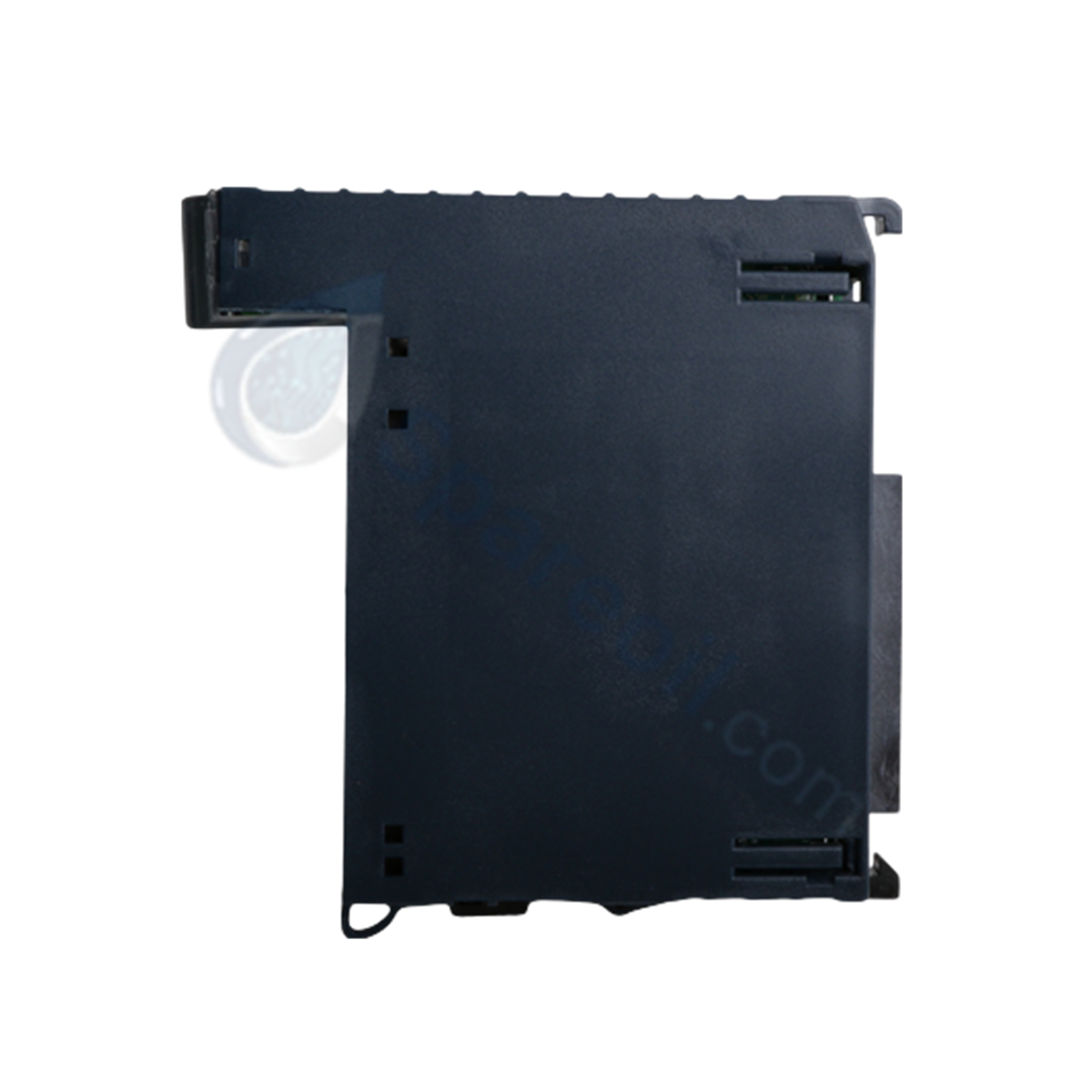

GE IC695ALG600 PACSystem RX3i Analog Input Module

GE IC695ALG600 PACSystem RX3i Analog Input Module

التوفر: 10 متوفر في المخزون

Configured for high-density multi-channel analog signal acquisition in PACSystems RX3i universal backplane architectures, the GE IC695ALG600 (IC695ALG600 Universal Analog Input...

رمز المنتج: IC695ALG600

Manufacturer: GE Fanuc
Product No.: IC695ALG600
Product Type: Analog Input Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 340g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Configured for high-density multi-channel analog signal acquisition in PACSystems RX3i universal backplane architectures, the GE IC695ALG600 (IC695ALG600 Universal Analog Input Module) provides direct physical/electrical execution.

Hardware Specifications

Parameter	Specification
Model	IC695ALG600
Brand	GE Fanuc / Emerson Automation
Origin	USA
Weight	0.34 kg (0.75 lbs)
Dimensions	Single-slot PACSystems RX3i module format
Operating Temp	0 to 60 deg C (32 to 140 deg F)
Storage Temp	-40 to 85 deg C (-40 to 185 deg F)
Humidity	5 to 95%, non-condensing
Power Consumption	5.4 W maximum (3.3 VDC @ 350 mA, 5 VDC @ 400 mA)
Channel Configuration	8 channels organized into 2 isolated groups (4 channels per group)
Module Conversion Method	Sigma-delta
Module Resolution	11 to 16 Bits
Current Inputs	0-20 mA, 4-20 mA, +/-20 mA
Voltage Inputs	+/-50 mV, +/-150 mV, 0-5 VDC, 1-5 VDC, 0-10 VDC, +/-5 VDC, +/-10 VDC
Resistance Inputs	0 to 250 / 500 / 1000 / 2000 / 3000 / 4000 Ohms
RTD Inputs	PT 385 / 3916, N 618 / 672, NiFe 518, CU 426
Thermocouple Inputs	B, C, E, J, K, N, R, S, T (with 2 Cold Junction Compensation channels)
Configurable Input Filters	8 Hz, 12 Hz, 16 Hz, 40 Hz, 200 Hz, 1000 Hz
System Firmware / Software	Requires RX3i Firmware v2.80+; Configured via PME v5.0 SP1A LD-PLC Hotfix 1+
Terminal Blocks Supported	IC694TBB032, IC694TBB132, IC694TBS032, IC694TBS132

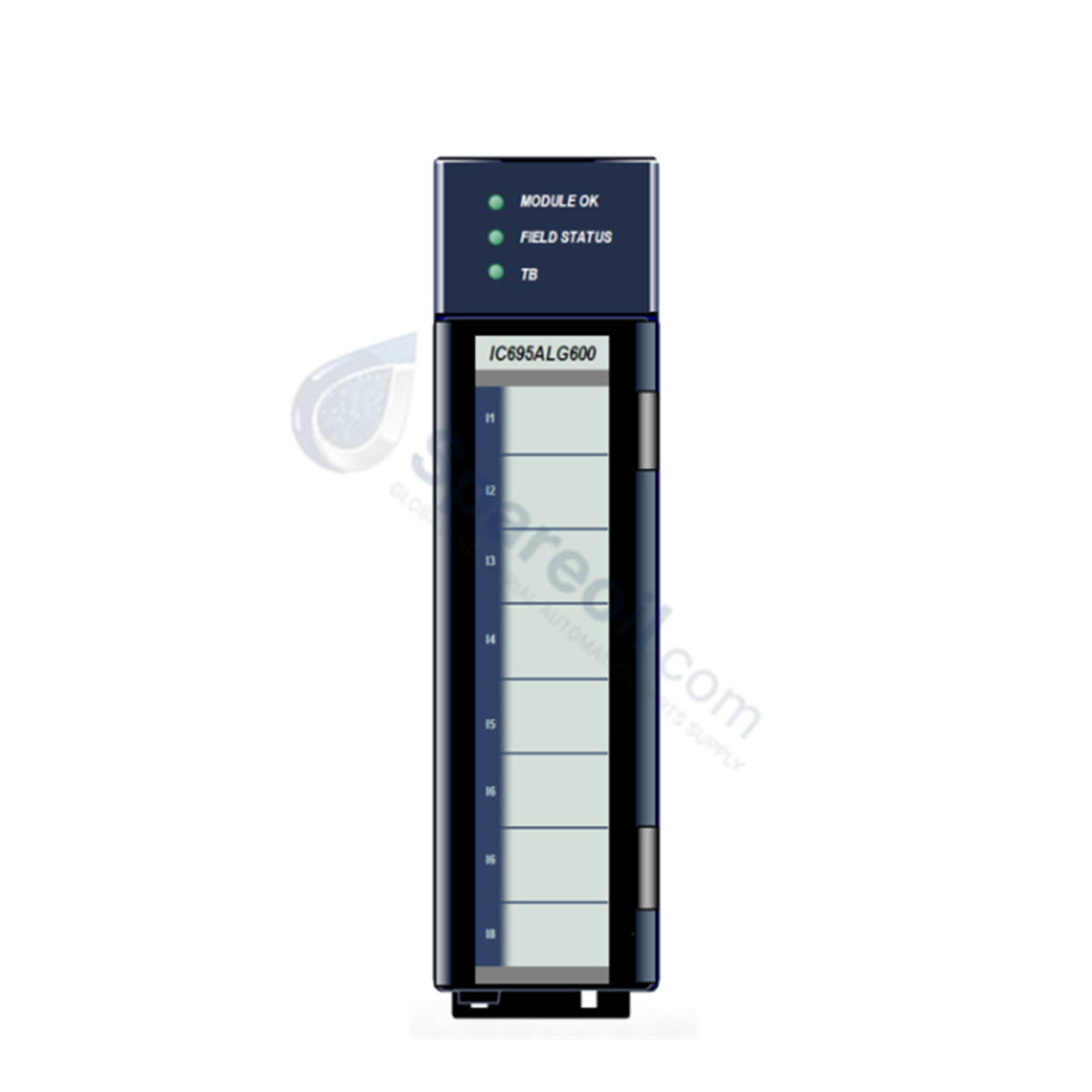

Status LED Indicators	Module Status (OK), Field Status, Terminal Block LED

Backplane Bus Communication Velocity & I/O Scaling

The module maintains optimized backplane bus communication velocity across the PACSystems RX3i rack platform, ensuring deterministic signal updates during active scanning. Channel-to-channel group isolation and high I/O density scaling allow continuous operation during firmware flash updates and online configuration changes without signal interruption.

Frequently Asked Questions

Q: What backplane power rails does the IC695ALG600 draw from, and what is the total power dissipation? A: The module draws 350 mA from the internal 3.3 VDC bus and 400 mA from the internal 5 VDC bus, resulting in a maximum power dissipation of 5.4 W.

Q: Which terminal blocks are recommended when wiring shielded cables or thick insulation conductors to the module? A: Extended terminal blocks (Box-style IC694TBB132 or Spring-style IC694TBS132) are recommended because their enlarged outer cover accommodates thicker wire insulation and shield drain conductors.

Field Installation Guidelines

Backplane Mounting: Firmly seat the IC695ALG600 into any universal slot of the PACSystems RX3i universal backplane until the rear backplane connectors fully engage and top/bottom latching levers lock securely.
Terminal Block Wiring: Land field wiring on compatible terminal blocks (IC694TBB032, IC694TBB132, IC694TBS032, or IC694TBS132). Maintain strict physical separation between high-voltage power cabling and low-level analog signal leads.
Shielding & Grounding: Connect cable shield wires to the terminal block drain terminals or a low-impedance DIN-rail ground bar to prevent noise pickup on low-level mV, RTD, and thermocouple signal loops.
Cold Junction Compensation: When using thermocouple sensors, install CJC sensors on designated terminal block locations to ensure accurate temperature compensation.
