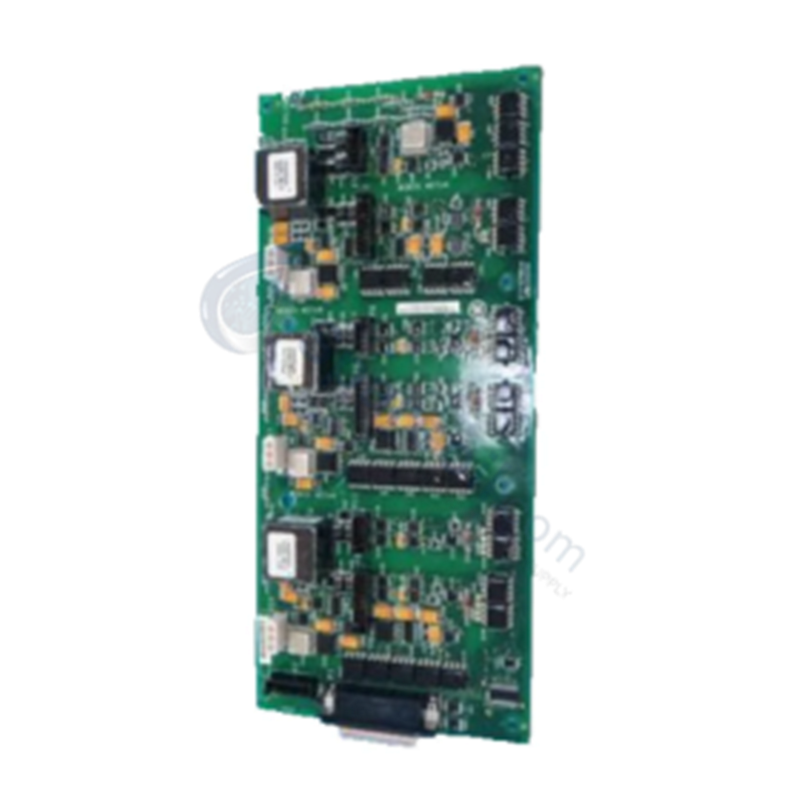

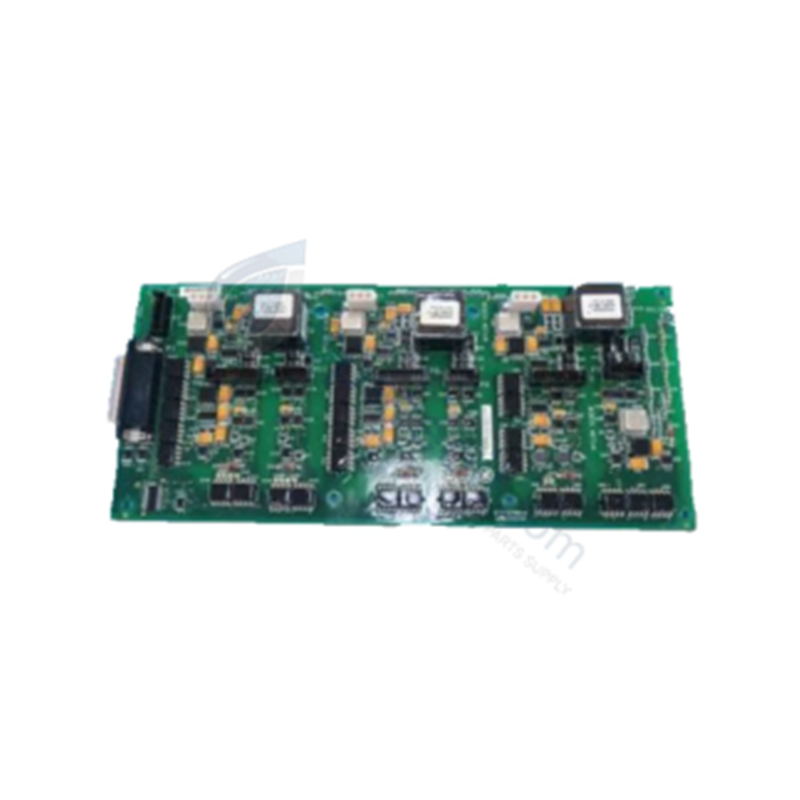

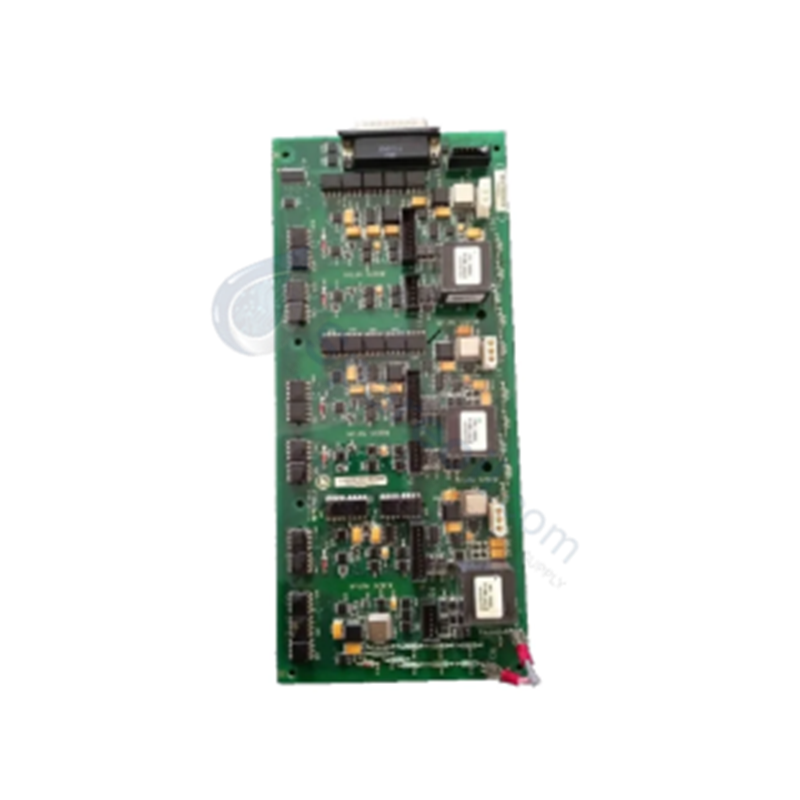

GE IS210AEAAH1BCA Printed Circuit Board

التوفر: 10 متوفر في المخزون

The GE IS210AEAAH1BCA, also cataloged as the IS210AEAA Printed Circuit Board, operates as a dedicated hardware component for high-speed signal...

رمز المنتج: IS210AEAAH1BCA

Manufacturer: GE Fanuc
Product No.: IS210AEAAH1BCA
Product Type: Printed Circuit Boards
Product Origin: USA
Payment:T/T, Western Union
Weight: 1100g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

The GE IS210AEAAH1BCA, also cataloged as the IS210AEAA Printed Circuit Board, operates as a dedicated hardware component for high-speed signal processing and I/O signal routing within GE Mark VIe control system platforms. The board conditions 24 V DC power inputs and drives 0-10 V DC analog voltage output signals up to a maximum current load of 2 A.

Hardware Specifications

Parameter	Specification
Model	IS200AEAAH1BCA (IS210AEAA)
Brand	GE (General Electric)
Origin	USA
Weight	1.10 kg
Dimensions	812 x 516 x 825 mm
Operating Temp	Standard Industrial Grade (-30 to 65 deg C nominal)
Power Consumption	System Backplane Powered / 24 V DC Supply
Power Supply Input	24 V DC
Input Voltage	24 V DC
Output Voltage	0-10 V DC
Maximum Current	2 A
Coating	Conformal Coated PCB
System Compatibility	GE Mark VIe Control Systems

Backplane Bus Communication Velocity and Firmware Compatibility

The IS210AEAAH1BCA interfaces directly with the Mark VIe control backplane, leveraging high-speed backplane bus communication velocity to ensure real-time telemetry processing across deterministic industrial networks. Firmware flash compatibility enables structured initialization, allowing synchronization between local I/O density scaling profiles and core control processors. Integrated conformal coating shields onboard traces against moisture, dust, and aggressive industrial airborne particulates, preventing trace bridging during continuous operational loading.

Frequently Asked Questions

Q: What protection measures does the conformal coating provide on the IS210AEAAH1BCA PCB?

A: The conformal coating establishes a physical dielectric barrier across surface-mounted components and conductive traces. This prevents short circuits caused by moisture accumulation, atmospheric dust, and chemical contaminants in high-humidity ambient environments.

Q: How is the power distribution handled on the IS210AEAAH1BCA card?

A: The board receives a 24 V DC primary input voltage and regulates internal distribution circuits to deliver a 0-10 V DC analog output range supporting continuous current draws up to 2 A.

Q: Are there specific handling precautions required prior to physical installation?

A: Yes, as a static-sensitive circuit assembly, field technicians must wear a grounded wrist strap attached to chassis earth ground and handle the board exclusively by its non-conductive edges during installation.

Field Installation Guidelines

Isolate all cabinet power sources and verify that the Mark VIe enclosure is completely de-energized before mounting the board.
Ensure ESD grounding straps are securely attached to a bare metal frame point prior to removing the PCB from its anti-static shielding bag.
Slide the IS210AEAAH1BCA carefully into the rack card guides, applying even pressure along the front edge until edge connectors firmly seat into the backplane socket.
Torque all retention fasteners to 0.8 Nm (7 in-lbs) to maintain mechanical rigidity against ambient low-frequency vibration.
Connect input power and signal field wiring harnesses to designated terminal headers, ensuring shield wires are grounded at a single chassis ground bus bar.
