IS410JPDHG1A GE Power Distribution Board

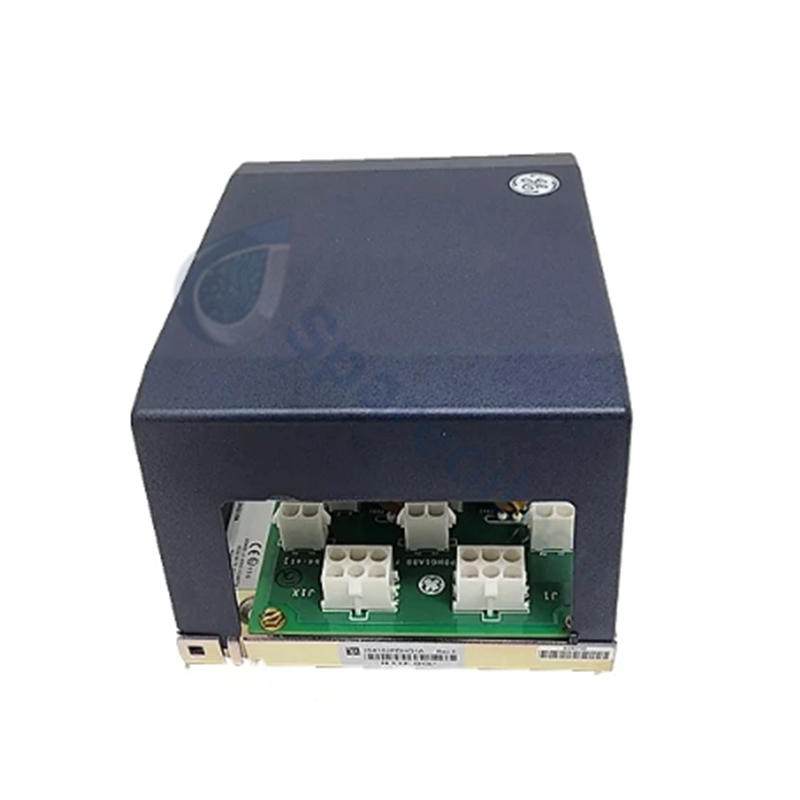

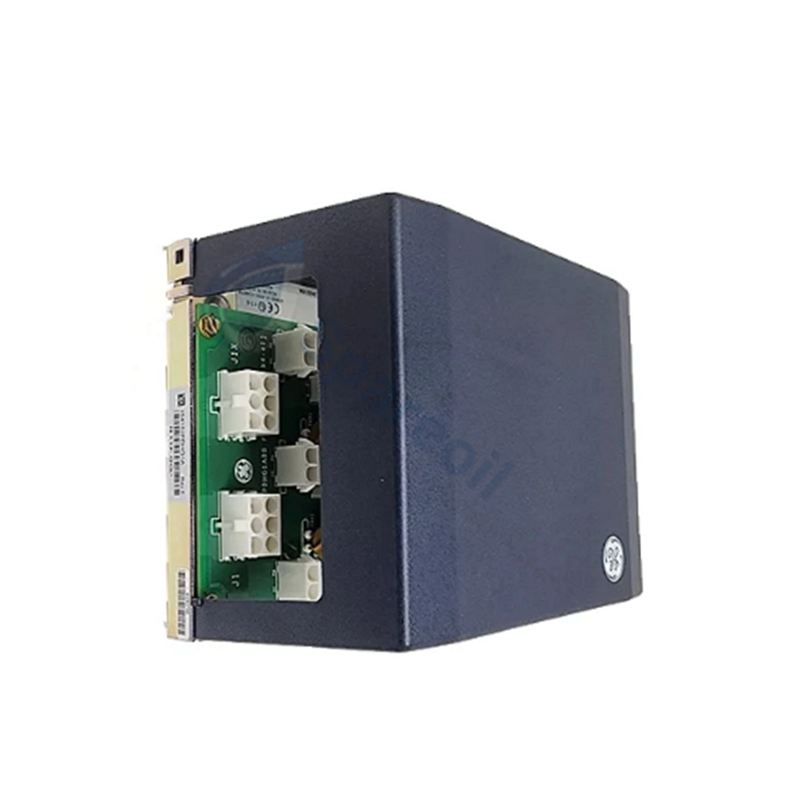

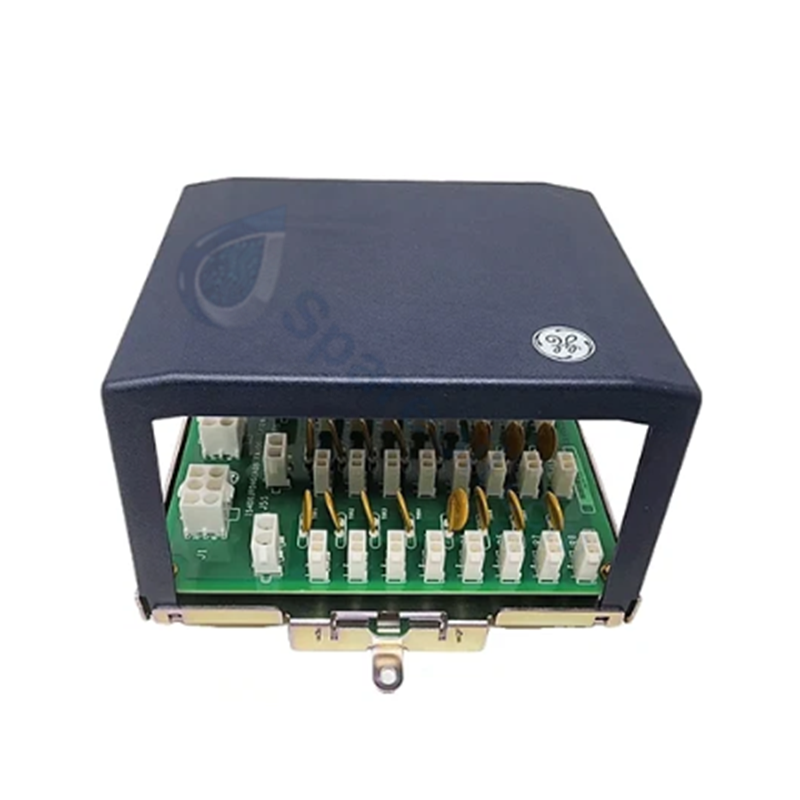

GE IS410JPDHG1A Mark VIe Power Distribution Board

GE IS410JPDHG1A Mark VIe Power Distribution Board

التوفر: 10 متوفر في المخزون

The GE IS410JPDHG1A, also cataloged as the IS410JPDH Power Distribution Board, operates as a dedicated hardware component for control and...

رمز المنتج: IS410JPDHG1A

Manufacturer: GE Fanuc
Product No.: IS410JPDHG1A
Product Type: Power Distribution Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 800g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

The GE IS410JPDHG1A, also cataloged as the IS410JPDH Power Distribution Board, operates as a dedicated hardware component for control and wetting voltage conditioning within GE Mark VIe control system networks. The board routes 28 VDC control power along with 24 VDC and 48 VDC contact wetting buses to terminal racks, I/O packs, and field contact loops.

Hardware Specifications

Parameter	Specification
Model	IS410JPDHG1A (IS410JPDH)
Brand	GE (GE Fanuc)
Origin	USA
Weight	0.8 kg (1.76 lbs)
Dimensions	140 mm x 100 mm x 30 mm
Operating Temp	-40 to 70 deg C
Power Consumption	28 VDC control supply, 24/48 VDC wetting supply (32 VDC max contact rating)
System Platform	GE Mark VIe Speedtronic Series
Humidity	5% to 95% (non-condensing)
Mounting Options	DIN Rail and Panel Mount Compatible
Mechanical Resistance	Vibration 10 to 55 Hz (0.35 mm amplitude), Shock 147 m/s2 (15G, 11 ms)

Deterministic Backplane Bus Velocity and Firmware Flash Compatibility

The IS410JPDHG1A stabilizes DC bus voltages across multi-rack configurations to maintain deterministic backplane bus communication velocity throughout the Mark VIe IONet architecture. Active power rails supply clean DC voltage to connected I/O packs, preserving onboard diagnostic circuits and preventing logic dropouts during transients. Built-in onboard isolation circuits protect upstream system processors and maintain full firmware flash compatibility across attached I/O modules during dynamic load switching and power density scaling.

Frequently Asked Questions

Q: What distinct DC voltage levels are routed through the IS410JPDHG1A board?

A: The board manages a 28 VDC bus for system control logic power alongside 24 VDC and 48 VDC buses dedicated to field contact wetting.

Q: What is the maximum rated continuous voltage for discrete contact inputs connected to this board?

A: The board supports a maximum rating of 32 VDC for contact input and output interfaces.

Q: Does the IS410JPDHG1A support both DIN rail and direct cabinet panel mounting?

A: Yes, the physical enclosure and baseplate hardware support standard 35 mm DIN rail mounting as well as direct panel bolt insertion.

Field Installation Guidelines

De-energize all primary 28 VDC, 24 VDC, and 48 VDC incoming power feeds before installing or servicing the IS410JPDHG1A board.
Wear a grounded wrist strap attached to an unpainted metal cabinet earth point to prevent static damage to onboard components.
Secure the module onto the DIN rail or panel surface, ensuring all mechanical fasteners are tightened to establish structural stability.
Verify correct polarity on all incoming DC power connections and field contact wetting supply terminals prior to applying power.
Bond all cable shields directly to the main cabinet grounding bar following standard industrial noise suppression procedures.
