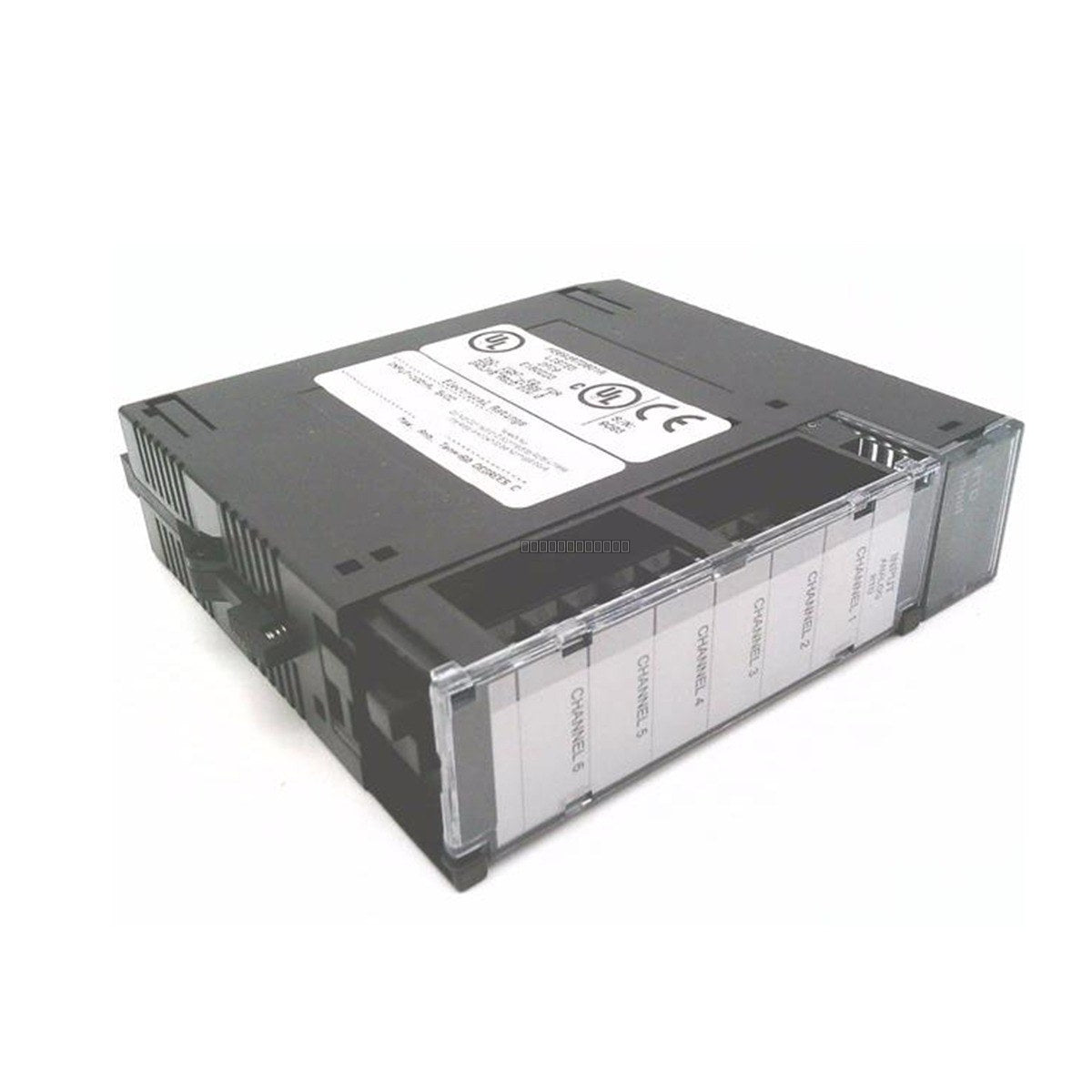

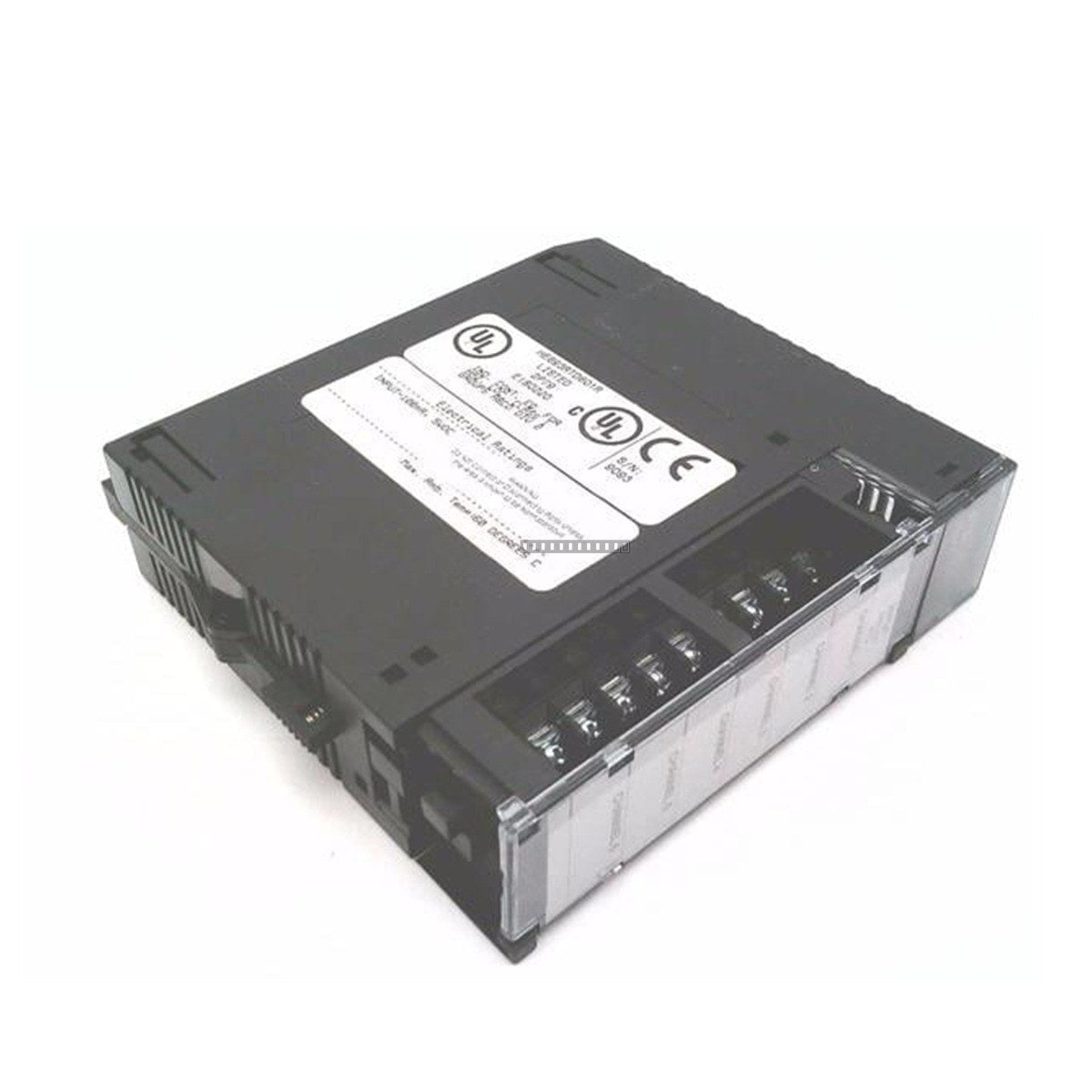

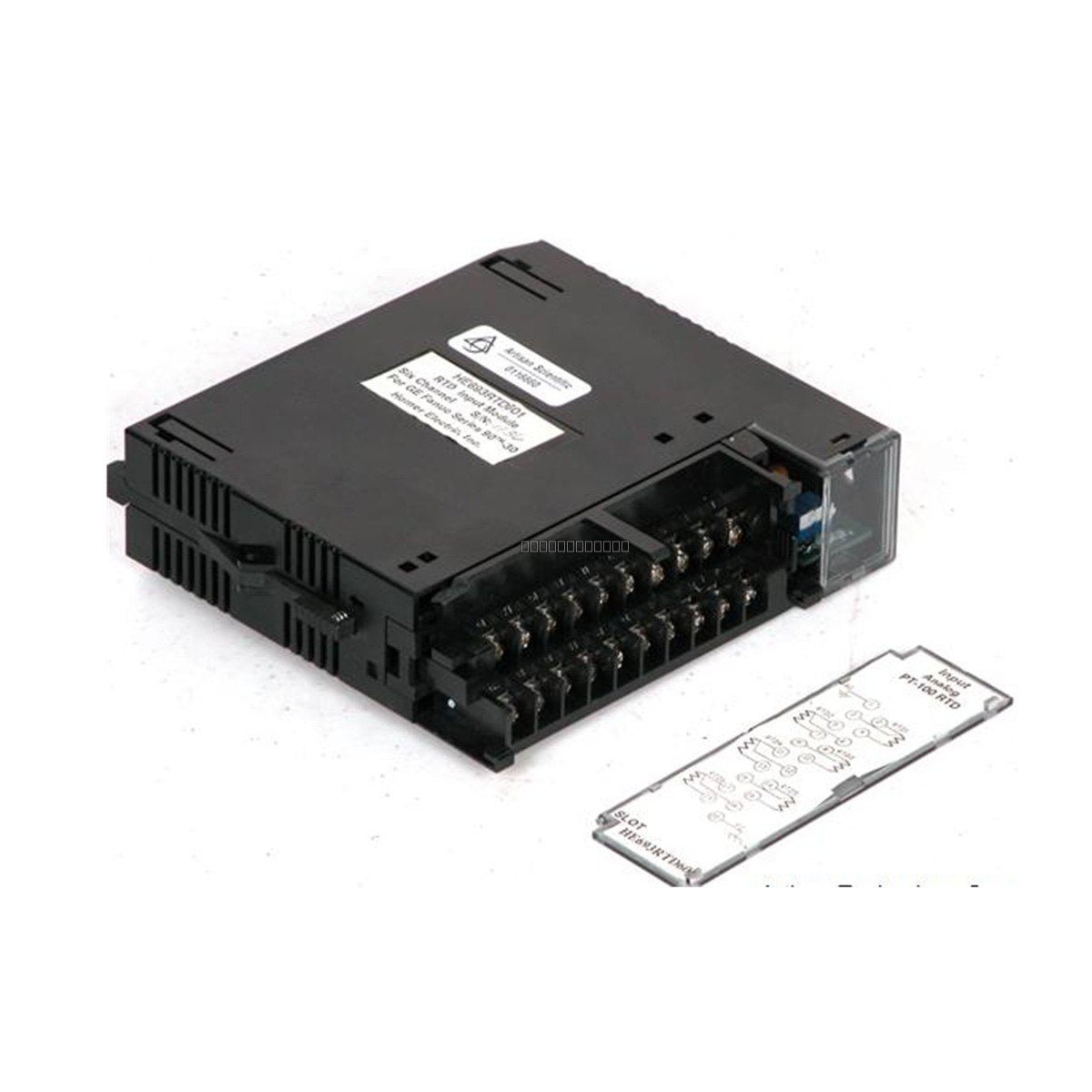

GE Fanuc HE693RTD601 Series 90-30 6-Channel RTD Input Module

التوفر: 6 متوفر في المخزون

DescriptionThe HE693RTD601 is a high-precision Resistance Temperature Detector (RTD) input module designed for the GE Fanuc Series 90-30 automation platform....

رمز المنتج: HE693RTD601

Manufacturer: GE FANUC
Product No.: HE693RTD601
Product Type: RTD Input Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 420g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Description

The HE693RTD601 is a high-precision Resistance Temperature Detector (RTD) input module designed for the GE Fanuc Series 90-30 automation platform. This module serves as a critical interface for converting low-level analog signals from field-mounted RTD sensors into digital temperature data for processing by the CPU. It is engineered for demanding industrial environments, including power generation, oil and gas, and food processing, where precise thermal monitoring is essential for operational safety and process control.

Features

6-Channel Input: Provides six independent input channels for high-density temperature monitoring.
Sensor Compatibility: Supports a variety of RTD types, including Pt100, Ni120, and Cu10, offering flexibility for diverse field instrumentation.
Series 90-30 Integration: Fully compatible with the Series 90-30 backplane architecture, allowing for seamless integration into existing control systems.
Diagnostic Capability: Includes advanced diagnostic features to assist in troubleshooting and system maintenance.

Applications

This module is typically deployed in applications requiring accurate temperature acquisition, such as:

Thermal monitoring in power plant turbines and cooling systems.
Process temperature control in oil refineries and chemical processing.
Precision thermal management in food and beverage production lines.

Technical Specifications

Model	HE693RTD601
Brand	GE Fanuc / Horner APG
Series	Series 90-30
Module Type	Analog RTD Input Module
Number of Channels	6
Supported Inputs	Pt100, Ni120, Cu10
Backplane Current Draw	250 mA at 5 VDC
Operating Temperature	0 to 60 deg C
Storage Temperature	-40 to 85 deg C

Installation Guidelines

Power Off: Always disconnect power from the Series 90-30 rack before inserting or removing the module to prevent electrical damage.
Slot Positioning: Ensure the module is seated correctly in the designated I/O slot of the backplane.
Grounding: Follow standard industrial grounding practices to minimize electromagnetic interference (EMI) and ensure signal integrity.
Wiring: Use shielded twisted-pair cabling for RTD connections to reduce noise, ensuring that shields are properly grounded at the source or controller end as per site specifications.
Environment: Ensure the installation area is free from excessive vibration and within the specified operating temperature range of 0 to 60 deg C.

FAQ

What types of RTDs does the HE693RTD601 support?

The module supports standard RTD types including Pt100, Ni120, and Cu10, providing versatility for various industrial temperature sensing requirements.

Is this module compatible with all Series 90-30 racks?

Yes, the HE693RTD601 is designed for the Series 90-30 I/O architecture and is compatible with standard Series 90-30 backplanes.
