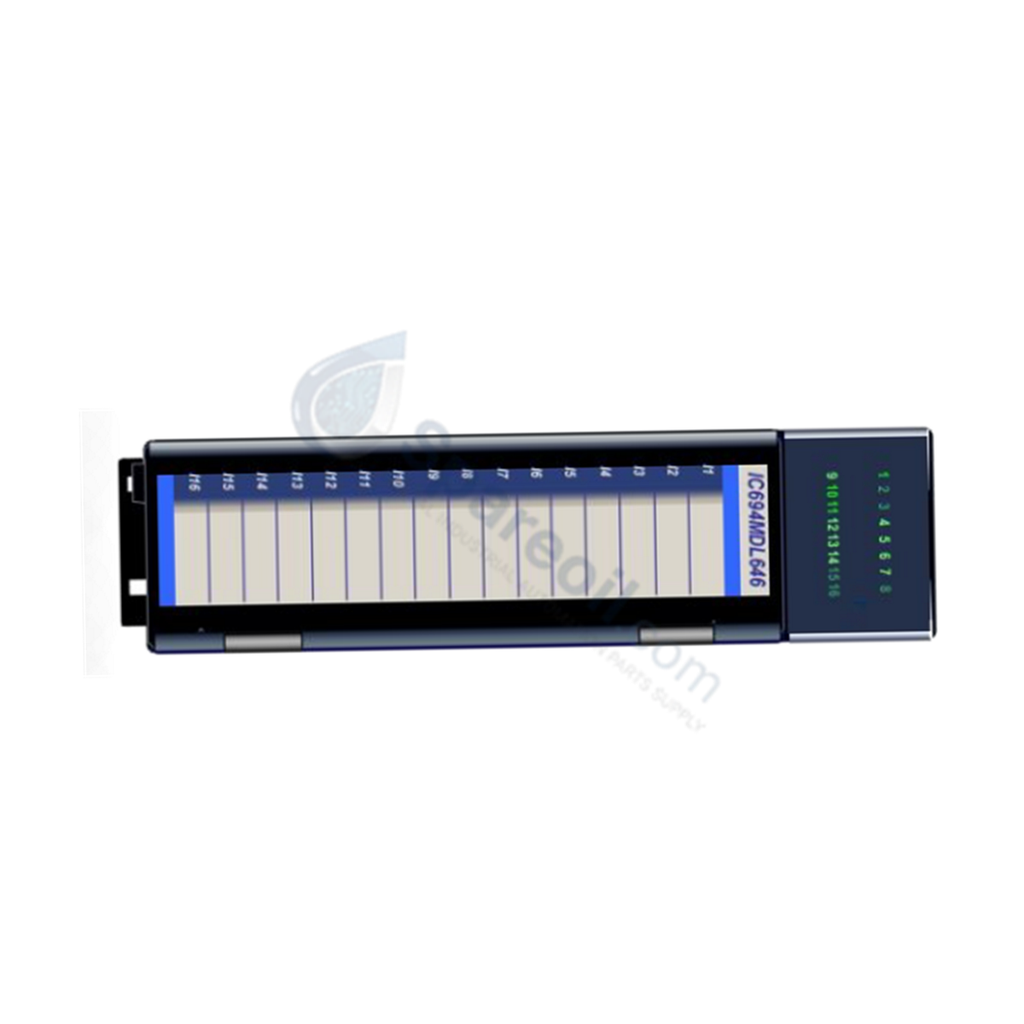

IC694MDL646 GE Discrete Input Module

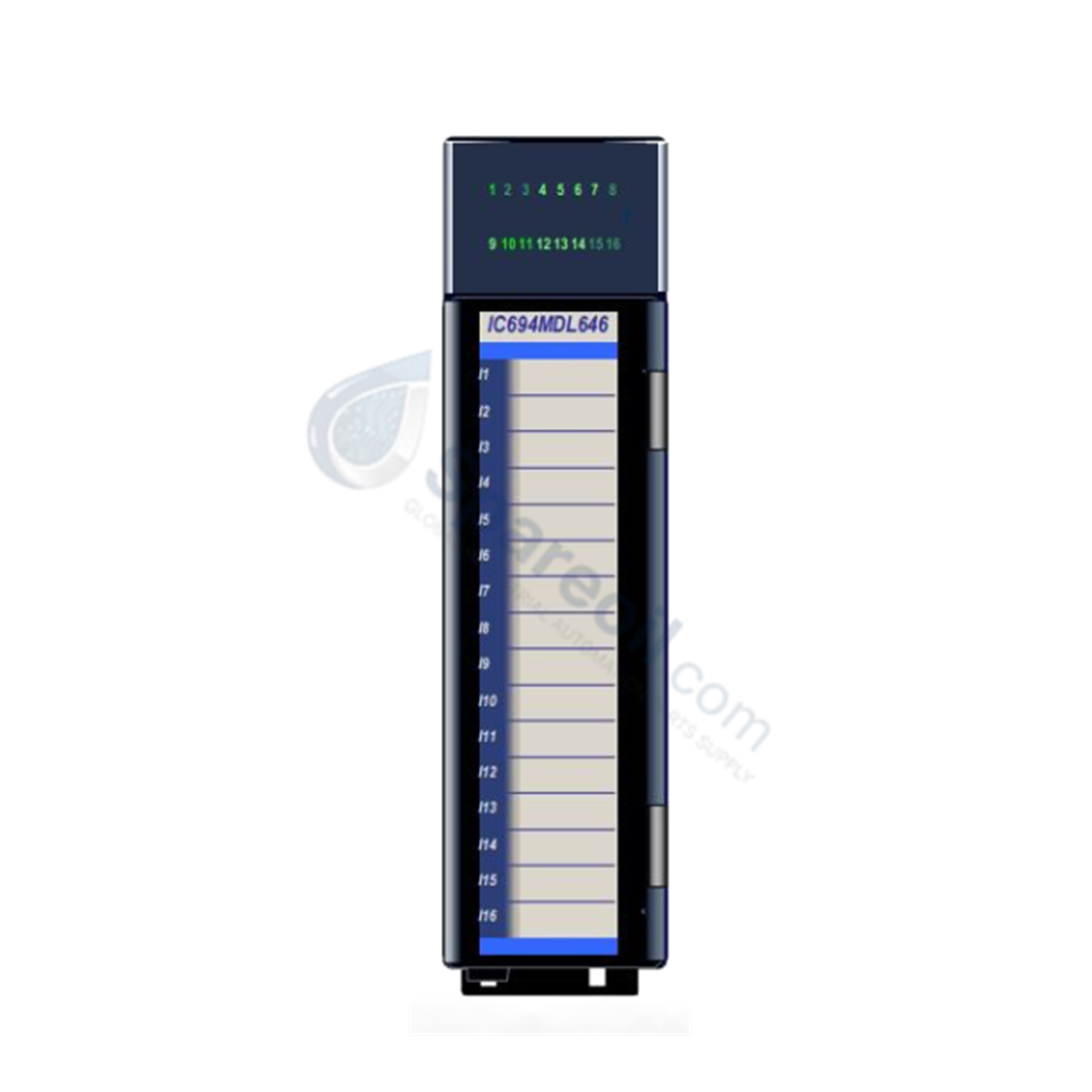

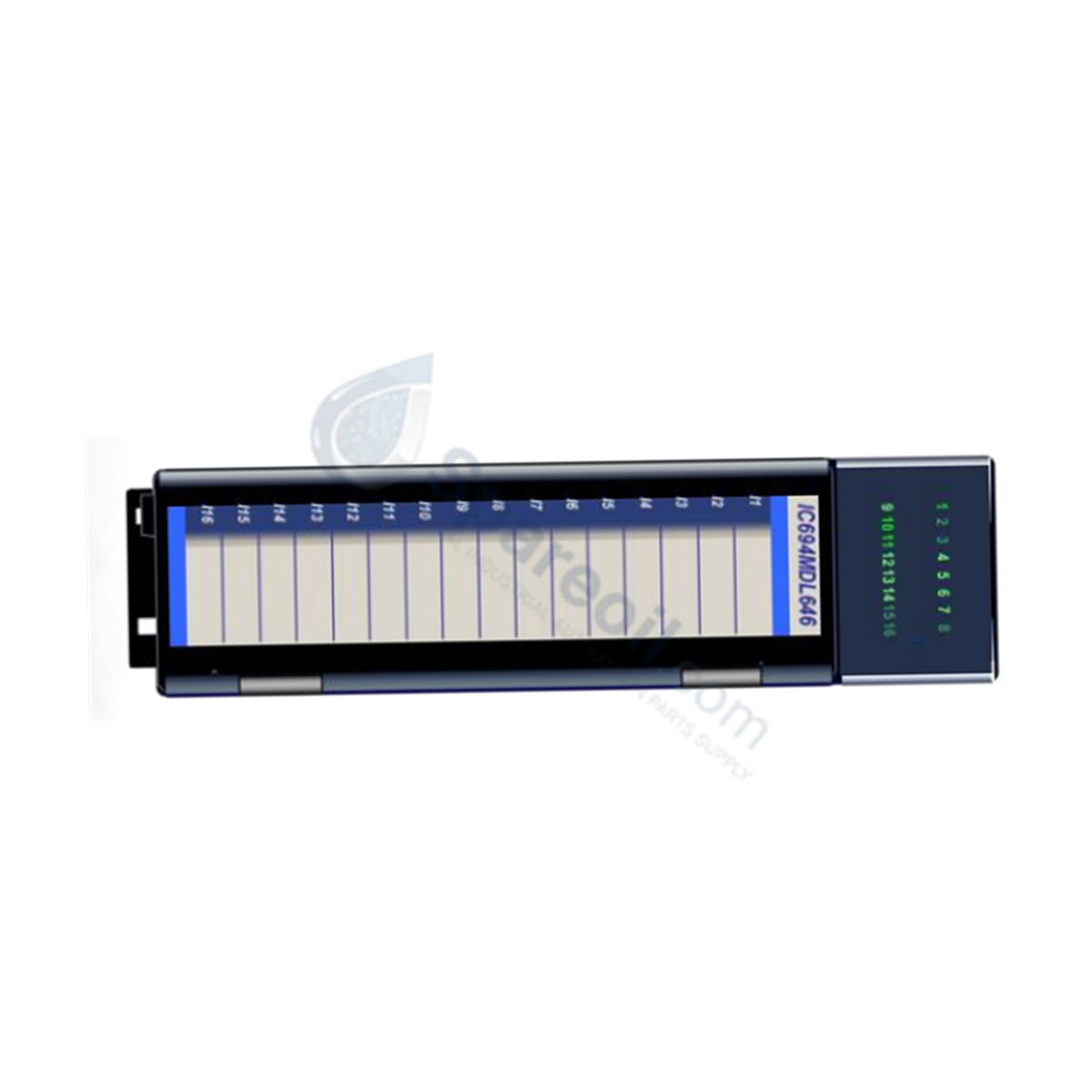

IC694MDL646 GE RX3i PACSystems Module

التوفر: 10 متوفر في المخزون

The GE IC694MDL646 serves as the primary IC694MDL646 Input Module utilized to execute discrete input sensing across RX3i PACSystems platforms....

رمز المنتج: IC694MDL646

Manufacturer: GE Fanuc
Product No.: IC694MDL646
Product Type: Digital Input Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 280g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

The GE IC694MDL646 serves as the primary IC694MDL646 Input Module utilized to execute discrete input sensing across RX3i PACSystems platforms.

Hardware Specifications

Parameter	Specification
Model	IC694MDL646
Brand	GE Fanuc Emerson
Origin	USA
Weight	0.63 lbs (0.28 kg)
Dimensions	Standard RX3i rack slot dimensions
Operating Temp	0 to 60 deg C
Power Consumption	80 mA from 5 VDC bus, 125 mA from 24 VDC internal/external supply
Input Points	16 channels (1 groups of 16)
Rated Voltage	24 VDC (Positive or Negative logic)
Input Voltage Range	0 to 30 VDC
Input Current	7 mA typical per channel
On-State Voltage	11.5 to 30 VDC
Off-State Voltage	0 to 5 VDC
On-State Current	3.2 mA minimum
Off-State Current	1.1 mA maximum
Response Time	1 ms average (On and Off transitions)
Status Indicators	16 x Green LEDs (Channel state), 2 x Blue bands (Low-voltage indication)
Shock Resistance	15 G for 11 ms duration
Vibration Resistance	10 to 57 Hz at 0.0524 mm peak displacement, 57 to 500 Hz at 1.0 G acceleration
Humidity	5% to 95% non-condensing

Backplane Bus Communication Velocity and I/O Density Scaling

The module interfaces with the RX3i control backplane, enabling synchronized state updates within the CPU sweep execution framework. High-frequency digital sampling arrays stabilize the 1 ms input response profile while maximizing physical I/O density scaling inside a single sub-rack assembly. Internal isolation structures safeguard logic processing circuits from the high-speed bus lines, maintaining parallel data block transfers without signal distortion under maximum channel load conditions.

Frequently Asked Questions

Q: Does the IC694MDL646 module support internal power distribution for field sensors?

A: No. The internal circuitry limits current consumption parameters to module logic tracking. Field devices, such as electronic proximity switches, limit switches, and pushbuttons, must be powered directly from an independent external 24 VDC voltage source.

Q: What is the technical meaning behind the two blue bands located on the faceplate assembly?

A: The dual blue band indentation acts as a permanent, high-visibility mechanical color classification denoting a low-voltage DC module footprint. This prevents physical terminal terminal cross-connection with adjacent high-voltage AC module variants during installation loops.

Field Installation Guidelines

Module Retention: Isolate all active power configurations feeding the targeted baseplate before physical installation. Insert the card into the selected slot guide, ensuring full seating alignment into the backplane connector block.
Field Signal Wire Routing: Run low-voltage 24 VDC input control lines separately from high-voltage AC power loops to eliminate parasitic capacitive and inductive signal interference.
Grounding Protocols: Verify that the RX3i chassis grounding bar is directly bonded to the enclosure backpanel substrate, complying with low-impedance industrial system ground paths to shield discrete switching nodes from electrical transients.
