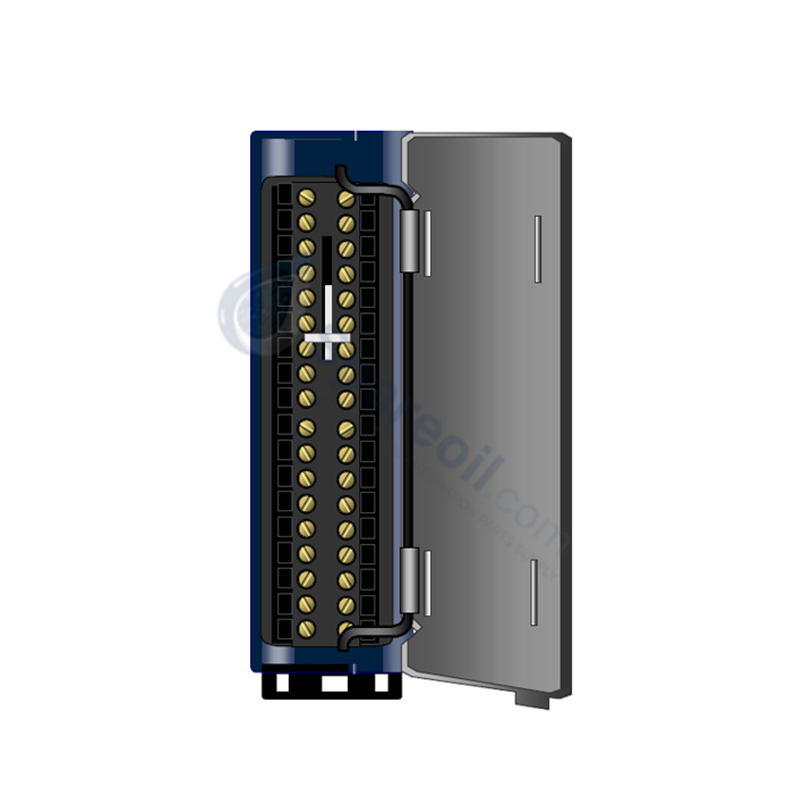

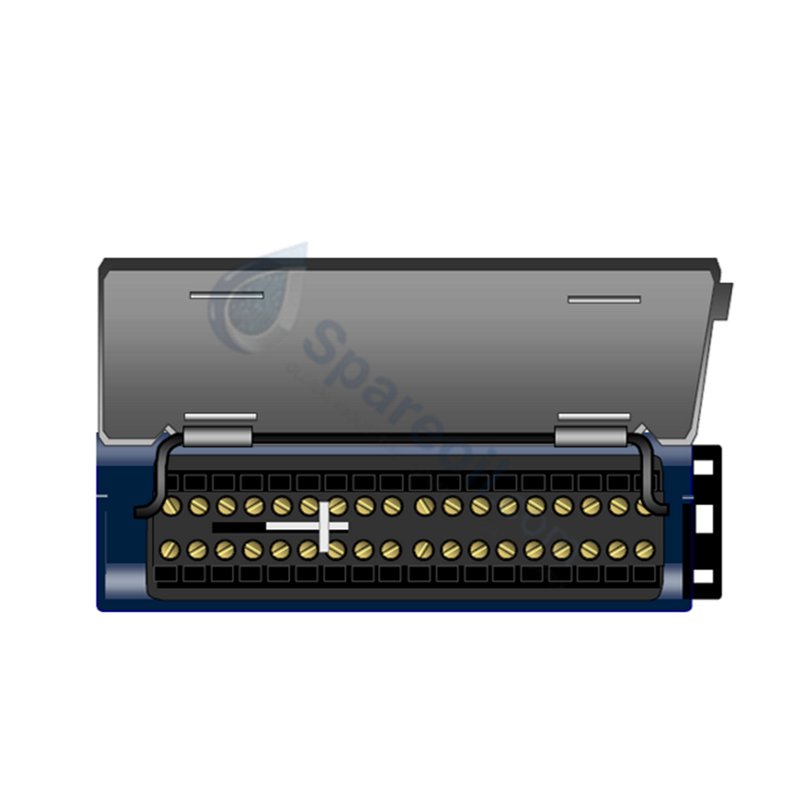

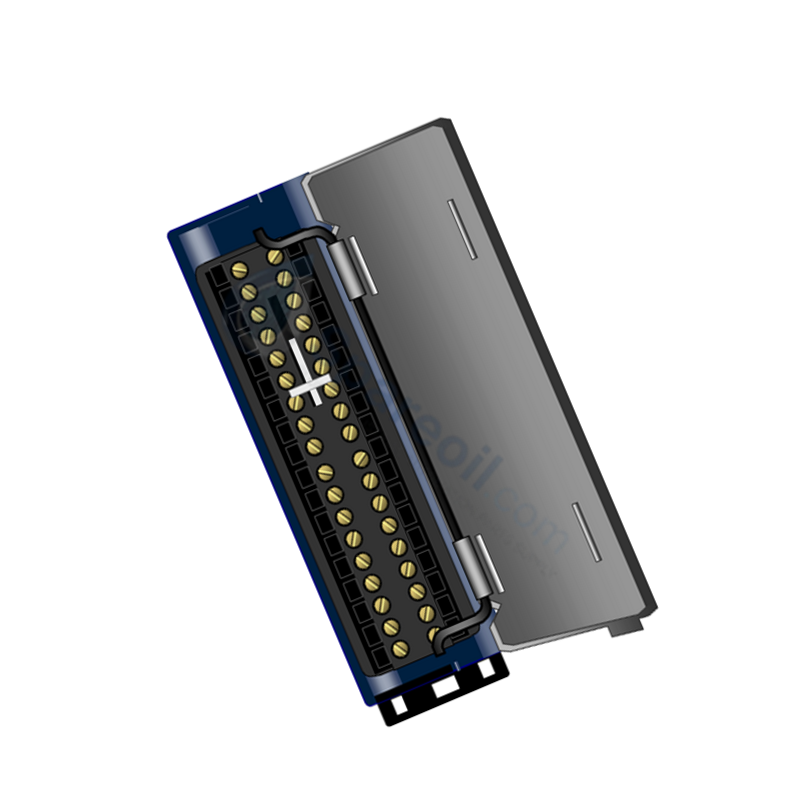

The GE Fanuc IC694TBB132, also cataloged as the IC694TBB132 Terminal Block, operates as a dedicated hardware component for high-density field wiring termination within PACSystem RX3i platforms.

Hardware Specifications

Parameter Specification
Model IC694TBB132
Brand GE Fanuc / Emerson
Origin USA
Weight 0.17 kg (0.38 lbs)
Dimensions Extended box style matching standard RX3i/Series 90-30 depth
Operating Temp 0 to 60 deg C
Power Consumption Passive physical termination component
Terminal Count 36 positions (32 active terminals)
Connection Type Screw-type terminals
Tightening Torque 7 lb-in (0.8 Nm)
Wire Range #14 to #26 AWG solid or stranded
Wire Strip Length 7.87 mm (0.310 in)
Removability Removable and insertable under power (RIUP)
Removal Detection Module-based signal detection
Compatible Modules RX3i and Series 90-30 High-Density and 16-channel isolated I/O modules

I/O Density Scaling & Hardware System Compatibility

The IC694TBB132 extended box terminal assembly is constructed to facilitate I/O density scaling across high-density 36-pin module interfaces. Providing 36 terminal positions for up to 32 discrete field signal channels, the unit maintains mechanical alignment with both PACSystem RX3i and legacy Series 90-30 high-density I/O modules. Integrated removal-detection keys allow seamless swap operations with full support for removal and insertion under power (RIUP), preventing disruption to backplane bus communication velocity across adjacent active chassis slots.

Frequently Asked Questions

Q: What wire gauge size and strip length are specified for the IC694TBB132 terminal connections?

A: The terminal block accepts #14 to #26 AWG solid or stranded conductors stripped to a length of 7.87 mm (0.310 in).

Q: Does the IC694TBB132 terminal block support removal and insertion under power (RIUP)?

A: Yes, the removable terminal block supports RIUP execution when paired with compatible RX3i high-density I/O modules.

Q: What torque setting should be applied to the terminal screws during installation?

A: Terminal screws must be tightened to a nominal torque of 7 lb-in (0.8 Nm) to ensure proper conductor retention and low contact resistance.

Field Installation Guidelines

  1. Strip conductor insulation to exactly 7.87 mm (0.310 in) before inserting wires into the screw terminal positions.
  2. Tighten terminal connection screws using a calibrated torque screwdriver set to 7 lb-in to prevent wire damage or loose connections.
  3. Align the terminal block assembly with the front connector header of the target high-density RX3i or Series 90-30 module and press firmly until side latches snap into place.
  4. Route field wiring harnesses neatly through the lower wiring duct, keeping signal conductors isolated from high-voltage AC lines.
