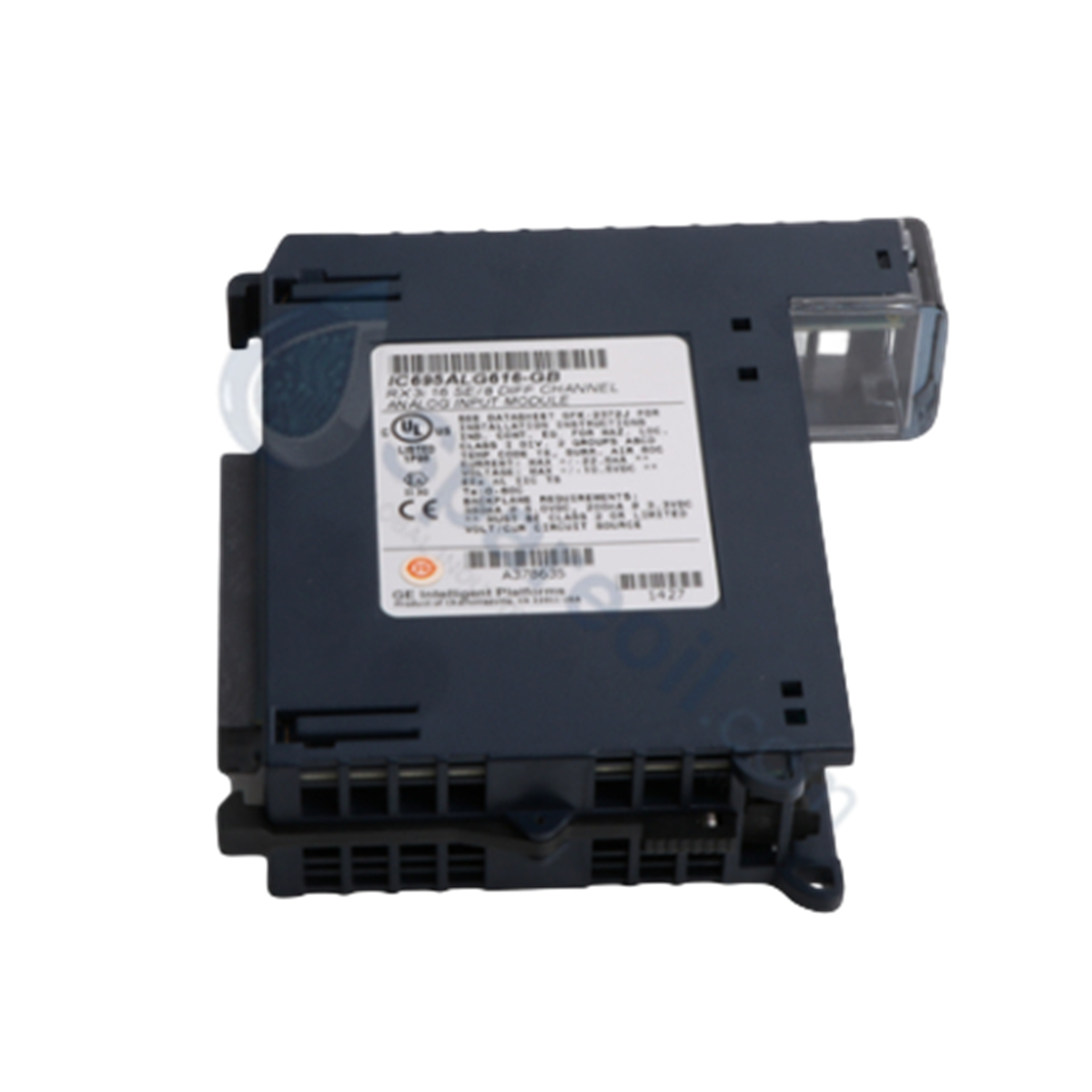

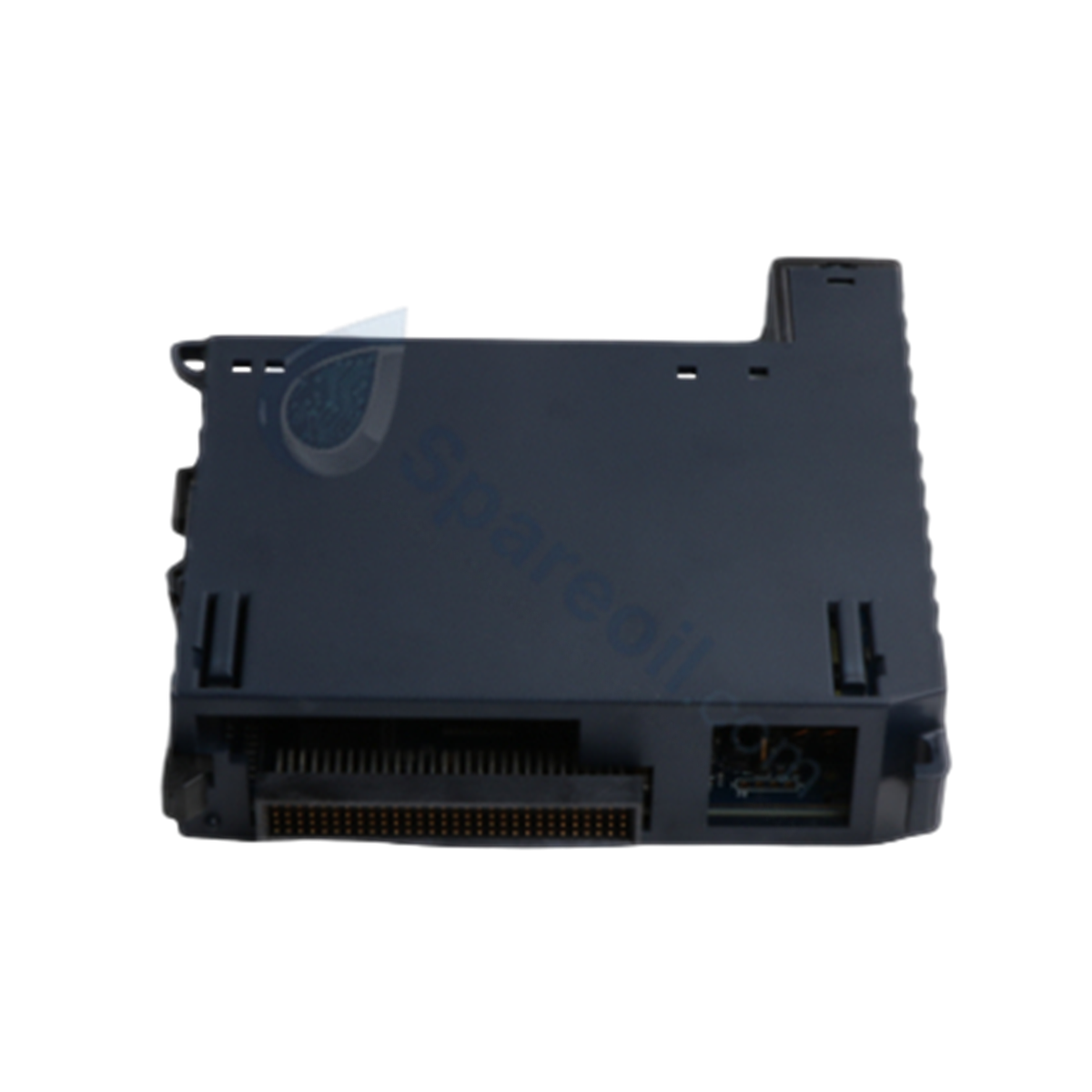

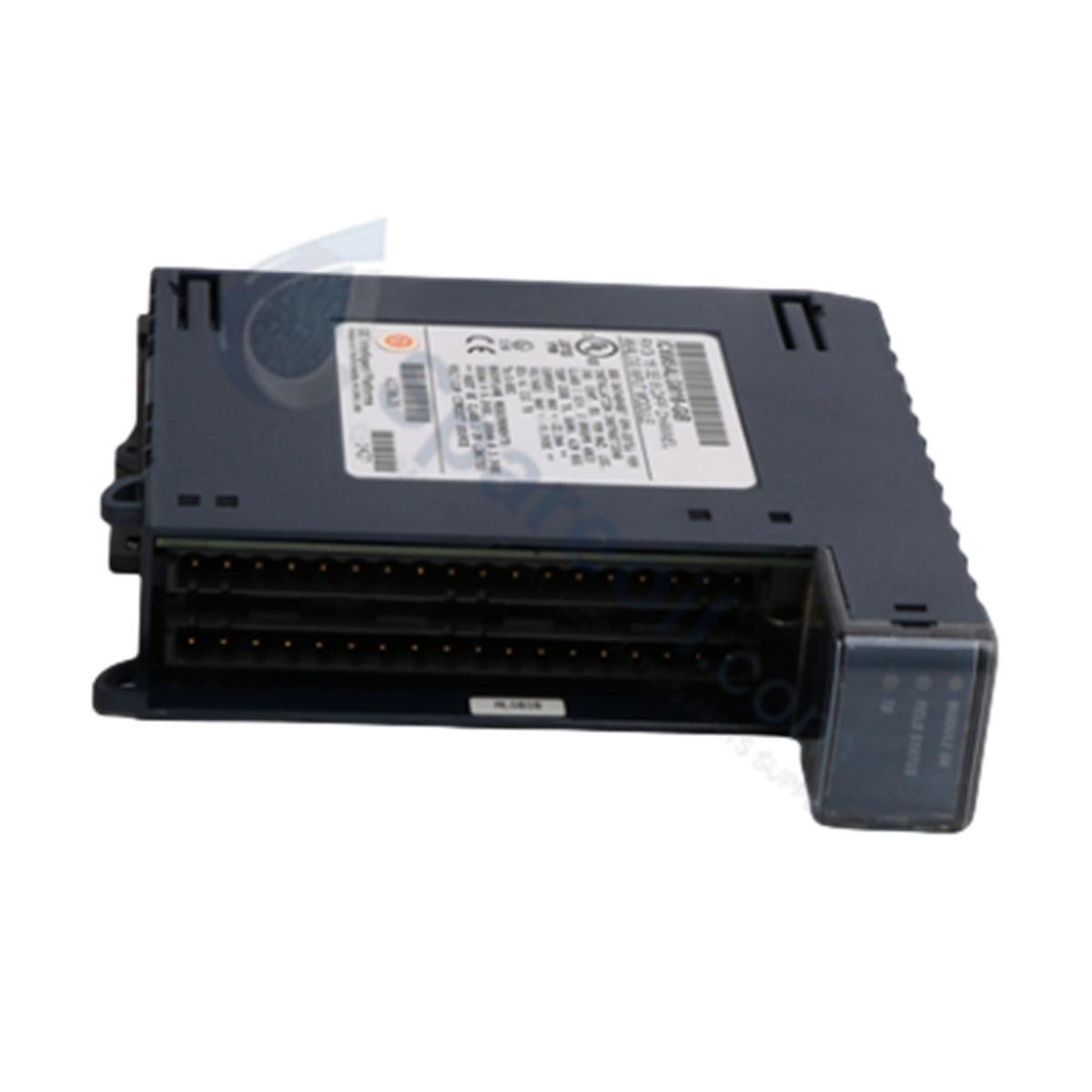

IC695ALG616 GE Analog Input Module | New & Original Stock

IC695ALG616 RX3i PACSystems Module | GE

التوفر: 10 متوفر في المخزون

The GE IC695ALG616, also cataloged as the IC695ALG616 Analog Input Module, operates as a dedicated hardware component for high-precision voltage...

رمز المنتج: IC695ALG616

Manufacturer: GE Fanuc
Product No.: IC695ALG616
Product Type: Analog Input Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 340g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

The GE IC695ALG616, also cataloged as the IC695ALG616 Analog Input Module, operates as a dedicated hardware component for high-precision voltage and current data acquisition within RX3i PACSystems networks.

Hardware Specifications

Parameter	Specification
Model	IC695ALG616
Brand	GE Fanuc (General Electric)
Origin	United States of America (USA)
Weight	0.75 lbs (0.34 kg)
Dimensions	Single-slot RX3i universal backplane footprint
Operating Temp	0 to 60 deg C
Internal Power Consumption	450 mA at 3.3 VDC, 600 mA at 5 VDC from backplane bus
External Power Requirement	18 to 30 VDC external supply range
Input Channels	16 single-ended or 8 differential software-configurable circuits
Current Signal Ranges	0-20 mA, 4-20 mA, +/-20 mA
Voltage Signal Ranges	-10 VDC to +10 VDC (bipolar operations)
Backplane Slot Occupancy	1 slot
A/D Conversion Method	Successive approximation or sigma-delta array

Profinet Networks and I/O Density Scaling

The module registers directly onto the RX3i backplane bus architecture, optimizing data throughput rates for multi-channel I/O density scaling profiles. Channel mapping registers interface with Profinet deterministic networks via network scanner nodes or localized central processor sweeps. High-speed bus communication velocity is maintained across all single-ended and differential hardware multiplexers, ensuring parallel signal sampling without compromising flash firmware execution loops or causing backplane memory starvation.

Frequently Asked Questions

Q: What are the electrical advantages of configuring the module for differential inputs over single-ended inputs?

A: Configuring the module for 8 differential channels provides enhanced common-mode noise immunity by evaluating the voltage differential across two floating signal lines. This suppresses electromagnetic interference, whereas the 16 single-ended configuration references all signals to a shared internal ground loop, optimal for high-density, low-noise environments.

Q: Does the module require external field power to operate the analog sensor loops?

A: Yes. While internal logic registers draw 450 mA at 3.3 VDC and 600 mA at 5 VDC from the backplane, the field-side processing circuitry requires an external power supply voltage regulated between 18 to 30 VDC to drive the input channels and external instrumentation loops.

Field Installation Guidelines

Chassis Insertion: De-energize the universal rack before handling hardware. Align the physical PCB edges with the slot tracks and firmly press the module into the backplane connector block until it is completely seated.
Shield Grounding Matrix: Terminate all twisted-shielded pair cable shields directly at the clean earth grounding bar located inside the enclosure. Do not allow signal shields to float or create ground loop potentials.
Signal Separation: Maintain a minimum physical distance between low-voltage analog signal lines and high-current AC motor supply wires inside the wire ducting to minimize capacitive and inductive cross-talk.
