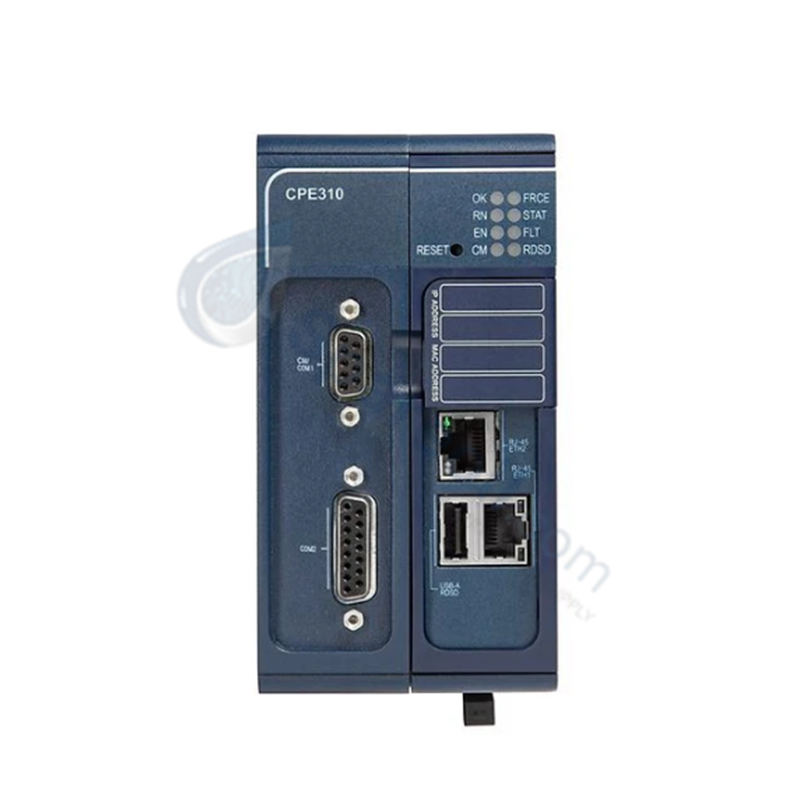

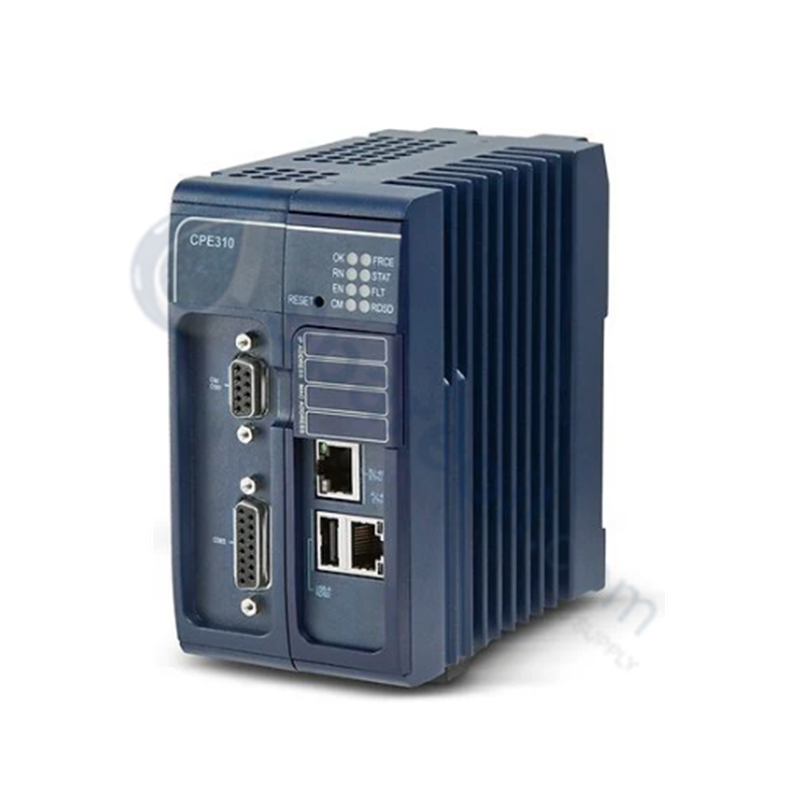

IC695CPE310 GE Fanuc CPU Processor Module

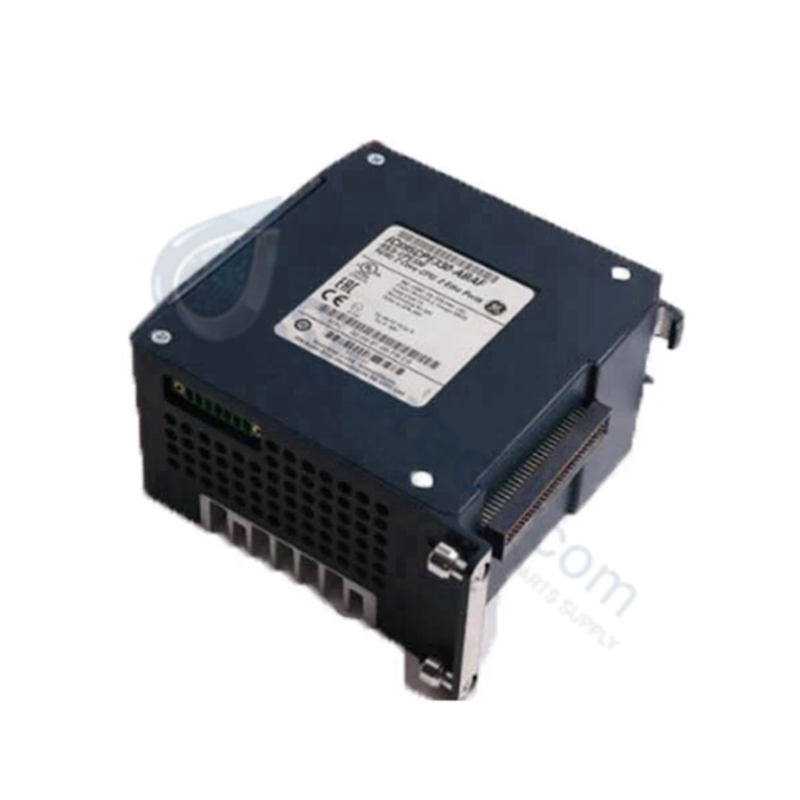

IC695CPE310 GE Fanuc PACSystems RX3i CPU Processor Module

IC695CPE310 GE Fanuc PACSystems RX3i CPU Processor Module

التوفر: 10 متوفر في المخزون

The GE Fanuc IC695CPE310, also cataloged as the IC695CPE310 CPU Processor Module, operates as a dedicated hardware component for logic...

رمز المنتج: IC695CPE310

Manufacturer: GE Fanuc
Product No.: IC695CPE310
Product Type: CPU Processors
Product Origin: USA
Payment:T/T, Western Union
Weight: 1700g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

The GE Fanuc IC695CPE310, also cataloged as the IC695CPE310 CPU Processor Module, operates as a dedicated hardware component for logic execution, computation, and communication processing within PACSystems RX3i platforms. The controller integrates a 1.1 GHz microprocessor to execute Boolean logic at 0.72 ms/k while managing up to 32 K discrete input/output points and 32 K words of analog input/output capacity.

Hardware Specifications

Parameter	Specification
Model	IC695CPE310
Brand	GE Fanuc Emerson
Origin	United States
Weight	1.70 kg (3.75 lbs)
Dimensions	Occupies 2 slots on the backplane
Operating Temp	0 to 60 deg C
Power Consumption	1.0 A at 5.0 VDC, 1.0 A at 3.3 VDC, and 0.5 A at 24 VDC
Processor Speed	1.1 GHz
User Memory	10 MB battery-backed SRAM / Flash
Discrete I/O Capacity	32 K bits %I and %Q
Analog I/O Capacity	32 K words
Serial Ports	1 x RS-232, 1 x RS-485
Ethernet Interface	1 x RJ-45 with built-in 2-port switch
Ethernet Speed	10/100 Mbps (auto-negotiation)
Supported Local Racks	Up to 8 racks
Programming Software	Proficy Machine Edition Logic Developer 7.0 SIM 3 or later

Backplane Bus Communication & Deterministic Performance

The IC695CPE310 utilizes the high-speed PCI backplane structure of the RX3i system to provide fast data exchange with I/O modules and co-processors across up to eight local racks. Deterministic communication is supported via PROFINET, EGD (Ethernet Global Data), and Modbus TCP protocols. Solid-state firmware flash compatibility ensures that the hardware can undergo field updates to receive system optimizations. The non-volatile flash memory serves to store 10 MB of user application program data indefinitely without power, protecting code integrity from battery failure.

Frequently Asked Questions

Q: Does pin 5 of the RS-232 serial port provide 5 VDC power?

A: No. Unlike some legacy controller models, pin 5 of the RS-232 port on the IC695CPE310 does not provide 5 VDC of power. External devices requiring active port power must utilize an external power supply.

Q: What are the capabilities of the USB-A 2.0 master port on this controller?

A: The USB-A 2.0 master port is designed to interface with standard flash drives or compatible devices to perform application code updates, system configuration transfers, and diagnostics data logging.

Q: Is the IC695CPE310 hot-swappable within the RX3i backplane?

A: Yes, the IC695CPE310 supports hot-swap operations within the RX3i universal backplane. However, care must be taken to ensure the system is in a safe operational state before extracting the processor to avoid process disruption.

Field Installation Guidelines

Backplane Insertion: Verify that the backplane power is off before the first mounting. Insert the module into the designated slot of an RX3i Universal Backplane (IC695CHS002 or equivalent), ensuring the dual connector tabs click into the locking mechanism.
Grounding Practices: Ensure the RX3i backplane chassis is securely bonded to a low-impedance earth ground point using a copper conductor of at least 14 AWG (2.1 mm sq).
Serial and Ethernet Cabling: Use shielded RJ-45 cables for the Ethernet network to reduce electromagnetic interference. RS-232/RS-485 connections must use shielded twisted-pair cables with the shield drained to ground at the cabinet entry plate.
Battery Connection: To preserve user memory and the real-time clock during power-down states, ensure the external battery backup pack is connected securely to the CPU battery port before initial commissioning.
