4000103-510 TRICONEX Interface Cable

Invensys I/O module interface cable assembly Triconex 4000103-510

Invensys I/O module interface cable assembly Triconex 4000103-510

التوفر: 10 متوفر في المخزون

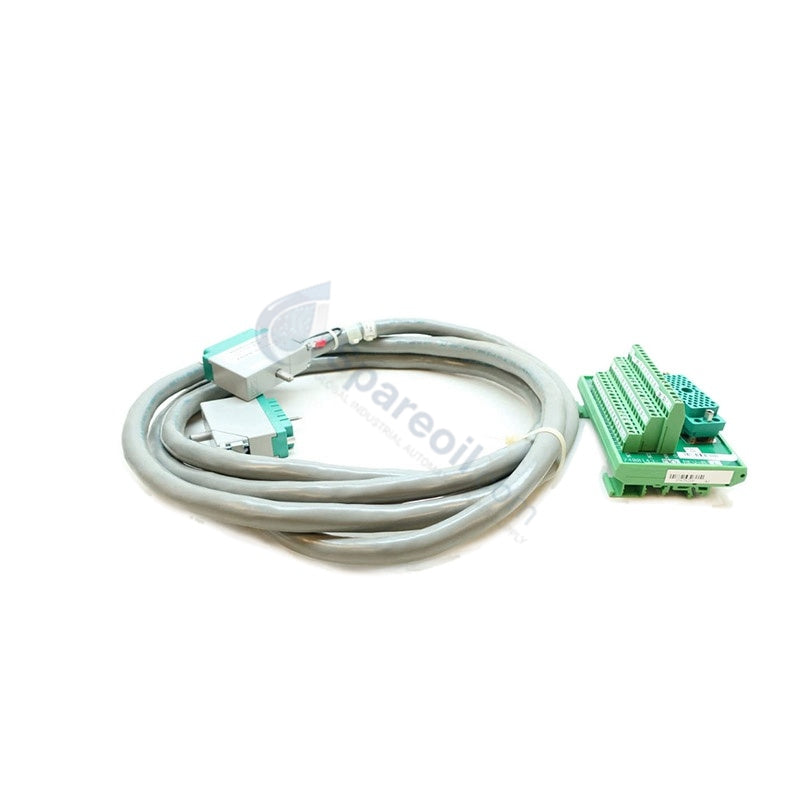

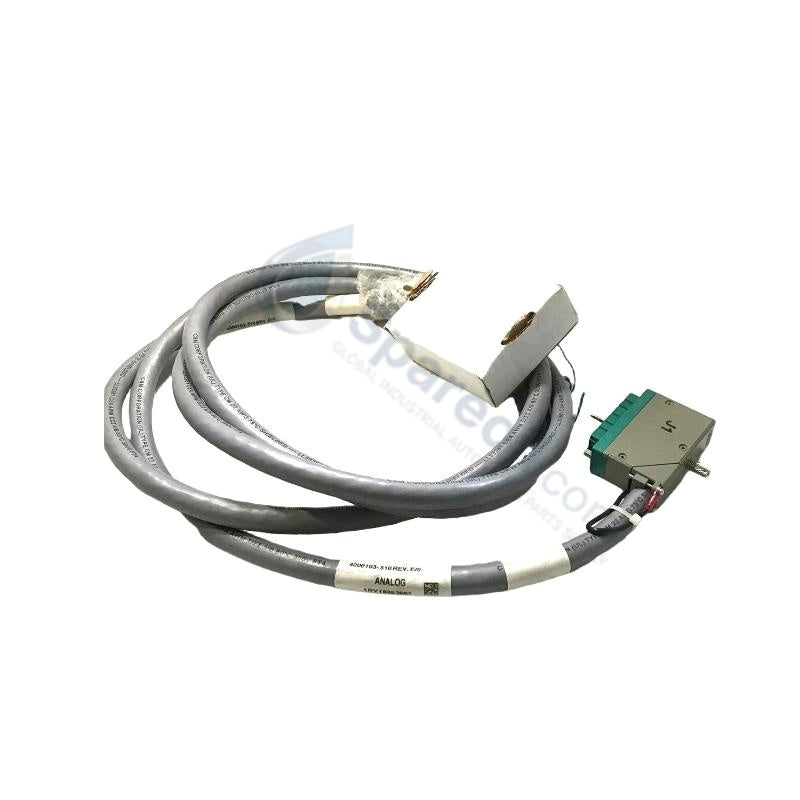

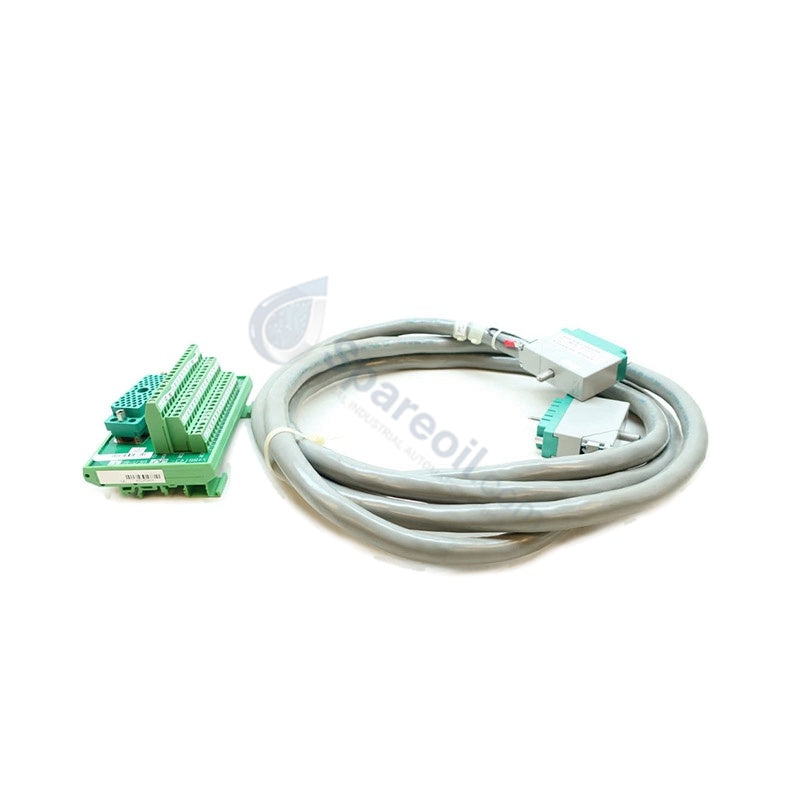

TRICONEX 4000103-510 Interface Cable Assembly The TRICONEX 4000103-510, also cataloged as the TRICONEX 4000103-510 Cable Assembly, operates as a dedicated...

رمز المنتج: 4000103-510

Manufacturer: Triconex
Product No.: 4000103-510
Product Type: Interface Cable Assemblies
Product Origin: USA
Payment:T/T, Western Union
Weight: 1400g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

TRICONEX 4000103-510 Interface Cable Assembly

The TRICONEX 4000103-510, also cataloged as the TRICONEX 4000103-510 Cable Assembly, operates as a dedicated hardware component for signal interconnection tasks within Tricon 3000 Series SIS racks platforms. It establishes the physical multi-conductor link necessary to route digital or analog I/O bus lines between high-density I/O modules and external termination panels or terminal assemblies. The assembly ensures the mechanical continuity and shielding required for error-free logic routing across industrial control layers.

Hardware Specifications

Parameter	Specification
Model	4000103-510
Brand	TRICONEX (Schneider Electric / Invensys)
Origin	United States
Weight	1.4 kg
Physical Length	10 feet (~3.05 meters)
Cable Profile Dimensions	0.2 cm x 2.5 cm x 25.4 cm structural envelope
System Role	Interfacing physical I/O modules with termination assemblies
Nominal Voltage Support	24 VDC
Insulation Breakdown Rating	Greater than 1500 VDC isolation barrier capability
Operating Temp	-20 deg C to +60 deg C
Storage Temp	-40 deg C to +85 deg C
Humidity Range	5% to 95% non-condensing
Safety Certification	IEC 61508 SIL3, TÜV, CE, UL Class I Div 2, ATEX Zone 2

Triple Modular Redundancy & Fail-Safe State Execution

Configured to maintain continuous signal path integrity without inducing data losses or common-mode path failures, the cable assembly supports parallel channel pathways mapped to triple modular redundancy (TMR) architectures. The multi-conductor core uses high-density twist pitches to optimize cross-talk rejection between adjacent leg pathways, ensuring that individual leg readings from field devices pass cleanly into the voter logic arrays without electromagnetic degradation. Heavy inner shielding blankets the internal core, while high-grade insulation barriers provide greater than 1500 VDC isolation from external frame shorts. If an external grounding event or wire fault impacts the outer layer, the redundant path isolation ensures a fail-safe state execution environment by containing electrical disturbances away from unaffected TMR channels.

Frequently Asked Questions

Q: How do the mechanical layout constraints of this 10-foot cable affect the transmission accuracy of 4-20 mA analog signals?

A: The 10-foot physical length incorporates targeted internal copper sizing and high-density twist configurations designed to hold loop resistance to nominal values. This mitigates signal attenuation across the line, maintaining strict conversion accuracy from field transmitters into the primary 12-bit analog input cards.

Q: Can this cable assembly be connected or disconnected while the associated Triconex I/O module is actively processing live safety loops?

A: No. While many Triconex chassis modules support live hot-swap, this multi-pin interface cable assembly is not rated for live hot-plugging or live extraction. Disconnecting the cable while operational breaks the active loop connection for all associated channels, which will trigger immediate diagnostic faults and potentially cause an unintended safety shutdown or process trip.

Field Installation Guidelines

Bending Radius Compliance: Maintain a generous bending radius along the entire cable run during panel routing to prevent internal conductor tension or stress fractures within the molded connector boots.
Shield Grounding Integrity: Verify that the integrated drain wire and connector grounding shell mate firmly to the chassis ground frame to maintain the internal greater than 1500 VDC noise isolation matrix.
Connector Lock Retention: Fully engage all integrated physical thumb screws or retaining latches on both the I/O module side and the termination panel side to prevent industrial vibrations from loosening the multi-pin interface.
Thermal Path Protection: Route the assembly away from high-temperature exhaust channels or heavy motor leads inside the enclosure to hold the line temperature within the -20 deg C to +60 deg C operational limit.
