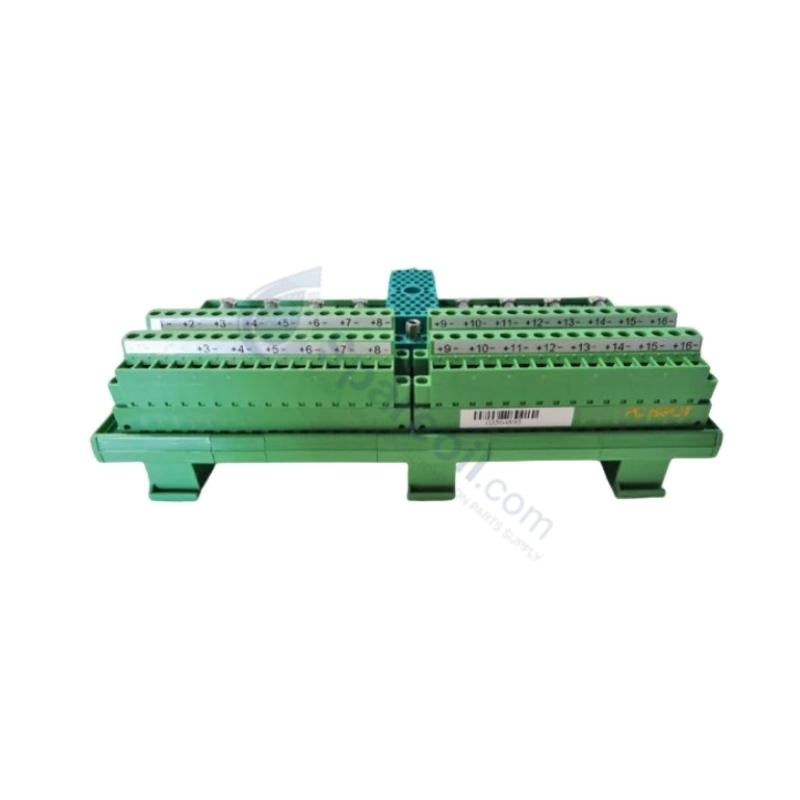

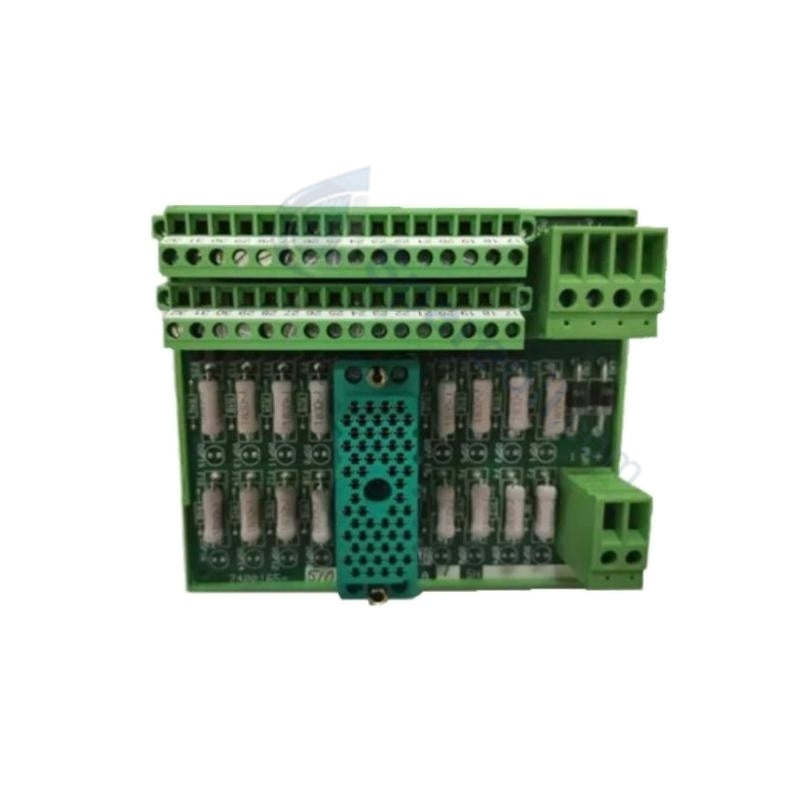

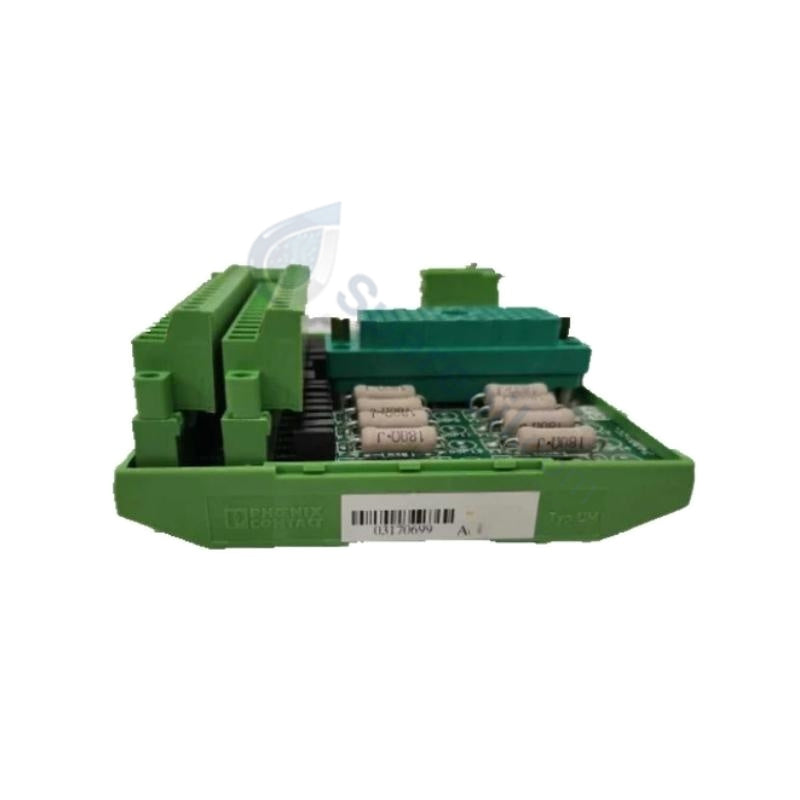

Triconex 3000520-380 Industrial System Cable Assembly

The Triconex 3000520-380, also cataloged as the 9662-8 Industrial System Cable Assembly, operates as a dedicated hardware component for high-integrity signal and power transmission within Triconex TMR Safety Instrumented Systems platforms. The hardware establishes the physical and electrical linkage required to bridge Triconex TMR controllers with distributed interface card matrices. It continuously routes discrete and analog safety variables across dedicated processing boundaries, ensuring continuous communication without signal attenuation.

Hardware Specifications

Parameter Specification
Model 3000520-380 (9662-8)
Brand Triconex
Origin United States
Weight 33.33 g
Dimensions Standard 3.8 m
Operating Temp -40 to +85 deg C
Power Consumption Passive (2 A per conductor maximum current rating)
Cable Type Shielded multi-conductor industrial cable
Conductor Gauge 22 to 24 AWG stranded copper
Insulation High-temperature PVC/Teflon insulation
Voltage Rating 300 V AC/DC
Resistance Less than 0.05 ohm/km
Insulation Resistance Greater than 100 M-ohm
Shielding Braided copper shield with 85% coverage
Storage Temp -55 to +105 deg C
Humidity 5% to 95% non-condensing
Certifications IEC 61508 SIL 3, UL, CE, EU RoHS, China RoHS

Triple Modular Redundant Safety Control

The cable assembly incorporates distinct, isolated internal conductor groups designed to support a triple modular redundancy (TMR) 2oo3 architecture. High-temperature Teflon insulation provides channel-to-channel isolation parameters exceeding 100 M-ohm, preventing electrical cross-talk or physical shorts within one leg from invalidating the parallel data branches. This comprehensive galvanic isolation prevents common-mode faults from transferring between the separate controller slots and the field interface infrastructure, ensuring deterministic fail-safe state execution in complete compliance with SIL3 certification standards.

Frequently Asked Questions

Q: Does disconnecting this cable assembly during active processing affect the runtime environment?

A: Yes. Removing the cable assembly breaks the physical link between the active I/O termination framework and the main processors. This action instantly disrupts the 2oo3 structural voting data path for the connected channels, leading the downstream safety logic to execute a localized loop fault or a fail-safe shutdown response.

Q: How does the internal shield boundary mitigate industrial noise interference over the 3.8 m length?

A: The assembly incorporates a braided copper shield offering 85% coverage to act as a low-impedance shield cage. This design intercepts electromagnetic interference (EMI) and radio-frequency noise (RFI), shunting static transients away from the internal 22-24 AWG signal pairs to maintain stable reference thresholds.

Field Installation Guidelines

  • Bending Constraints and Mechanical Stress Protection: Route the cable assembly along dedicated instrumentation trays, enforcing standard structural sweep loops to protect the internal stranded copper conductors from fracturing. Keep the jacket clear of sharp enclosure corners and high-temperature pipe surfaces.
  • Drain Terminal Connection and Grounding Configuration: Connect the bare shield drain leads directly to the primary instrumentation earth busbar inside the termination cabinet. Tighten the termination screw completely, and do not ground the shield layer at both ends to prevent parasitic ground loops.
  • Raceway Separation and Signal Path Allocation: Place the multi-conductor assembly exclusively inside low-voltage signal wireways. Maintain standard mechanical separation clearances between these safety paths and high-current AC lines or variable frequency drive (VFD) conduits to prevent induction noise.
