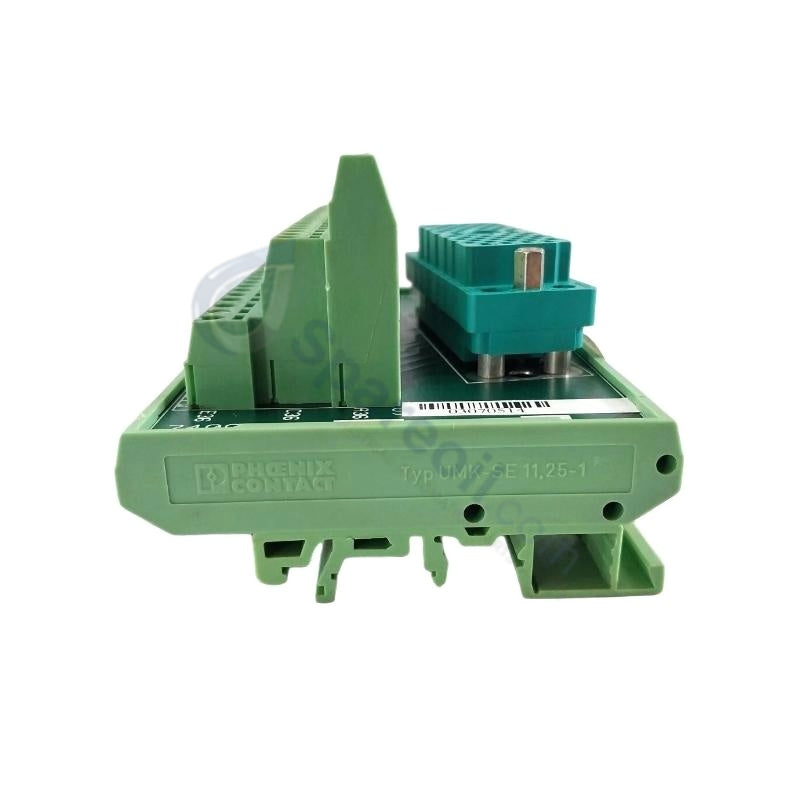

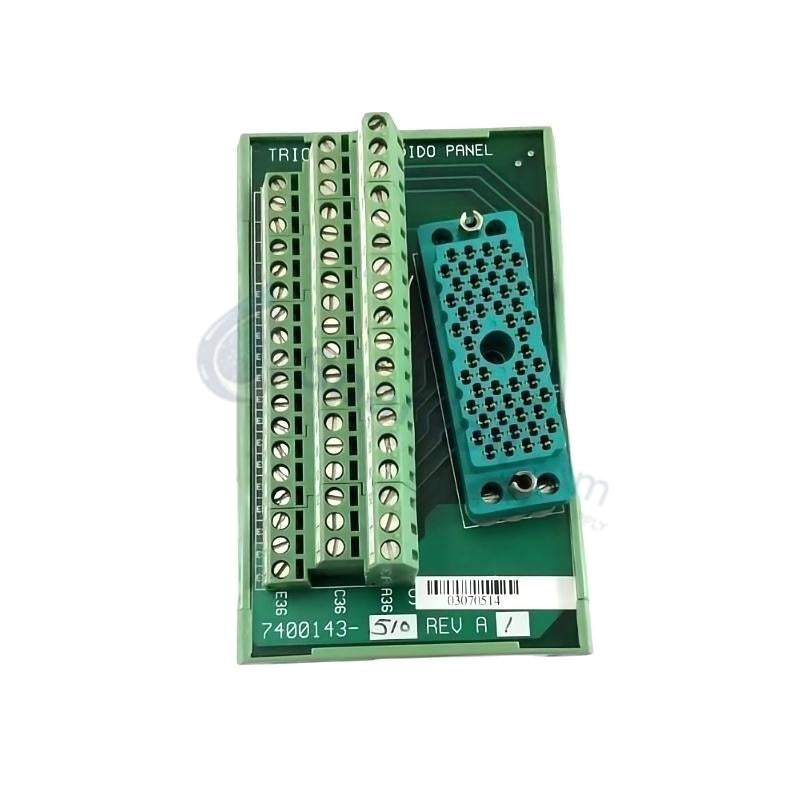

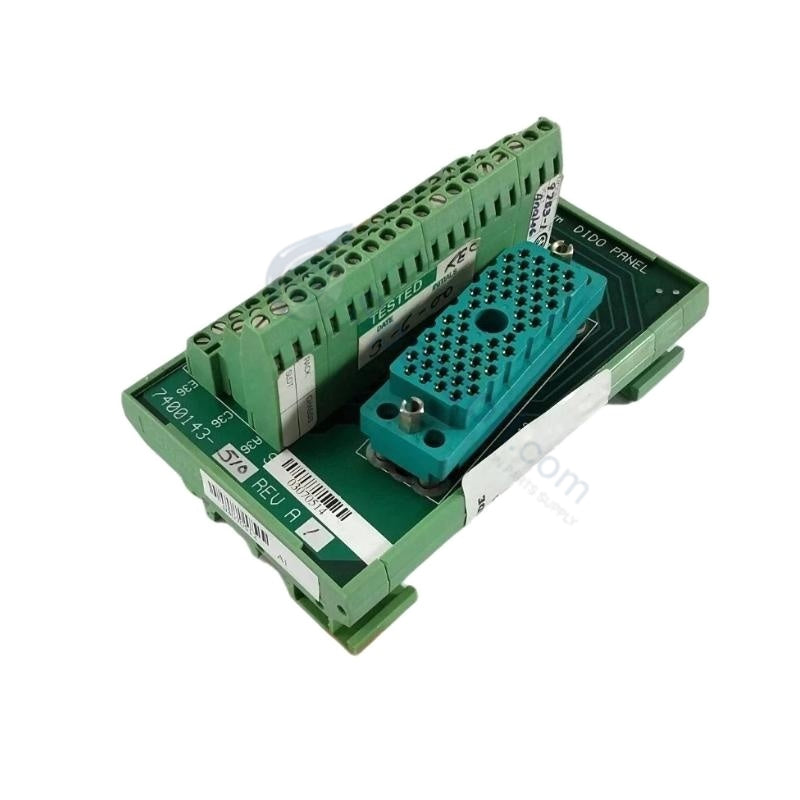

Triconex 3000400-510 Terminal Panel Module

Configured for analog signal processing and power distribution in safety-critical networks, the Triconex 3000400-510 (3000400-510 Terminal Panel Module) provides direct physical/electrical execution. The hardware serves as an interface layer, routing low-voltage analog inputs across multiple independent channels to the main system backplane. Operating on a 24 VDC voltage bus, the component conditions 0-5 V and 0-10 V electrical signals while establishing physical isolation zones to prevent field-side electrical transients from disrupting the core logic solver.

Hardware Specifications

Parameter Specification
Model 3000400-510 (7400143-510 configuration base)
Brand Triconex (Invensys)
Origin United States
Weight 1.1 kg
Dimensions Not Specified (UMK-SE11,25-1 lateral element profile)
Operating Temp -40 to +70 deg C (-40 to +85 deg C component rating)
Power Consumption 4.5 W
Input Voltage 24 VDC
Signal Input Type Analog Input (0-5 V / 0-10 V)
Safety Rating IEC 61508 SIL 3 Compliant
Humidity Tolerance Up to 95% RH, non-condensing

Triple Modular Redundancy (TMR) 2oo3 Architecture

The hardware utilizes isolated data routing pathways compatible with a triple modular redundancy (TMR) 2oo3 architecture to eliminate single points of failure. Channel-to-channel and channel-to-ground isolation layers protect the system from cross-channel signal degradation and high-voltage transients. The hardware interface coordinates signal transmission with integrated health monitoring protocols, allowing the upstream logic solver to achieve fail-safe state execution during real-time fault detection events.

Frequently Asked Questions

Q: Does the 3000400-510 module support hot-swap procedures during active system operation?

A: Insertion and removal limitations are governed by the parent Triconex chassis backplane configuration. Online replacement must comply with standard safety instrumented system (SIS) maintenance protocols to prevent accidental loop interruptions during live processing.

Q: How does the module handle ground loops and cross-channel electrical interference?

A: The circuit board features dedicated channel-to-channel and channel-to-ground isolation barriers. These physical blocks disrupt ground loops and mitigate electrical noise migration between adjacent low-voltage analog loops.

Q: What is the maximum power draw per terminal panel assembly under full channel load?

A: The unit draws a static 4.5 W at 24 VDC. Auxiliary field transmitter loop power consumption must be calculated separately based on the specific external hardware distribution scheme.

Field Installation Guidelines

  1. Mount the module assembly to the standard DIN-rail support structure using the UMK-SE11,25-1 lateral elements to ensure mechanical stability.
  2. Terminate the 24 VDC power supply wiring at the designated input terminals, verifying correct polarity before applying electrical energy.
  3. Route low-voltage analog input signal conductors through separate wire ways, keeping them isolated from high-voltage AC power distribution lines.
  4. Secure the sensor shield drains to the master instrument ground bus bar using low-impedance copper grounding clamps.
  5. Confirm that the ambient enclosure temperature remains within the specified -40 to +70 deg C window under peak load conditions.
