4000103-516 Triconex TMR Systems Datasheet & Technical Manual

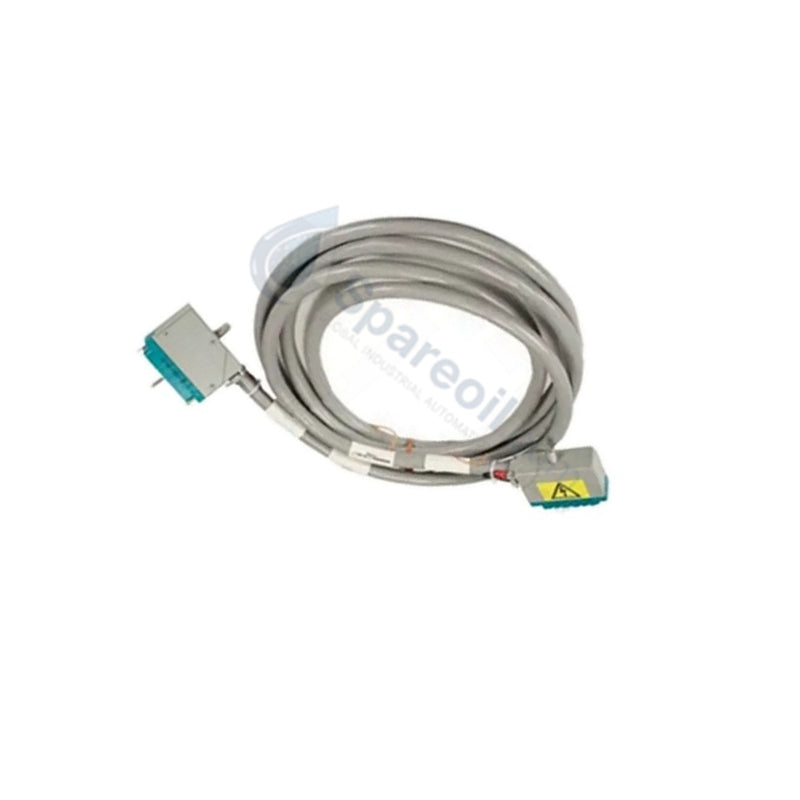

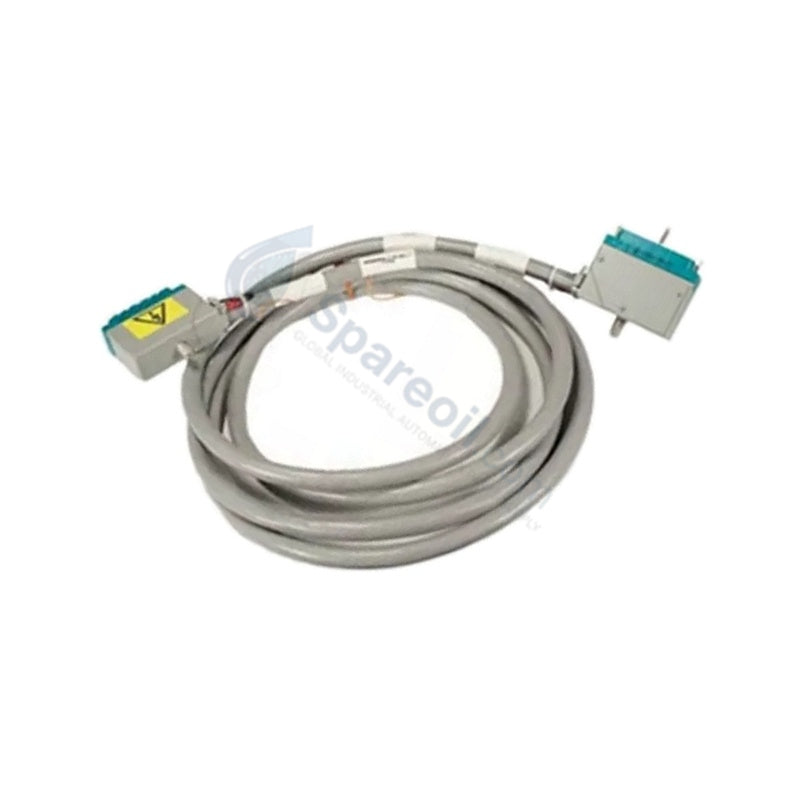

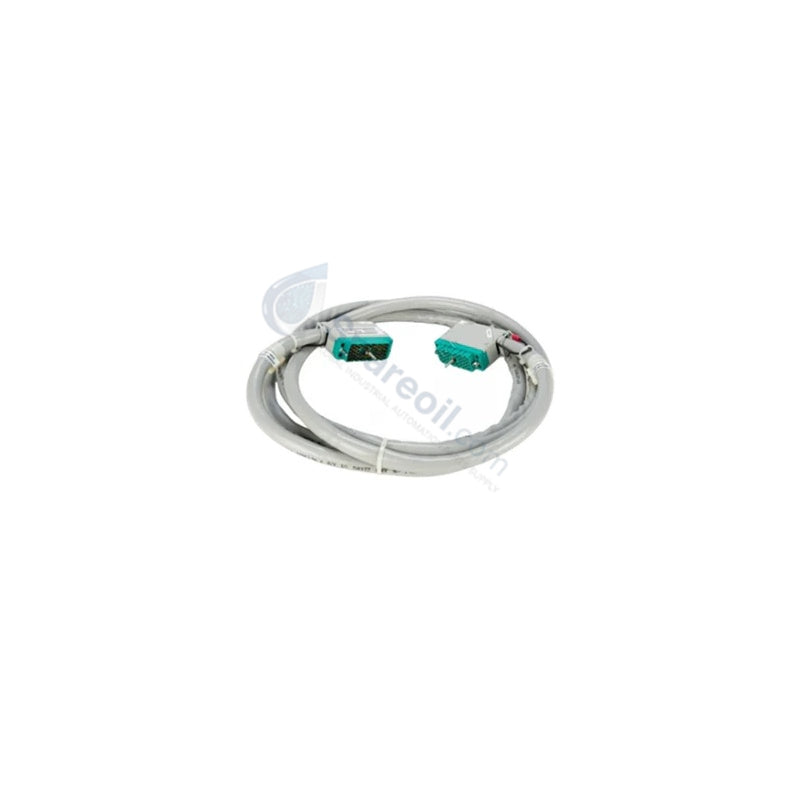

Triconex 4000103-516 TMR Controller Cable Assembly

Triconex 4000103-516 TMR Controller Cable Assembly

التوفر: 10 متوفر في المخزون

Triconex 4000103-516 Industrial System Cable Assembly The Triconex 4000103-516 serves as the primary 4000103-516 Industrial System Cable Assembly utilized to...

رمز المنتج: 4000103-516

Manufacturer: Triconex
Product No.: 4000103-516
Product Type: Industrial System Cables
Product Origin: USA
Payment:T/T, Western Union
Weight: 2500g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Triconex 4000103-516 Industrial System Cable Assembly

The Triconex 4000103-516 serves as the primary 4000103-516 Industrial System Cable Assembly utilized to execute high-integrity signal and power transmission across Triconex TMR Safety Instrumented Systems platforms. The hardware establishes hardwired inter-rack links between main controller chassis structures and distributed I/O module planes, facilitating deterministic parallel communication lines that are isolated from standard factory bus power paths.

Hardware Specifications

Parameter	Specification
Model	4000103-516
Brand	Triconex
Origin	United States
Weight	2.5 kg
Dimensions	5.16 m (Standard Cable Length)
Operating Temp	-40 to +85 deg C
Storage Temp	-55 to +105 deg C
Power Consumption	Passive (2 A per conductor maximum current rating)
Cable Type	Shielded multi-conductor industrial cable
Conductor Gauge	22 to 24 AWG stranded copper
Insulation	High-temperature PVC/Teflon insulation
Voltage Rating	300 V AC/DC
Resistance	Less than 0.05 ohm/km
Insulation Resistance	Greater than 100 M-ohm
Shielding	Braided copper shield with 85% coverage
Humidity	5% to 95% non-condensing
Certifications	IEC 61508 SIL 3, UL, CE

Triple Modular Redundant Safety Control

The assembly contains internal physical separation channels that maintain the execution safety vector of a triple modular redundancy (TMR) 2oo3 architecture. Individual leg wire groupings remain separated within the core insulation, ensuring that electrical degradation or cross-talk suppression failures inside one leg cannot invalidate the remaining parallel data branches. The dense Teflon/PVC shielding layout supports continuous galvanic isolation parameters up to 300 V, providing the physical layer isolation required to enforce a predictable fail-safe state execution across all downstream process control junctions and validate SIL3 status parameters.

Frequently Asked Questions

Q: Does removing this component while the controller is online affect active safety logic calculations?

A: Yes. Pulling the cable assembly breaks the physical connection between the central execution processor and the field interfaces. This action disrupts the 2oo3 internal network matching parameters for that rack zone, instantly shifting the affected local loops into a defined fault or fail-safe shutdown response.

Q: How does the internal shield boundary mitigate common-mode noise issues between parallel hardware runs?

A: The cable uses a braided copper shield with 85% mechanical coverage to intercept high-frequency noise fields. Shunting this shield to a clean instrument earth stops stray signals from penetrating the 22-24 AWG data conductors and shifting internal signaling reference points.

Field Installation Guidelines

Bending Limits and Mechanical Structural Care: Maintain a wide structural sweep during cable installation to stay clear of tight radii limits that fracture stranded copper conductors. Avoid pulling the assembly jacket over sharp metal frame surfaces or unlined entry ducts to preserve insulation layer boundaries.
Drain Termination and Grounding Layout: Clamp the bare shield drain extensions directly onto the designated master instrumentation earth rail of the rack enclosure. Keep the ground connections tight, and never cross-connect the shield lines at multiple points to prevent potential instrumentation noise loops.
Conduit Splitting and Cable Route Isolation: Place the assembly exclusively inside low-voltage signal raceways. Keep these paths separate from AC distribution runs, variable frequency drive output grids, and heavy electrical switchgear elements to minimize noise induction.
