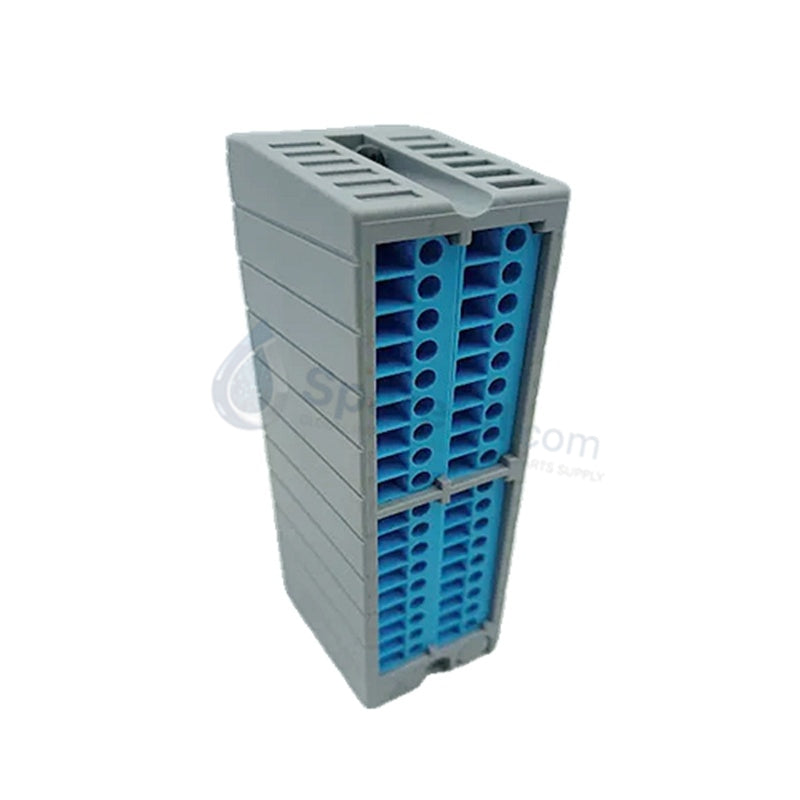

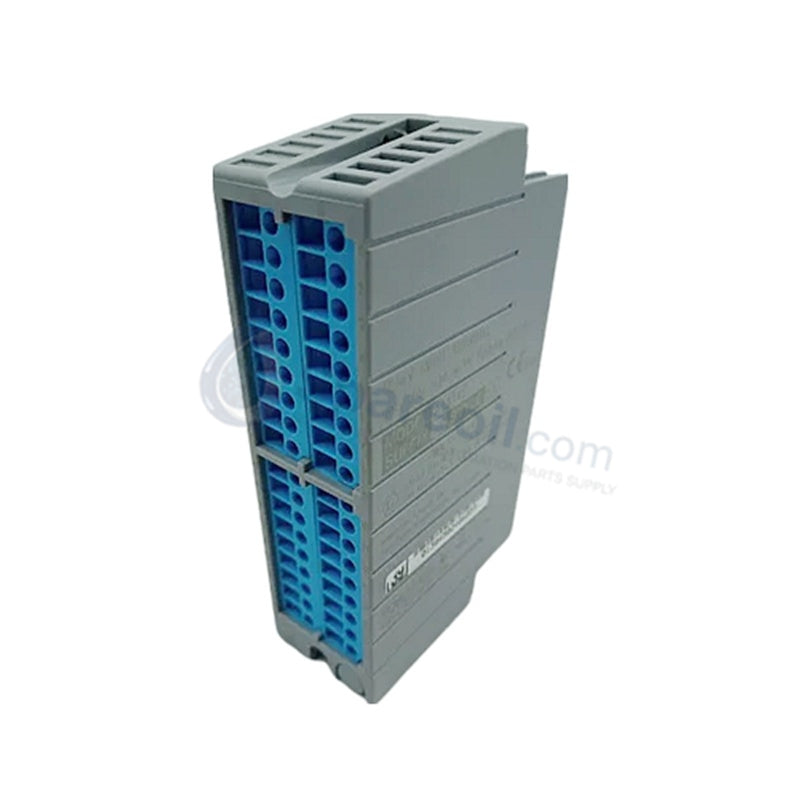

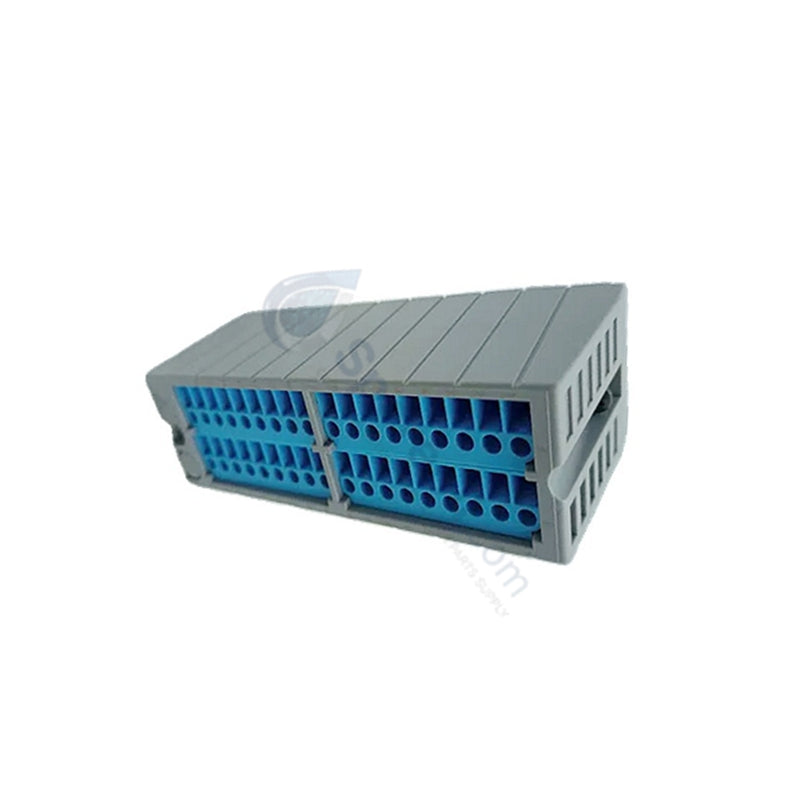

Yokogawa ATSA3D-0 Terminal Block Assembly

The Yokogawa ATSA3D-0, also cataloged as the Yokogawa ATSA3D Terminal Block Assembly, operates as a dedicated hardware component for structured field wiring interfacing within CENTUM VP, CS 3000 FIO, and ProSafe-RS platforms. Configured to bridge field device cabling with intrinsically safe I/O modules, the assembly executes direct physical termination point management without introducing active signal conversion components.

Hardware Specifications

Parameter Specification
Model ATSA3D-0
Brand Yokogawa
Origin Japan
Weight 0.3-0.5 kg
Dimensions Compact design for cabinet optimization
Operating Temp -20 to +70 deg C
Storage Temp -40 to +85 deg C
Number of Terminals 32-64 points per assembly
Wiring Capacity 0.5-2.5 mm2 conductors
Insulation Resistance Minimum 100 MΩ at 500 VDC
Withstand Voltage 1500 VAC for 1 minute
Mounting Type DIN rail or panel installation
Power Consumption Passive device (0 W base load)
Material Flame-retardant industrial-grade resin
Certifications CE, UL, CSA compliance

Distributed Control System Interface Protocols

The passive electrical network inside the module routes external sensor paths directly to internal system components using dedicated system buses. The hardware configuration preserves 4-20 mA HART loop protocol signaling transparency between field instruments and the associated distributed control system input card channels. Internal trace path isolation geometry provides channel-to-channel isolation cross-talk reduction, allowing concurrent transmission of instrumentation currents while maintaining independent reference potentials across adjacent termination rows.

Frequently Asked Questions

Q: Can the terminal block assembly undergo hot-swap insertion while the field loops are energized?

A: The module consists entirely of passive structural components and copper alloy routing traces. Disconnecting the assembly while loops are active interrupts the physical circuit, meaning engineers must isolate external 24 VDC loop power before replacing or unseating the terminal hardware.

Q: What cable accessory types interface directly with the module's system-facing connectors?

A: The system interface architecture accepts Yokogawa AKB-series prefabricated signal cable assemblies to route the terminated field points to corresponding distributed control system I/O modules.

Q: How does the device maintain channel integrity during transient electrical events?

A: The physical module utilizes flame-retardant industrial resin barriers and maintains a dielectric withstand voltage rating of 1500 VAC for 1 minute to prevent sparkovers between signal tracks during field surge events.

Field Installation Guidelines

  1. Mechanical Attachment: Snap the terminal block base firmly onto a standard symmetric DIN rail or anchor it via designated panel mounting holes. Verify the locking tabs engage completely to ensure mechanical stability against industrial vibrations.
  2. Signal Termination: Strip the insulation of the field conductors to the specified engagement depth and insert them into the screw or clamp terminations. Torque the terminal screws down to the manufacturer-specified tension limit using standard ASCII-approved hand tools.
  3. Grounding and Shielding: Route separate field shield drain wires directly to the functional earth busbar of the control enclosure. Maintain clean spatial separation between low-voltage instrumentation wires and high-power cabinet supply lines to limit electromagnetic interference.
