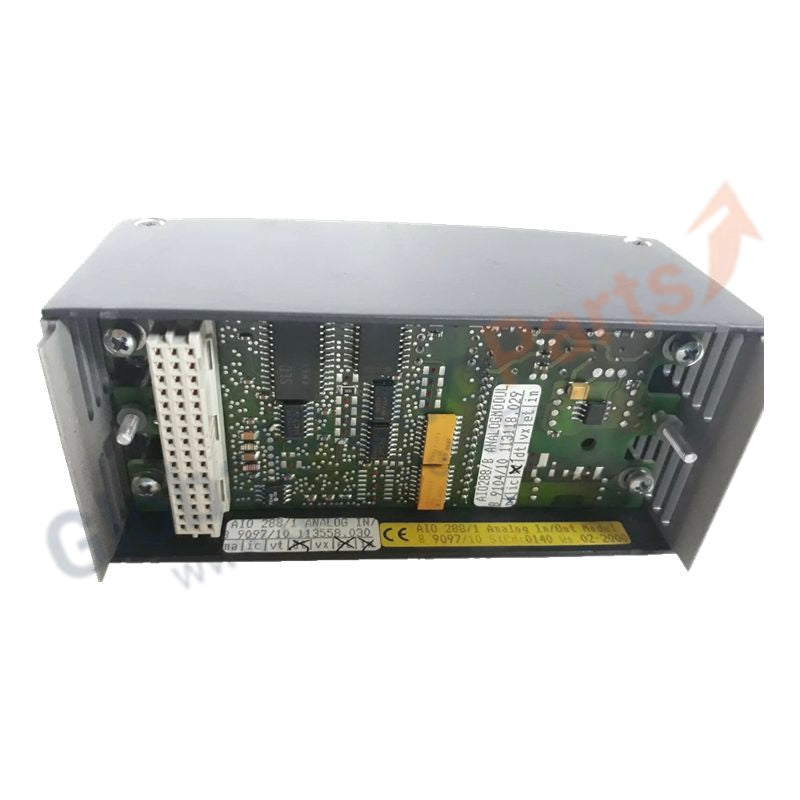

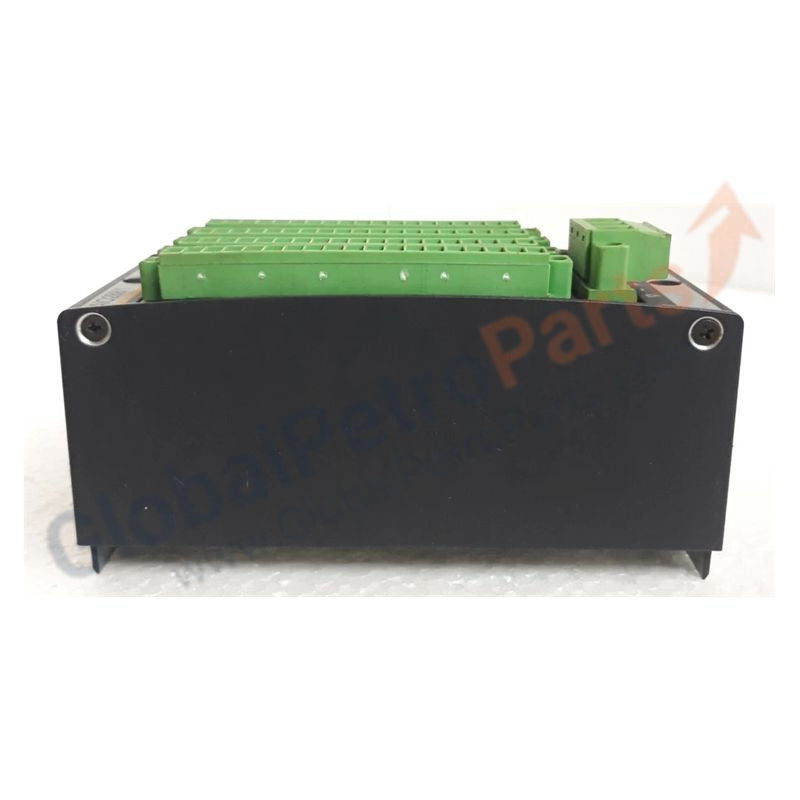

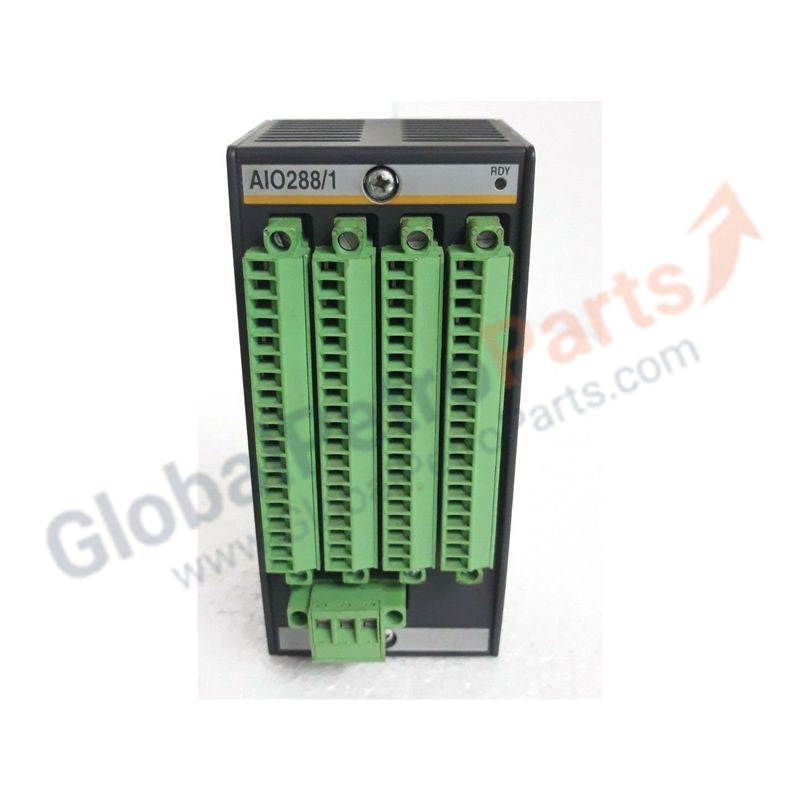

Bachmann AIO288/1 Analog I/O Module

Availability: 99 left in stock

Product Description The AIO288/1 (Part Number: 00012270-00) is a high-precision multifunction analog I/O module for the Bachmann M1 automation system, combining 8 analog inputs and 8 analog...

SKU: AIO288/1

Manufacturer: Bachmann
Product No.: AIO288/1
Product Type: Analog I/O Modules
Product Origin: Germany
Payment:T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Description

The AIO288/1 (Part Number: 00012270-00) is a high-precision multifunction analog I/O module for the Bachmann M1 automation system, combining 8 analog inputs and 8 analog outputs in a single module. It is designed for space-efficient, high-fidelity signal acquisition and control, suitable for test stands, turbine control, hydraulic systems, and industrial positioning applications.

The module supports Pt100 / Pt1000 RTD sensors on 4 input channels and provides integrated power for up to 4 potentiometers. With 14-bit resolution and wire-break detection, it ensures accurate signal processing and real-time monitoring of connection integrity.

Technical Specifications

Parameter	Specification
Total Channels	16 (8 AI / 8 AO)
Input Range	±10 V
Output Range	±10 V
Resolution	14-bit (ADC/DAC)
Temperature Input	4 × Pt100 / Pt1000
Potentiometer Supply	Up to 4 channels
Input Modes	Single-ended / Differential
Safety Diagnostics	Wire-break detection
Isolation	500 V RMS (field to system bus)
Compatibility	All M1 backplanes and CPUs

Application

Ideal for hydraulic proportional valve control, temperature monitoring, and feedback loops where synchronized analog input/output handling is critical. The module is widely used in industrial automation and energy systems requiring high accuracy and reliability.

Comparison: AIO288/1 vs AIO288

The AIO288/1 offers enhanced input filtering and improved thermal stability over the standard AIO288, making it suitable for wide-temperature and outdoor energy applications.

FAQ

Why use differential inputs?
Differential mode reduces common-mode noise and ground loops, essential when sensors are located far from the control cabinet.
