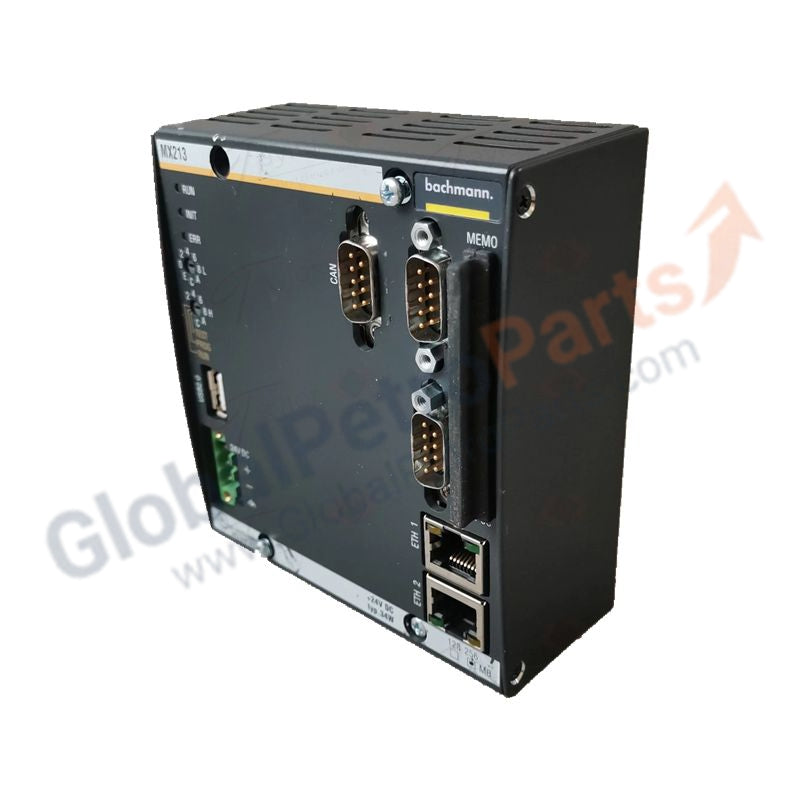

Bachmann MX213 Processor Module

Availability: 99 left in stock

Product DescriptionThe MX213 (Order Number: 00010464-50) is a high-performance central processing unit for the Bachmann M1 automation platform, designed to deliver fast, deterministic...

SKU: MX213

Manufacturer: Bachmann
Product No.: MX213
Product Type: Processor Module
Product Origin: Germany
Payment:T/T, Western Union
Weight: 600g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Description
The MX213 (Order Number: 00010464-50) is a high-performance central processing unit for the Bachmann M1 automation platform, designed to deliver fast, deterministic logic execution for complex industrial control systems. Positioned as a mid-to-high range processor in the M1 lineup, the MX213 is optimized for environments requiring synchronized high-speed motion control, extensive I/O management, and multi-protocol communication. Built in Austria, its hardware is engineered for continuous operation under high-vibration and thermally demanding conditions.

Equipped with the deterministic real-time operating system (M-OS), the MX213 ensures consistent cycle times and rapid response for safety-critical applications. Integrated communication interfaces—including Ethernet and serial ports—allow the CPU to function as a centralized hub for factory-wide networking. Its compact, fanless design provides long service life and minimal maintenance, while its robust mechanical architecture allows secure locking into any standard M1 backplane.

Technical Specifications

Feature	Specification
Processor Architecture	High-performance industrial CPU
Memory Management	Integrated DRAM (runtime) and non-volatile Flash (program storage)
Retentive Memory	Battery-backed SRAM for process data retention during power loss
Ethernet Ports	2 × 10/100 Mbit/s (RJ45) for independent network segments
Serial Interfaces	RS232/RS485 for peripheral device integration
Operating System	Real-time M-OS (Bachmann proprietary)
Status Indicators	7-segment LED display for diagnostics and system status
Dimensions	12.7 cm × 5.1 cm × 12.7 cm
Weight	0.6 kg
Operating Temperature	-30°C to +60°C

Application Scenarios

Master controller for wind turbine pitch and yaw systems
Maritime engine room monitoring
Complex automated assembly lines

The MX213 can process large volumes of analog and digital data simultaneously, making it ideal for replacing multiple smaller controllers with a single, high-reliability unit.

Technical FAQ

Can the MX213 be used in decentralized architectures?
Yes. It is fully compatible with FASTBUS and CAN master modules, allowing centralized control of multiple remote I/O substations over fiber optic or copper links.
What is the function of the 7-segment display on the front panel?
The display provides real-time system feedback, including boot state, IP address information, and specific error codes (e.g., "E02" for battery failure), enabling faster on-site troubleshooting.
