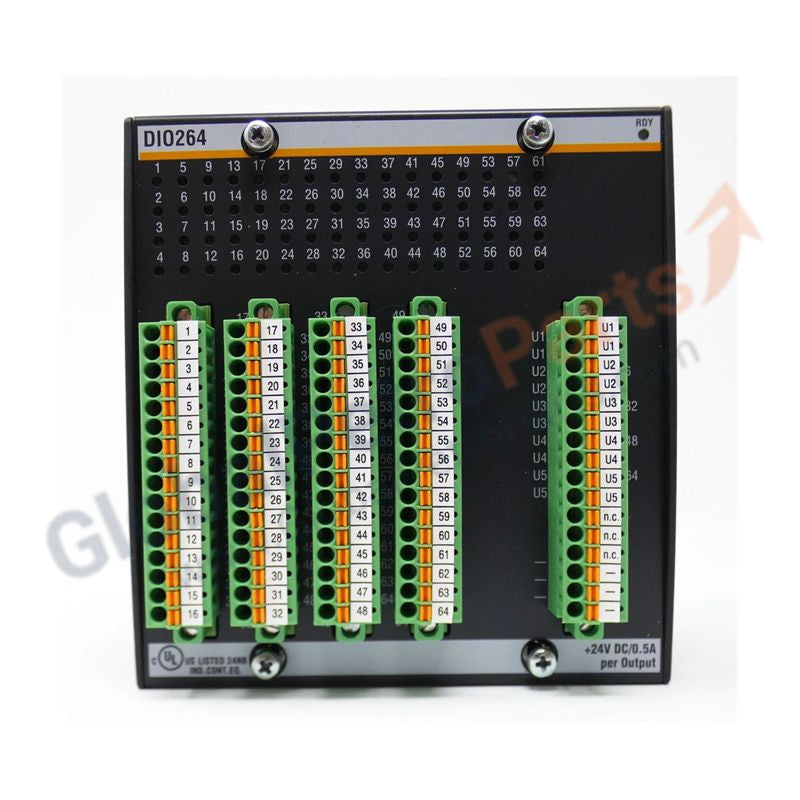

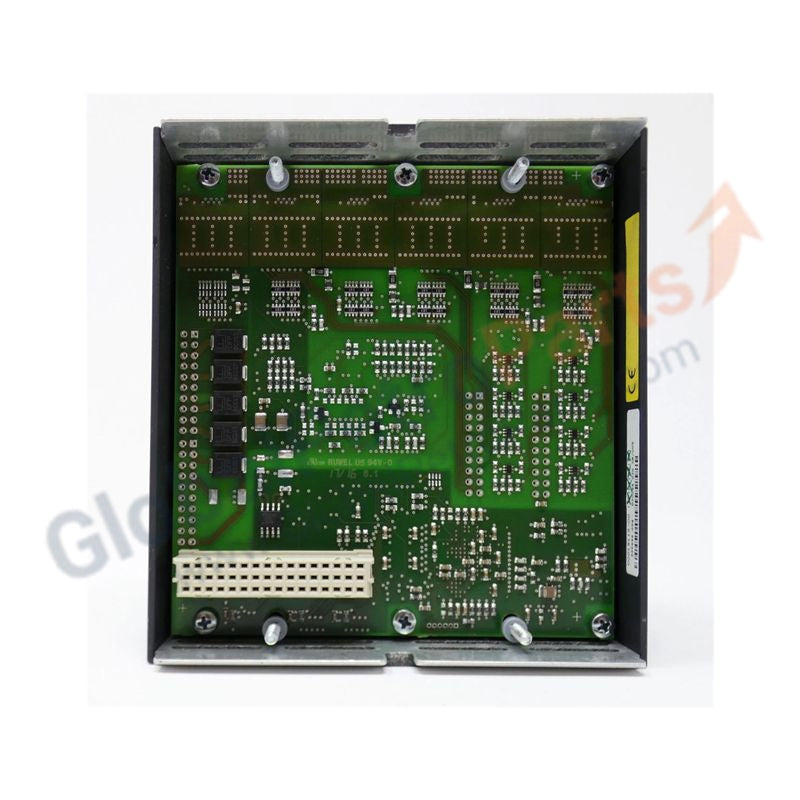

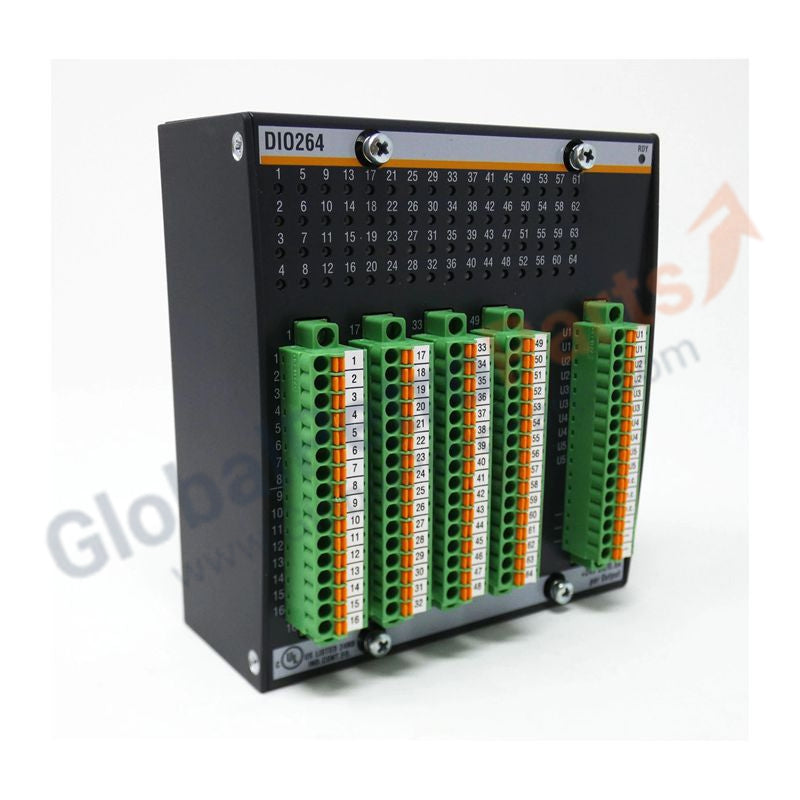

Digital Input Output Module Bachmann DIO264

Availability: 99 left in stock

Product DescriptionThe DIO264 (Order Number: 00012247-00) is a high-density, versatile digital interface module for the Bachmann M1 automation platform. With 64 digital channels, it...

SKU: DIO264

Manufacturer: Bachmann
Product No.: DIO264
Product Type: Digital Input Output Module
Product Origin: Germany
Payment:T/T, Western Union
Weight: 620g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Description
The DIO264 (Order Number: 00012247-00) is a high-density, versatile digital interface module for the Bachmann M1 automation platform. With 64 digital channels, it offers hybrid flexibility: 16 channels are software-configurable as either inputs or outputs. This allows the DIO264 to replace multiple dedicated I/O cards in a single M1 backplane slot, saving both cost and space.

Beyond basic switching, the module features advanced on-board processing:

8 interrupt-capable inputs for high-speed event response
Four 32-bit counters for incremental encoder and frequency measurements
Pulse Width Modulation (PWM) on outputs for hydraulic and pneumatic applications, enabling energy-efficient "valve economy" mode

Technical Specifications

Feature	Specification
Total Digital Channels	64
Configurable Channels	16 (Input/Output)
High-Speed I/O	8 interrupt-capable inputs
Counter Functionality	4 × 32-bit counters (Event, Incremental Encoder, Frequency, Cycle Time)
Counter Resolution	High-precision with configurable gate times
PWM Output Mode	All outputs; programmable hold time 0–2 s
Output Current	0.5 A per channel (parallel connection supported)
Supply Voltage	18–34 VDC (reverse polarity protected)
Input Filtering	Software-configurable hardware filters to remove contact bounce
Diagnostics	Individual green LED indicators per channel
Isolation	500 V RMS galvanic between field and system bus
Operating Temperature	-30°C to +60°C

Application Scenarios

Hydraulic manifold control: PWM prevents solenoid overheating
High-speed packaging and sorting systems: Supports standard sensor inputs, high-speed interrupt triggers, and encoder feedback for position tracking

Technical FAQ

Q: How does the "Valve Economy" (PWM) mode benefit my system?
A: PWM allows the module to supply full power to a valve for opening (pull-in), then reduce power to a lower holding level (hold), lowering heat generation and extending component lifespan.

Q: Can I use the counters for position detection with an encoder?
A: Yes. The DIO264 supports incremental encoder mode on its counter channels, providing 32-bit precision for tracking actuators or conveyor belts directly at the I/O level.
