Counter Module Bachmann CNT204/R

Availability: 99 left in stock

Product Description The CNT204/R (Part Number: 00012290-20) is a high-precision, high-speed counter and position measurement module designed for the Bachmann M1 automation platform. It provides four independent,...

SKU: CNT204/R

Manufacturer: Bachmann
Product No.: CNT204/R
Product Type: Counter Module
Product Origin: Germany
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Description

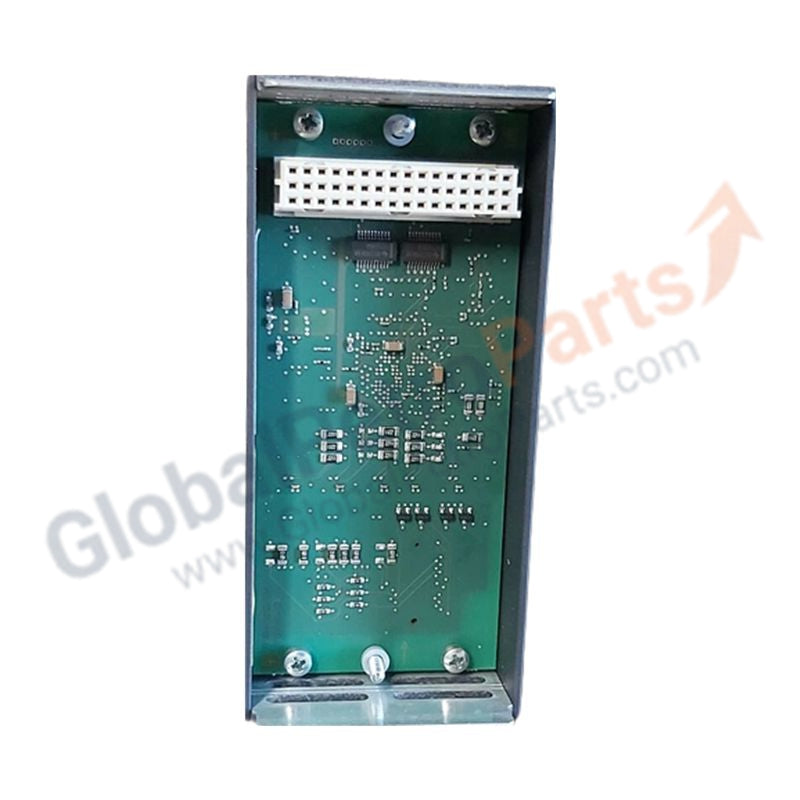

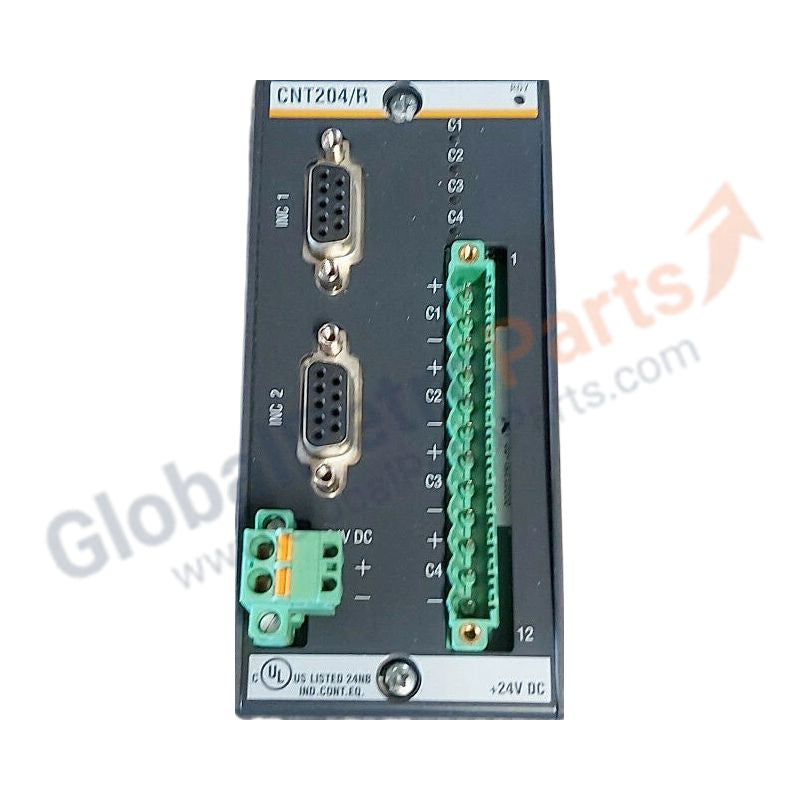

The CNT204/R (Part Number: 00012290-20) is a high-precision, high-speed counter and position measurement module designed for the Bachmann M1 automation platform. It provides four independent, galvanically isolated counter channels, optimized for interfacing with incremental encoders and high-speed sensors in motion control and positioning applications.

The module features integrated differential inputs (RS422) and supports both 5 V and 24 V signal levels, ensuring compatibility with a broad range of industrial rotary and linear encoders. In addition to standard pulse counting, the CNT204/R supports frequency measurement, period duration analysis, and gated counting. Its robust electrical design ensures reliable signal acquisition in high-EMI environments, such as wind turbine nacelles, heavy machinery, and industrial production lines.

Technical Specifications

Parameter	Specification
Counter Channels	4 independent channels
Counter Resolution	32-bit per channel
Signal Logic	RS422, TTL (5 V), or 24 V DC
Encoder Type Support	Incremental encoders (A, B, Zero/Reference)
Measurement Modes	Pulse counting, Frequency, Velocity, Position
Galvanic Isolation	500 V between field signals and system electronics
Additional I/O	1 digital input per channel (gate or latch)
Power Consumption	2.5 W from system bus
Operating Temperature	−30 °C to +60 °C

Industrial Applications

The CNT204/R is a standard solution for wind turbine pitch control systems, where precise blade angle feedback and fast dynamic response are critical. It is also widely applied in packaging machinery for high-speed axis synchronization and in hydraulic and servo-driven systems for accurate piston or carriage positioning using incremental linear encoders.

Technical FAQ

Does the CNT204/R support SSI absolute encoders?
No. The CNT204/R is exclusively designed for incremental encoder signal processing. For absolute encoder applications using SSI, the Bachmann SSI202 module should be selected.
