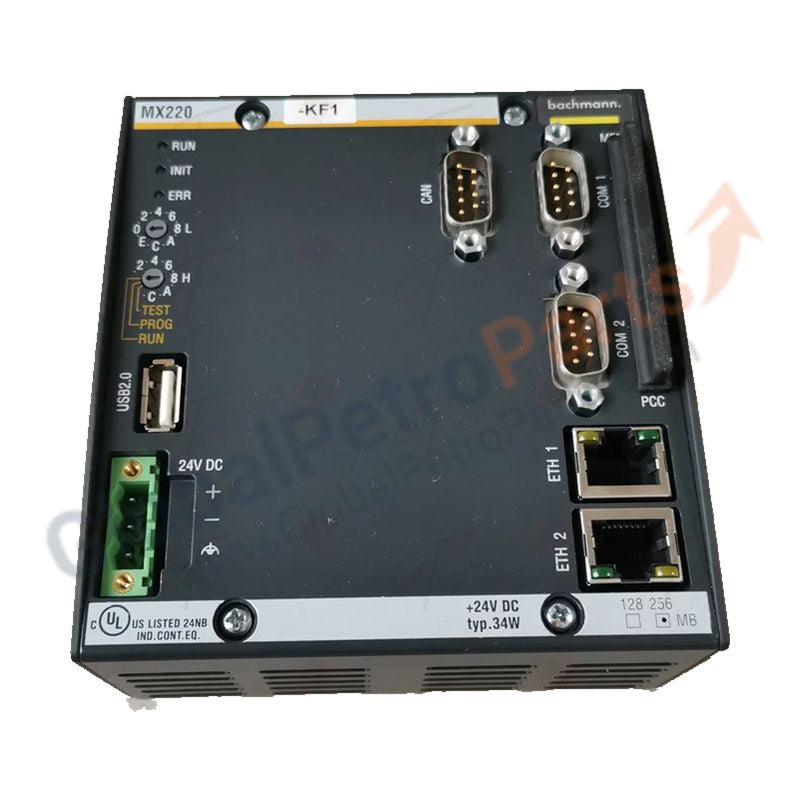

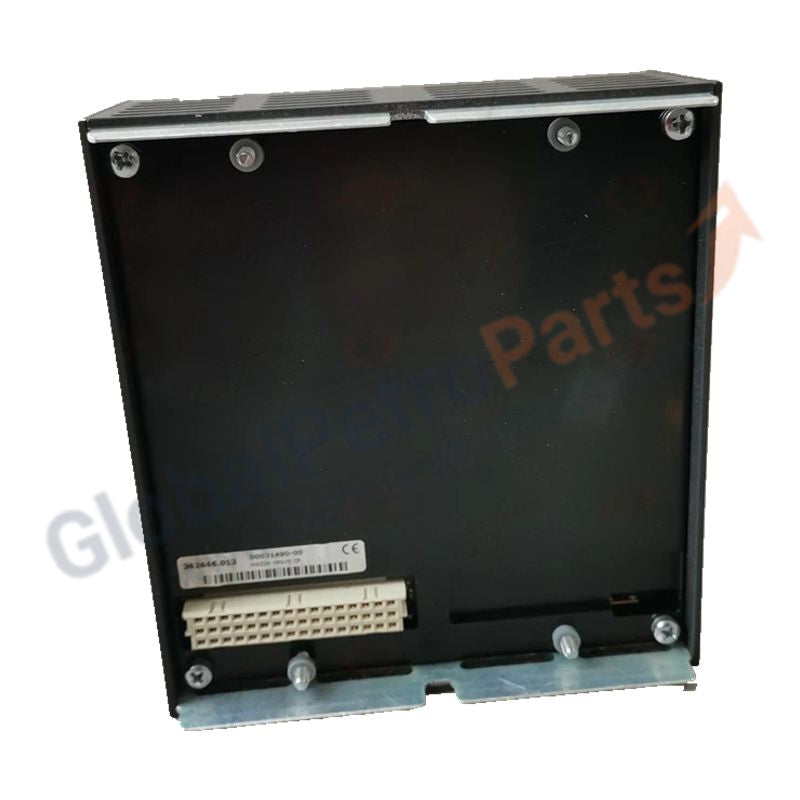

Bachmann MX220 Processor Module

Availability: 99 left in stock

Product DescriptionThe MX220 (Order Number: 00010464-00) is a high-tier central processing unit (CPU) for the Bachmann M1 automation platform, serving as the intelligence hub for...

SKU: MX220

Manufacturer: Bachmann
Product No.: MX220
Product Type: Processor Module
Product Origin: Germany
Payment:T/T, Western Union
Weight: 580g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Description
The MX220 (Order Number: 00010464-00) is a high-tier central processing unit (CPU) for the Bachmann M1 automation platform, serving as the intelligence hub for complex control systems. Engineered for mid-to-high level automation tasks, the MX220 balances high-speed computation with extreme thermal efficiency in a fanless, maintenance-free industrial housing.

Designed for applications requiring complex math operations, high-speed logic execution, and multi-protocol communication, the MX220 features a deterministic real-time architecture ensuring consistent cycle times even under heavy processing loads. Integrated non-volatile memory protects critical data, while high-speed RAM supports demanding runtime tasks. Dual Ethernet ports provide network redundancy or separation of process and plant networks, making the module ideal for wind power, maritime, and industrial automation applications.

Technical Specifications

Feature	Specification
Processor Type	High-speed industrial CPU (Intel-based architecture)
Working Memory (RAM)	256 MB
Program Memory (Flash)	16 MB internal storage
Retentive Data (nvRAM)	512 kB battery-backed + 128 kB battery-free
Ethernet Ports	2 × 10/100 Mbit/s (RJ45), independent controllers
Serial Interface	1 × RS232 + 1 × configurable RS232/422/485
USB Interface	1 × USB 2.0 (service and external storage)
Operating System	M-OS Real-Time OS (multitasking)
Diagnostic Display	7-segment LED for boot codes and system health
Operating Temperature	-30°C to +60°C
Dimensions	12.7 × 5.1 × 12.7 cm
Unit Weight	0.58 kg

Application Scenarios

Wind turbine controllers: Handles pitch control algorithms while managing SCADA communication
Heavy machinery and power distribution: High-speed synchronization between multiple I/O substations

Technical FAQ

Q: How does the MX220 handle data during a sudden power loss?
A: Critical system parameters are stored in battery-free nvRAM, while process-active variables reside in battery-backed SRAM. This ensures immediate resumption of operations upon power restoration.

Q: What is the significance of the two independent Ethernet ports?
A: The dual ports allow physical separation of network traffic. For instance, Port 1 can run a secure high-speed I/O network (e.g., Profinet or EtherCAT), while Port 2 handles general plant monitoring and remote access, reducing congestion and improving security.
