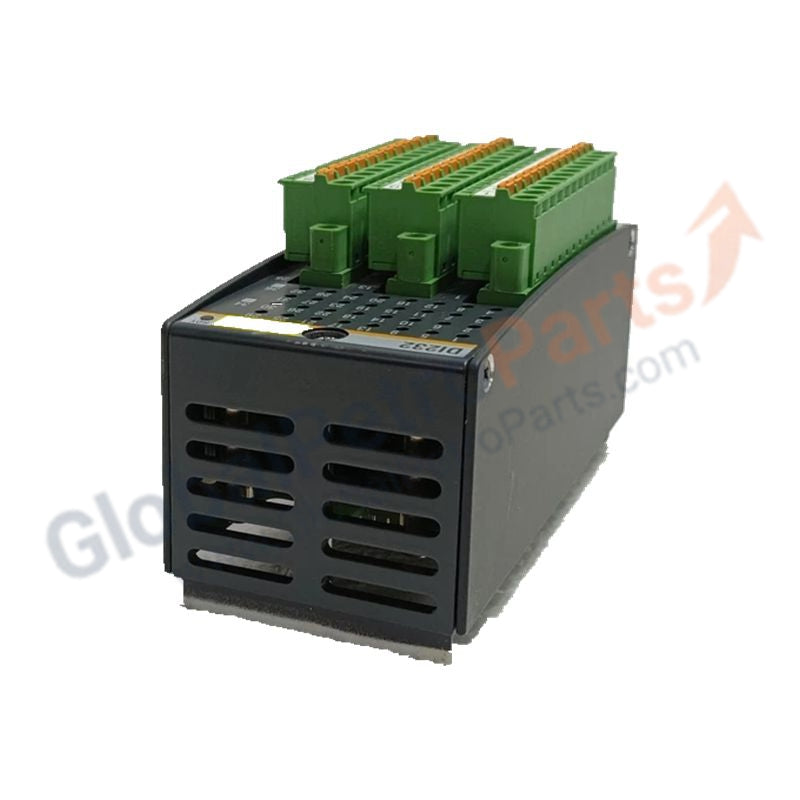

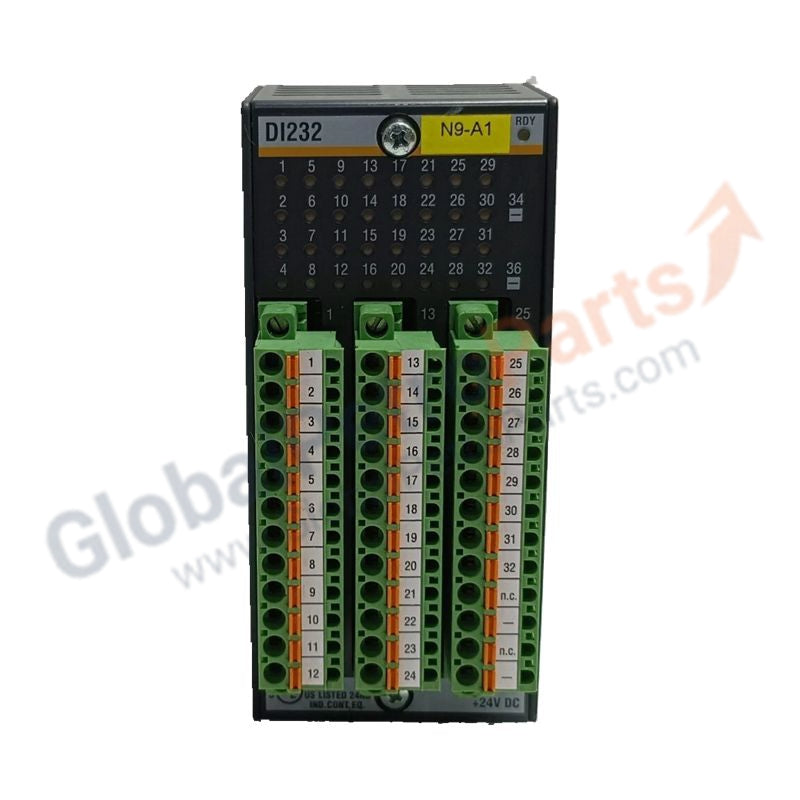

Digital Input Module Bachmann DI232

Availability: 99 left in stock

Product Description The DI232 (Order Number: 00012235-00) is a 32-channel digital input module for the Bachmann M1 system, providing high-density signal acquisition in a single-slot footprint. It features galvanic isolation, input...

SKU: DI232

Manufacturer: Bachmann
Product No.: DI232
Product Type: Digital Input Module
Product Origin: Germany
Payment:T/T, Western Union
Weight: 340g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Description

The DI232 (Order Number: 00012235-00) is a 32-channel digital input module for the Bachmann M1 system, providing high-density signal acquisition in a single-slot footprint. It features galvanic isolation, input filtering, and per-channel LED status, making it ideal for wind turbines, industrial automation, and safety monitoring applications.

Technical Specifications

Parameter	Specification
Total Channels	32 Digital Inputs
Nominal Input Voltage	24 VDC
Logic Levels	Type 1 / Type 3 (IEC 61131-2)
Input Current	~3.5 mA per channel
Input Filtering	Configurable 1–5 ms
Isolation Voltage	500 V RMS (field to system bus)
Status Indicators	32 LEDs + system status LED
Internal Power Consumption	1.5 W from system bus
Connection	40-pin front connector
Mounting	Vibration-proof locking for M1 backplanes
Operating Temperature	−30 °C to +60 °C

Application

Used for high-density sensor monitoring, safety chains, and status feedback in wind turbines and factory automation, minimizing control cabinet footprint while maintaining reliable signal acquisition.

FAQ

Can DI232 capture high-speed pulses?
No. For encoder signals or frequency measurement, use a dedicated CNT204 counter module.

Is a separate field power supply required?
Yes. 24 VDC field voltage must be supplied via the front connector to maintain isolation and power the inputs.
