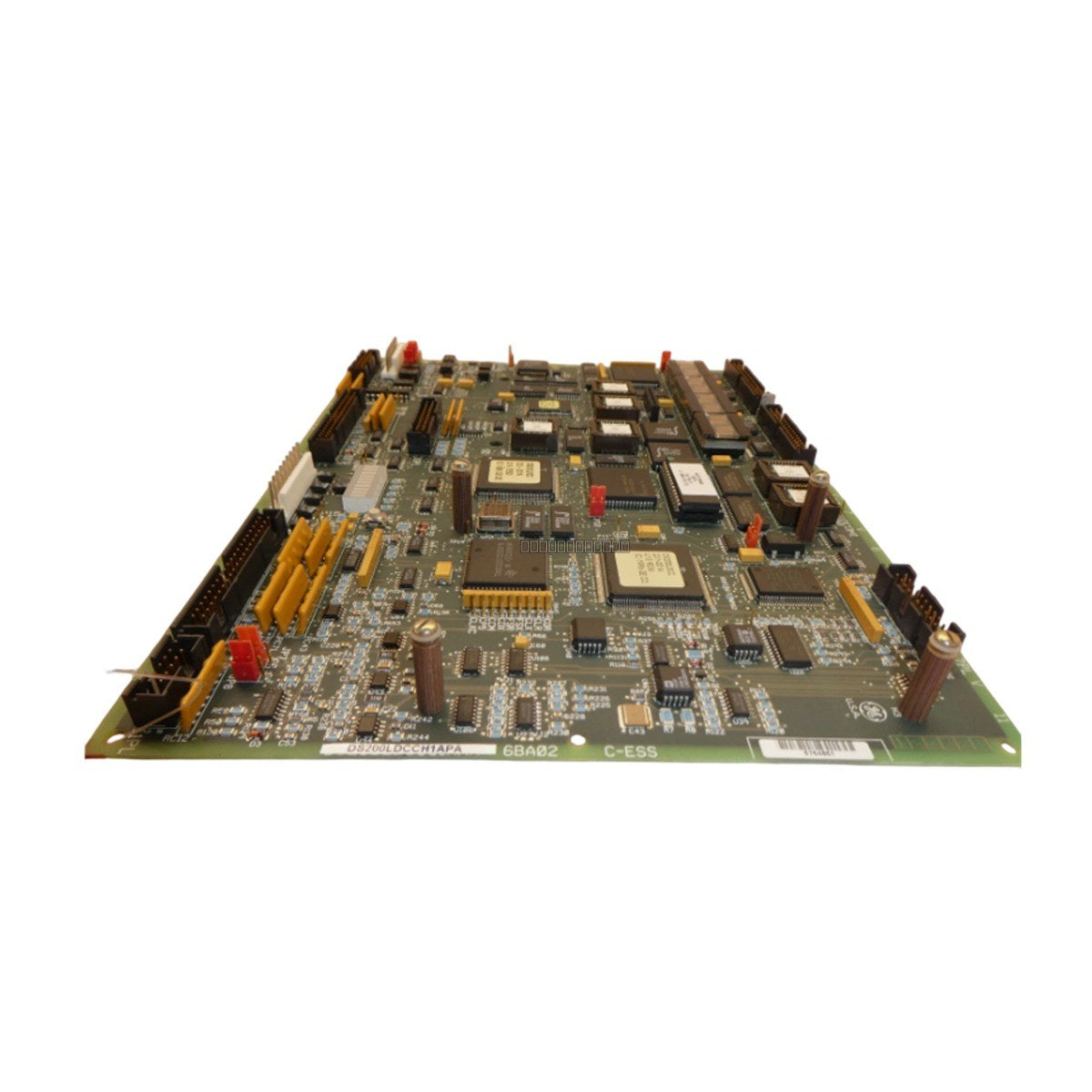

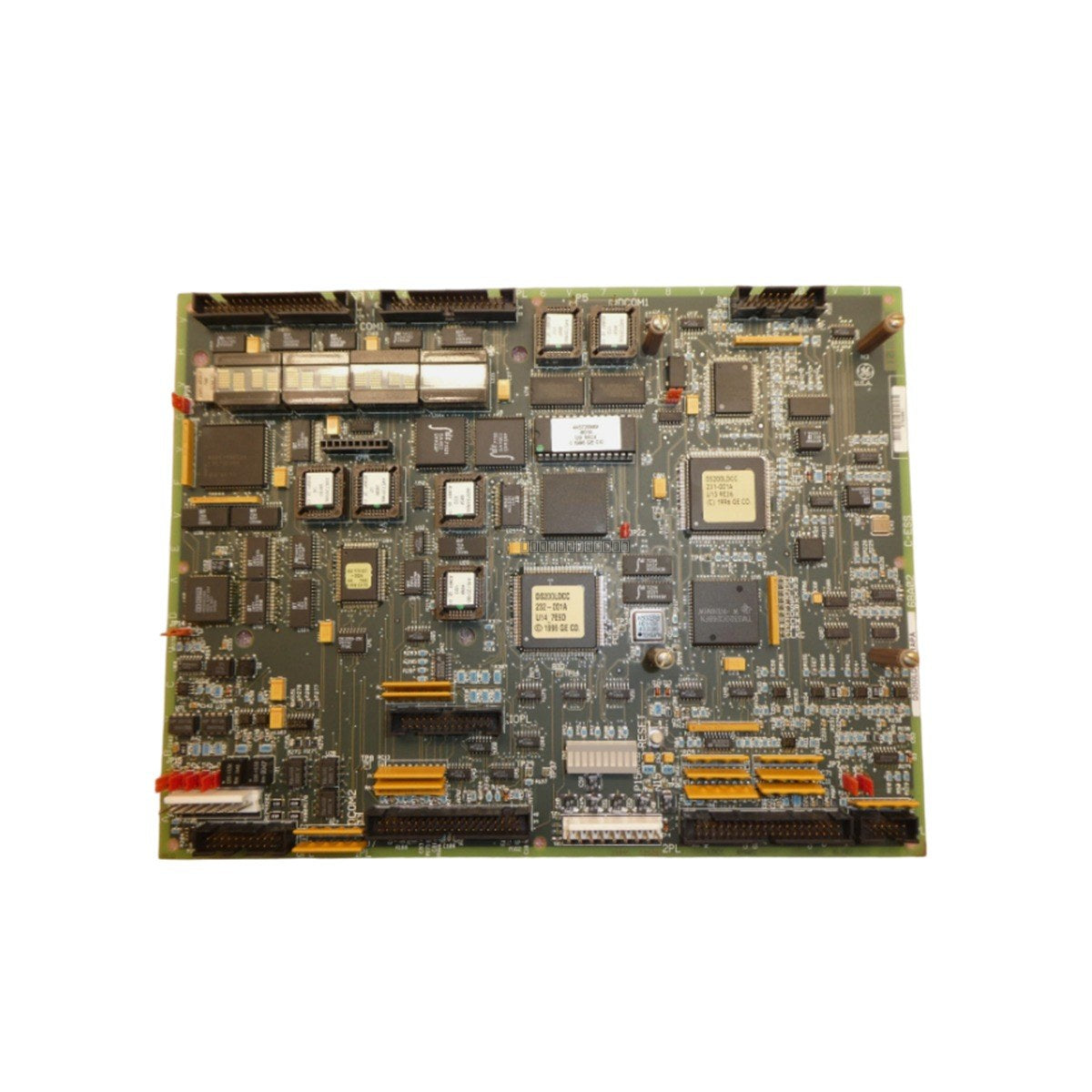

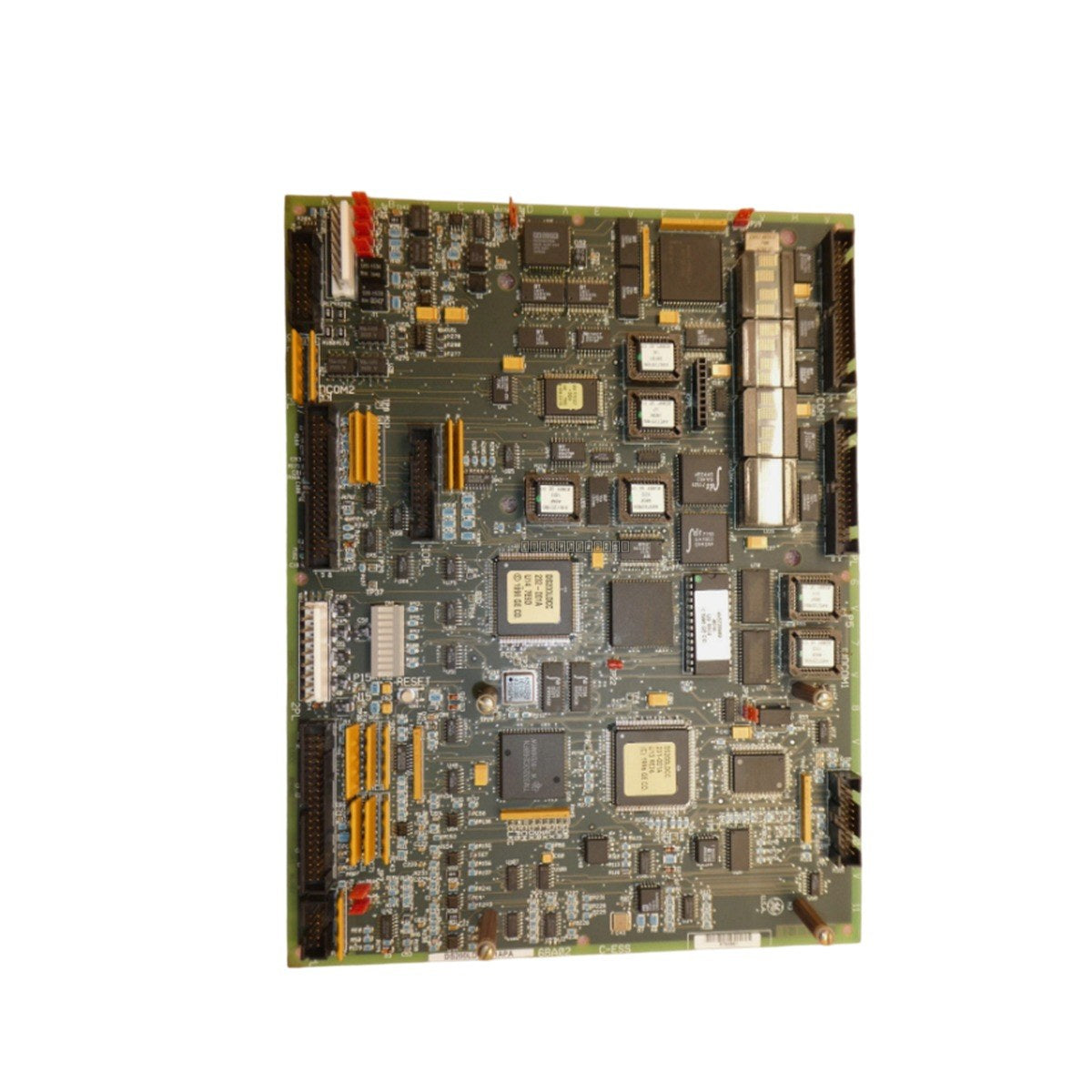

GE Fanuc DS200LDCCH1 Mark V LAN/Control Communications Board

Disponibilidad: 6 Quedan en stock

DescriptionThe DS200LDCCH1 is a specialized drive control and Local Area Network (LAN) communications board designed for the General Electric Speedtronic...

Código: DS200LDCCH1

Manufacturer: GE FANUC
Product No.: DS200LDCCH1
Product Type: Communication Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 820g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Description

The DS200LDCCH1 is a specialized drive control and Local Area Network (LAN) communications board designed for the General Electric Speedtronic Mark V series. Engineered for integration with GE DIRECTO-MATIC 2000 exciters and drives, this module functions as a primary processing hub for automated gas, steam, and wind turbine control systems. It manages complex motor processing, operator interfacing, and high-speed network synchronization, ensuring system stability in demanding industrial environments such as power generation, oil refining, and mining.

Features

Quad-Microprocessor Architecture: Features dedicated processors for Drive Control (DCP), Motor Control (MCP), Co-Motor computation (CMP), and LAN communication (LCP).
Integrated Diagnostics: Includes an onboard alphanumeric keypad for local parameter adjustment and system diagnostics.
Memory Storage: Equipped with multiple Flash PROMs (U6, U7, U11, U12, U22, U23) and a U9 EEPROM for configuration and firmware storage.
Robust Construction: PCB is protected with conformal coating to resist environmental contaminants.
Bus Connectivity: Supports five distinct communication bus systems for high-speed I/O signal processing.

Applications

This board is primarily utilized within the GE Speedtronic Mark V control platform to facilitate drive regulation and communication. Typical applications include turbine control, excitation systems, and large-scale industrial motor drive management where high-availability and multi-processor synchronization are required.

Technical Specifications

Model	DS200LDCCH1
Brand	General Electric (GE)
Series	Mark V Speedtronic
Product Type	LAN/Control Communications Board
Microprocessors	DCP, MCP, CMP, LCP
Memory	Flash PROMs (U6, U7, U11, U12, U22, U23), U9 EEPROM
Operating Temperature	0 to 60 deg C
Storage Temperature	-40 to 85 deg C
Manual Reference	GEI-100216

Installation Guidelines

ESD Protection: Always use a grounded wrist strap when handling the board to prevent electrostatic discharge damage to sensitive components.
Power Down: Ensure the drive system is fully de-energized and locked out before attempting to install or remove the module from the rack.
Seating: Ensure the board is fully seated in the designated backplane slot and that all retaining screws are tightened to maintain proper electrical contact and vibration resistance.
Environment: Maintain the cabinet environment within the specified temperature range and ensure cooling fans are operational to prevent overheating.

FAQ

Is the DS200LDCCH1 compatible with all Mark V systems?

The DS200LDCCH1 is specific to the Mark V Speedtronic series and is designed for use with DIRECTO-MATIC 2000 exciters. Always verify your system's specific revision requirements against the GEI-100216 manual before installation.

Does this board require site-specific configuration?

Yes, the board stores configuration data in its onboard Flash PROMs and EEPROM. When replacing an existing unit, ensure that the site-specific software and parameters are correctly loaded or transferred to the new module.
