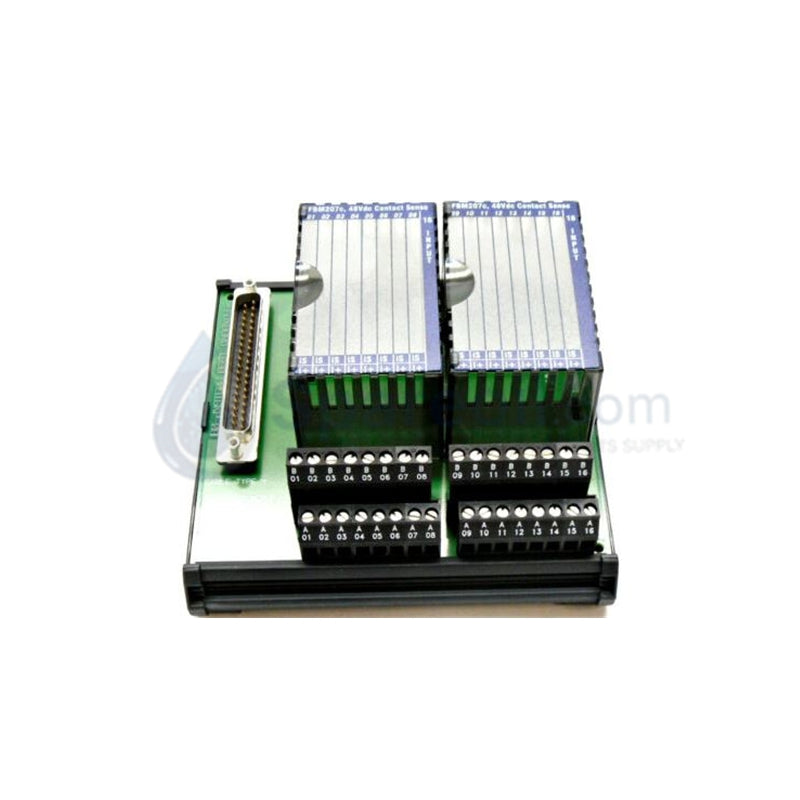

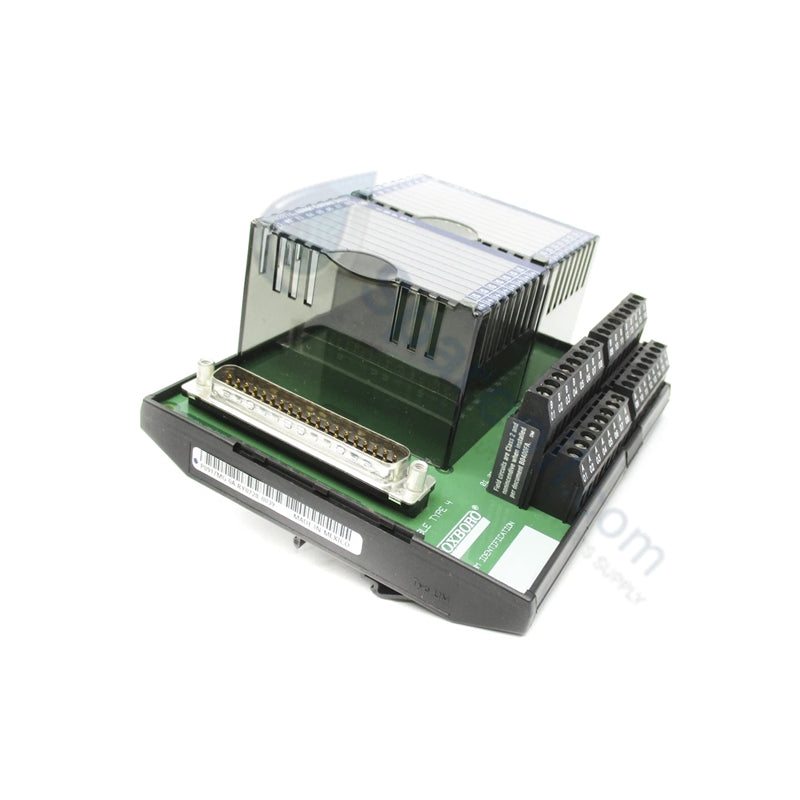

P0916KP-0B Foxboro Digital Input Module

Foxboro P0916KP-0B FBM Digital Input Modules

Foxboro P0916KP-0B FBM Digital Input Modules

Disponibilidad: 10 Quedan en stock

Foxboro P0916KP-0B Digital Input Modules The Foxboro P0916KP-0B, also cataloged as the FBM Digital Input Modules, operates as a dedicated...

Código: P0916KP-0B

Manufacturer: Foxboro
Product No.: P0916KP-0B
Product Type: Digital Input Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 250g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Foxboro P0916KP-0B Digital Input Modules

The Foxboro P0916KP-0B, also cataloged as the FBM Digital Input Modules, operates as a dedicated hardware component for acquiring discrete status signals within Foxboro I/A Series DCS networks. The module processes 16 isolated input channels operating at a 24 VDC nominal voltage rating. Equipped with a 37-pin male connector interface for Type 4 cable connectivity, the rack-mounted assembly passes field contact sense telemetry across the carrier backplane while maintaining galvanic isolation between field circuitry and central control logic.

Hardware Specifications

Parameter	Specification
Model	P0916KP-0B
Brand	Foxboro
Origin	USA
Weight	0.25 kg (0.56 lbs)
Dimensions	Standard FBM carrier module dimensions
Operating Temp	0 deg C to +60 deg C
Power Consumption	24 VDC backplane supply power
Product Type	Digital Input Modules
Input Channels	16 discrete input channels
Signal Range	24 VDC contact sense
Terminal Termination	32 screw terminations
Field Connection	37-pin male connector (Type 4 cable)
Galvanic Isolation	Channel-to-system galvanic isolation
System Bus	Foxboro I/A Series redundant Fieldbus
Storage Temp	-40 deg C to +85 deg C
Operating Humidity	5% to 95% non-condensing

Process Control & DCS Instrument Integration

The discrete input module receives dry contact switches and 24 VDC field voltage signals before digitizing state changes for system controllers. While co-located analog modules manage 4-20 mA HART loop protocol telemetry, this digital unit handles high-speed state change verification and limit switch monitoring. Internal optocouplers provide galvanic isolation barriers that prevent voltage surges on field wiring from damaging backplane microprocessors. Continuous self-testing algorithms verify input circuit health and monitor backplane data integrity without introducing latency into deterministic scan cycles.

Frequently Asked Questions

Q: How does the 37-pin male connector configuration interface with field terminal blocks?

A: The module connects to external 32-screw terminal blocks via a pre-fabricated Type 4 cable assembly, establishing point-to-point wiring continuity between field contacts and input optocouplers.

Q: Is live module insertion permitted during system operation?

A: Yes, the unit supports hot-swapping on powered carrier baseplates. Power-sequencing pins engage backplane ground and power feeds before logic line pins engage, protecting communication integrity.

Field Installation Guidelines

Baseplate Engagement: Align the module card edges with baseplate guides and push firmly until the rear multi-pin connector seats into the backplane receptacle.
Cable Strain Relief: Secure the 37-pin Type 4 cable connector to the module housing using retaining screws to prevent accidental disconnects under vibration.
Shield Line Termination: Ground field cable shields at a dedicated panel earth bus bar to shield low-voltage 24 VDC contact sense circuits from stray noise.
Wiring Separation: Route 24 VDC discrete signal wiring in independent cable channels separate from high-voltage AC distribution circuits and motor leads.
Enclosure Thermal Control: Ensure cabinet layout leaves at least 50 mm of vertical ventilation space above and below the module rack to assist heat dissipation.
