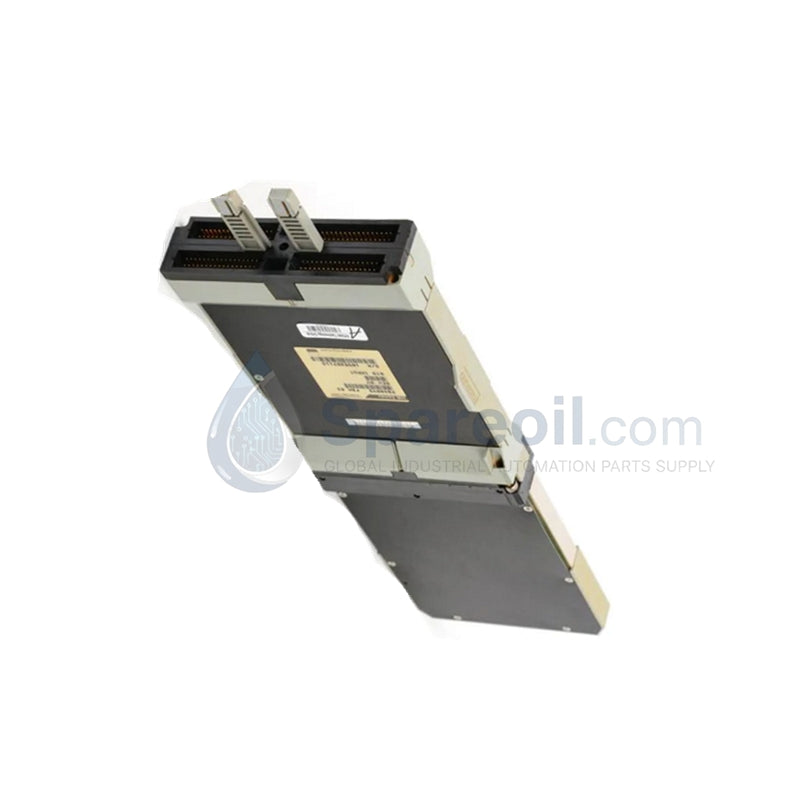

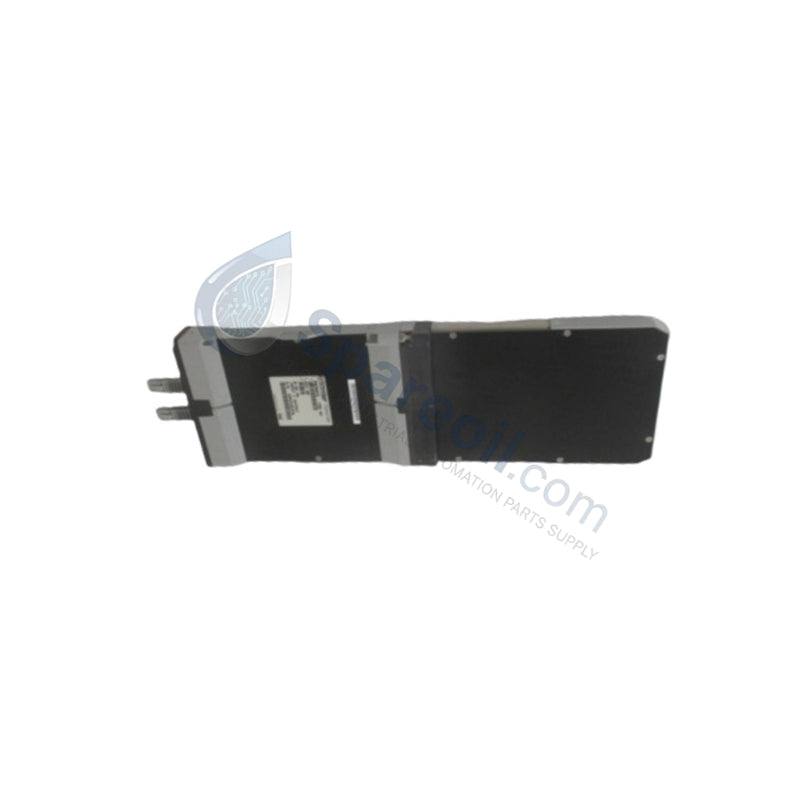

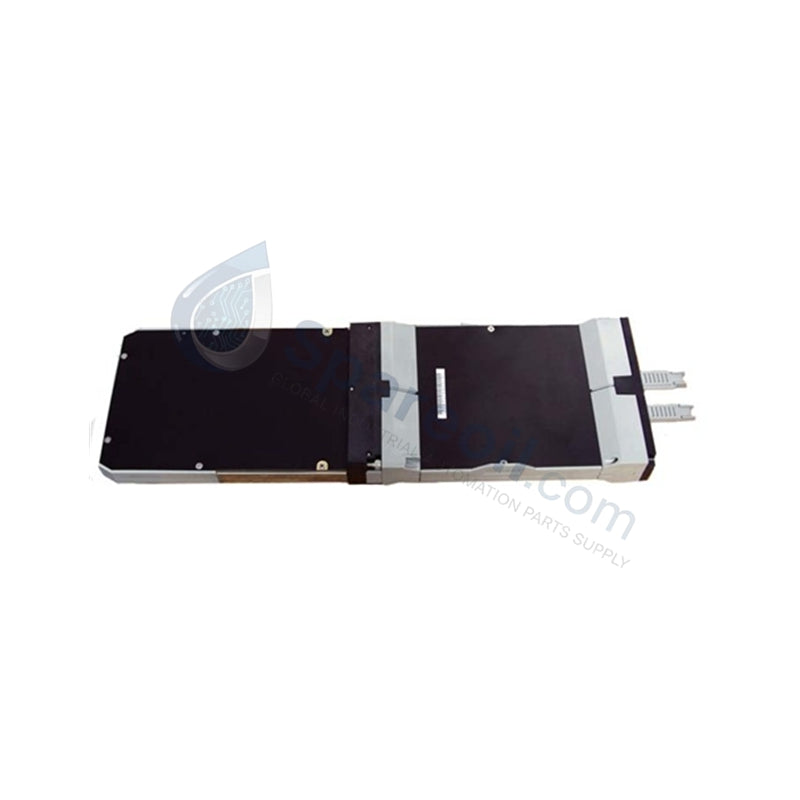

Foxboro P0400YD FBM03 RTD Input Modules

The Foxboro P0400YD, also cataloged as the FBM03 RTD Input Modules, operates as a dedicated hardware component for converting variable-resistance temperature measurements into digital data within Foxboro I/A Series DCS networks. The module interfaces 8 isolated and independent input channels covering a 0 to 320 ohms resistance range, supplying a 0.75 mA DC excitation current to field sensors. Utilizing redundant Fieldbus communication, the unit processes data from 2-, 3-, and 4-wire RTD configurations while maintaining channel-to-channel galvanic isolation.

Hardware Specifications

Parameter	Specification
Model	P0400YD (FBM03)
Brand	Foxboro
Origin	USA
Weight	0.9 kg (1.98 lbs)
Dimensions	25 mm x 457 mm x 127 mm (0.98 in x 17.99 in x 5.0 in)
Operating Temp	-20 deg C to +70 deg C
Power Consumption	24 VDC nominal supply via backplane
Product Type	RTD Input Modules
Input Channels	8 isolated and independent channels
Input Range	0 to 320 ohms per channel
Excitation Current	0.75 mA DC
Sensor Wiring Support	2-wire, 3-wire, and 4-wire RTD configurations
Galvanic Isolation	Full channel-to-channel and channel-to-logic isolation
System Bus	Redundant Fieldbus interface
Storage Temp	-40 deg C to +85 deg C
Operating Humidity	5% to 95% non-condensing

Process Control & Field Instrument Architecture

The input module processes continuous temperature measurements by filtering analog resistance changes before transmitting digitized values over the redundant Fieldbus network. Integrating full channel-to-channel isolation barriers prevents ground loop potential differences from skewing temperature conversions across distributed sensor locations. The circuitry incorporates cold junction compensation (CJC) algorithms and sensor lead-resistance cancellation to maintain measurement fidelity across extended field cable runs. Integrated diagnostic routines constantly evaluate sensor excitation lines to detect open circuits, short circuits, or out-of-range transmitter conditions without interrupting system execution loops.

Frequently Asked Questions

Q: How does the module handle lead-wire resistance in 3-wire and 4-wire RTD sensor circuits?

A: The internal measurement circuit uses balanced excitation current paths to measure and automatically cancel out lead-wire resistance in 3-wire setups, while 4-wire configurations utilize dedicated voltage sensing leads to eliminate lead-resistance offset completely.

Q: Can an individual module channel be replaced or serviced without interrupting communication on adjacent channels?

A: Yes, each of the 8 channels is galvanically isolated. Wiring servicing or sensor replacement on a single channel can occur without creating electrical crosstalk or signal degradation on adjacent operating channels.

Field Installation Guidelines

Baseplate Installation: Mount the module onto the dedicated baseplate interface, ensuring all retention screws are fully tightened to secure physical grounding contacts.
Field Wiring Termination: Strip conductor ends to recommended length and connect 2-wire, 3-wire, or 4-wire RTD leads into the designated terminal block locations per sensor wiring schematics.
Shield Line Termination: Terminate field wiring cable shields at a single ground bus bar within the enclosure to optimize signal noise immunity.
Excitation Circuit Routing: Keep RTD sensor wiring in separate low-voltage instrument conduits away from high-voltage AC lines and switching motor loads.
Environmental Sealing: Verify cabinet entry points use proper cable glands to preserve the IP20 enclosure rating and protect internal circuits from dust or moisture accumulation.
