P0926GU Foxboro Communication Module

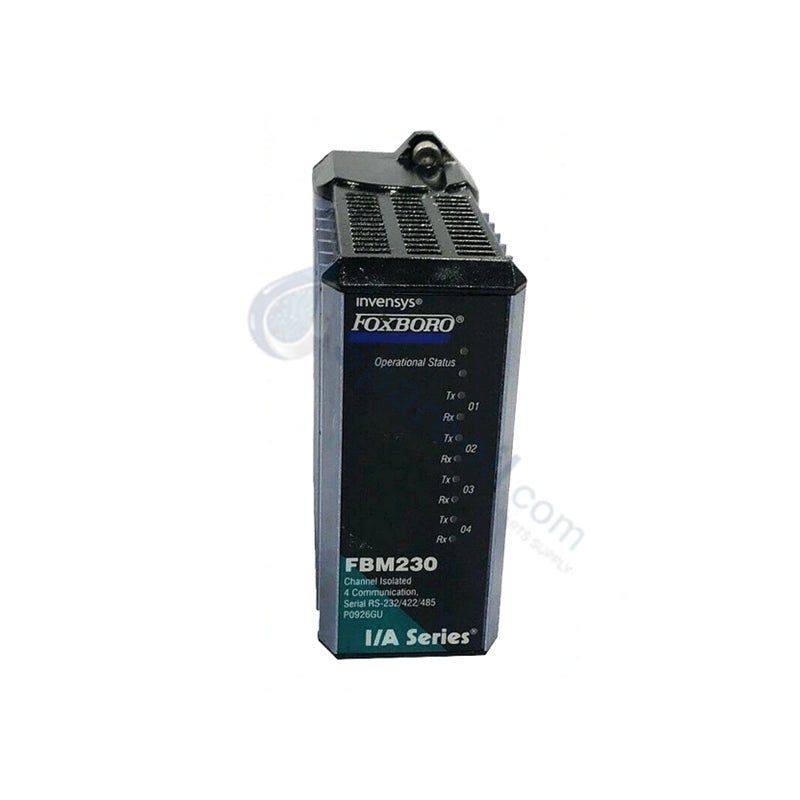

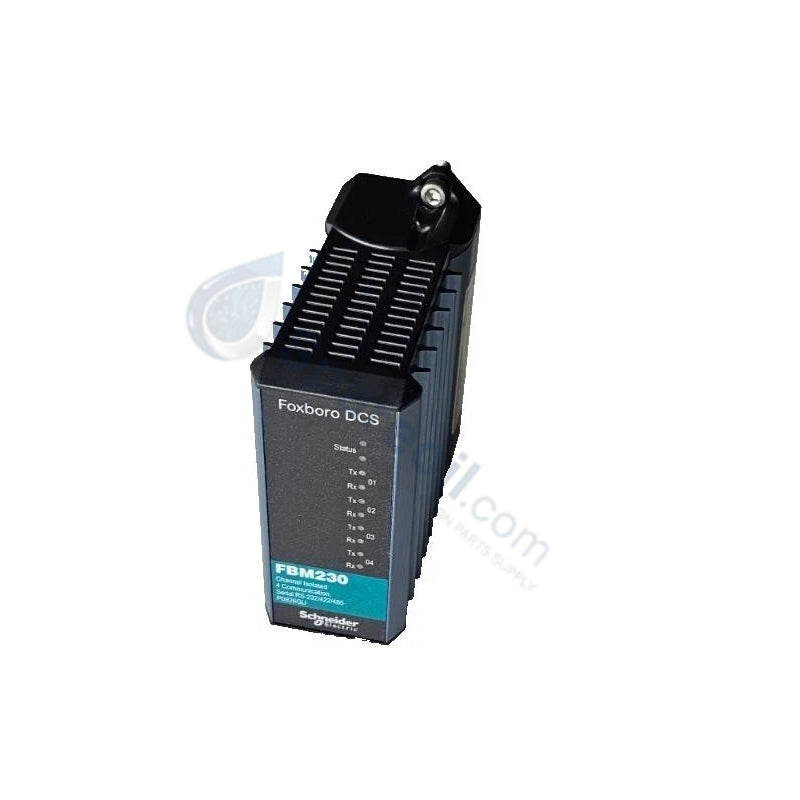

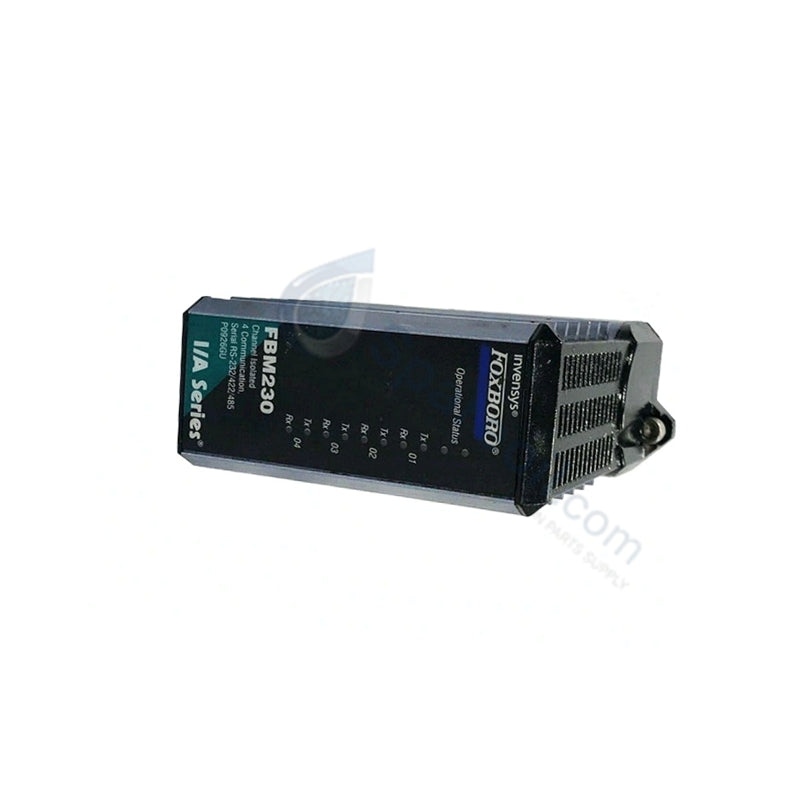

P0926GU FBM230 Foxboro Serial Interface Modules

P0926GU FBM230 Foxboro Serial Interface Modules

Disponibilidad: 10 Quedan en stock

Foxboro P0926GU FBM230 Field Device System Integrator Modules The Foxboro P0926GU, also cataloged as the FBM230 Communication Modules, operates as...

Código: P0926GU

Manufacturer: Foxboro
Product No.: P0926GU
Product Type: Communication Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 280g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Foxboro P0926GU FBM230 Field Device System Integrator Modules

The Foxboro P0926GU, also cataloged as the FBM230 Communication Modules, operates as a dedicated hardware component for serial data integration within Foxboro I/A Series and Foxboro Evo DCS networks. The module provides 4 serial ports individually configurable for RS-232, RS-422, or RS-485 physical layer interfaces, accommodating up to 64 multidrop field devices via software-driven downloadable I/O drivers. Operating on redundant 24 VDC power feeds, the hot-swappable assembly executes serial protocol translation across 2 Mbps Fieldbus communication paths while maintaining channel-to-channel and channel-to-system isolation.

Hardware Specifications

Parameter	Specification
Model	P0926GU (FBM230)
Brand	Foxboro
Origin	USA
Weight	0.28 kg (0.62 lbs)
Dimensions	102 mm x 45 mm x 104 mm
Operating Temp	-20 deg C to +70 deg C
Power Consumption	7 W max at 24 VDC nominal
Product Type	Communication Modules
Communication Ports	4 ports, individually configurable for RS-232/422/485
Max Device Connections	Up to 64 devices (RS-485 multidrop) or 4 devices (RS-232/422)
DCI Block Capacity	Up to 2000 blocks
Fieldbus Interface	2 Mbps via FCM100ET/FCP270/FCP280
Environmental Class	G3 harsh industrial rating
Diagnostics	Integrated channel health monitoring, watchdog, and status LEDs
Storage Temp	-40 deg C to +85 deg C
Operating Humidity	5% to 95% non-condensing

Process Control & DCS Instrument Integration

The Field Device System Integrator module buffers data between intelligent field devices and system control processors. While standard analog cards process dedicated 4-20 mA HART loop protocol transmitters, this module handles multi-drop digital communications over serial lines, processing up to 2000 Distributed Control Interface (DCI) blocks. Integrated channel-to-channel isolation barriers eliminate ground loops between field instruments and the system backplane. Microprocessor-driven onboard diagnostics continuously evaluate serial parity, frame synchronization, and module power rail voltages, triggering fault indicators when communications degrade.

Frequently Asked Questions

Q: How does the module handle signal line termination for RS-485 multidrop configurations?

A: External termination resistors must be installed at the physical ends of the RS-485 bus trunk line to prevent signal reflections and maintain driver voltage levels across long field wiring runs.

Q: Can maintenance personnel hot-swap the module without interrupting adjacent modules on the carrier backplane?

A: Yes, the hot-swappable housing features staggered power and signal contacts that engage ground and 24 VDC power lines before logic data pins connect, permitting safe online replacement.

Field Installation Guidelines

Baseplate Engagement: Align the module card edges with the carrier guide slot and push firmly until the rear connector seats completely into the backplane bus.
Shield Line Grounding: Ground serial cable drain wires at the enclosure terminal earth bus to prevent stray high-frequency noise from disturbing differential RS-485 voltage signals.
Wiring Conduit Routing: Separate serial interface cables from high-voltage AC power distribution wiring and motor drive cables to maintain signal integrity.
Redundant Power Wiring: Connect dual 24 VDC power feeds to the baseplate termination assembly to ensure uninterrupted module operation during power supply switchovers.
Cabinet Thermal Spacing: Maintain a minimum of 50 mm clearance above and below the module rack to allow natural convective airflow through the card chassis.
