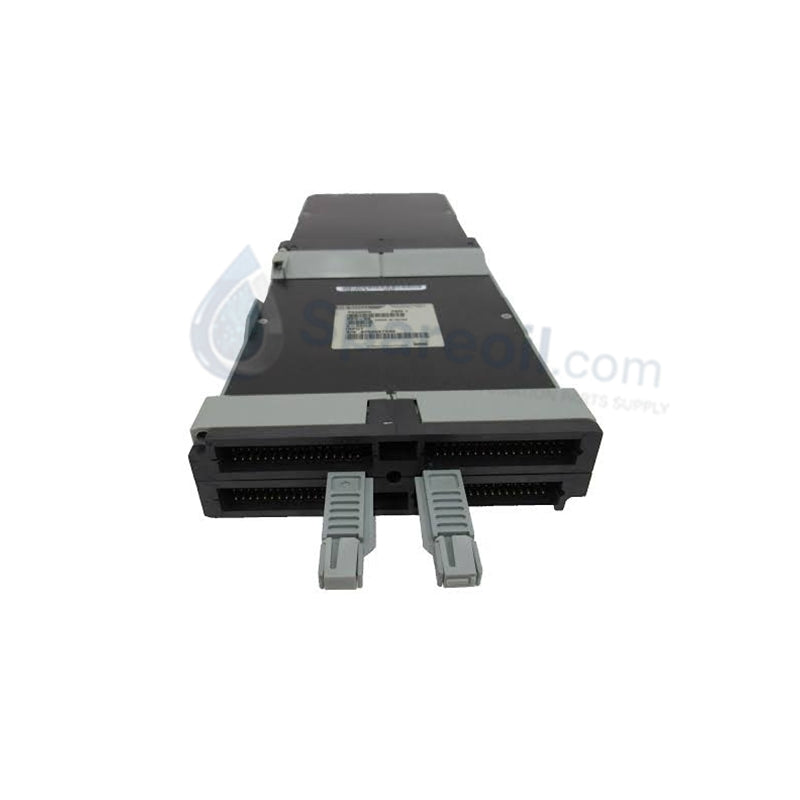

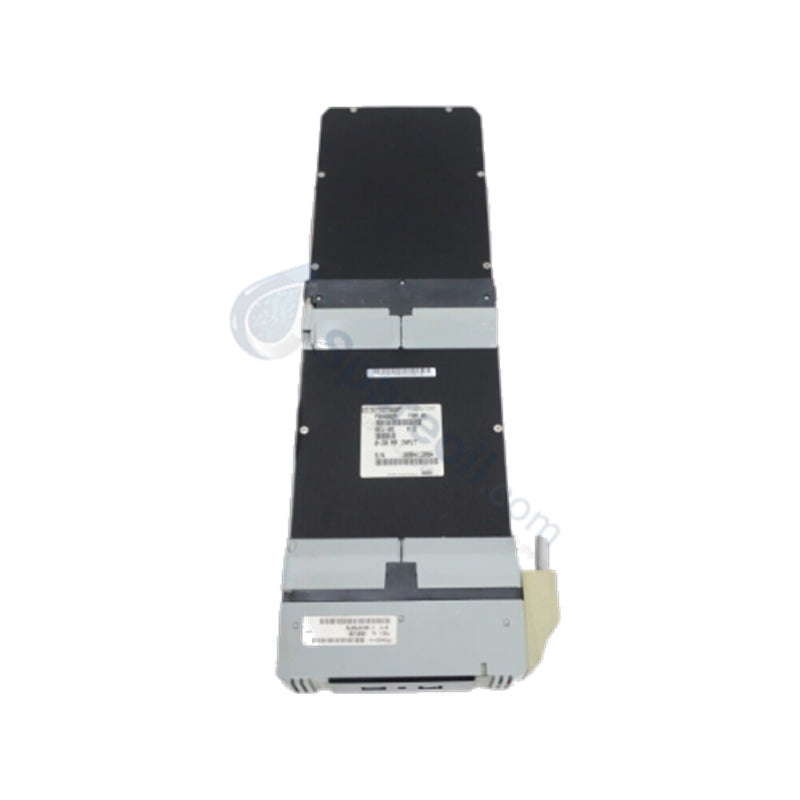

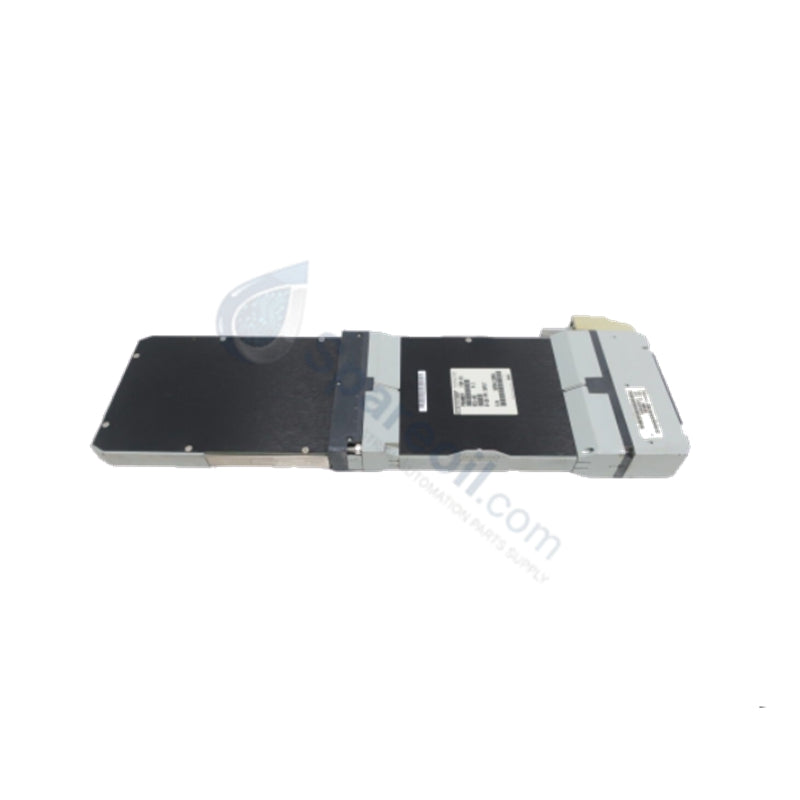

P0400DA Foxboro FBM1 Input Modules

Disponibilidad: 10 Quedan en stock

Foxboro P0400DA FBM1 Input Modules The Foxboro P0400DA, also cataloged as the FBM1 Input Modules, operates as a dedicated hardware...

Código: P0400DA

Manufacturer: Foxboro
Product No.: P0400DA
Product Type: Analog Input Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Foxboro P0400DA FBM1 Input Modules

The Foxboro P0400DA, also cataloged as the FBM1 Input Modules, operates as a dedicated hardware component for acquiring 0-20 mA current and discrete process signals within Foxboro I/A Series networks. The unit conditions analog and contact inputs from transmitters, converting field signals via 12-bit to 16-bit A/D conversion stages for deterministic backplane bus transmission. Designed for installation on a carrier backplane baseplate, the module delivers galvanic isolation between field inputs and system logic while drawing nominal power from a 24 VDC bus line.

Hardware Specifications

Parameter	Specification
Model	P0400DA (FBM1)
Brand	Foxboro
Origin	USA
Weight	0.4 kg (0.88 lbs)
Dimensions	200 mm x 62 mm x 150 mm (7.87 in x 2.44 in x 5.91 in)
Operating Temp	0 deg C to +60 deg C
Power Consumption	24 VDC nominal power supply input
Product Type	Input Modules
Signal Input Ranges	0-20 mA DC, 4-20 mA DC, voltage, and discrete contact signals
Resolution	12-bit to 16-bit A/D conversion
Galvanic Isolation	Full galvanic isolation between field wiring and system logic
Bus Communication	Foxboro proprietary system bus interface
Storage Temp	-40 deg C to +85 deg C
Operating Humidity	5% to 95% non-condensing
System Mounting	Carrier backplane assembly within enclosure

Process Control & Field Instrument Architecture

The input module interfaces field transmitters directly to the distributed control environment. Integrators utilize the 4-20 mA HART loop protocol compatibility on incoming analog wiring to stream measurement values and field device diagnostics to system processors. Embedded channel-to-channel isolation prevents ground potential imbalances from introducing offset errors into analog-to-digital converter channels. Integrated watchdog hardware and continuous self-test routines monitor internal microprocessor health, suppressing transient electrical noise across field loops without degrading scan execution rates.

Frequently Asked Questions

Q: Can the module be replaced while the carrier backplane remains energized?

A: Yes, the unit supports live hot-swapping on a powered carrier baseplate. Internal bus-interface circuitry sequences power pin connections first to prevent communication disruptions on active adjacent I/O modules during insertion or removal.

Q: How does channel-to-channel isolation protect control processor logic?

A: Galvanic isolation barriers eliminate ground loops and block high-voltage field transients up to internal rating limits, preventing external field electrical faults from propagating into backplane logic buses or adjacent system components.

Field Installation Guidelines

Backplane Insertion: Align card edge connectors with guide slots on the carrier backplane assembly and apply firm, even force until the latching tabs click securely into place.
Shield Grounding: Connect field wiring cable shields to a single-point cabinet ground bar to optimize electromagnetic noise rejection across analog input channels.
Wiring Separation: Route 0-20 mA analog input signal lines in dedicated raceways separated from high-voltage AC power lines and inductive motor wiring.
Hazardous Area Requirements: Ensure the module housing and cabinet installation conform to Class I, Division 2 or Zone 2 safety mandates prior to applying field loop power.
Storage and Handling: Keep protective dust covers over backplane connector pins when storing or transferring modules to prevent pin contamination and static discharge damage.
