P0916NJ-0B Foxboro Discrete Output Module

P0916NJ-0B FBM242 Foxboro Discrete Output Modules

P0916NJ-0B FBM242 Foxboro Discrete Output Modules

Disponibilidad: 10 Quedan en stock

Foxboro P0916NJ-0B FBM242 Discrete Output Modules The Foxboro P0916NJ-0B, also cataloged as the FBM242 Discrete Output Modules, operates as a...

Código: P0916NJ-0B

Manufacturer: Foxboro
Product No.: P0916NJ-0B
Product Type: Discrete Output Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

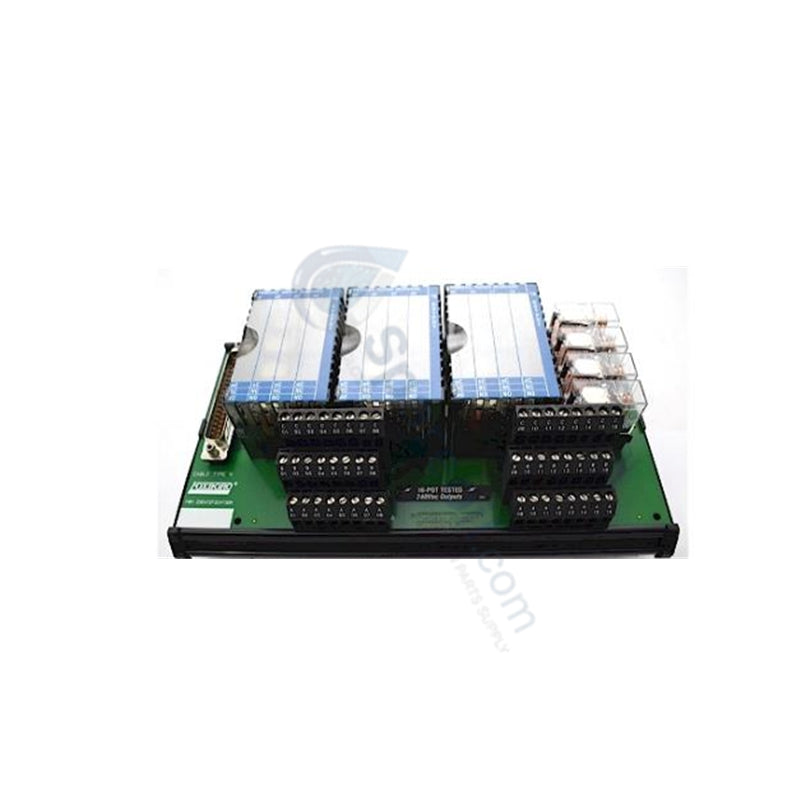

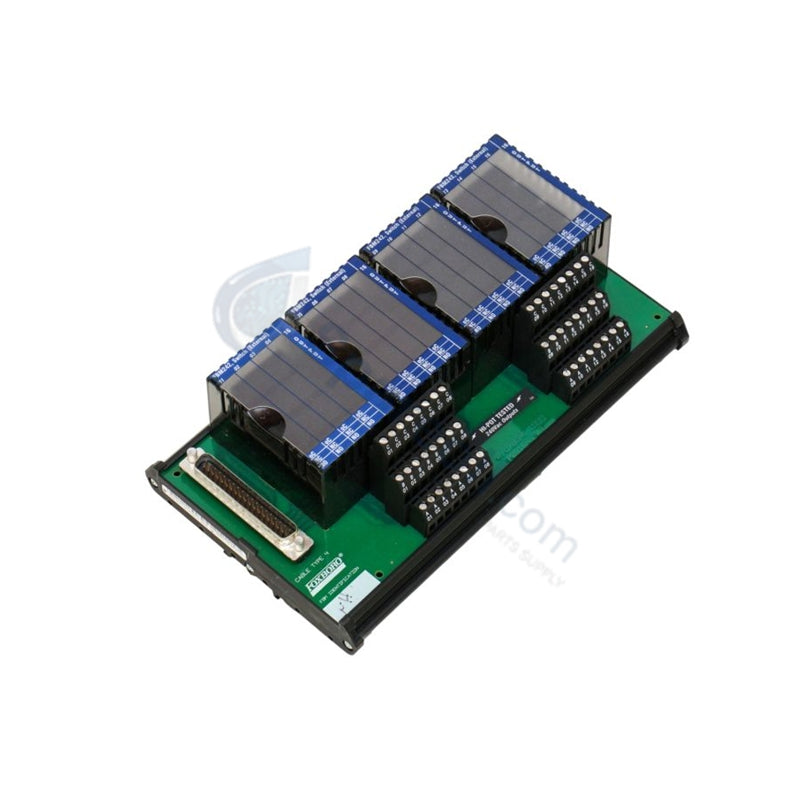

Foxboro P0916NJ-0B FBM242 Discrete Output Modules

The Foxboro P0916NJ-0B, also cataloged as the FBM242 Discrete Output Modules, operates as a dedicated hardware component for driving field actuators and solenoids within Foxboro I/A Series DCS networks. The module converts internal control commands into 16 independent 24 VDC discrete switching outputs across a DIN-rail or rack-mount baseplate interface. Featuring channel-to-channel and channel-to-system galvanic isolation, the unit limits current draw to 0.5 A per channel while managing up to 8 A total module current load across all field output points.

Suffix Breakdown & Model Matrix

P0916NJ-0B: Complete module assembly part number designating the FBM242 hardware revision.
FBM242: Base module platform type representing 16-channel 24 VDC discrete output functionality.

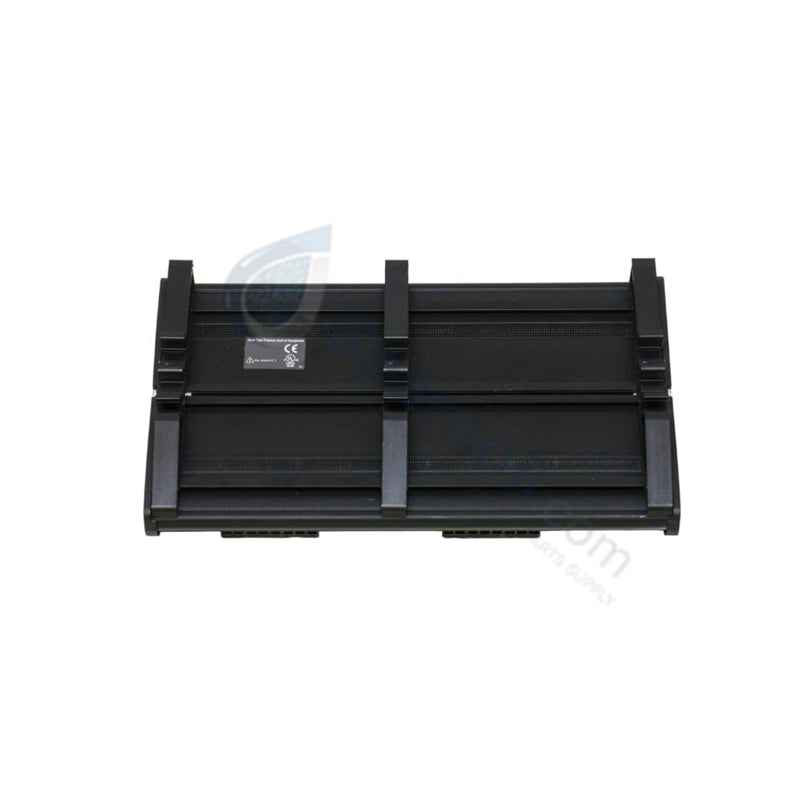

P0916NG: Associated baseplate assembly reference for mounting and field wiring connections.

Hardware Specifications

Parameter	Specification
Model	P0916NJ-0B (FBM242)
Brand	Foxboro
Origin	USA
Weight	0.5 kg (1.1 lbs)
Dimensions	Standard FBM form factor module
Operating Temp	0 deg C to +60 deg C
Power Consumption	8.5 W max
Product Type	Discrete Output Modules
Channels	16 independent discrete output channels
Output Signal	24 VDC discrete
Max Current Per Channel	0.5 A DC
Total Module Current	8 A max (shared across 16 channels)
Galvanic Isolation	Channel-to-channel and channel-to-system galvanic isolation
On-Board Memory	16 MB SDRAM, 32 MB Flash
Power Supply Input	24 VDC (supports redundant supply inputs)
Storage Temp	-40 deg C to +85 deg C
Operating Humidity	5% to 95% non-condensing

Process Control & Field Instrument Architecture

The module interface routes digital logic states directly to final control elements through channel-to-channel isolation barriers. Operating within continuous DCS architectures, the board suppresses voltage spikes and field ground loop currents to prevent backplane signal corruption. Output drivers interface seamlessly with 4-20 mA HART loop protocol instruments co-located on adjacent fieldbus carriers, preventing inductive load noise from interfering with delicate analog signal conditioning circuits. Integrated diagnostic logic continuously checks field circuit continuity and internal transistor state execution without introducing latencies into execution loops.

Frequently Asked Questions

Q: What are the consequences of exceeding the 0.5 A channel limit or 8 A total module current capacity?

A: Overcurrent conditions trigger internal current-limiting protection circuits on affected channels to prevent thermal damage to driver transistors. Inductive loads must utilize external flyback diodes to clamp voltage spikes below module isolation thresholds.

Q: Is hot-swapping supported when replacing a faulty module under live system conditions?

A: Yes, the module can be removed and inserted onto an active baseplate without powering down the carrier bus or interrupting adjacent I/O modules, provided field power isolation procedures are maintained.

Field Installation Guidelines

Baseplate Engagement: Align the rear edge connector with the DIN-rail baseplate receptacle (P0916NG) and apply firm, even pressure until the locking tabs snap securely into place.
Shield Grounding Practices: Terminate field cable shields at the dedicated baseplate ground bar using single-point grounding to avoid creating ground loops across isolated channels.
Inductive Load Suppression: Install external suppression diodes directly across the terminals of field solenoids and relay coils to absorb back-EMF transients.
Power Supply Redundancy: Wire separate 24 VDC feeder lines to the primary and secondary baseplate power input terminals to preserve redundant supply operation.
Thermal Spacing: Maintain clean vertical airflow channels above and below the module rack to ensure cabinet heat dissipation does not drive ambient temperatures past +60 deg C.
