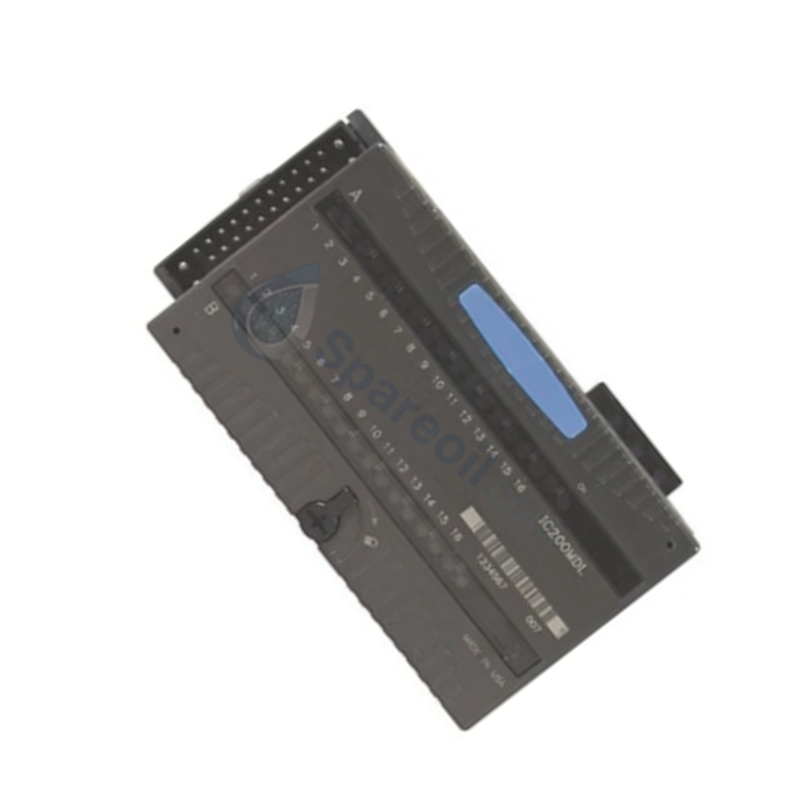

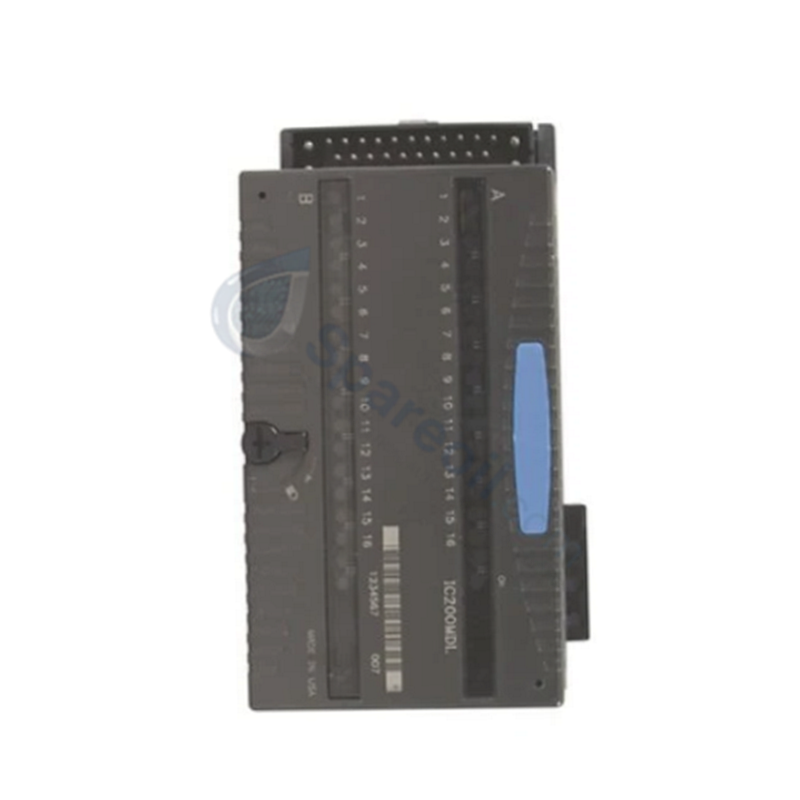

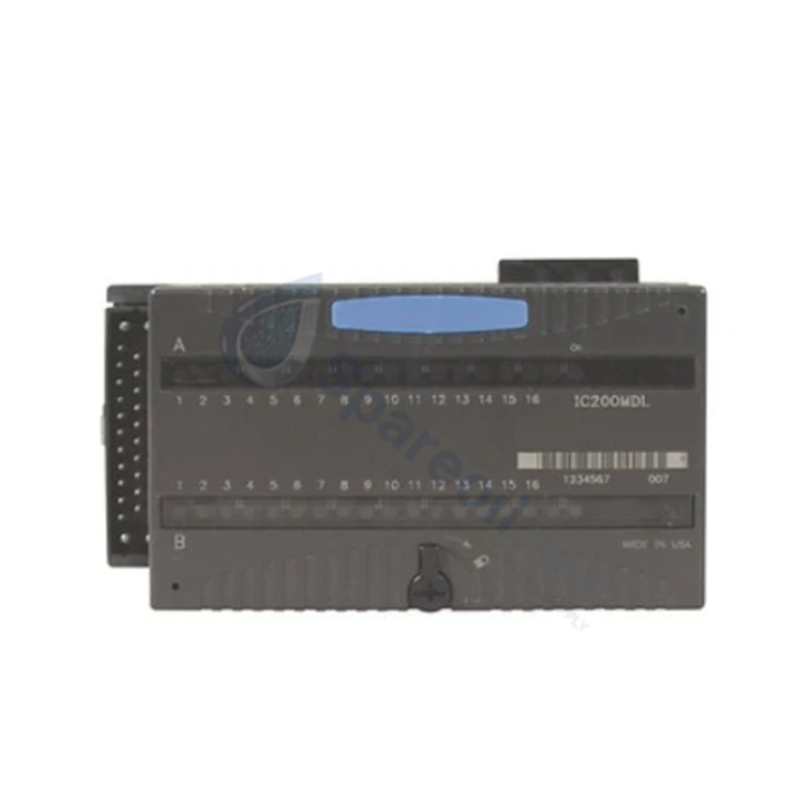

Configured for 24 VDC discrete signal switching in VersaMax I/O systems, the General Electric IC200MDL730 (IC200MDL730 Discrete Output Module) provides direct physical/electrical execution. The module drives up to 8 positive logic (sourcing) output channels, routing current from an external 18 to 30 VDC power supply to external loads at up to 2.0 A per point. Designed with integrated overcurrent and short-circuit protection circuits, the hardware continuously monitors field loops and signals point faults back to the controller while visually indicating fault states via individual channel amber LEDs.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC200MDL730 |
| Brand | General Electric |
| Origin | USA |
| Weight | 0.17 kg (0.38 lbs) |
| Dimensions | Standard VersaMax Carrier Profile |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | 50 mA @ 5 VDC (Backplane draw) |
| Module ID | FFFF8140 |
| Number of Points | 8 Discrete Outputs |
| Output Type | Sourcing / Positive Logic |
| Output Voltage Range | 17.5 to 30 VDC (24 VDC nominal) |
| Maximum Load Current | 2.0 A per point @ 30 VDC |
| External Power Supply | 18 to 30 VDC (24 VDC nominal) |
| Isolation | None (group-to-group or point-to-point) |
| Circuit Protection | Overcurrent and short-circuit protection |
| Status Indicators | 8 Output Point LEDs, OK LED, FLD PWR LED |
Deterministic Network Attributes & Backplane Integration
The IC200MDL730 maintains high backplane bus communication velocity across VersaMax I/O stations, drawing 50 mA from the 5 VDC backplane supply to power internal logic. It interfaces directly with CPU network interface units across Profinet or EtherNet/IP deterministic networks to execute real-time discrete switching operations. Native firmware flash compatibility guarantees continuous diagnostic reporting—including point-level overload detection—while maintaining deterministic loop refresh speeds across scalable I/O carrier topologies.
Frequently Asked Questions
Q: What power sequencing procedure is required when applying field power to the module?
A: Backplane power must be established for at least 1 second before applying external field power (18 to 30 VDC) to ensure internal control logic initializes prior to energizing output circuits.
Q: How does the IC200MDL730 indicate short-circuit or overload conditions on field outputs?
A: The module illuminates an amber LED corresponding to the faulted channel point and reports a point-fault signal to the VersaMax CPU for system-level alarm logging.
Q: Is hot-swapping supported for the IC200MDL730?
A: Hot insertion is supported on VersaMax carrier bases; however, accurate physical alignment during insertion is required to avoid pin bending or backplane bus communication disruption.
Field Installation Guidelines
-
Power Isolation: Disconnect main power to the cabinet and field loops prior to mounting or removing the carrier module.
-
Backplane Power Initialization: Ensure the CPU or expansion receiver energizes the 5 VDC backplane bus for 1 second before switching on the external 18 to 30 VDC field power supply.
-
Field Device Wiring: Wire positive logic loads to the channel output terminals on the carrier base. Connect the common side of the load to the negative rail of the external 24 VDC supply.
-
Power Supply Capacity: Verify that the external DC field power supply provides sufficient transient current capacity during short-circuit events to prevent voltage dips on adjacent field loops.
-
Grounding & Shielding: Ensure the mounting DIN rail is properly bonded to protective earth (PE) to mitigate electromagnetic interference in high-current switching installations.
