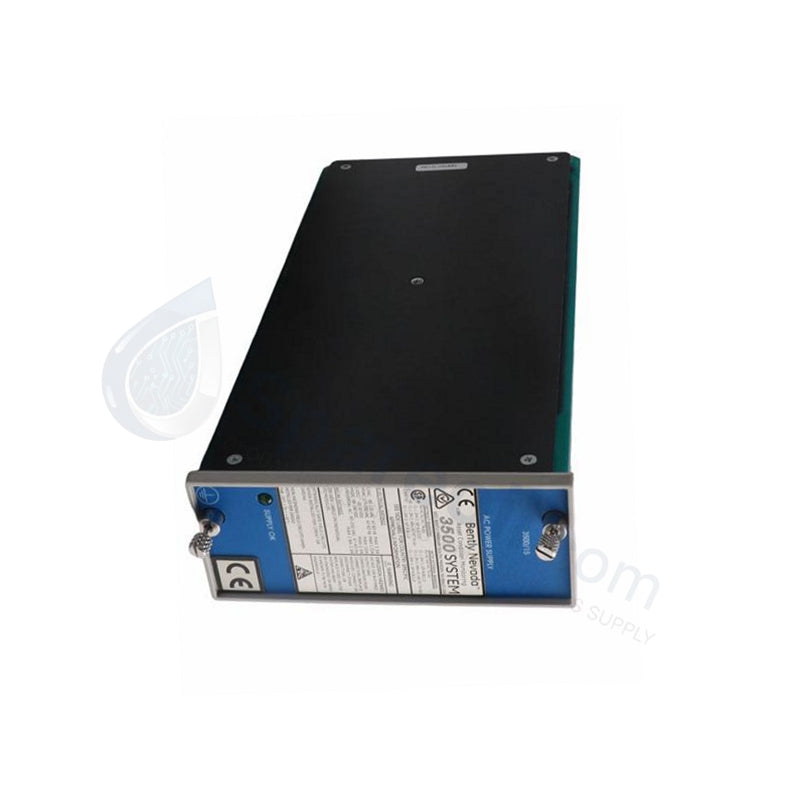

Bently Nevada 3500/15 106M1079-01 Universal AC Power Supply Module

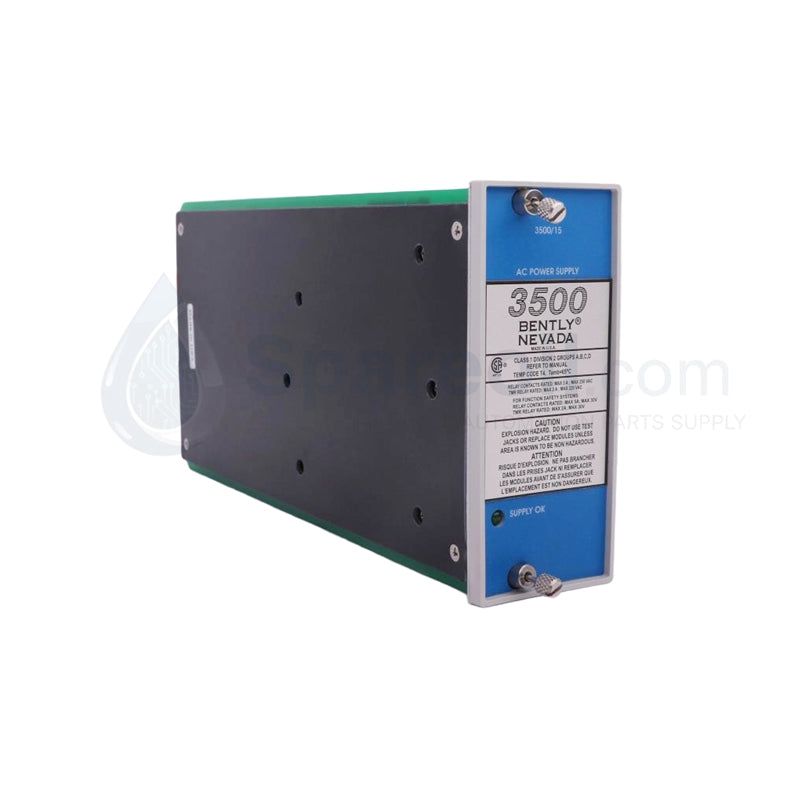

106M1079-01 Bently Nevada AC Power Supply Module | New & Original Stock

106M1079-01 Bently Nevada AC Power Supply Module | New & Original Stock

Availability: 10 left in stock

Bently Nevada 106M1079-01 3500/15 Universal AC Power Supply Module The Bently Nevada 106M1079-01, also cataloged as the 3500/15 Universal AC...

SKU: 3500/15 106M1079-01

Manufacturer: Bently Nevada
Product No.: 3500/15 106M1079-01
Product Type: Bently Nevada 3500 Series
Product Origin: USA
Payment:T/T, Western Union
Weight: 1390g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Bently Nevada 106M1079-01 3500/15 Universal AC Power Supply Module

The Bently Nevada 106M1079-01, also cataloged as the 3500/15 Universal AC Power Supply Module, operates as a dedicated hardware component for primary voltage conversion and stabilization within Bently Nevada 3500 Machinery Protection System platforms. This half-height module receives raw power from a paired rear-mounted Power Input Module, transforming the incoming wide-range AC mains into regulated secondary DC lines required to energize backplane logic buses, transducer drivers, and instrumentation modules. It installs exclusively into the dedicated left-side columns of the 3500/05 system chassis.

Hardware Specifications

Parameter	Specification
Model	3500/15
Brand	Bently Nevada
Origin	USA
Part Number	106M1079-01
Product Type	Universal AC Power Supply Module
Input Voltage Range	85 to 264 V AC RMS
Input Frequency	47 to 63 Hz
Efficiency	85% typical at maximum load
Output Voltages	Internally regulated DC rails for 3500 backplane
Redundancy Support	Load-sharing / Automatic failover
Hot-Swap Support	Permitted when redundant supply is active
Operating Temp	-30 to +65 deg C
Storage Temp	-40 to +85 deg C
Relative Humidity	95% non-condensing
Dimensions	120.7 mm x 50.8 mm x 251.5 mm
Weight	1.39 kg
Power Consumption	Determined by total instrumentation load

Transducer Supply and Cross-Talk Suppression

The internal step-down circuitry inside this module maintains precise secondary voltage tolerances to prevent localized electrical interference from corrupting critical sensor paths. During the real-time processing of high-frequency waveforms for rotor dynamics tracking, the module actively regulates target output rails to ensure steady gap voltage validation (-10 VDC targets) across all proximity probe channels. This isolated regulation prevents line-side harmonics from causing signal noise on adjacent slots. Furthermore, the integrated load-sharing bus layout incorporates active cross-talk suppression, which ensures that electrical switching transients during a redundant supply transition do not cause false trips or disrupt eddy-current probe scaling configurations.

Frequently Asked Questions

Q: Under what specific conditions can the 106M1079-01 module be hot-swapped?

A: Hot-swapping is permitted only when a second 3500/15 power supply is fully functional and sharing the chassis load in a redundant configuration. If the rack operates on a single power supply, removing the card will drop the backplane DC rails and shut down the system.

Q: How does the load-sharing mechanism operate during normal conditions?

A: When two modules are installed in a redundant pair, the internal diode-ORing logic automatically balances the current draw, allowing both units to divide the thermal and electrical load equally to extend component longevity.

Q: Does the 106M1079-01 require physical jumper modifications to handle different international AC mains?

A: No. The universal internal regulator circuit adapts automatically to any input voltage spanning from 85 to 264 V AC RMS without requiring manual internal configuration switches or specific field wiring adjustments.

Field Installation Guidelines

Confirm that the source breakers feeding the corresponding rear power input module are open and tagged out before sliding the card into the slot guides.
Ensure the module is seated and fully locked into the upper or lower power slots using the integrated front panel thumbscrews to sustain continuous grounding contact.
Establish a solid, low-resistance connection between the 3500/05 chassis ground stud and the primary plant instrument reference grid to maintain transient suppression.
Keep air distribution pathways clean and unobstructed on the front faceplate and cabinet doors to allow natural thermal convection loops to cool the internal electronics.
