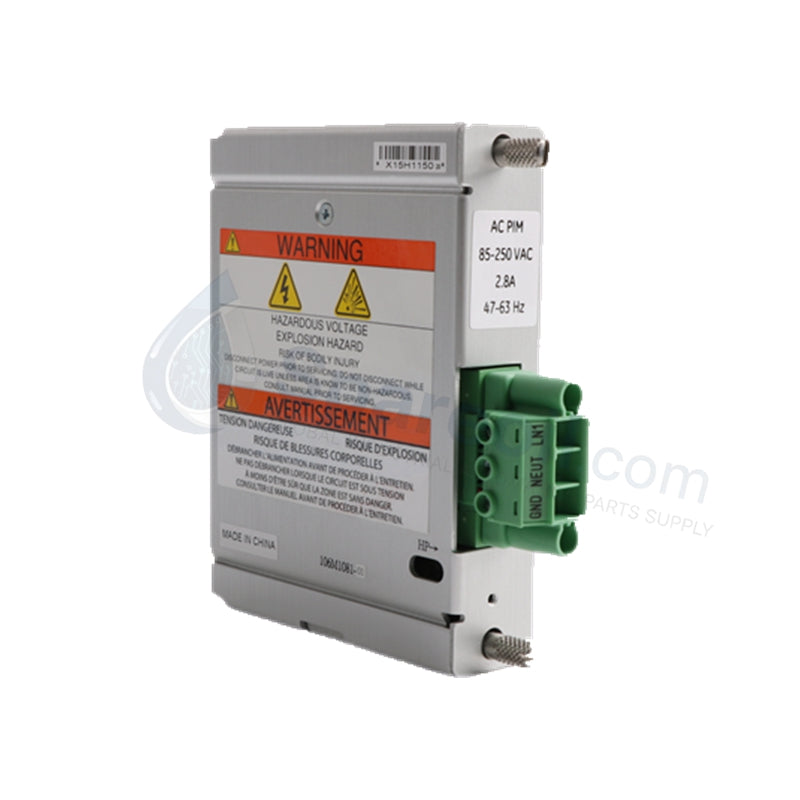

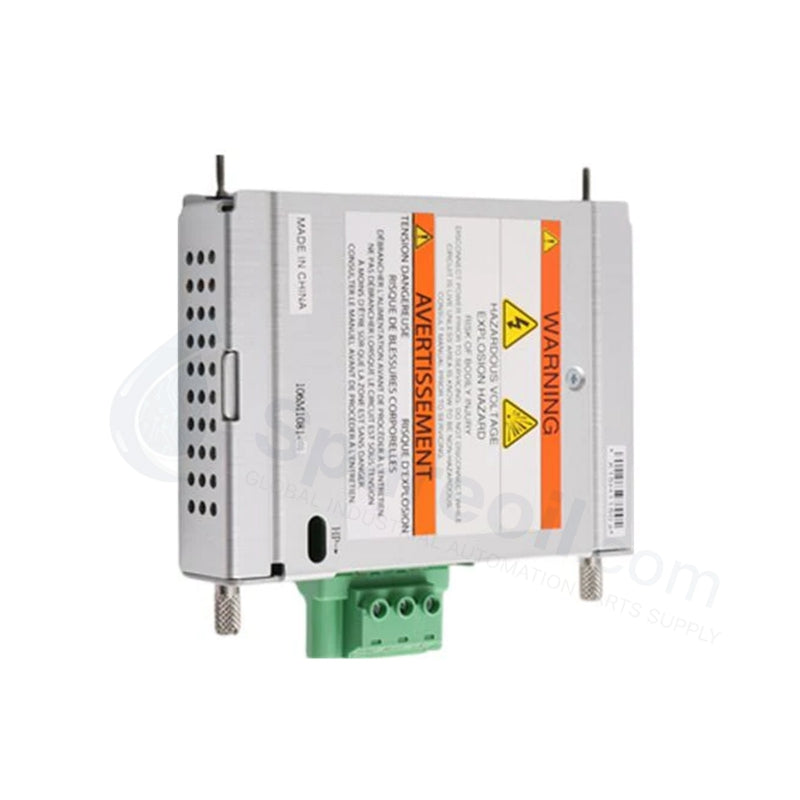

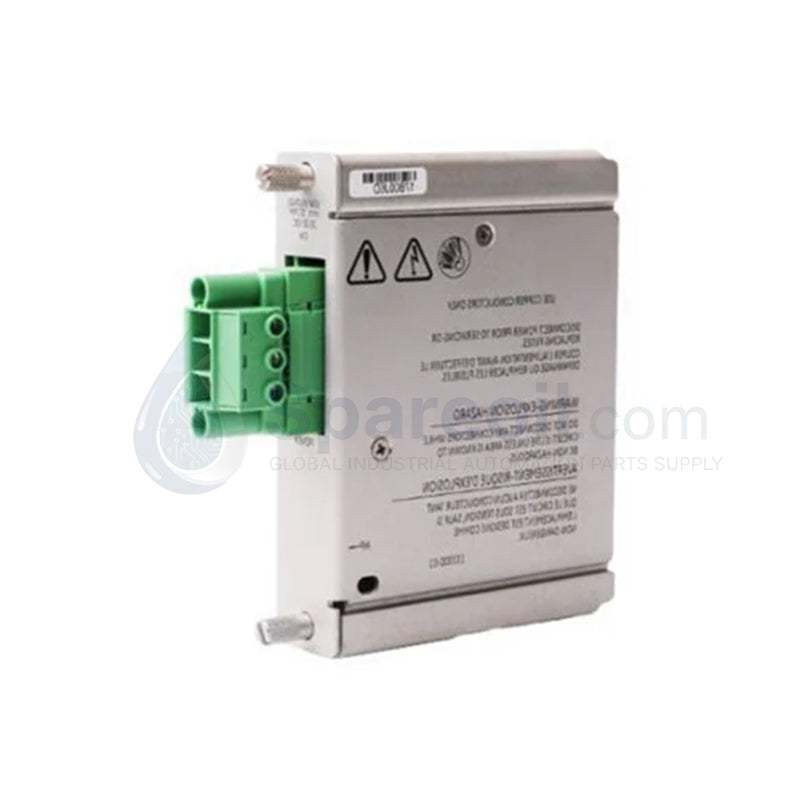

Bently Nevada 106M1081-01 3500/15 Universal AC Power Input Module

The Bently Nevada 106M1081-01, also cataloged as the 3500/15 Universal AC Power Input Module (PIM), operates as a dedicated hardware component for AC line power reception and transient suppression within Bently Nevada 3500 Machinery Protection System racks. This rear-mounted interface module accepts wide-range AC mains input, executing hardware-level electrical filtering before distributing the stabilized current to the primary front-facing 3500/15 power supply modules. Its half-height physical footprint allows dual-redundant line configurations within a localized single-chassis slot allocation.

Hardware Specifications

Parameter	Specification
Model	3500/15
Brand	Bently Nevada
Origin	USA
Part Number	106M1081-01
Product Type	Universal AC Power Input Module
Input Voltage (Non-Hazardous)	85 to 264 V AC RMS
Input Voltage (Hazardous Locations)	85 to 250 V AC RMS
Input Frequency Range	47 to 63 Hz
Maximum Current Rating	2.8 A RMS
Power Consumption	Passive throughput (determined by front supply draw)
Isolation Type	Galvanic isolation between mains and backplane logic
Operating Temp	-30 to +65 deg C
Storage Temp	-40 to +85 deg C
Dimensions	120 mm x 25 mm x 120 mm
Weight	0.34 kg

Transducer Integrity and Cross-Talk Suppression

The electronic circuitry within this module isolates the internal power rails from severe common-mode noise present on factory grids. This localized isolation preserves the target parameters required for eddy-current probe scaling, ensuring that line ripple does not superimpose on proximity sensor signals. Consequently, the hardware dampens external grid transients to maintain steady gap voltage validation (-10 VDC targets) across adjacent monitoring channels. This design maintains signal cross-talk suppression between redundant power supply channels, preventing fake frequency inputs from shifting the recorded rotor dynamics data.

Frequently Asked Questions

Q: Does the 106M1081-01 module support live hot-swap procedures? A: No. Disconnecting the rear power input module while active terminates the supply voltage to the paired front module. If the system is not configured with a parallel redundant power pair running on a separate line input, an immediate rack power failure will result.

Q: What is the benefit of the universal rating compared to earlier 3500/15 power input options? A: This module handles standard high-voltage (220 V AC) and low-voltage (110 V AC) nominal lines natively, providing wide compatibility with global grid types without requiring any manual hardware jumpers or specific hardware variants.

Q: How is the galvanic isolation managed inside this module interface? A: The physical board architecture separates high-potential line paths from the logic backplane through specialized isolation barriers, preventing line faults from compromising the primary monitoring rack hardware.

Field Installation Guidelines

Verify that all external power line feeding circuits are completely locked out and tested for zero voltage prior to attaching the terminal connections.
Mount the module securely in the correct rear bay corresponding directly with the front power supply slot to prevent backplane pin misalignment.
Establish a continuous connection from the rack chassis ground post directly to the primary plant instrument grounding network to assure surge filter performance.
Route high-voltage AC input cables separately from sensitive low-voltage proximity transducer and relay lines to avoid magnetic noise induction.
