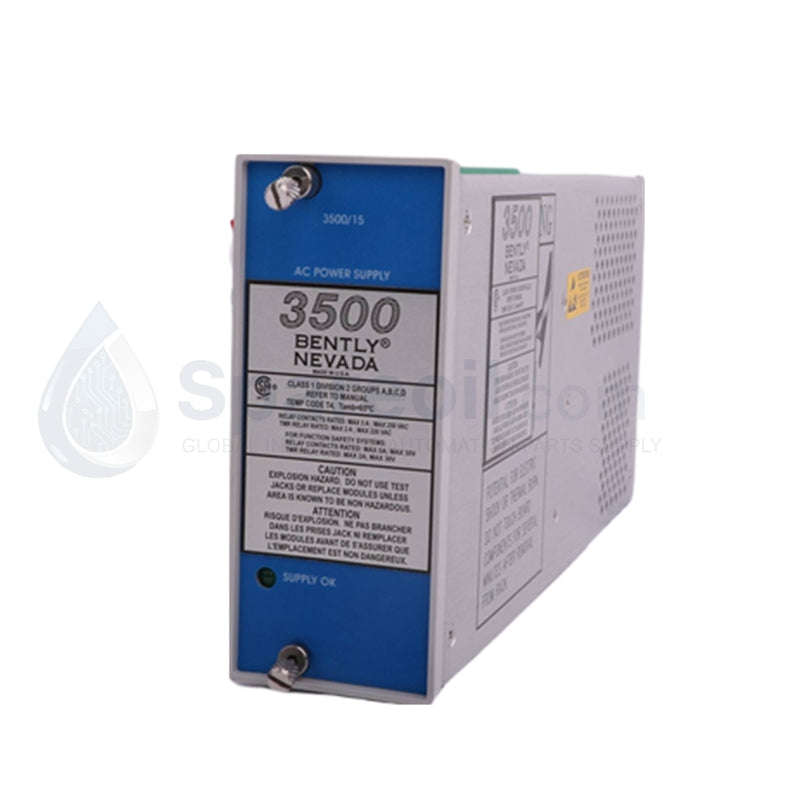

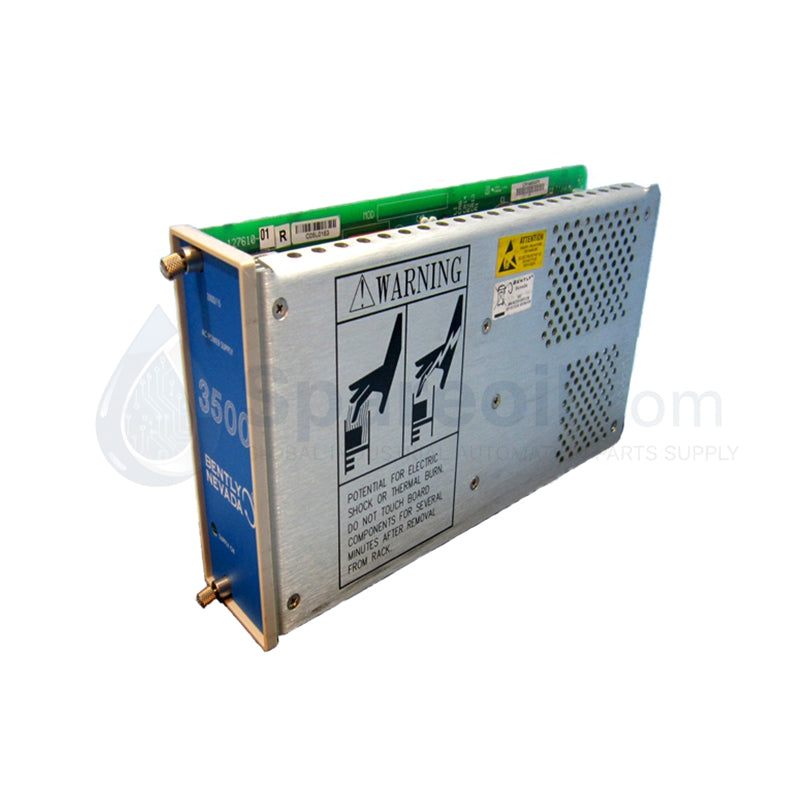

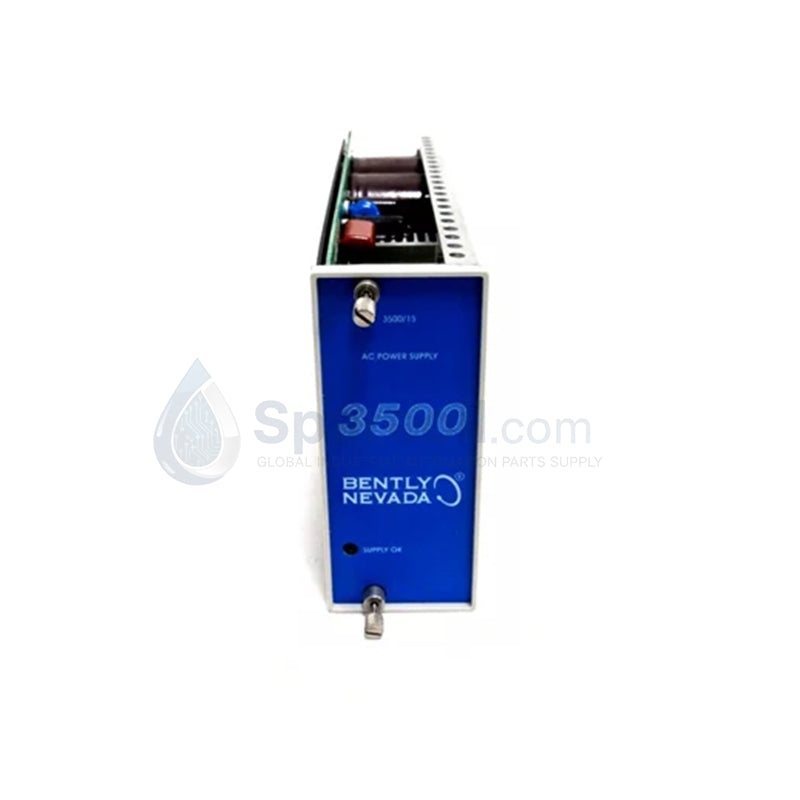

Bently Nevada 127610-01 3500/15 AC Power Supply Module

Configured for primary source voltage conversion in Bently Nevada 3500 Machinery Protection Systems, the Bently Nevada 127610-01 (3500/15 AC Power Supply Module) provides direct physical/electrical execution of regulated DC power delivery to the rack backplane. The module translates primary AC input into stable secondary rails to energize chassis backplane buses, proximity transducers, and internal monitoring circuitry. It installs exclusively in the dedicated power supply slots on the left side of the 3500/05 chassis infrastructure.

Hardware Specifications

Parameter	Specification
Model	3500/15
Brand	Bently Nevada
Part Number	127610-01
Module Type	AC Power Supply Module
Origin	USA
Input Voltage Range	100 to 240 V AC
Input Frequency Range	47 to 63 Hz
Output Capacity	150 W maximum
Output Voltage	+24 V DC regulated
Redundancy Support	Load-sharing / Instantaneous failover
Form Factor	Half-height slot architecture
Protection Rating	IP20
Operating Temp	-20 to +70 deg C
Storage Temp	-40 to +85 deg C
Dimensions	13 x 26 x 6 cm
Weight	2.0 kg
Power Consumption	Varies by rack load up to 150 W output

Transducer Supply & Rotor Dynamics Calibration

The module features dedicated internal regulators designed to maintain secondary voltage rails for eddy-current probe scaling and transducer supply circuits. When managing complex proximity probe loops, the internal architecture stabilizes the gap voltage validation (-10 VDC targets) across multi-channel configurations. This voltage stabilization prevents cross-talk suppression failures when multiple high-frequency oscillators operate within the same physical rack backplane. By limiting supply-induced ripple to millivolt thresholds, the module preserves the integrity of high-frequency vibration waveforms, ensuring precise tracking of rotor dynamics under transient machinery speeds.

Frequently Asked Questions

Q: Can the 127610-01 module be hot-swapped while the 3500 system is energized?

A: Yes. When deployed in a redundant configuration with two power supplies installed, a single module can be removed or replaced without interrupting rack operations or machinery protection functions.

Q: How does the system handle power supply failure diagnostics?

A: The module interfaces directly with the Rack Interface Module (RIM) through the backplane bus. It tracks input voltage drops or internal component failures, immediately driving status lines low and triggering system event logs.

Q: Is there an orientation or placement restriction inside the 3500/05 chassis?

A: Yes. This half-height module must only occupy the designated upper or lower positions within the dedicated power supply columns located at the far left side of the standard rack layout.

Field Installation Guidelines

Verify that the input supply line is de-energized before terminating wires onto the rear terminal block to prevent transient arc faults.
Establish a low-impedance ground connection by securing the chassis ground terminal directly to the main plant instrument earth busbar.
Maintain clear vertical spacing above and below the 3500/05 rack enclosure to ensure unhindered passive thermal convection across the module heat dissipation surfaces.
Tighten all rear terminal block screws to the manufacturer-specified torque limit to prevent high-resistance connections under continuous vibration.
