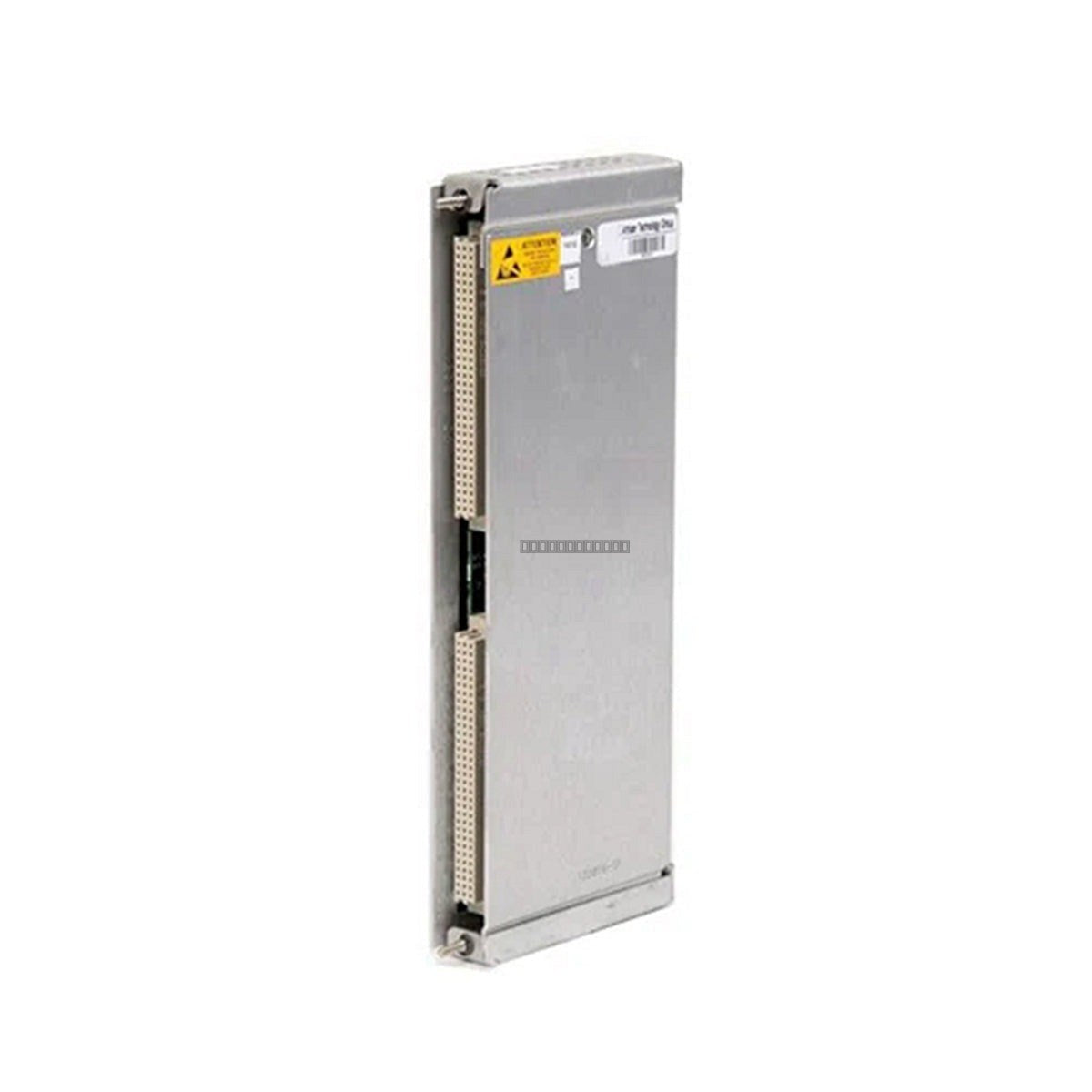

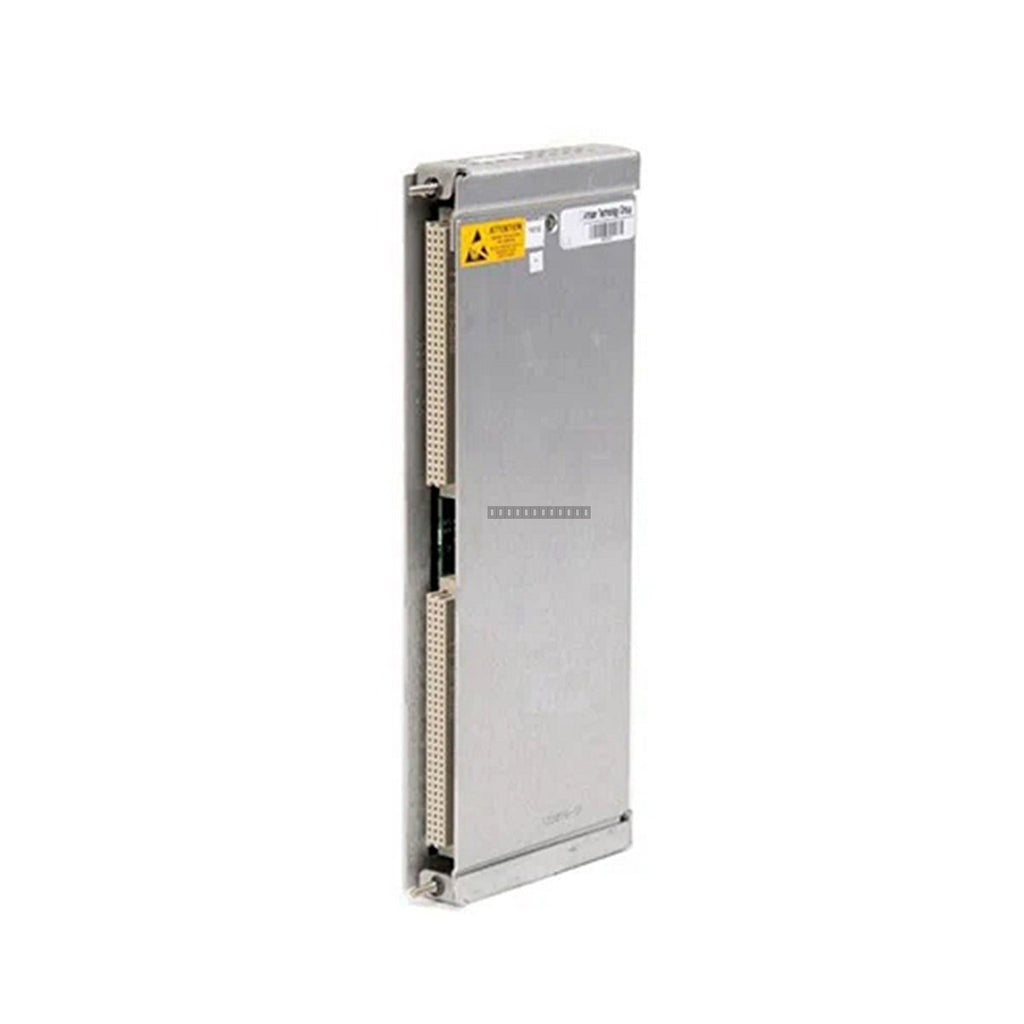

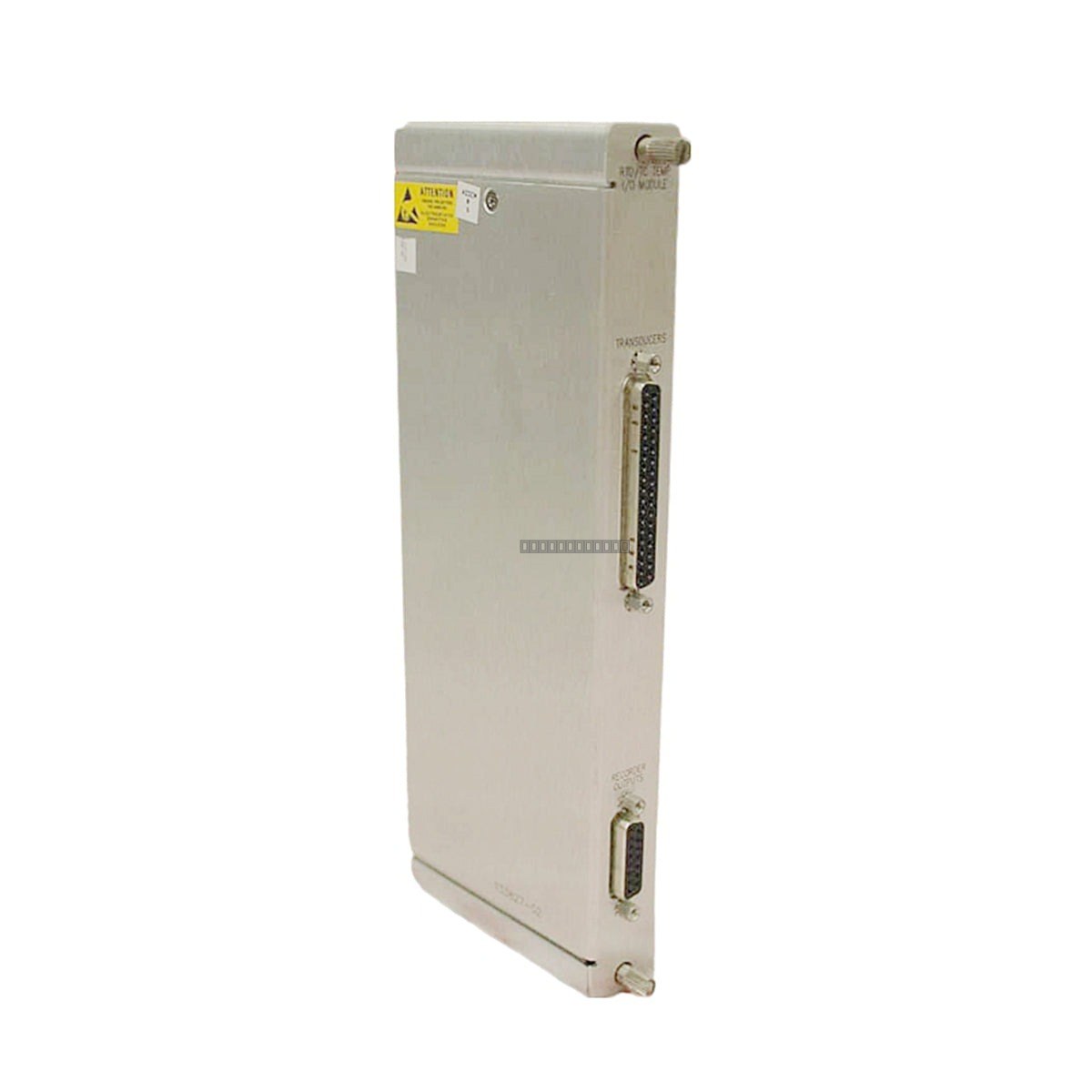

Bently Nevada 133843-01 3500/60 TC Isolated I/O Module

Bently Nevada 133843-01 3500/60 Thermocouple Isolated I/O Module

Availability: 3 left in stock

DescriptionThe Bently Nevada 133843-01 is a Thermocouple (TC) Isolated I/O Module designed for use with the 3500/60 Temperature Monitor system....

SKU: 133843-01

Manufacturer: Bently Nevada
Product No.: 133843-01
Product Type: I/O Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Bently Nevada 133843-01 is a Thermocouple (TC) Isolated I/O Module designed for use with the 3500/60 Temperature Monitor system. This module provides critical temperature monitoring capabilities for rotating machinery, such as turbines and compressors, by processing thermocouple inputs from bearings, stators, and other machine components. The 133843-01 is specifically engineered for systems utilizing external termination blocks, which facilitates easier field wiring and maintenance by separating the signal termination points from the rack backplane.

Features

Isolated Inputs: Each thermocouple channel is electrically isolated to minimize ground loops and signal interference, ensuring high measurement integrity.
External Termination Design: Supports external termination blocks to streamline installation and simplify cable management within the control cabinet.
System Integration: Fully compatible with the Bently Nevada 3500 rack-based monitoring system, supporting standard alarm and danger setpoint configurations.
Reliability: Designed for continuous operation in demanding industrial environments, providing essential data for machinery protection and condition monitoring.

Applications

This module is intended for use in critical asset protection systems, including:

Temperature monitoring of hydrodynamic bearings.
Stator winding temperature tracking in large motors and generators.
Process temperature monitoring for industrial compressors and turbines.

Technical Specifications

Model	133843-01
Series	3500/60
Input Type	Thermocouple (TC)
Isolation	Isolated channels
Operating Temperature	-30 to +65 degC
Storage Temperature	-40 to +85 degC
Humidity	95%, non-condensing

Installation Guidelines

ESD Precautions: Always use a grounded wrist strap when handling the module to prevent electrostatic discharge damage to internal circuitry.
Rack Seating: Ensure the module is fully seated in the 3500 rack slot and that the front panel screws are tightened to maintain proper grounding and EMI shielding.
Wiring: Use shielded thermocouple extension wire to maintain signal integrity. Ensure external termination blocks are wired according to the specific 3500/60 system documentation.
Power: The 3500 system is designed for hot-swapping; however, always verify system configuration before inserting or removing modules in an active rack.

FAQ

Is this module compatible with all 3500 racks?

The 133843-01 is designed for the 3500/60 Temperature Monitor system. It must be used in conjunction with the appropriate 3500/60 monitor module and requires an external termination block for signal connection.

Does this module require external power?

No, the module receives its operating power directly from the 3500 rack backplane once installed.
