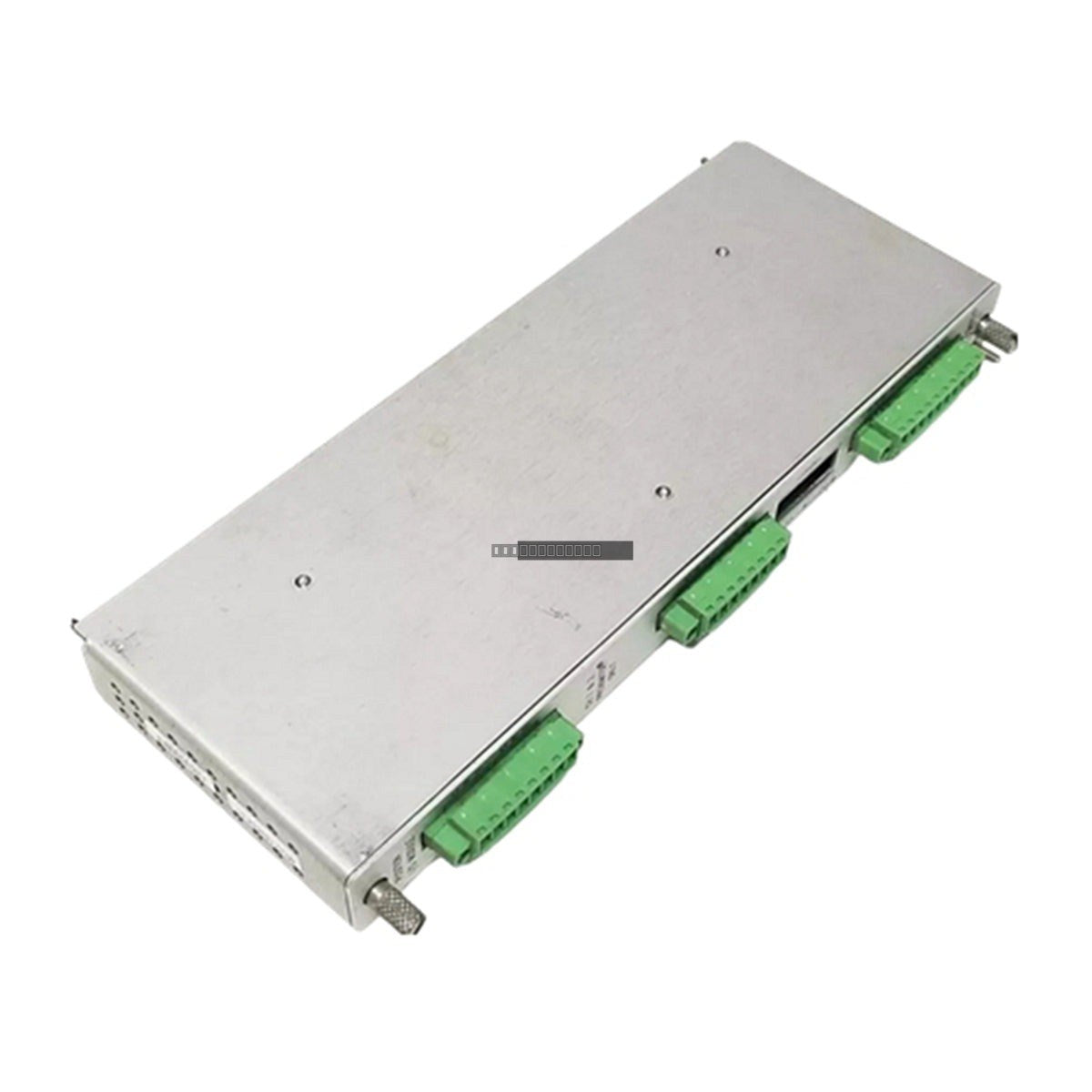

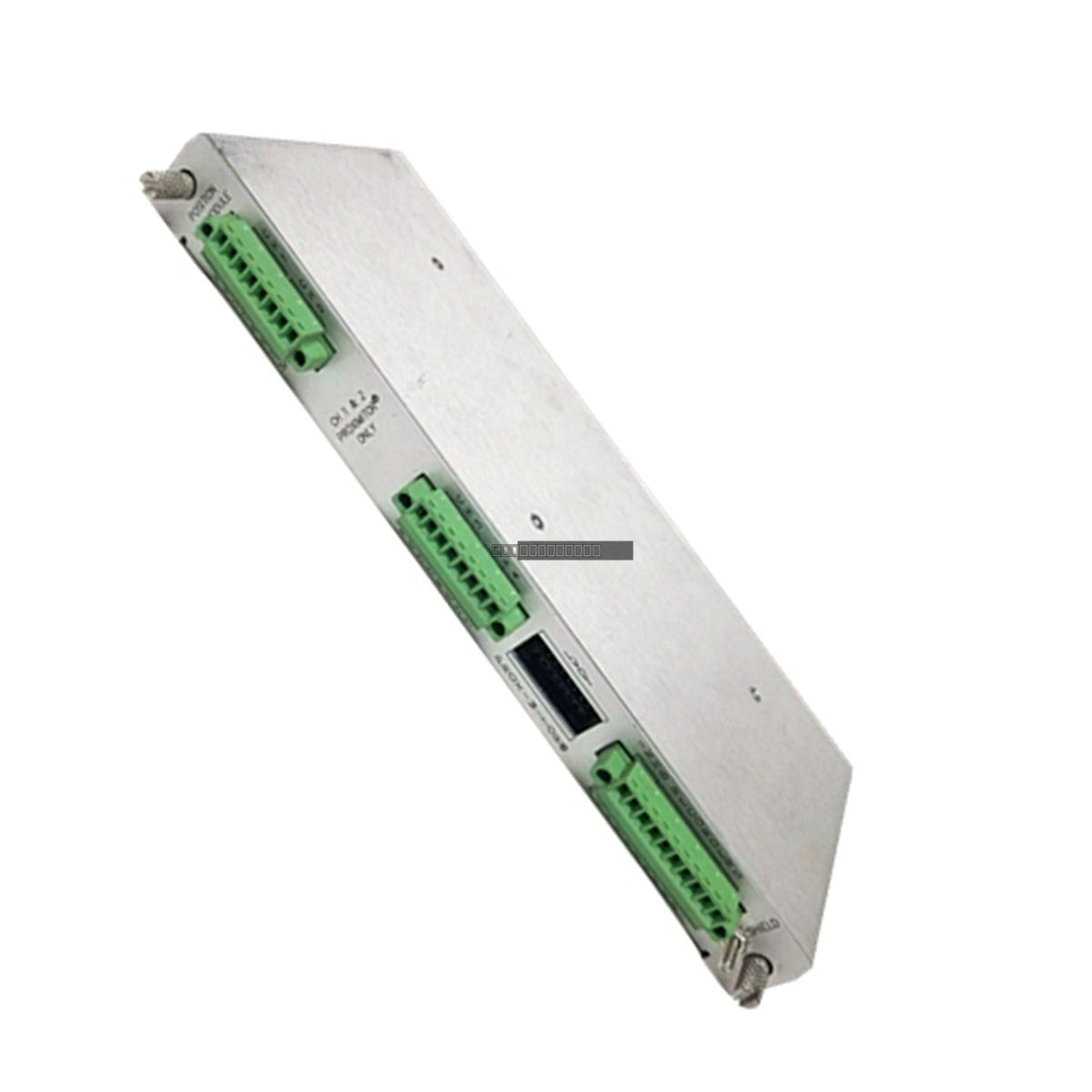

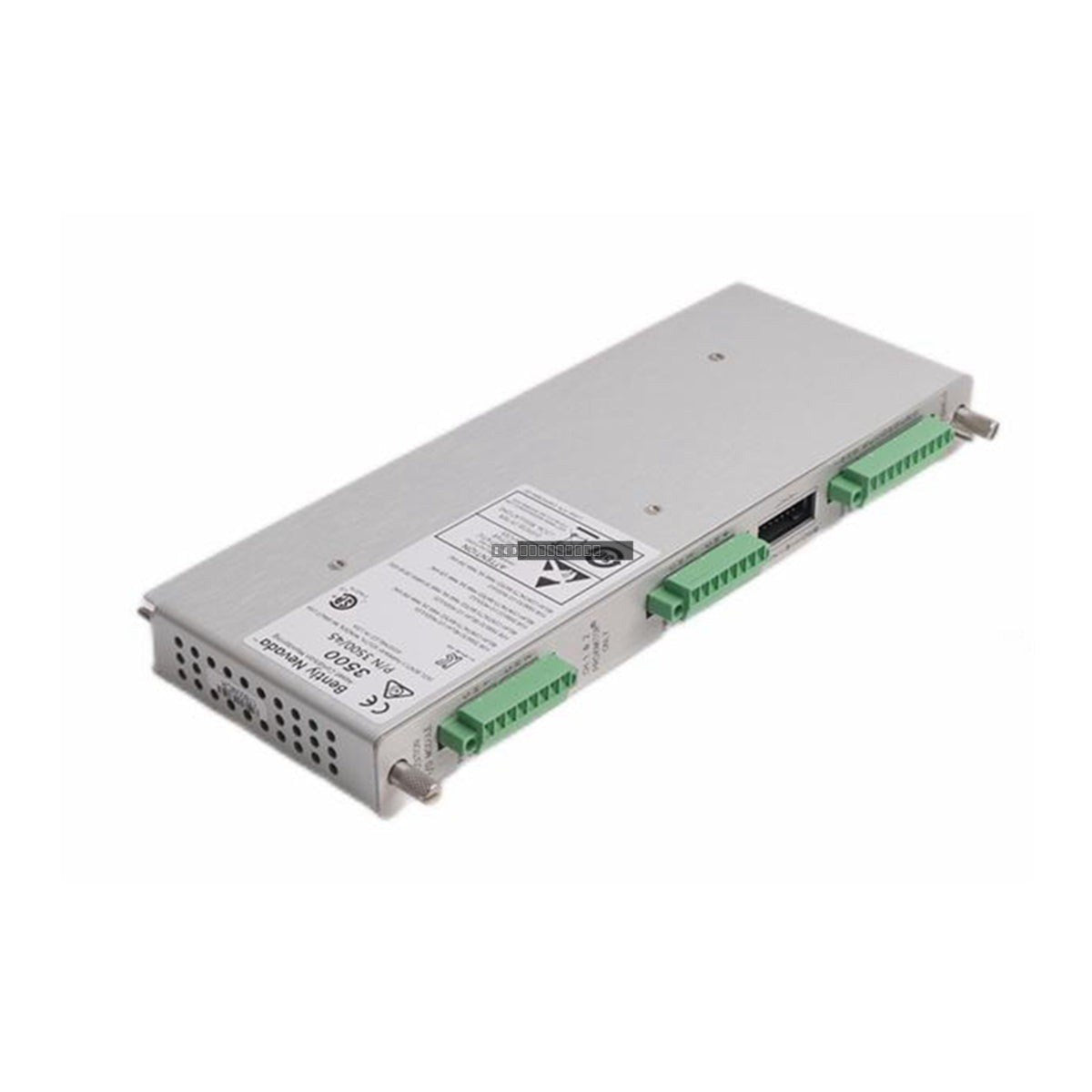

Bently Nevada 135137-01 Position I/O Module

Availability: 8 left in stock

DescriptionThe Bently Nevada 135137-01 is a specialized Position I/O module designed for integration within the 3500/45 machinery protection system. This...

SKU: 135137-01

Manufacturer: Bently Nevada
Product No.: 135137-01
Product Type: Position I/O Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Bently Nevada 135137-01 is a specialized Position I/O module designed for integration within the 3500/45 machinery protection system. This 4-channel module is engineered to receive and process signals from a variety of position-sensing devices, facilitating the continuous monitoring of machine parameters to ensure operational integrity and safety.

Features

Four independent input channels for high-density monitoring.
Compatible with a wide array of sensors, including proximity transducers, RPTs (Rotary Position Transducers), DC/AC LVDTs, and rotary potentiometers.
Integrated internal terminations for streamlined field wiring.
Supports continuous comparison of monitored parameters against configurable alarm setpoints.
Robust design suitable for demanding industrial environments.

Applications

Power Generation: Monitoring steam and hydro turbine units in utility, nuclear, and pumped storage facilities.
Oil & Gas: Oversight of compressor units and expanders on offshore production platforms.
Petrochemical: Management of turbine compressors, high-pressure pumps, and reactor stirring systems.
Heavy Industry: Essential for blast furnace fans, air separation units, and rotary kilns in mining and metallurgy.

Technical Specifications

Model	135137-01
Input Channels	4
Operating Voltage	24 VDC (±10%)
Power Consumption	< 5 W
Operating Temperature	-40 degC to +85 degC
Sensor Compatibility	Proximity, RPT, DC/AC LVDT, Rotary Potentiometers
Weight	0.4 kg

Installation Guidelines

Ensure power is disconnected from the 3500 rack before inserting or removing the I/O module.
Handle the module using electrostatic discharge (ESD) precautions to protect sensitive internal components.
Verify that all field wiring is properly terminated to the screw terminals.
Ensure the module is fully seated in the rack slot to maintain proper backplane communication.
Keep signal cabling routed away from high-voltage lines or high-EMI sources to prevent signal interference.

FAQ

What is the primary function of the 135137-01?

The 135137-01 is a Position I/O module used in the 3500/45 system to monitor and protect machinery by tracking inputs from various position transducers and comparing them to user-defined alarm setpoints.

What types of transducers can be connected to this module?

This module supports inputs from proximity transducers, Rotary Position Transducers (RPTs), AC and DC Linear Variable Differential Transformers (LVDTs), and rotary potentiometers.

Is this module suitable for high-temperature environments?

Yes, the 135137-01 is rated for operation in environments ranging from -40 degC to +85 degC, making it suitable for most industrial plant conditions.
