Product Overview

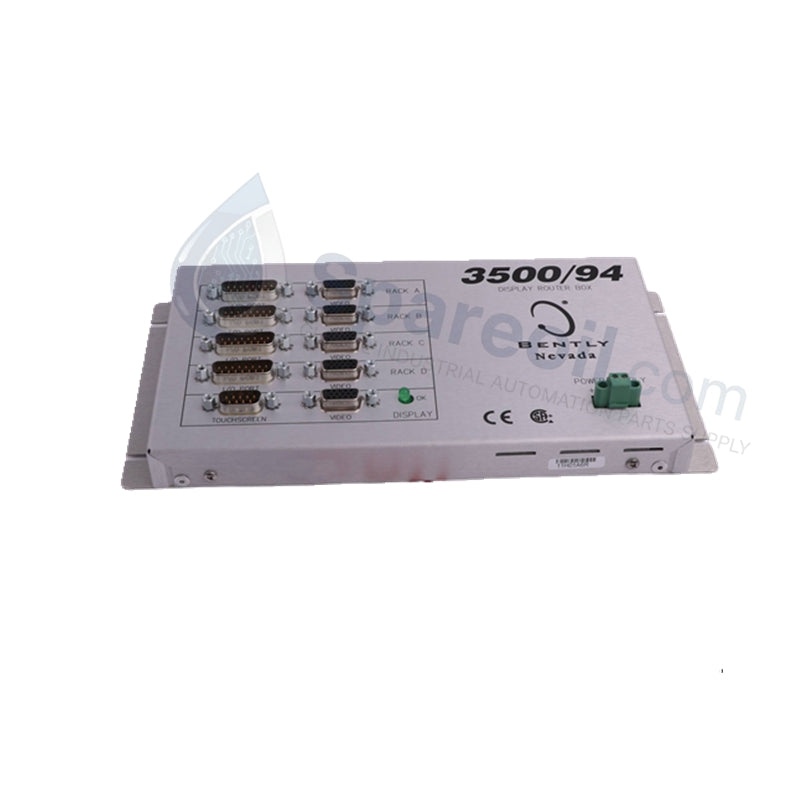

The Bently Nevada 3500/94 (Part Number 145988-01) serves as the high-speed Display Router for the 3500 Machinery Protection System. This module functions as the primary graphical interface, transmitting real-time machinery data—including vibration levels, axial position, speed, and temperature—to a local VGA display. It bridges the system backplane with the operator's visualization hardware, allowing for instantaneous assessment of machine health and alarm status directly at the rack. We supply this unit as 100% Brand New and Original in Factory Packing, manufactured in the USA to meet global industrial safety and SIL3 compliance standards.

Technical Specifications

Attribute	Specification Value
Model Number	3500/94
Part Number	145988-01
Function	VGA Display Router / Operator Interface
VGA Resolution	640 × 480 Pixels (VGA Graphical)
Data Transmission	Vibration, Position, Speed, Temperature, Alarms
System Bus Interface	High-speed 3500 System Backplane
Operating Temp	0°C to +50°C (32°F to +122°F)
Storage Temp	–40°C to +85°C (–40°F to +185°F)
Dimensions	24.3 cm x 4.6 cm x 15.5 cm
Weight	0.55 kg
Origin	USA

Engineering Advantages

Real-Time Data Visualization: The 145988-01 module pushes live data from the monitor cards to a VGA screen. This eliminates the delay associated with remote software interfaces, providing operators with immediate visual confirmation of alarm conditions and machine trends.
Streamlined Troubleshooting: By displaying the specific channel and alarm type (Alert/Danger) on a localized screen, this display router allows maintenance teams to pinpoint machinery faults without connecting an external laptop to the system.
Deterministic System Integrity: The router module integrates directly into the 3500 rack backplane. It consumes minimal power while maintaining a high-speed data stream, ensuring that the display updates do not interfere with the primary protective logic of the monitor cards.
Robust Industrial Design: Built to the same rigorous standards as the 3500 protection modules, the 3500/94 withstands the electromagnetic interference (EMI) and electrical noise prevalent in power plants and petrochemical facilities.
Simplified Rack Integration: The module utilizes a standard 3500 slot footprint. This allows engineers to easily add local visualization capabilities to existing racks without modifying the internal chassis wiring or backplane hardware.

FAQs

Does the 145988-01 require a specific monitor to work?

The 3500/94 outputs a standard VGA signal. It typically connects to the Bently Nevada 3500/93 display or a compatible industrial VGA monitor. Ensure the monitor supports the 640 x 480 resolution for optimal graphical clarity.
Can this module be hot-swapped while the machine is running?

Yes. Like most 3500 series modules, the 145988-01 supports hot-swap replacement. Since it serves as a display router and not a primary protective monitor, removing it does not affect the machinery protection logic or trip capabilities of the system.
What is the difference between the 3500/94 and the 3500/93?

The 3500/94 (145988-01) is the internal router module that resides inside the 3500 rack to process and output data. The 3500/93 is the physical LCD display panel that mounts on the rack face or a panel door to show the data processed by the router.
Is this a genuine Bently Nevada original part?

Absolutely. We guarantee this is a 100% Brand New and Original 145988-01 module. It arrives in factory-sealed packaging, ready for integration into your machinery protection system with full factory reliability.
