146031-01 | Bently Nevada | 3500/22M TDI I/O Module

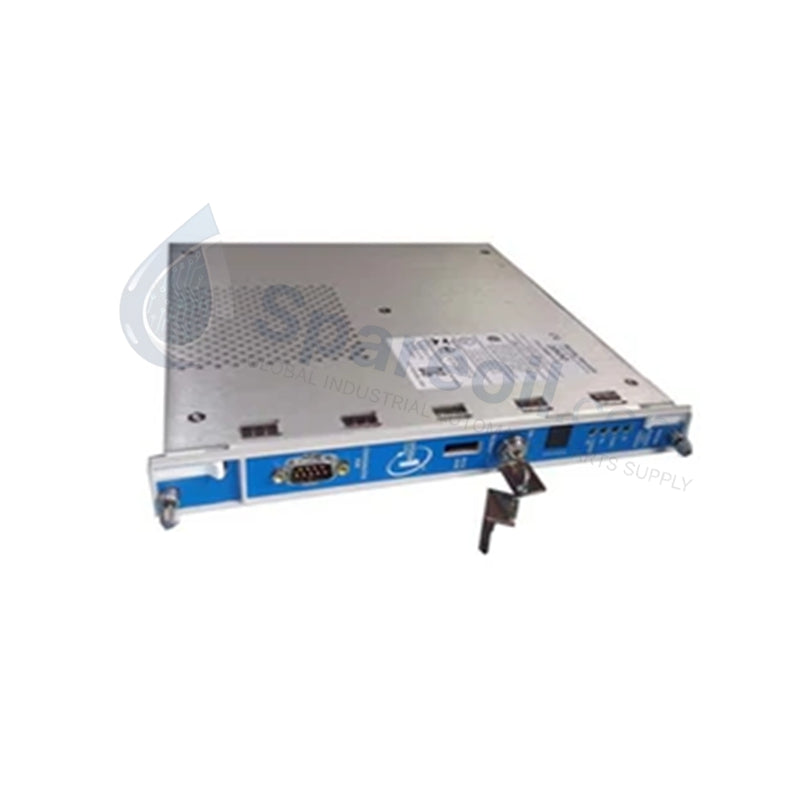

146031-01 Bently Nevada 3500/22M Ethernet Module | New Stock

146031-01 Bently Nevada 3500/22M Ethernet Module | New Stock

Availability: 10 left in stock

Bently Nevada 3500/22M 146031-01 Transient Data Interface I/O Module Configured for high-speed data acquisition in the 3500 machinery protection rack,...

SKU: 3500/22 146031-01

Manufacturer: Bently Nevada
Product No.: 3500/22 146031-01
Product Type: Condition Monitoring Modules
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

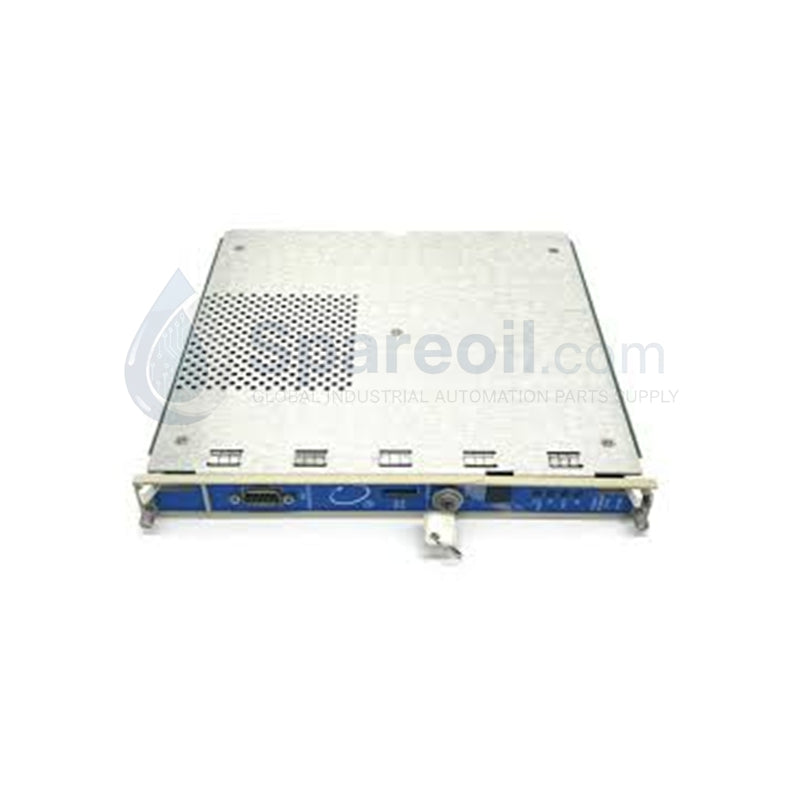

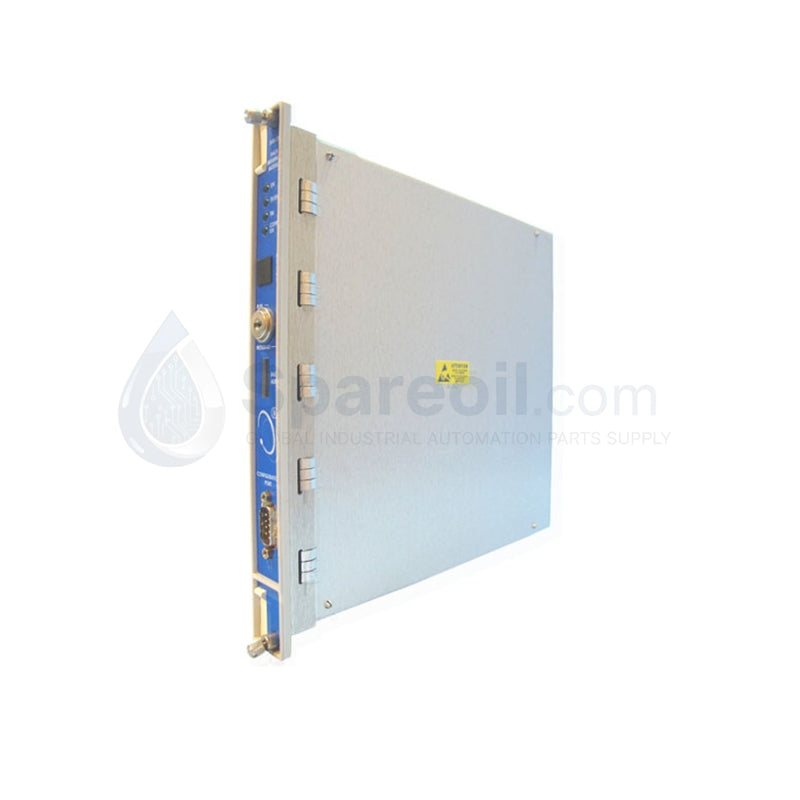

Bently Nevada 3500/22M 146031-01 Transient Data Interface I/O Module

Configured for high-speed data acquisition in the 3500 machinery protection rack, the Bently Nevada 146031-01, also cataloged as the 3500/22M Transient Data Interface I/O Module, provides direct physical/electrical execution. This rear I/O component establishes the physical physical-layer connection between the main 3500/22M processor and external network environments running System 1 Condition Monitoring software.

Hardware Specifications

Parameter	Specification
Model	3500/22M (Part Number: 146031-01)
Brand	Bently Nevada (Baker Hughes)
Origin	USA
Weight	0.45 kg
Dimensions	25 cm x 12 cm x 3 cm
Operating Temp	-30 to +65 deg C
Power Consumption	Logic power supplied via main module; backplane consumes 12 VDC
Module Type	Transient Data Interface (TDI) I/O Module
Ethernet Standards	IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX)
Data Rates	10 Mbps and 100 Mbps (Auto-negotiation supported)
Interface Port	1 x RJ-45 (Supports shielded and unshielded twisted pair)
Cable Support	Category 3, 4, or 5 UTP; Auto-MDIX configuration
Protocols Supported	TCP/IP, proprietary Bently Nevada protocols, Ethernet/IP
Diagnostics	Integrated LEDs for Link Integrity, Network Activity, and Connection Speed
Storage Temperature	-40 to +85 deg C

Machinery Monitoring & Rotor Dynamics Integration

The module is specifically engineered to route high-resolution waveforms captured during transient events such as machine startup, coast-down, or unexpected trip conditions. This raw data stream enables accurate evaluation of rotor dynamics, providing the network bandwidth necessary to transmit orbit plots, Bode plots, and cascade diagrams without latency. To prevent high-frequency digital noise from corrupting delicate sensor lines inside the rack, the circuitry incorporates cross-talk suppression and physical shielding limits that safeguard the processing path from proximity probe signal distortion during continuous 10/100 Mbps data streaming.

Frequently Asked Questions

Q: Can the 146031-01 rear I/O module be hot-swapped while the 3500 rack is powered?

A: No. Unlike the front-plane modules, rear I/O modules must not be removed or inserted while power is applied to the rack backplane. Removing the 146031-01 while energized can cause electrical arcing across the backplane connector pins, potentially corrupting transient data files or damaging the main 3500/22M processor card.

Q: What is the purpose of the Auto-MDIX capability on the RJ45 port?

A: Auto-MDIX automatically detects the pin configuration of the connected network cable. This allows the module to establish a stable connection using either straight-through or crossover Category 5 ethernet cabling without requiring external hardware adapters or custom pinouts.

Field Installation Guidelines

Slot Alignment and Mechanical Fastening: Install the 146031-01 into the rear of the 3500 rack directly opposite the main 3500/22M front module. Slide the board into the chassis card guides carefully until the multi-pin connector seats completely into the backplane. Tighten the two integrated thumb screws to secure the physical grounding path.
Shielding Requirements: Always use shielded twisted-pair (STP) Category 5e or Category 6 cabling for network connections in high-noise industrial settings. Terminate the cable shield at the RJ45 connector housing to ensure continuous earth-ground path routing.
Cable Routing Constraints: Route the ethernet data cable through dedicated low-voltage wire trays. Maintain a minimum physical separation distance from high-voltage motor supply lines and switching relays to prevent electromagnetic interference from triggering network packet drops.
Environmental Limits: Verify that internal cabinet temperatures stay within the designated -30 to +65 deg C operating envelope. Do not block the venting holes of the 3500 rack chassis, as unhindered vertical convection is required to maintain the passive cooling profile of the module components.
