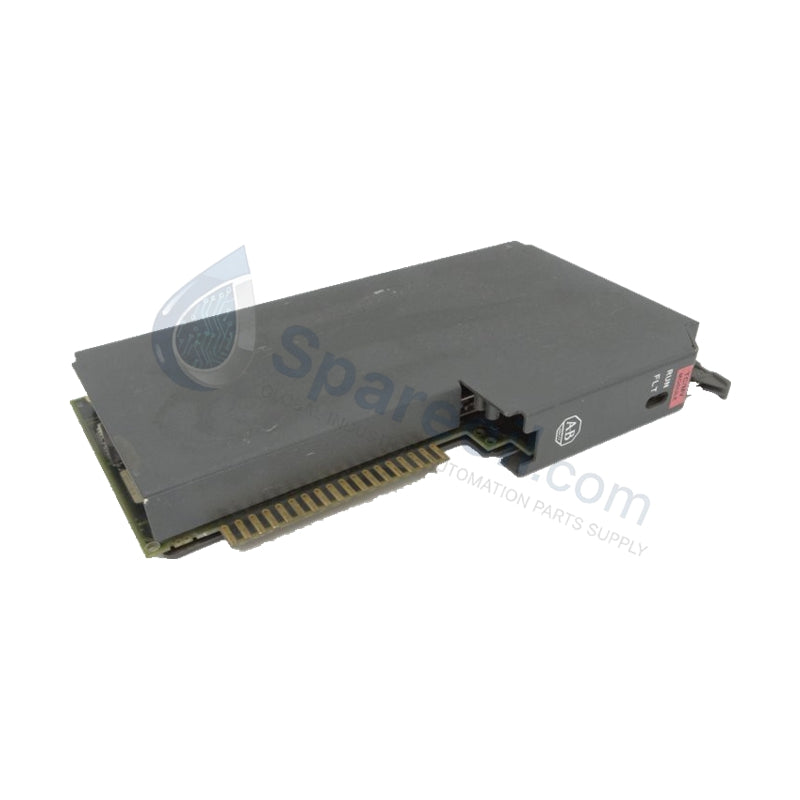

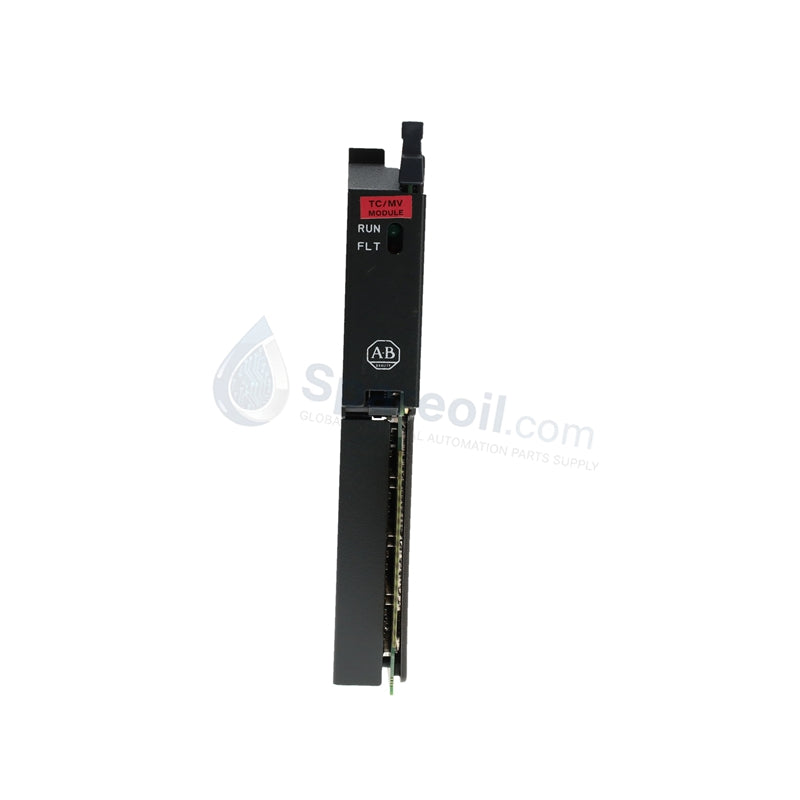

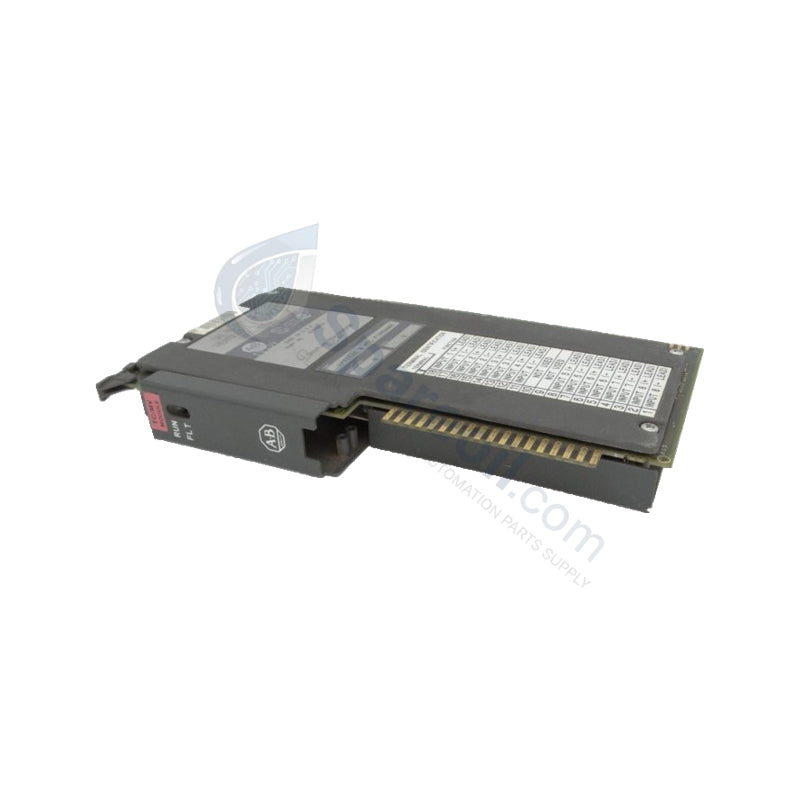

1771-IXE Allen-Bradley Isolated Temperature Input Module

Availability: 20 left in stock

Product Overview The Allen-Bradley 1771-IXE serves as a precision temperature sensing interface for the PLC-5 platform. This high-resolution module converts low-level analog...

SKU: 1771-IXE

Manufacturer: Allen Bradley
Product No.: 1771-IXE
Product Type: Thermocouple Input Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 650g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Allen-Bradley 1771-IXE serves as a precision temperature sensing interface for the PLC-5 platform. This high-resolution module converts low-level analog signals from thermocouples or millivolt sources into digital values for the processor. Featuring 8 floating differential inputs, the 1771-IXE provides the electrical isolation necessary to prevent ground loops in complex industrial heating applications. It utilizes the Block Transfer interface to communicate large data packets efficiently, ensuring accurate temperature tracking across diverse sensor types.

Technical Specifications

We supply this module as 100% Brand New and original, ensuring peak factory calibration and 15-bit plus sign resolution.

Parameter	Specification
Number of Inputs	8 Isolated Floating Differential Channels
Input Types	Thermocouple (E, J, K, T, R, S) or Millivolt
Voltage Range	+/- 99.99 mV (Millivolt mode)
Resolution	15 Bits + Sign; 1 degree C or 1 degree F
Update Rate	50 milliseconds for all 8 channels
Interface Type	Block Transfer (BTR/BTW)
Backplane Current	750 mA at 5V DC
Isolation	Optical Isolation between inputs and backplane
Operating Temp	0 to 60 degrees C (32 to 140 degrees F)
Mounting	1771 Universal I/O Chassis (Rack Mount)

Engineering Advantages

The 1771-IXE eliminates common precision measurement hurdles in heavy industrial environments:

Integrated Auto-Calibration: The module performs automatic offset and gain calibration. This hardware-level feature maintains accuracy over time and temperature fluctuations without requiring manual technician intervention or external calibration gear.
Superior Noise Rejection: Isolated floating differential inputs reject common-mode noise. This allows the module to accurately read small millivolt signals even when thermocouple wires run near high-voltage motor cables or in electrically "noisy" environments.
Mixed Sensor Flexibility: The hardware supports "4 and 4" configurations, allowing engineers to monitor two different thermocouple types (e.g., Type K and Type J) on a single module. This versatility maximizes slot utilization in small 1771-A1B or 1771-A2B chassis.
High-Speed Throughput: A 50ms update rate for all 8 channels ensures the PLC-5 processor reacts instantly to thermal spikes. This responsiveness proves critical for high-speed furnace control or chemical reaction monitoring where thermal lag must be minimized.

FAQs

Does the 1771-IXE require an external power supply for the field sensors?

No. The module draws its entire 750 mA operating current directly from the 1771 chassis backplane. It does not require an external power source to process the thermocouple or millivolt signals.

Can I mix Millivolt and Thermocouple inputs on the same module?

Yes. You can configure the inputs as 8 channels of the same type or split them into two groups of 4. This allows you to monitor 4 thermocouples and 4 millivolt pressure transducers on a single 1771-IXE card.

How does the module handle a broken thermocouple wire?

The 1771-IXE includes open-circuit detection. When the module detects a broken wire or lost signal, it reports a specific error bit to the PLC-5 processor via the Block Transfer Read (BTR) file, allowing the logic to trigger a safe shutdown or alarm.

What wiring arm is required for the 1771-IXE?

This module typically utilizes the 1771-WG or 1771-WH wiring arms. Always ensure tight terminations and use proper thermocouple extension wire to prevent cold-junction compensation errors at the terminal block.
