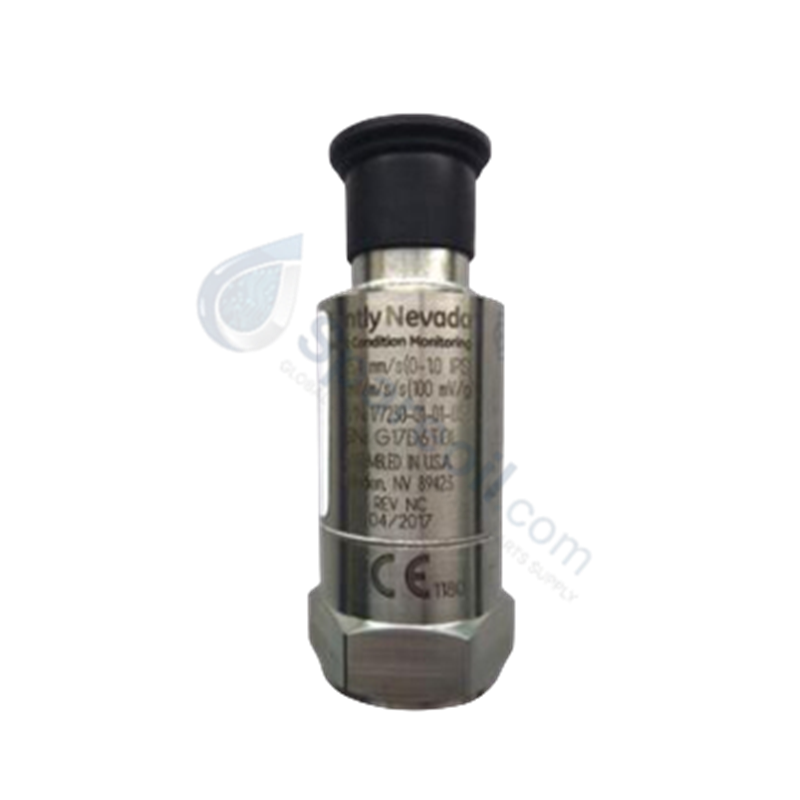

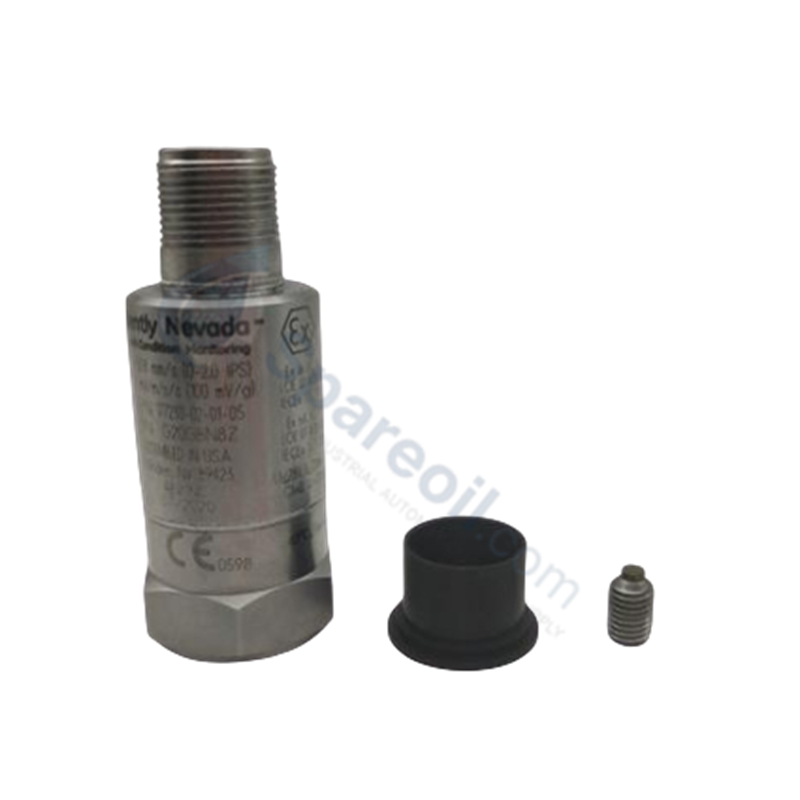

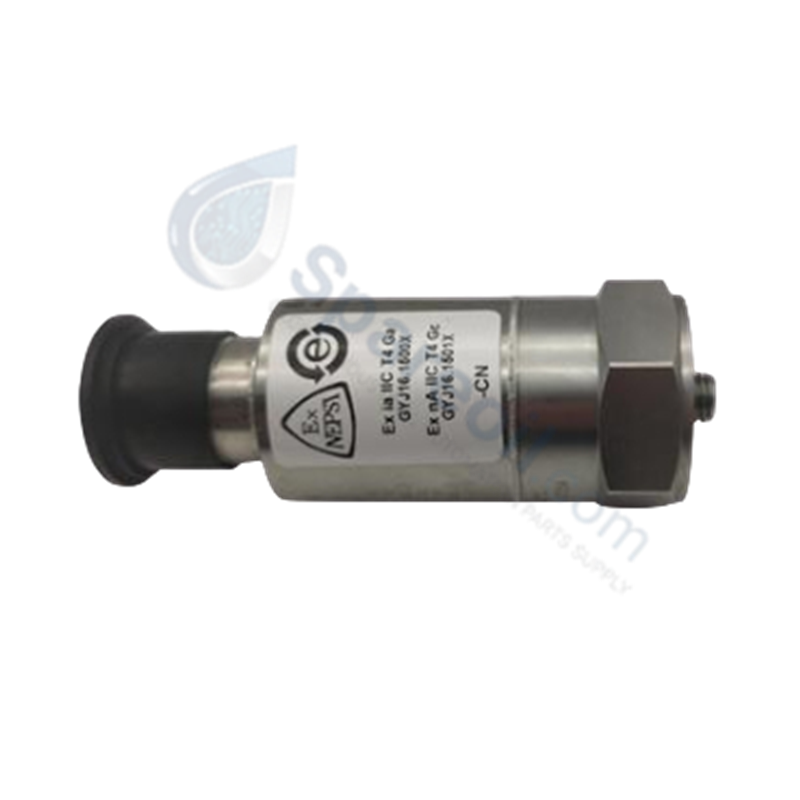

The Bently Nevada 177230-00-01-05, also cataloged as the 177230 Seismic Transmitter, operates as a dedicated hardware component for continuous machinery casing vibration measurement within 3500 TSI and DCS interface monitoring networks. The loop-powered transmitter converts dynamic casing movement into a standardized proportional 4-20 mA current output across a 10 Hz to 1 kHz frequency band.

Suffix Breakdown & Model Matrix

Suffix Component Option Code Description
Measurement Range Option 00 0 to 12.7 mm/s (0 to 0.5 in/s) velocity RMS
Frequency Response Option 01 10 Hz to 1 kHz (600 to 60,000 cpm) RMS
Approvals Option 05 Multiple Approvals (CSA/NRTL/C, ATEX/IECEx)

Hardware Specifications

Parameter Specification
Model 177230-00-01-05
Brand Bently Nevada
Origin USA
Weight Standard seismic housing weight
Dimensions Cylindrical stainless steel housing
Operating Temp -40 deg C to +85 deg C
Power Consumption Loop-powered (2-wire 4-20 mA loop interface)
Measurement Range 0 to 12.7 mm/s (0 to 0.5 in/s) RMS
Frequency Response 10 Hz to 1 kHz (600 to 60,000 cpm) RMS
Hazardous Area Approvals CSA/NRTL/C, ATEX/IECEx multiple approvals

Machinery Monitoring and TSI Integration

The 177230 seismic transmitter integrates directly with control systems to process structural casing dynamic motion into continuous loop signals for asset health tracking. The internal sensor circuitry maintains calibrated velocity scaling to detect subtle changes in rotor dynamics down to the 10 Hz lower frequency threshold.

During installation and field startup, routing signal lines through dedicated conduits maintains cross-talk suppression and prevents electromagnetic interference. The 4-20 mA output provides direct compatibility with PLC and DCS analog input cards without requiring external signal conditioning modules.

Frequently Asked Questions

Q: What power interface is required for the 177230-00-01-05 transmitter?

A: The device operates as a 2-wire loop-powered transmitter, drawing operating power directly from a nominal 24 VDC instrument loop.

Q: What hazardous area certifications apply to the 05 approval option?

A: Option 05 covers Multiple Approvals, incorporating CSA/NRTL/C and ATEX/IECEx certifications for installation in classified hazardous environments.

Q: What measurement parameter does option 00 represent?

A: Option 00 specifies a full-scale velocity measurement range of 0 to 12.7 mm/s (0 to 0.5 in/s) RMS.

Field Installation Guidelines

  • Thread the transmitter body directly onto the tapped casing surface or mounting stud, torquing to specification to achieve solid mechanical coupling.
  • Inspect the terminal interface seal before securing the interconnect cable to prevent moisture ingress in outdoor locations.
  • Route signal leads through grounded metallic conduit, keeping field transmitter wiring separated from high-voltage AC lines.
  • Connect the cable shield to the system ground at the monitoring panel while keeping the shield isolated at the sensor body to avoid ground loops.
  • Verify 4-20 mA loop continuity across the full scale prior to configuring alarm trip points in the control system.
