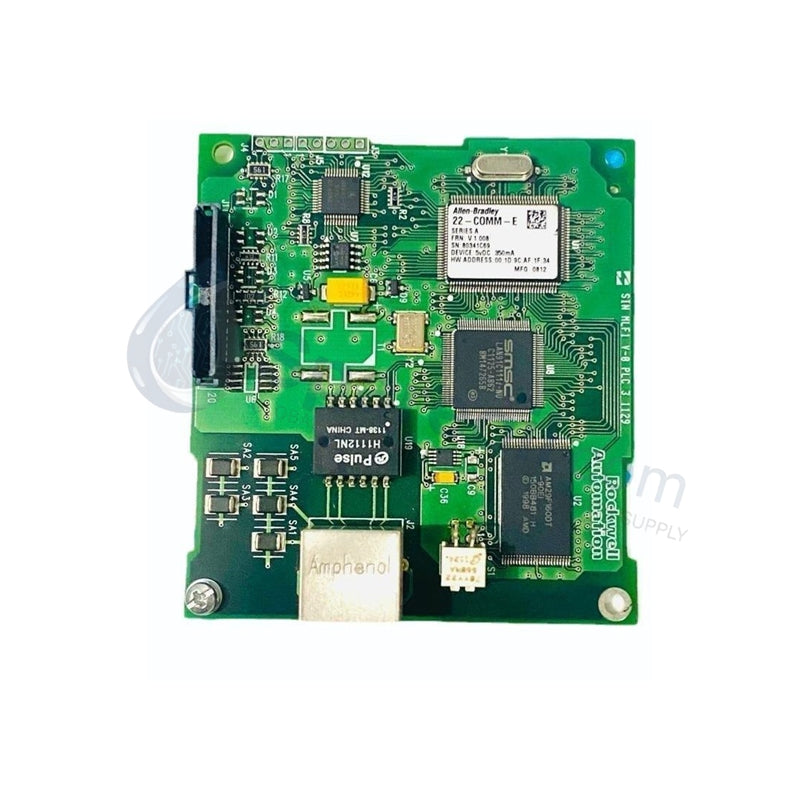

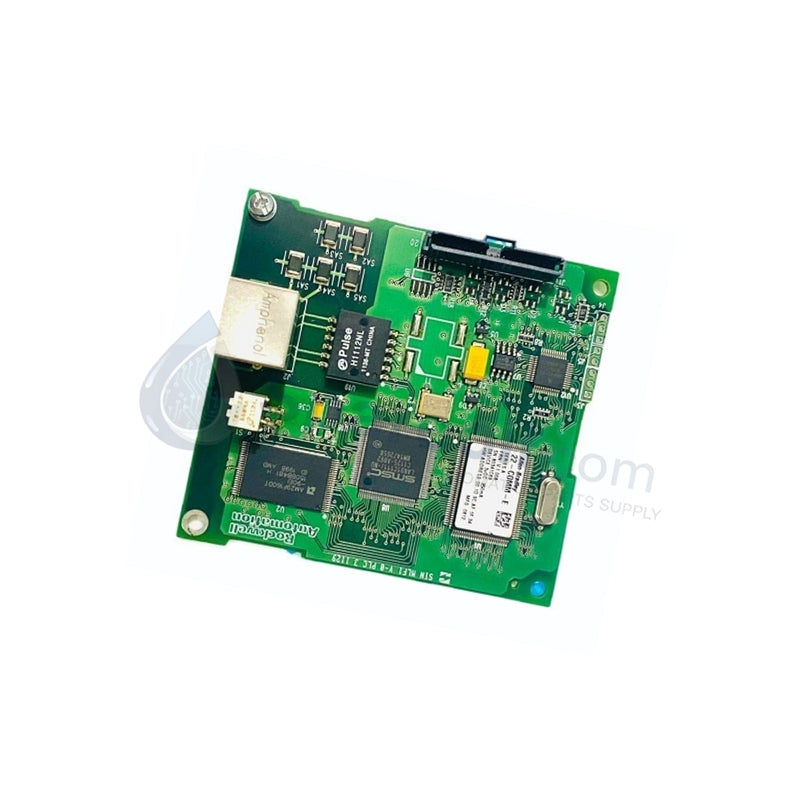

22-COMM-E Allen-Bradley EtherNet/IP Adapter Module

22-COMM-E Allen-Bradley EtherNet/IP Adapter Module | New & Original Stock

Availability: 20 left in stock

Allen-Bradley 22-COMM-E PowerFlex 4-Class Options Configured for Control, Monitoring, and Diagnostics over Ethernet networks, the Allen-Bradley 22-COMM-E, also cataloged as...

SKU: 22-COMM-E

Manufacturer: Allen Bradley
Product No.: 22-COMM-E
Product Type: Communication Adapters
Product Origin: USA
Payment:T/T, Western Union
Weight: 250g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Allen-Bradley 22-COMM-E PowerFlex 4-Class Options

Configured for Control, Monitoring, and Diagnostics over Ethernet networks, the Allen-Bradley 22-COMM-E, also cataloged as the 22-COMM-E EtherNet/IP Communication Adapter, provides direct physical/electrical execution for bridging RS485 data paths to EtherNet/IP communication channels.

Hardware Specifications

Parameter	Specification
Model	22-COMM-E
Brand	Allen-Bradley
Origin	USA
Weight	0.11 lbs (0.25 kg)
Dimensions	90 x 45 x 80 mm
Operating Temp	0 to 60 deg C
Power Consumption	24 VDC, approx. 2 W typical
Supported Protocols	EtherNet/IP, Modbus TCP (via bridging)
Network Interface	1 x RJ45 (Ethernet)
Data Rate	10/100 Mbps, Full/Half Duplex, auto-negotiation
IP Addressing	BOOTP/DHCP or manual configuration
Connection Type	RS485 to EtherNet/IP
Operation Type	Single or Multi-Drive modes
Drive Nodes	Single Node architecture
Compatible Drives	PowerFlex 4, 40, 40M, 40P, 400
Isolation Voltage	1500 V RMS
Mounting Style	Internal Mount
Indicators	LED status indicators (Power, Link, Activity, Fault)

Industrial Control & Drive Integration

The 22-COMM-E utilizes dedicated internal bus interfaces to synchronize data transmission with PowerFlex 4-Class internal hardware architectures. The module depends on precise firmware flash compatibility across both the hosting drive processor and the central industrial controller to handle explicit and implicit messaging structures. This interface achieves fast data processing metrics across Profinet / EtherNet/IP deterministic networks, sustaining low communication latencies and reliable I/O density scaling during multi-drive network mapping configurations.

Frequently Asked Questions

Q: How is the physical internal configuration modified when switching from Single to Multi-Drive mode?

A: The configuration mode must be assigned through internal drive parameters via the Human Interface Module (HIM) or software utilities before commissioning. Multi-Drive mode allows one 22-COMM-E adapter to interface with multiple adjacent drives using internal RS485 sequencing protocols, operating under a single IP address node allocation.

Q: What are the restrictions regarding the 1500 V RMS isolation voltage limit?

A: The 1500 V RMS threshold defines the continuous galvanic and transient isolation barrier between the RJ45 network interface and the internal drive circuitry. Exceeding this electrical limit can rupture the internal logic components, causing localized communication loop failures and diagnostic fault errors.

Field Installation Guidelines

Internal Mechanical Mounting: Power down the hosting PowerFlex drive completely and verify that the internal DC bus capacitors have discharged fully before removing the cover. Secure the adapter into its designated slot inside the drive casing using the provided mounting rails.
Network Wiring Setup: Connect the category-grade Ethernet cable to the RJ45 port. Avoid routing network infrastructure wires parallel to high-voltage motor output lines or high-frequency power cables to reduce signal crosstalk.
IP Configuration Routines: Utilize the BOOTP/DHCP network utility or manual configuration options to allocate a persistent IP address to the module. Ensure the subnet mask matches the main control architecture to enable proper communication mapping via RSLogix 5000 or Studio 5000 environments.
