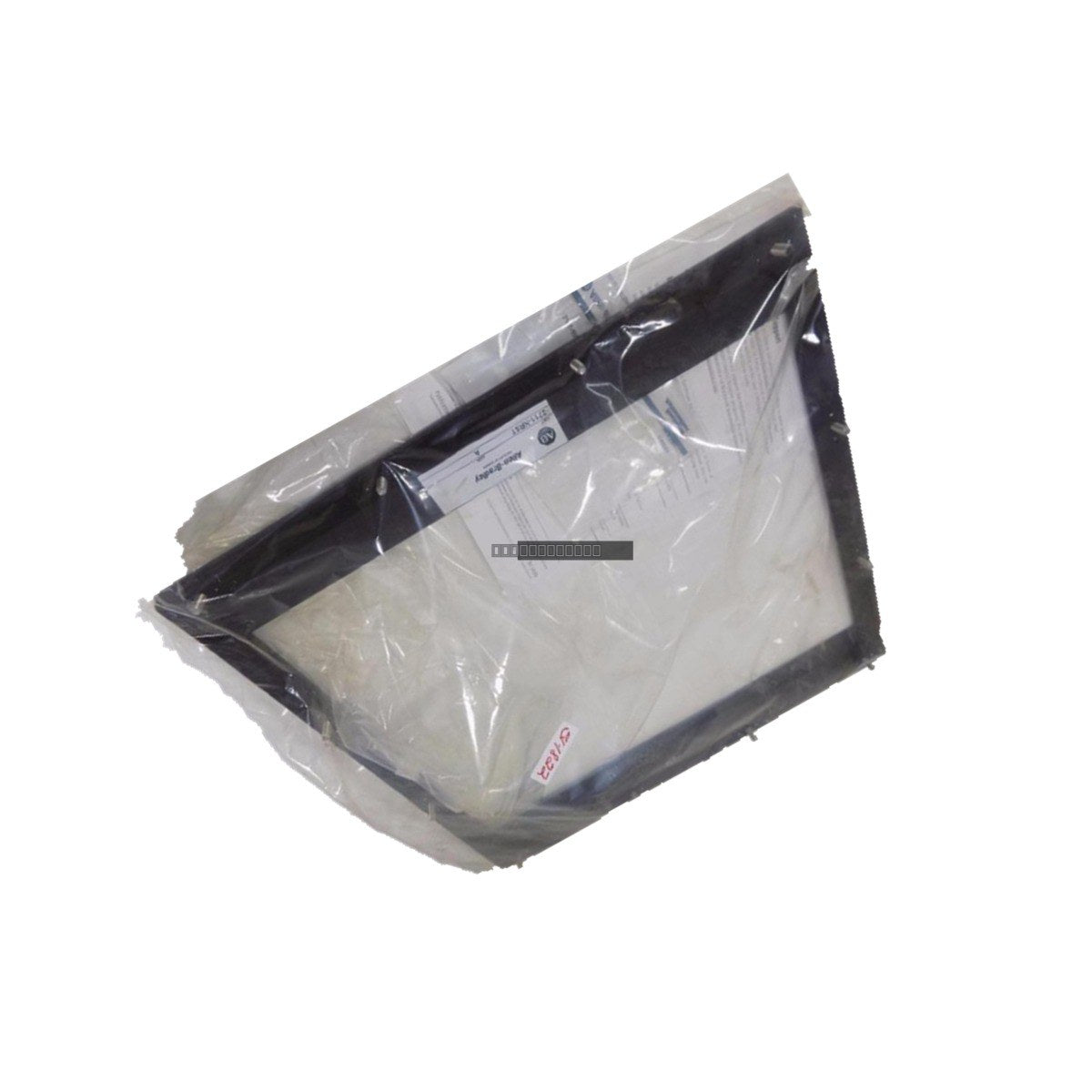

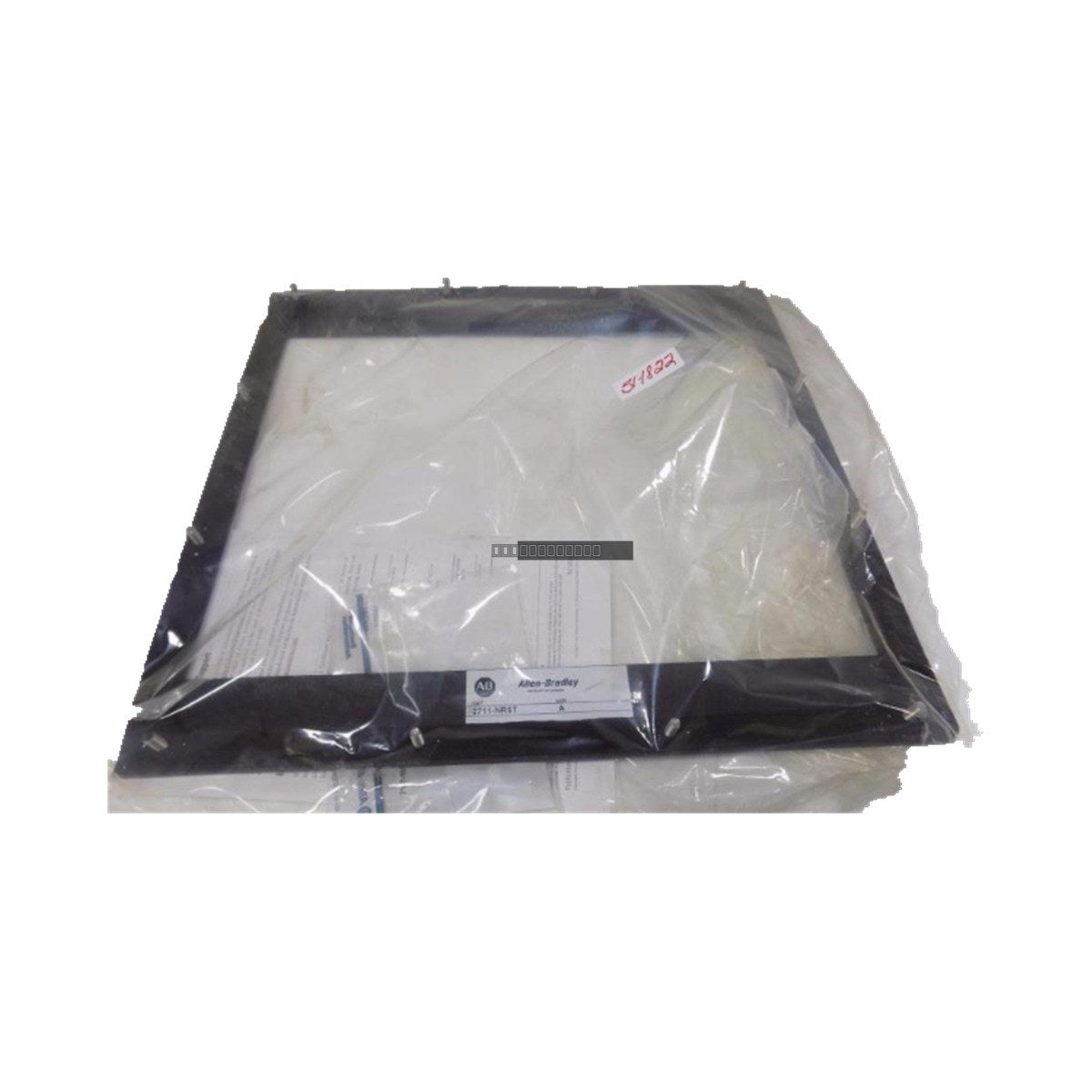

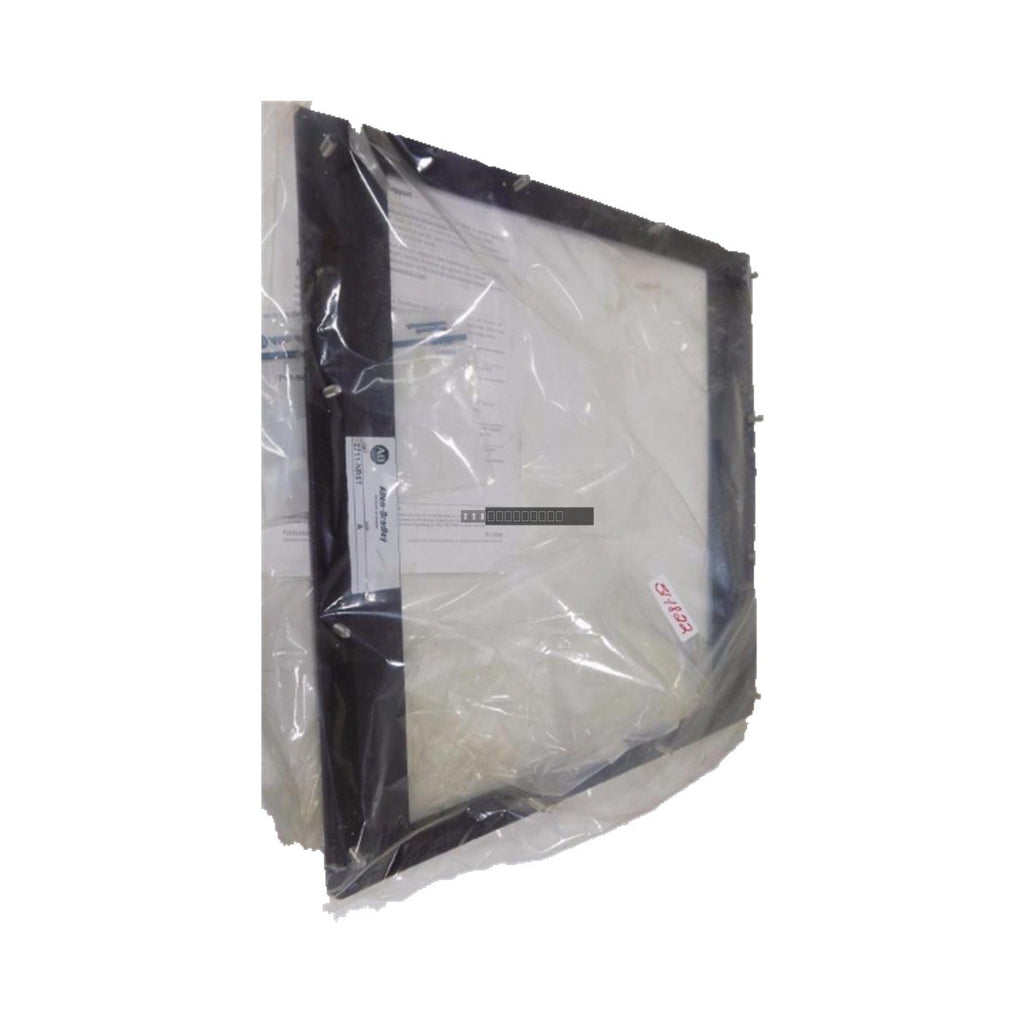

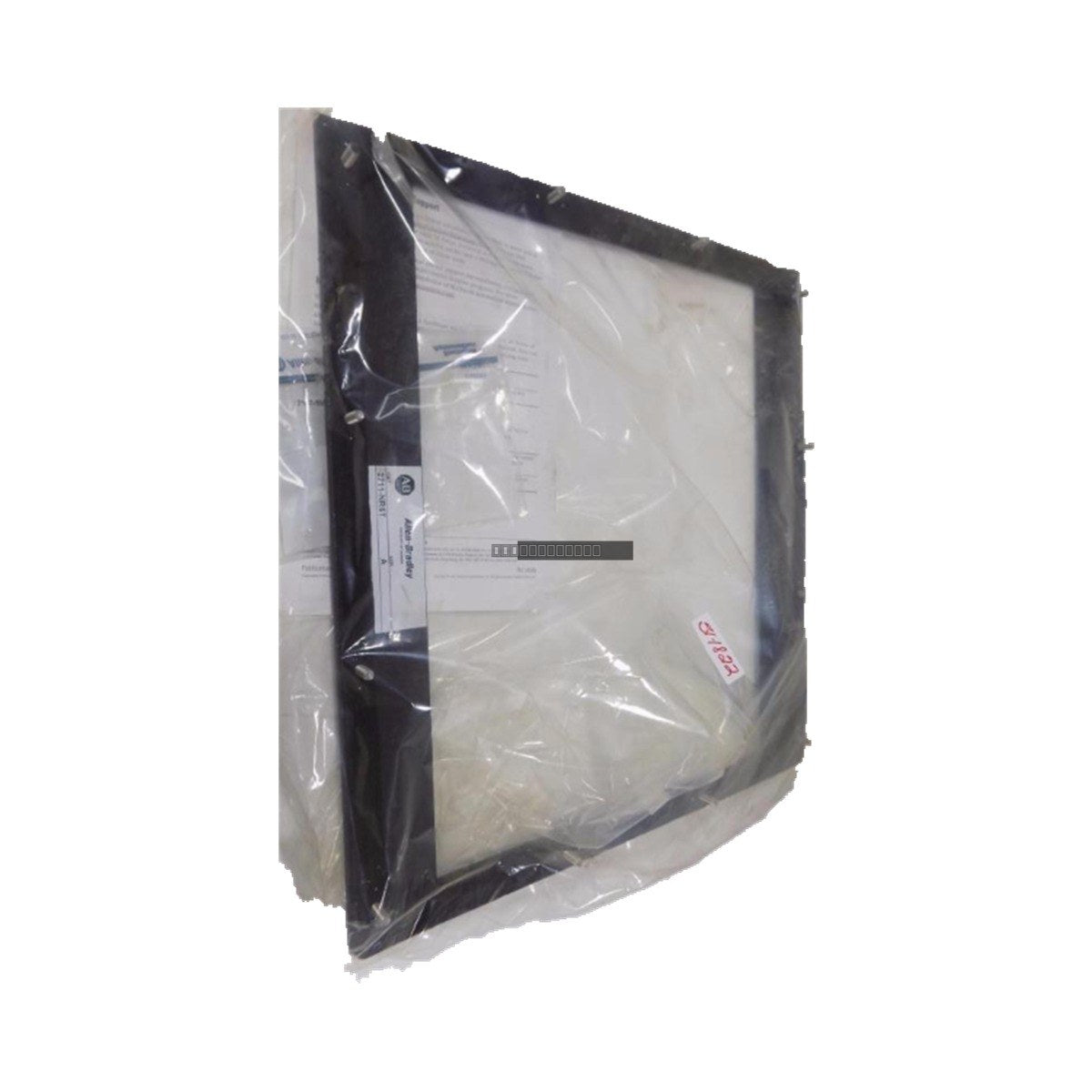

Allen-Bradley 2711-NR5K PanelView Keypad Terminal Cutout

Availability: 10 left in stock

DescriptionThe Allen-Bradley 2711-NR5K is a specialized keypad terminal cutout designed for the PanelView 1200 series. This mechanical component acts as...

SKU: 2711-NR5K

Manufacturer: Allen-Bradley
Product No.: 2711-NR5K
Product Type: HMI Mounting Accessory
Product Origin: USA
Payment:T/T, Western Union
Weight: 1160g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Allen-Bradley 2711-NR5K is a specialized keypad terminal cutout designed for the PanelView 1200 series. This mechanical component acts as a mounting adapter, facilitating the secure integration of keypad operator interfaces into industrial control panels. It is engineered to maintain precise physical alignment and structural integrity, minimizing the need for frequent maintenance in demanding operational environments.

Features

Designed specifically for PanelView 1200 terminal compatibility.
Robust panel-mount configuration for mechanical stability.
Engineered for high resistance to physical stress, including vibration and shock.
Rated for Severity Level G3 airborne contaminants, suitable for corrosive industrial atmospheres.
Passive mechanical construction requiring no electrical power.

Technical Specifications

Model	2711-NR5K
Brand	Allen-Bradley / Rockwell Automation
Operating Temperature	0 to 55 deg C (non-condensing)
Storage Temperature	-20 to 70 deg C (non-condensing)
Humidity Tolerance	5% to 95% relative humidity (non-condensing)
Vibration Resistance	Up to 2 G
Shock Resistance	15 to 30 G
Operating Altitude	Up to 2,000 meters
Contaminant Rating	Severity Level G3

Installation Guidelines

Ensure the panel cutout dimensions match the specific requirements for the PanelView 1200 terminal to ensure a proper seal and fit.
Verify that the mounting surface is clean, flat, and free of debris before installation to maintain the integrity of the panel seal.
Use appropriate hardware to secure the unit, ensuring even pressure is applied across the mounting frame to prevent warping.
While the unit is designed for harsh environments, ensure it is not installed in locations exceeding the specified operating temperature or altitude ranges.
Regularly inspect the mounting hardware for signs of loosening due to vibration in the surrounding industrial equipment.

FAQ

What is the primary function of the 2711-NR5K?

The 2711-NR5K is a mechanical adapter cutout used to securely mount and align PanelView 1200 keypad terminals within an industrial enclosure.

Does this unit require any electrical connections?

No, the 2711-NR5K is a passive mechanical component and does not require power or electrical wiring.

What does the Severity Level G3 rating mean?

The G3 rating indicates that the component is tested to withstand exposure to harsh, corrosive airborne contaminants, making it suitable for use in challenging industrial process control environments.
