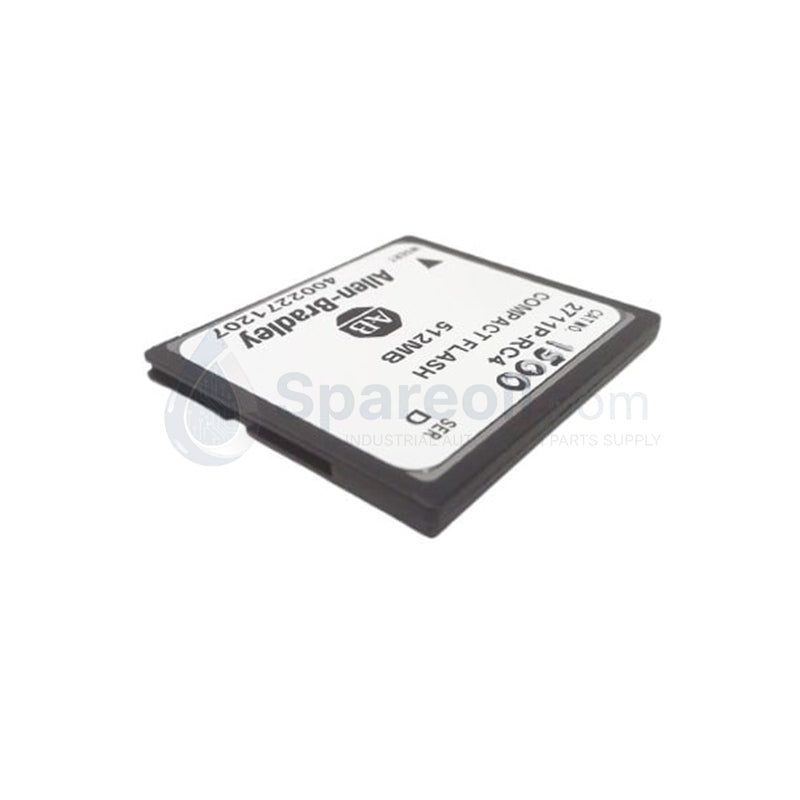

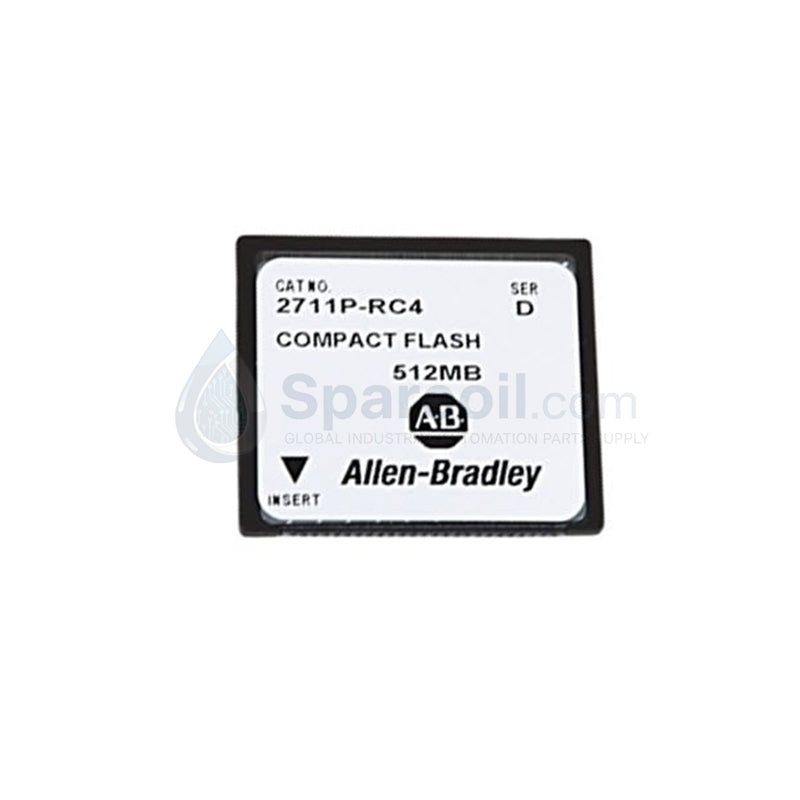

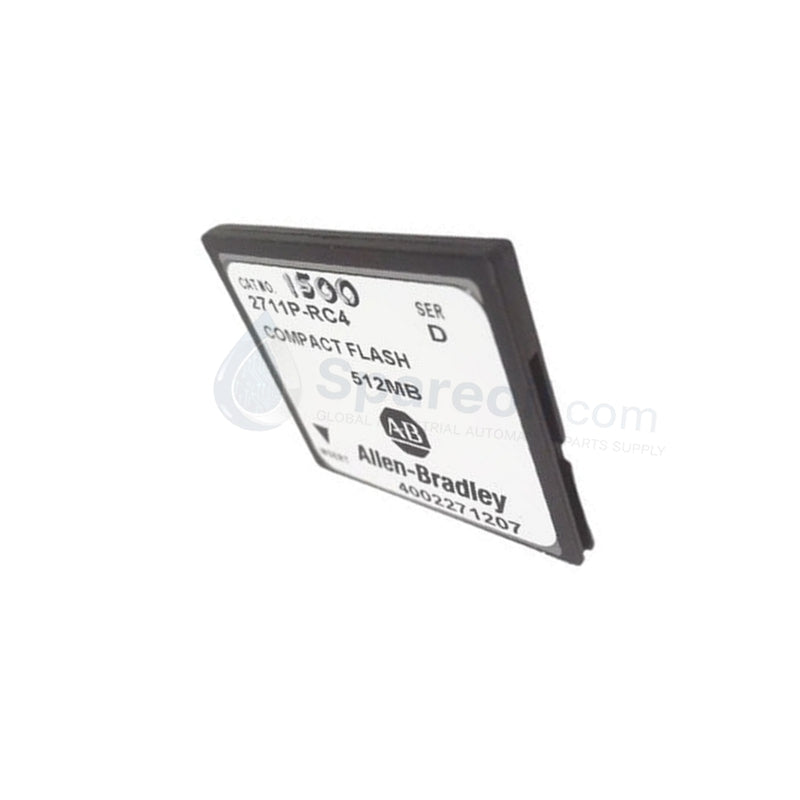

2711P-RC4 New Allen-Bradley PanelView Plus External Memory Card

Availability: 20 left in stock

Product Overview The Allen-Bradley 2711P-RC4 functions as an external CompactFlash (CF) card reader expansion module for the PanelView Plus and...

SKU: 2711P-RC4

Manufacturer: Allen Bradley
Product No.: 2711P-RC4
Product Type: PanelView Plus Components
Product Origin: USA
Payment:T/T, Western Union
Weight: 9g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Allen-Bradley 2711P-RC4 functions as an external CompactFlash (CF) card reader expansion module for the PanelView Plus and PanelView Plus CE operator interface families. This hardware module attaches directly to the rear expansion slot of PanelView Plus 700, 1000, 1250, and 1500 graphic terminals, instantly providing a secure, accessible CF Type I media slot. By establishing an external memory pathway, this module allows system integrators and maintenance personnel to deploy machine runtime applications, transfer critical system data, extract historic trend logs, and flash firmware without unmounting the display terminal or breaching the electrical control enclosure.

We supply this product exclusively as a 100% Brand New, original factory unit in its native factory packing. This pristine hardware guarantees flawless backplane pin alignment, clean contact paths, and absolute physical compatibility with Windows CE-based HMI terminal backplates.

Technical Specifications

Parameter	Specification Data
Manufacturer	Allen-Bradley / Rockwell Automation
Product Line	PanelView Plus / PanelView Plus CE Accessories
Model Number	1711P-RC4
Series Revision	Series D (and fully compatible variants)
Condition	100% Brand New Original Factory Sealed
Product Type	External CompactFlash Card Reader Module
Interface Slot Type	CompactFlash (CF) Type I
Included Memory Size	512 Megabytes (512 MB)
Supported Media Range	32 Megabytes to 2 Gigabytes industrial flash cards
Hot-Swap Functionality	Fully supports card insertion and removal while energized
Primary Data Functions	.MER runtime loading, data logging, recipes, firmware
Terminal Compatibility	PanelView Plus 700, 1000, 1250, and 1500 units
Operating System Base	Windows CE platform architectures
Power Consumption Source	Draws current directly from the host HMI backplane
Mounting Style	Rear-mounted with tool-less snap latch retention
Operating Temperature	0 to 55 degrees Celsius (32 to 131 degrees Fahrenheit)
Storage Temperature Matrix	-40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit)
Relative Environmental Humidity	5 to 95 percent non-condensing
Physical Component Weight	0.02 lbs (9 grams)
Regulatory Certifications	UL, CE, CSA (when mated with host terminal)

Engineering Advantages

Eliminate Enclosure Breach Risks During File Transfers: Opening live high-voltage electrical cabinets to insert memory cards violates arc-flash safety protocols and compromises IP/NEMA dust seals. The 2711P-RC4 extends the storage slot interface directly to the accessible rear perimeter of the terminal framework, allowing field technicians to swap application cards safely while the cabinet doors remain bolted shut.
Accelerate Mass HMI Commissioning via Hot-Swap Cloning: Setting up dozens of identical operator workstations manually creates massive deployment bottlenecks. This card reader supports full hot-swap capability, which enables machine builders to insert a pre-loaded 512MB card, execute a rapid machine clone or firmware upgrade script, pull the card out without cycling power, and move directly to the next HMI station.
Expand Local Storage Capacity for Heavy Data Logging: Internal human-machine interface memory chips saturate quickly when tracking high-resolution analog alarm curves and complex manufacturing recipes. The 2711P-RC4 accommodates industrial-grade CF memory blocks up to 2GB, providing a dedicated, high-capacity repository for local CSV log generation without draining the active runtime memory cache.
Ensure Vibration-Proof Mounting via Tool-Less Latches: Heavy production machinery subjects control panel doors to constant high-frequency vibration, which easily unseats poorly secured expansion components. This module features a rugged, custom-engineered snap-latch mechanism that locks firmly onto the PanelView chassis body without requiring separate mounting screws or specialty field tools.

FAQs

Can I use standard commercial-grade CompactFlash cards inside the 2711P-RC4 slot?

While the 2711P-RC4 physically accommodates standard CF Type I sizes, you should restrict field usage to industrial-grade SLC (Single-Level Cell) CompactFlash cards. Consumer-grade cards utilize MLC or TLC flash layers that degrade rapidly under harsh thermal fluctuations and frequent write cycles, which can cause permanent data logging drops or corrupted runtime boot cycles.
Does this reader module require a separate power supply connection inside the cabinet?

No. The 2711P-RC4 functions as a completely passive, bus-powered add-on card. It draws its required low-voltage operating current directly through the host PanelView Plus expansion backplane interface, eliminating the need to route separate external power lines or fuse holders to the module body.
Which specific PanelView firmware versions recognize this expansion hardware?

The module interfaces seamlessly with all standard Rockwell Windows CE-based PanelView Plus and PanelView Plus CE platforms ranging from size profiles 700 through 1500. The FactoryTalk View ME runtime operating system recognizes the external storage path automatically as "\Storage Card2" during file location setup loops.
