32-Channel FLEX I/O Base | 1794-TB32 New Allen-Bradley

Availability: 20 left in stock

Product Overview The Allen-Bradley 1794-TB32 establishes the essential physical and electrical foundation for high-density modules within the distributed FLEX I/O...

SKU: 1794-TB32

Manufacturer: Allen Bradley
Product No.: 1794-TB32
Product Type: Distributed Control Systems
Product Origin: USA
Payment:T/T, Western Union
Weight: 600g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

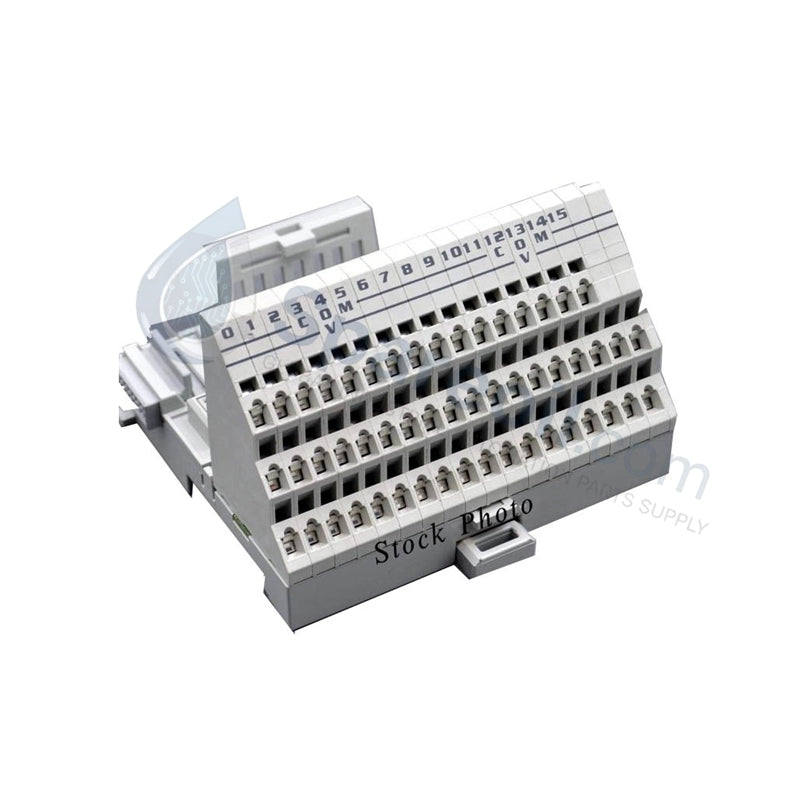

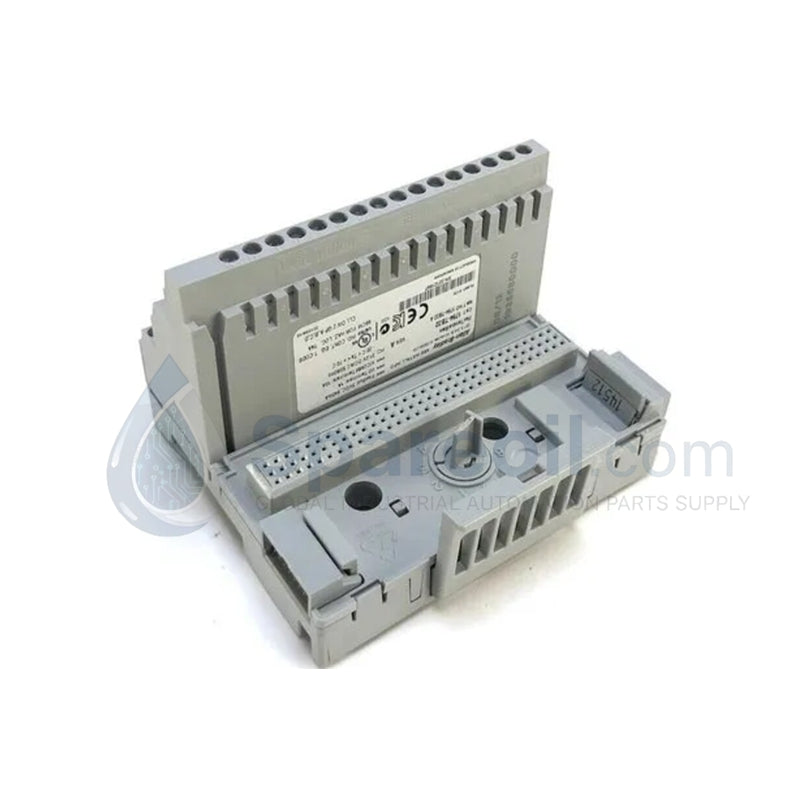

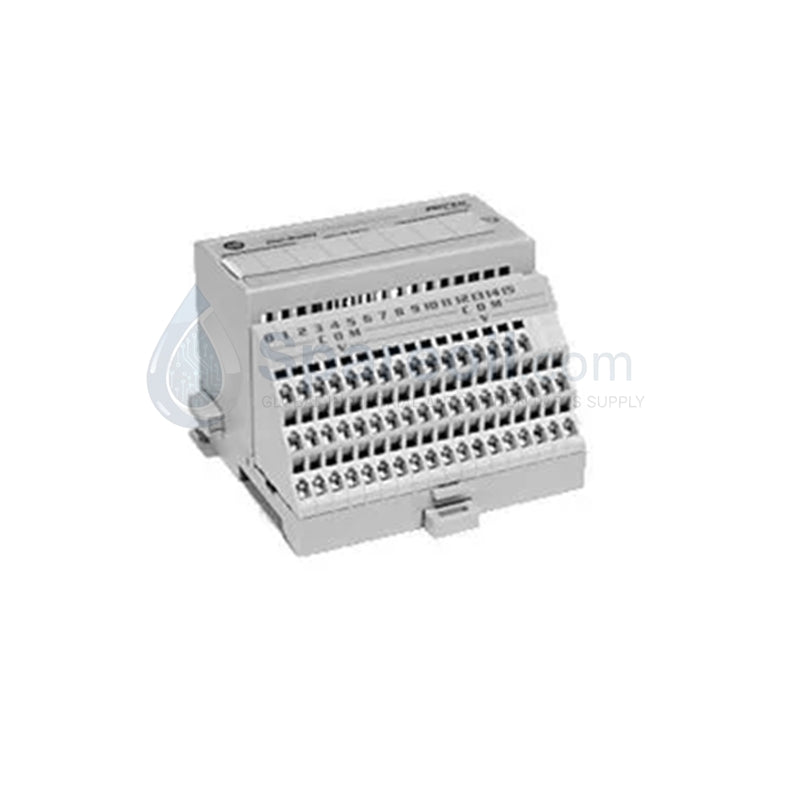

The Allen-Bradley 1794-TB32 establishes the essential physical and electrical foundation for high-density modules within the distributed FLEX I/O architecture. This 32-point terminal base combines internal system-side communication bus connections with rugged screw-clamp termination blocks for external field wiring. By supporting 32 distinct termination points, this component allows direct interfacing with high-channel-count digital modules and multi-channel analog devices within a single slot footprint. This 100% brand new, factory-original terminal base mounts directly to standard DIN rails, forming decentralized machine automation and process control panel nodes that drastically compress bulk cable runs.

Technical Specifications

Parameter	Specification Value
Manufacturer	Allen-Bradley / Rockwell Automation
Product Line	FLEX I/O 1794 Series
Model Number	1794-TB32
Product Type	32-Point Terminal Base Unit
Terminal Structure	32 Screw-Clamp Terminals
Wiring Type	Screw-Type Field Wiring
Conductor Size Support	0.34 to 2.5 square millimeters (22 to 14 AWG)
Voltage Rating	Matches the installed FLEX I/O module profile
Current Rating	Determined by the connected functional module
Mounting Style	Standard DIN-Rail Mounting
Module Retention	Integrated snap-lock mechanism and locking latch
Physical Alignment	Built-in mechanical keying slots
Physical Dimensions	94 mm L x 94 mm W x 69 mm H (3.7 x 3.7 x 2.7 inches)
Operating Temperature	0 to 55 degrees Celsius (32 to 131 degrees Fahrenheit)
Storage Temperature	-40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit)
Network Adaptation	Works via EtherNet/IP, ControlNet, DeviceNet, or Profibus
Agency Certifications	UL, CE, CSA, C-Tick, Class I Division 2

Engineering Advantages

Condense Control Panel Footprints: The high-density 32-terminal grid consolidates complex field wiring loops into a standard 94 x 94 mm area. This compact structure replaces multi-tier terminal block assemblies, allowing engineers to shrink overall enclosure dimensions.
Guarantee Long-Term Connection Integrity: Heavy-duty screw-clamps apply constant mechanical pressure to bare or ferruled copper wires ranging from 22 down to 14 AWG. This solid mechanical grip prevents loose connections caused by thermal expansion or high ambient floor vibrations.
Prevent Costly Module Destruction: Molded mechanical keying slots physically block the insertion of incompatible I/O modules into the base. This safeguard ensures that engineers never mismatch high-voltage field wiring with sensitive low-voltage electronic processing cards.
Eliminate System Shutdowns During Maintenance: The two-piece mechanical detachment layer allows true hot-swapping functionality. Technicians unlatch and slide out failed functional cards instantly while leaving the 1794-TB32 base, backplane bus, and field wires undisturbed.
Accelerate Modular Expansion Loops: The terminal base contains integrated internal data and power pass-through rails. Units snap together side-by-side on standard DIN rails to automatically form the internal Flexbus network, eliminating manual point-to-point intermodule communication wiring.

FAQs

Which specific FLEX I/O modules require the 1794-TB32 terminal base?

The 1794-TB32 base primarily supports high-density modules that process up to 32 independent field points, such as 32-channel digital input or output cards. It also accommodates high-density analog arrays where each channel demands dedicated, individual terminal paths for signal routing.
Can I mix solid and stranded wire types across the 32 screw-clamp terminals?

Yes. The robust clamp mechanics handle both solid and stranded copper wiring profiles between 22 and 14 AWG. For environments prone to heavy machine vibration, we recommend using stranded wire paired with crimped bootlace ferrules to ensure stable terminal retention over time.
How can I confirm this terminal base arrives in brand new condition?

We source and ship this item strictly as a 100% brand new, original factory-sealed unit. It features flawless, unused factory screw threads, intact locking latches, and comes in the original Allen-Bradley industrial box with complete serial number tracking stickers.
