330101-00-28-10-02-00 Bently Nevada Proximity Probe

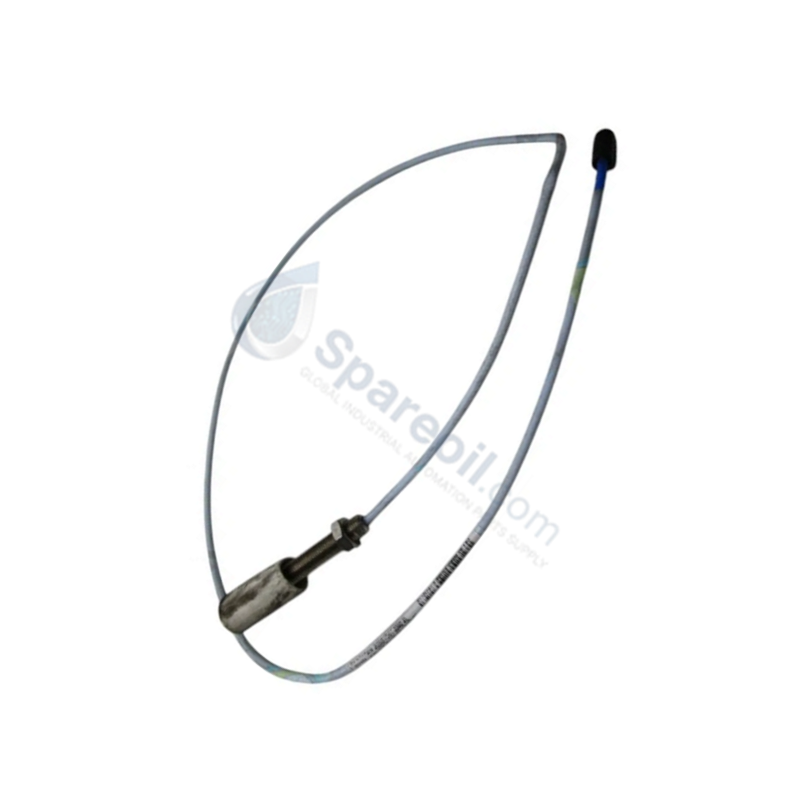

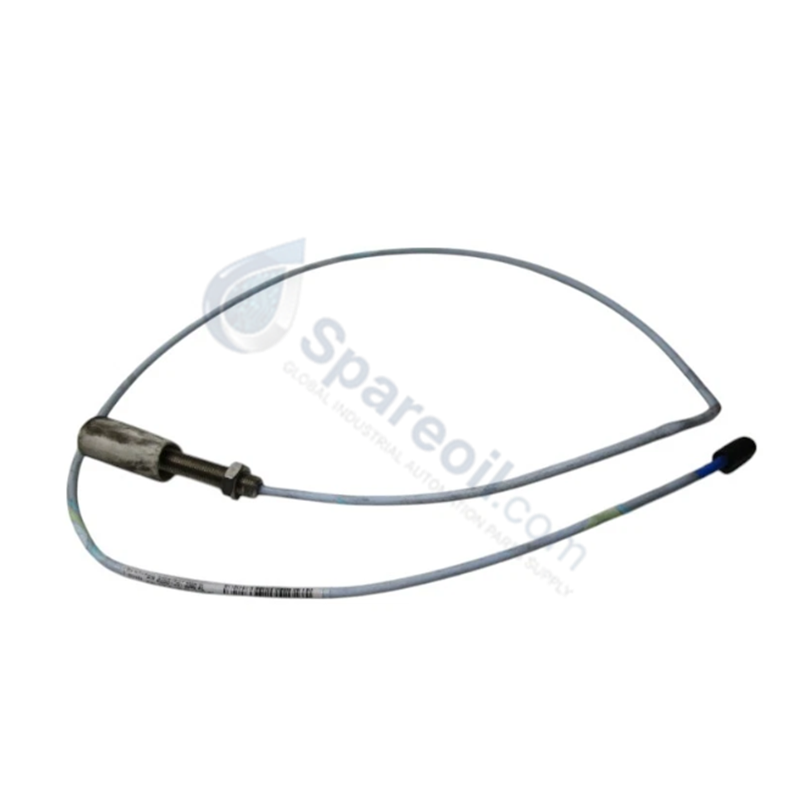

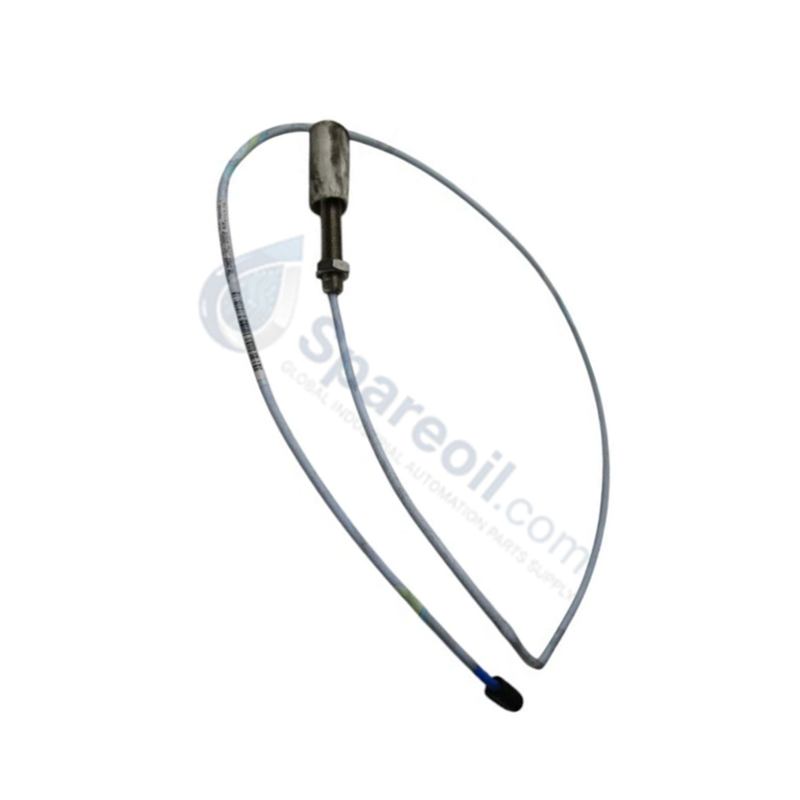

330101-00-28-10-02-00 | Bently Nevada | 3300 XL 8 mm Proximity Probe

330101-00-28-10-02-00 | Bently Nevada | 3300 XL 8 mm Proximity Probe

Availability: 10 left in stock

Configured for displacement measurement in rotating machinery, the Bently Nevada 330101-00-28-10-02-00 (330101 8 mm Proximity Probe) provides direct physical execution...

SKU: 330101-00-28-10-02-00

Manufacturer: Bently Nevada
Product No.: 330101-00-28-10-02-00
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 323g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Configured for displacement measurement in rotating machinery, the Bently Nevada 330101-00-28-10-02-00 (330101 8 mm Proximity Probe) provides direct physical execution of gap-to-voltage conversion for vibration and position monitoring.

Suffix Breakdown & Model Matrix

Option Component	Selection	Description
Model	330101	3300 XL 8 mm Proximity Probe
Unthreaded Length	00	0.0 in
Case Length	28	2.8 in
Total Length	10	1.0 m
Connector Type	02	Miniature coaxial ClickLoc
Agency Approval	00	Not required

Hardware Specifications

Parameter	Specification
Model	330101-00-28-10-02-00
Brand	Bently Nevada
Origin	USA
Weight	0.323 kg
Dimensions	8 mm tip diameter, 2.8 in case length
Operating Temp	-51 deg C to +177 deg C
Power Consumption	Driven by 3300 XL Proximitor Sensor
Probe Tip Material	Polyphenylene sulfide (PPS)

Bently Nevada Mechanical Monitoring and TSI Characteristics

The 330101 probe system utilizes eddy-current probe scaling to convert target distance into a linear voltage signal, standardized at 7.87 V/mm (200 mV/mil). During commissioning, gap voltage validation against -10 VDC targets at the center of the linear range is mandatory to ensure proper operation within the Proximitor sensor's signal envelope. For applications involving multiple sensors, cross-talk suppression must be maintained by ensuring proper probe separation, preventing mutual signal interference. All cabling must utilize shielded coaxial conductors to maintain signal integrity across long distances.

Frequently Asked Questions

Q: Can the 1.0 m cable be shortened or extended in the field?

A: No. The 3300 XL system is a factory-calibrated unit. Altering the cable length changes the system's characteristic impedance and frequency response, which will invalidate the calibration and result in measurement errors.

Q: What is the purpose of the ClickLoc connector in this system?

A: The ClickLoc connector provides a secure, vibration-resistant connection for the coaxial signal path, ensuring constant contact pressure and preventing signal discontinuities caused by mechanical vibration.

Field Installation Guidelines

Ensure the probe mounting bracket is rigid to avoid resonance.
Install the probe perpendicular to the target surface; misalignment exceeding 5 degrees can degrade the linearity of the measurement.
Validate the gap voltage at the Proximitor sensor output during installation to ensure the sensor is operating at the required -10 VDC offset.
Secure the probe using the included jam nuts to prevent movement due to machine vibration.
Ensure the ClickLoc connector is fully engaged until a tactile click is felt, and route the cable to prevent strain on the connection point.
