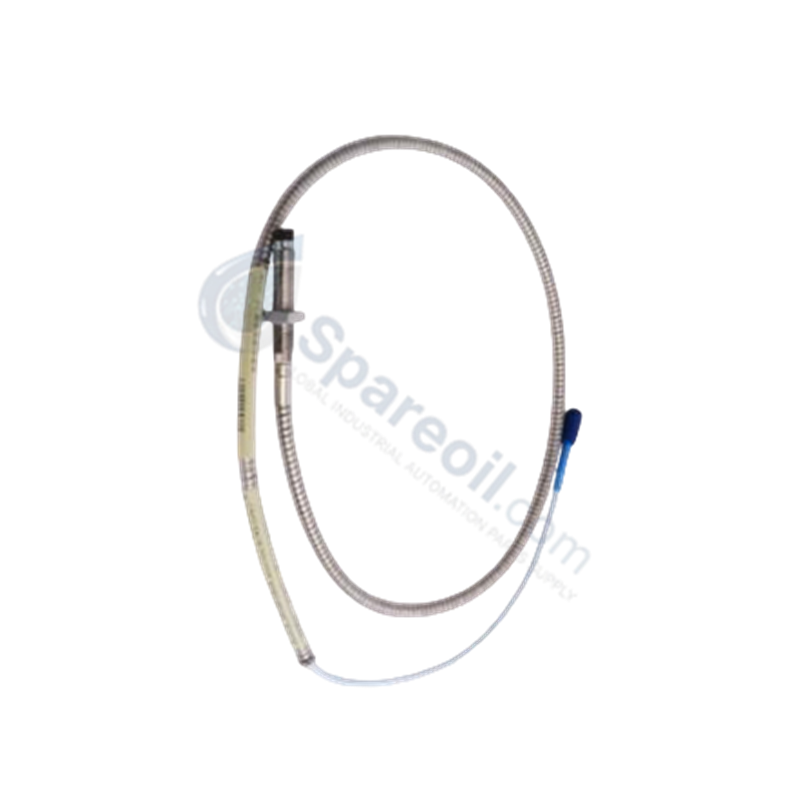

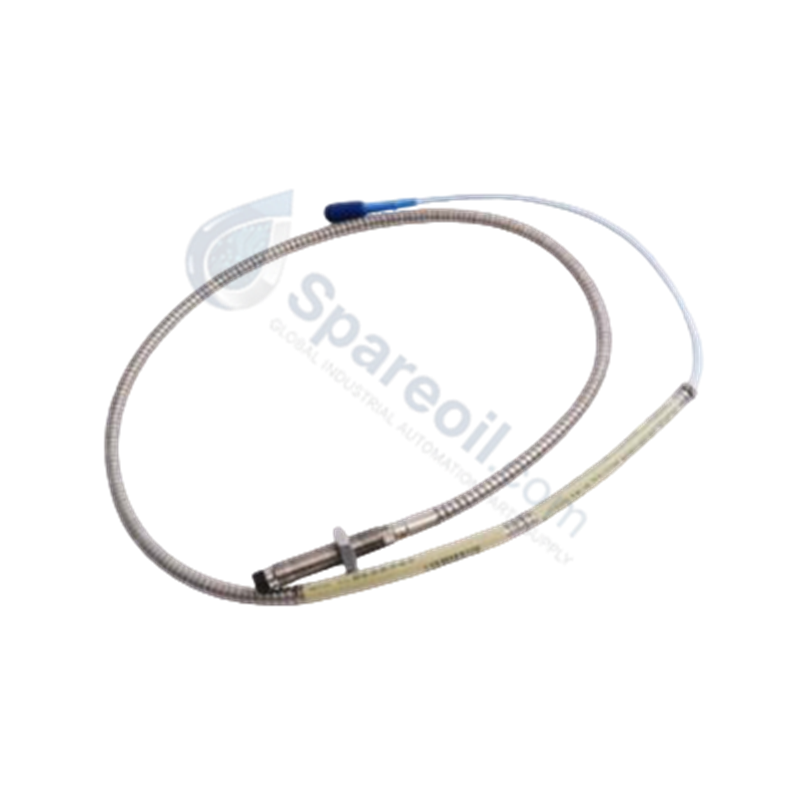

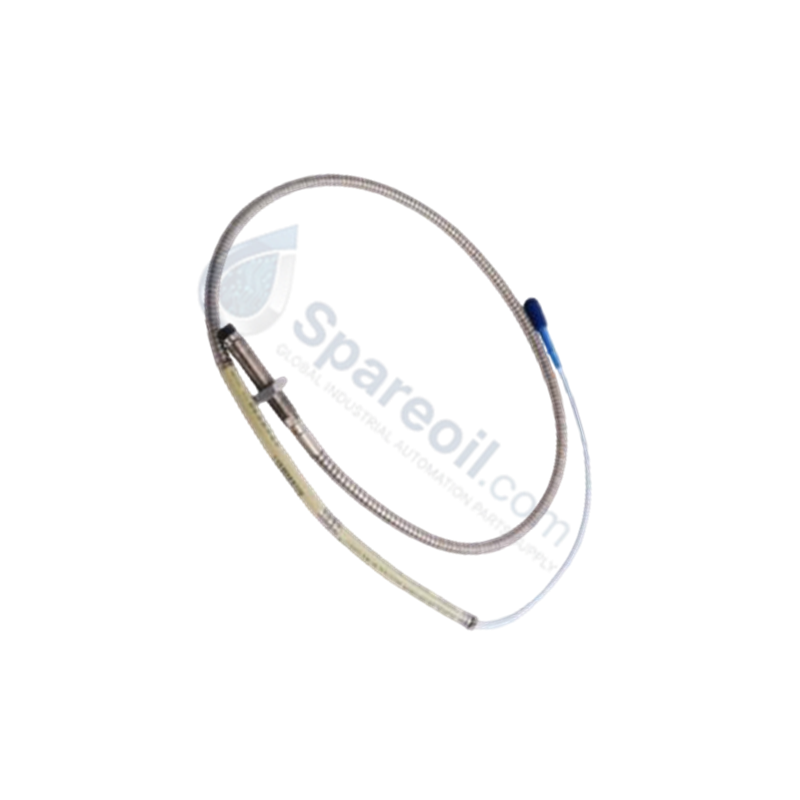

The Bently Nevada 330104-00-07-50-02-00, also cataloged as the 330104 Proximity Probe, operates as a dedicated hardware component for mechanical displacement tracking within 3300 XL Machinery Protection System platforms. The probe translates the physical gap between its tip and a target surface into a proportional radio frequency signal, transmitting the raw voltage variations across its internal coaxial infrastructure to an external Proximitor module.

Suffix Breakdown & Model Matrix

Code Option Category Technical Configuration
330104 Base Model 3300 XL 8 mm Proximity Probe, 3/8-24 UNF thread
00 Unthreaded Length 0 mm
07 Overall Case Length 70 mm
50 Total Length 5.0 meters (16.4 feet)
02 Connector and Cable Type Miniature coaxial ClickLoc connector, standard cable
00 Agency Approval Not required

Hardware Specifications

Parameter Specification
Model 330104-00-07-50-02-00
Brand Bently Nevada
Origin U.S.A.
Probe Tip Diameter 8 mm
Thread Type 3/8-24 UNF
System Total Calibration Length 5.0 meters
Operating Temp -51 to +177 deg C
Power Consumption Passive transducer component (energized via external Proximitor loop)
Dimensions 70 mm case length, 5.0 meters total extension length
Weight Less than 1.0 kg nominal

Gap Voltage Validation (-10 VDC Targets)

Field calibration requires strict verification of gap voltage validation to guarantee linear data acquisition over the sensor's measurement envelope. During technical installation, the mechanical depth of the 330104 probe within its threaded housing must be incrementally altered while evaluating the DC bias voltage at the monitoring interface. Securing a base target position matching a -10 VDC output fixes the component at the physical center of its calibrated range, which optimizes noise rejection, controls unintended channel-to-channel cross-talk suppression, and provides clear tracking of high-frequency rotor dynamics.

Frequently Asked Questions

Q: Can this 5.0-meter probe assembly be modified by adding a separate 4.0-meter extension cable?

A: No. The internal electrical impedance tuning matches a fixed 5.0-meter total loop. Attaching an intermediate extension cable to this specific 5.0-meter probe model will unbalance the circuit and cause false vibration readouts.

Q: What are the limits regarding connector handling for the ClickLoc mechanism?

A: The ClickLoc miniature coaxial connector is designed for hand-tight connection only. Using mechanical pliers or wire tools to tighten the knurled sleeve can crush the internal dielectric core and short the active signal path.

Field Installation Guidelines

  • Mechanical Torque Thresholds: Thread the probe body into its mounting port manually, and secure the locknut using a maximum torque limit of 33.9 N-m (300 in-lb) to prevent housing deformation.
  • Coaxial Minimum Bend Constraints: Route the 5.0-meter standard integrated lead clear of rotating parts, ensuring all installation pathways preserve a minimum mechanical bend radius of 25.4 mm (1.0 inch).
  • Isolation and Shield Isolation: The ClickLoc junction must remain electrically isolated from surrounding steel structures. Grounding loops are mitigated by keeping the terminal connection insulated from the machine casing ground.
